Lexus RX300 (MCU15). Service manual - part 356

DI–656

–

DIAGNOSTICS

REAR LEFT DOOR CONTROL SYSTEM

LEXUS RX300   (RM785E)

INSPECTION PROCEDURE

1

Check door courtesy switch (See page BE–48).

NG

Replace the courtesy switch.

OK

2

Check wireharness and connector between courtesy light and rear left door
ECU, courtesy switch and rear left door ECU.

NG

Repair or replace wireharness or connector.

OK

Proceed to next circuit inspection shown on
problem symptoms table
(See page DI–570).

I03223

P5
Power Window Switch

DOWN

MDN

10

21

22

24

23

L–O

BR–W

Y

Y–G

Y–R

UP

AUTO

PCTO

PWE

AUTO

MUP

Rear Left Door ECU

3

2

4

6

5

R14

R14

R14

R14

R14

–

DIAGNOSTICS

REAR LEFT DOOR CONTROL SYSTEM

DI–657

LEXUS RX300   (RM785E)

Power window switch circuit

CIRCUIT DESCRIPTION

Power window switch circuit can be checked using DTC check. (Refer to DI–708)

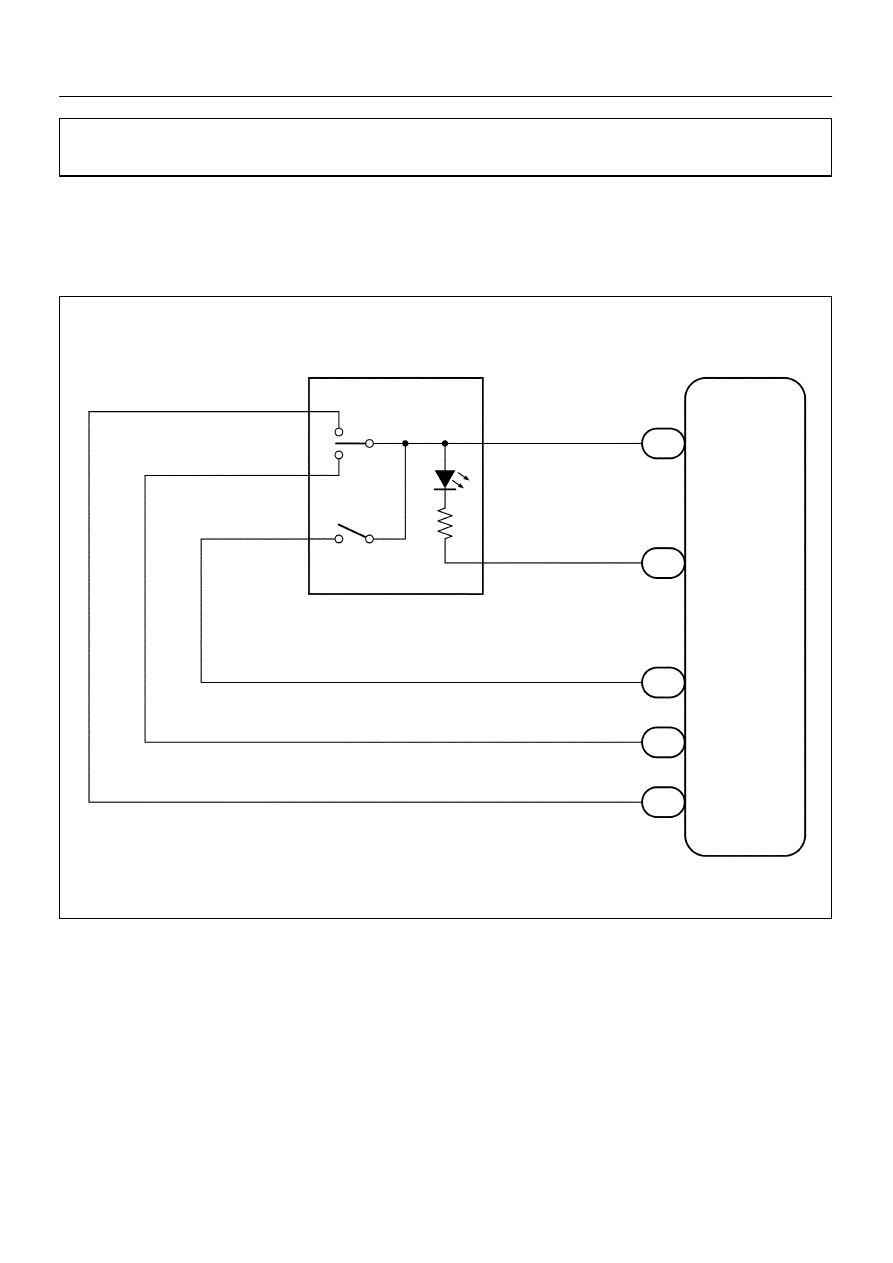

WIRING DIAGRAM

DI2FG–06

DI–658

–

DIAGNOSTICS

REAR LEFT DOOR CONTROL SYSTEM

LEXUS RX300   (RM785E)

INSPECTION PROCEDURE

1

Check the power window switch circuit using DTC check (See page DI–708).

OK

Proceed to next circuit inspection shown on
problem symptoms table (See page DI–647).

OK

2

Check the power window switch (See page BE–84).

NG

Replace the power window switch.

OK

3

Check wireharness and connector between power window switch and rear left
door ECU.

NG

Repair or replace wireharness or connector.

OK

4

Check wireharness and connector between power window switch and power
window master switch.

NG

Repair or replace wireharness or connector.

OK

Proceed to next circuit inspection shown on
problem symptoms table
(See page DI–647).
