Lexus RX300 (MCU15). Service manual - part 277

H01023

AB0119
H01078

H02144
H10600

H10613

P Squib

Airbag
Sensor
Assembly

P +

P–

Code B0106/54

DLC3

ON

→

 ←

Tc

CG

DI–340

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

LEXUS RX300   (RM785E)

3

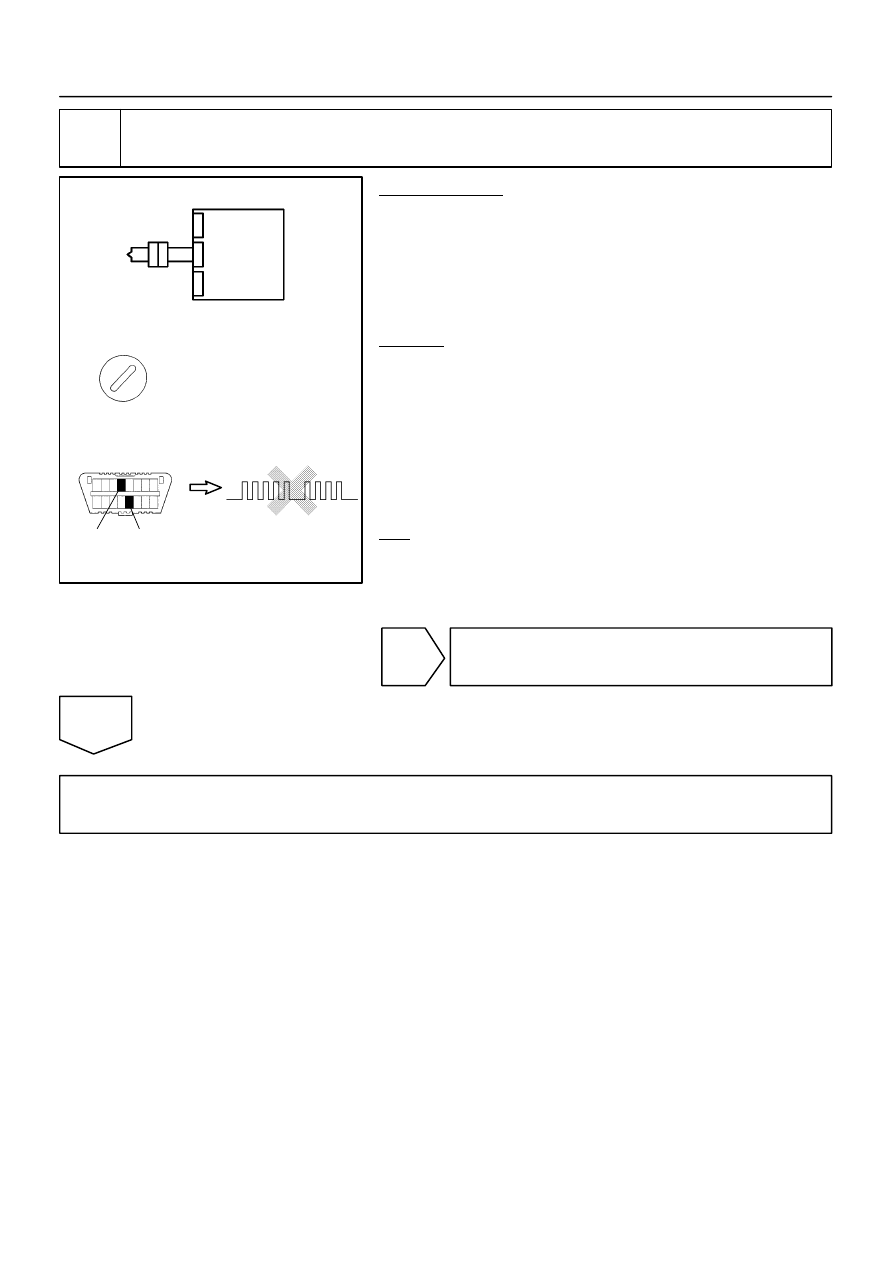

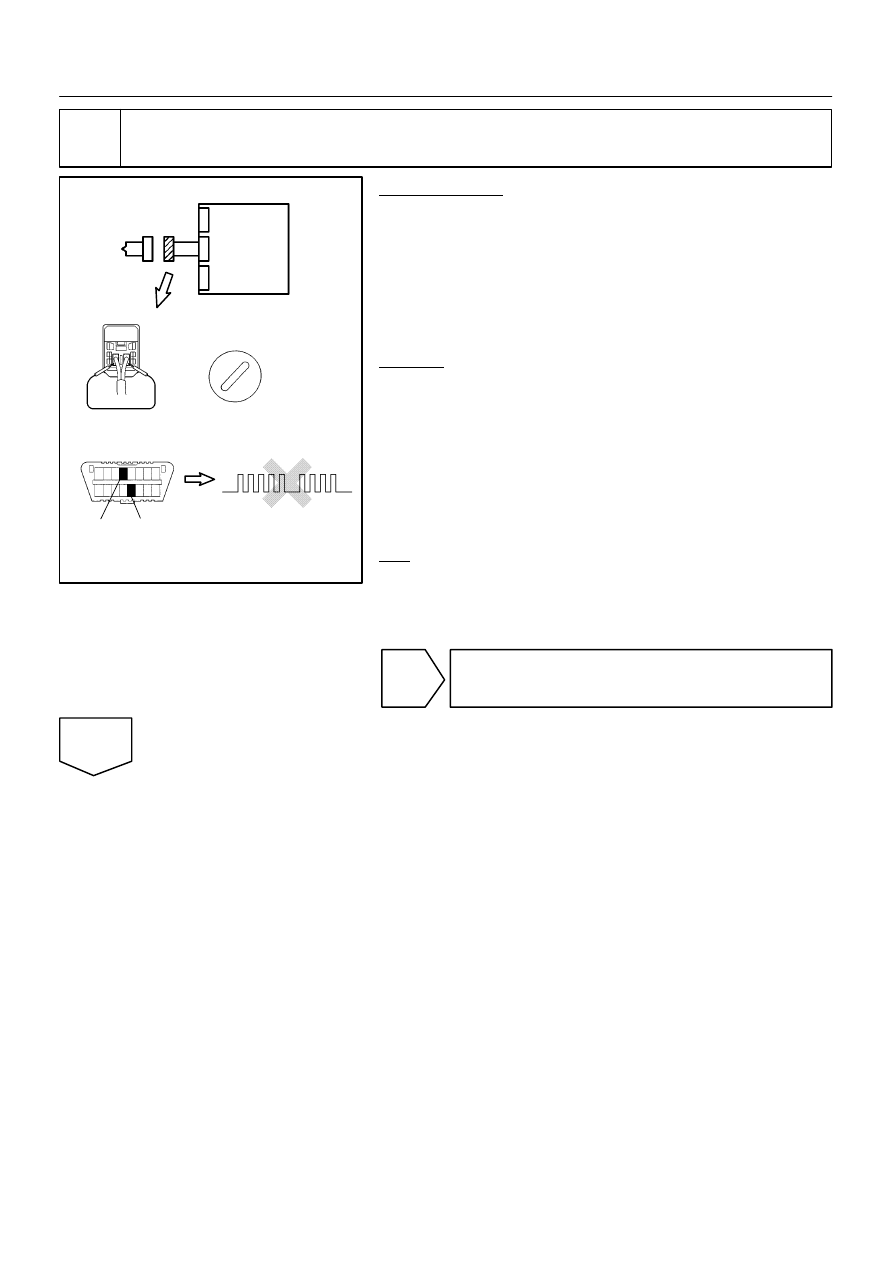

Check airbag sensor assembly.

PREPARATION:
(a)

Connect the connector to the airbag sensor assembly.

(b)

Using a service wire, connect P+ and P– of the connector
(on the front passenger airbag assembly side) between
the front passenger airbag assembly and the airbag sen-
sor assembly.

(c)

Connect negative (–) terminal cable to the battery, and
wait at least for 2 seconds.

CHECK:
(a)

Turn the ignition switch to ON and wait at least for 20 se-
conds.

(b)

Clear the DTC stored in memory (See page DI–305).

(c)

Turn the ignition switch to LOCK, and wait at least for 20
seconds.

(d)

Turn the ignition switch to ON, and wait at least for 20 se-
conds.

(e)

Check the DTC (See page DI–305).

OK:

DTC B0106/54 is not output.

HINT:
Codes other than code B0106/54 may be output at this time, but
they are not relevant to this check.

NG

Replace airbag sensor assembly.

OK

H01024

AB0119

H01078

H10600

H10614

→ ←

ON

DTC B0106/54

DLC3

Airbag
Sensor
Assembly

P Squib

Tc

CG

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–341

LEXUS RX300   (RM785E)

4

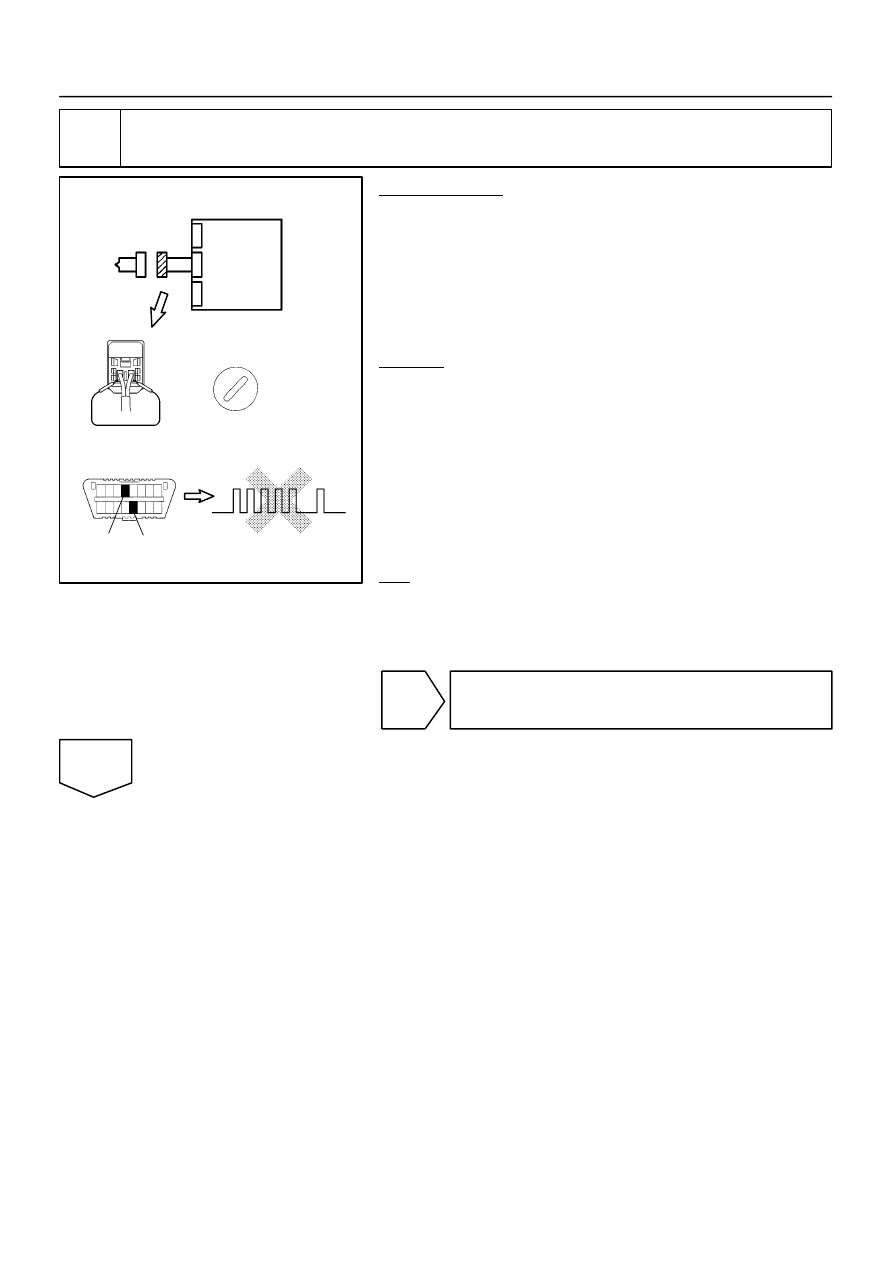

Check P squib.

PREPARATION:
(a)

Turn the ignition switch to LOCK.

(b)

Disconnect negative (–) terminal cable from the battery,
and wait at least for 90 seconds.

(c)

Connect the front passenger airbag assembly connector.

(d)

Connect negative (–) terminal cable to the battery, and
wait at least for 2 seconds.

CHECK:
(a)

Turn the ignition switch to ON, and wait at least for 20 se-
conds.

(b)

Clear the DTC stored in memory (See page DI–305).

(c)

Turn the ignition switch to LOCK, and wait at least for 20
seconds.

(d)

Turn the ignition switch to ON, and wait at least for 20 se-
conds.

(e)

Check the DTC (See page DI–305).

OK:

DTC B0106/54 is not output.

HINT:
Codes other than code B0106/54 may be output at this time, but
they are not relevant to this check.

NG

Replace front passenger airbag assembly.

OK

From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.

H01227
H02145

H02254

P Squib

Airbag
Sensor
Assembly

(+)

(–)

P+

DI–342

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

LEXUS RX300   (RM785E)

DTC

B0107/51

Short in P Squib Circuit (to Ground)

CIRCUIT DESCRIPTION

The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION on page RS–2.
DTC B0107/51 is recorded when ground short is detected in the P squib circuit.

DTC No.

DTC Detecting Condition

Trouble Area

B0107/51

S Short circuit in P squib wire harness (to ground)

S P squib malfunction

S Airbag sensor assembly malfunction

S Front passenger airbag assembly (P squib)

S Airbag sensor assembly

S Wire harness

WIRING DIAGRAM

See page DI–335.

INSPECTION PROCEDURE

1

Prepare for inspection (See step 1 on page DI–431).

2

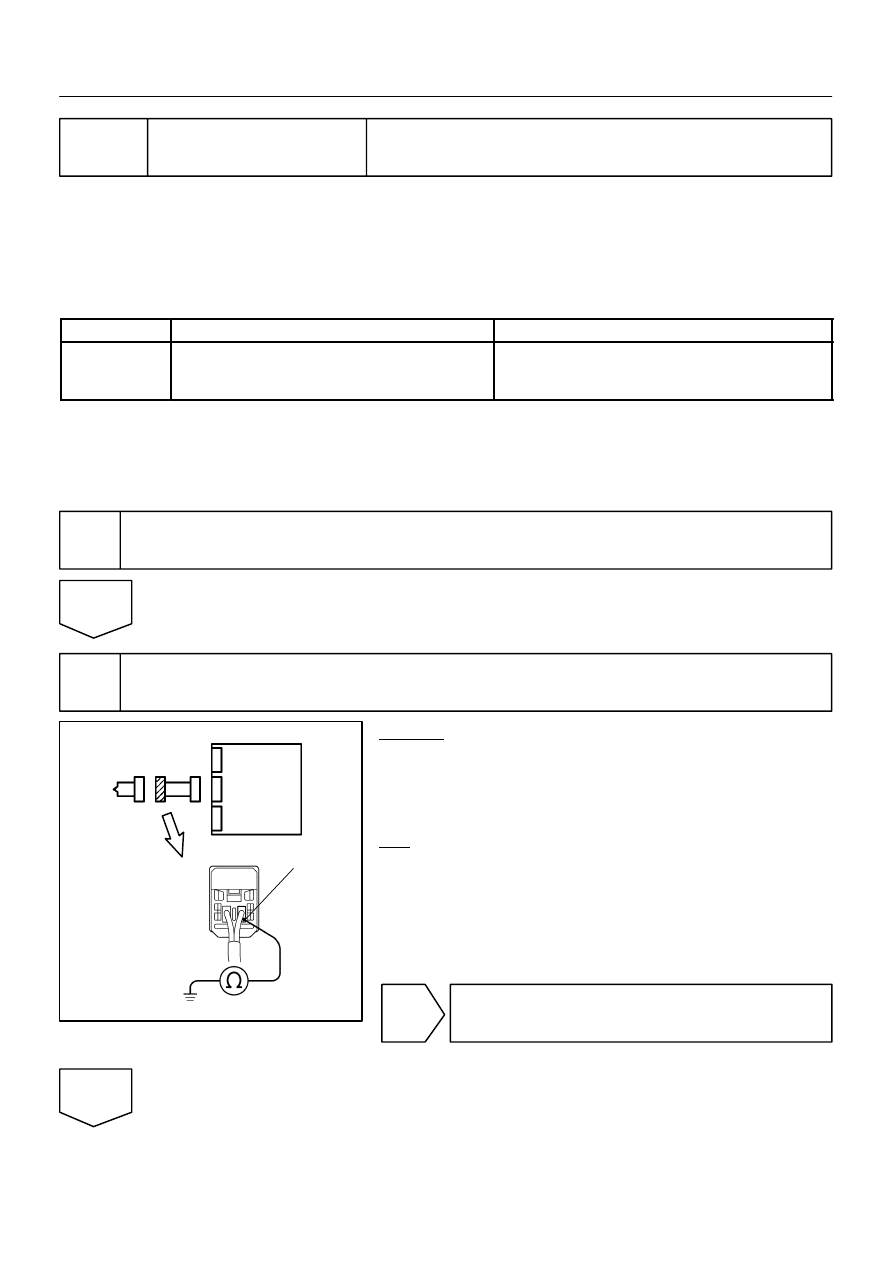

Check P squib circuit.

CHECK:
For the connector (on the front passenger airbag assembly
side) between the front passenger airbag assembly and the air-
bag sensor assembly, measure the resistance between P+ and
body ground.
OK:

Resistance: 1 MΩ or Higher

NG

Repair or replace harness or connector be-
tween front passenger airbag assembly and air-
bag sensor assembly.

OK

DI6P9–01

AB0118

H01023

H01075

H02144
H10600

H10615

P Squib

Airbag
Sensor
Assembly

P+

P–

DLC3

ON

→

 ←

Code B0107/51

Tc

CG

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–343

LEXUS RX300   (RM785E)

3

Check airbag sensor assembly.

PREPARATION:
(a)

Connect the connector to the airbag sensor assembly.

(b)

Using a service wire, connect P+ and P– of the connector
(on the front passenger airbag assembly side) between
the front passenger airbag assembly and the airbag sen-
sor assembly.

(c)

Connect negative (–) terminal cable to the battery, and
wait at least for 2 seconds.

CHECK:
(a)

Turn the ignition switch to ON and wait at least for 20 se-
conds.

(b)

Clear the DTC stored in memory (See step 5 on page
DI–305).

(c)

Turn the ignition switch to LOCK, and wait at least for 20
seconds.

(d)

Turn the ignition switch to ON, and wait at least for 20 se-
conds.

(e)

Check the DTC (See page DI–305).

OK:

DTC B0107/51 is not output.

HINT:
Codes other than code B0107/51 may be output at this time, but
they are not relevant to this check.

NG

Replace airbag sensor assembly.

OK
