Lexus RX300 (MCU15). Service manual - part 190

CO0IM–01

B04245

–

COOLING

ELECTRIC COOLING FAN

CO–29

LEXUS RX300   (RM785E)

REMOVAL

1.

REMOVE RADIATOR ASSEMBLY
(See page CO–19)

2.

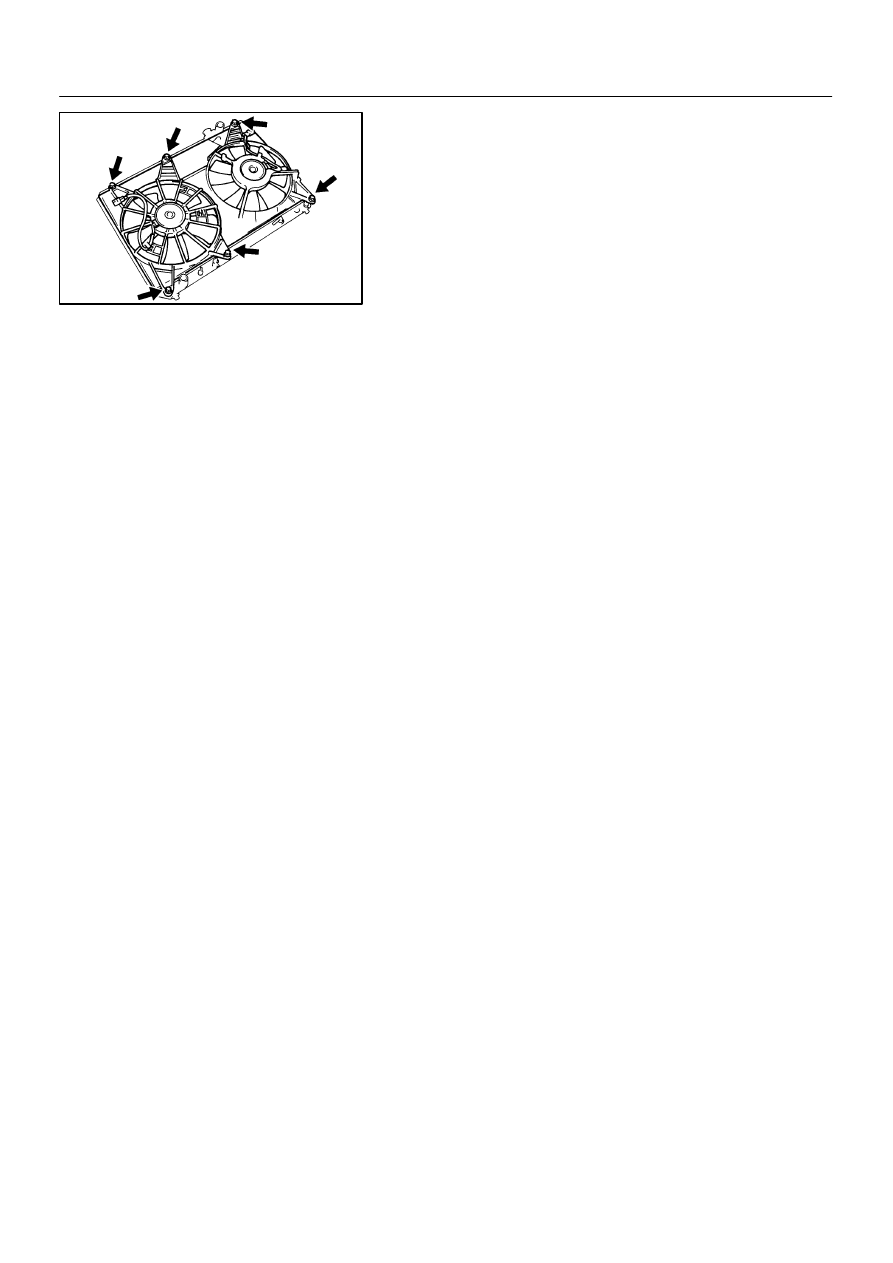

REMOVE ELECTRIC COOLING FAN FROM
RADIATOR

Remove the 6 bolts and cooling fan.

Torque: 5.0 N·m (50 kgf·cm, 44 in.·lbf)

B04244

CO08C–02

B04228

CO–30

–

COOLING

ELECTRIC COOLING FAN

LEXUS RX300   (RM785E)

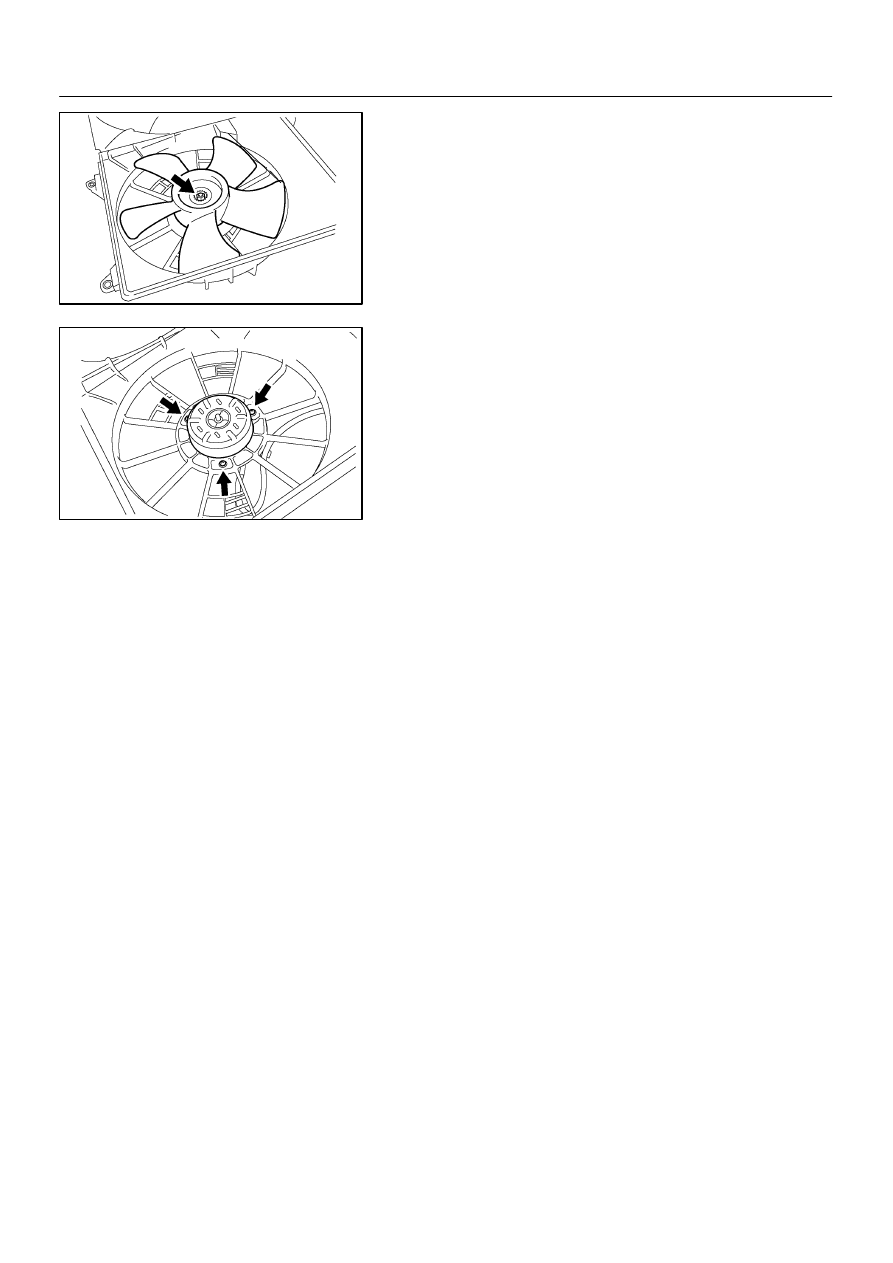

DISASSEMBLY

1.

REMOVE FAN

Remove the nut and fan.

2.

REMOVE FAN MOTOR

(a)

Disconnect the wire and connector holder from the fan
shroud.

(b)

Remove the 3 screws and fan motor.

CO06R–02

B04227

No.1 Cooling Fan

No.2 Cooling Fan

–

COOLING

ELECTRIC COOLING FAN

CO–31

LEXUS RX300   (RM785E)

REASSEMBLY

1.

INSTALL FAN MOTOR

(a)

Install the fan motor with the 3 screws.

(b)

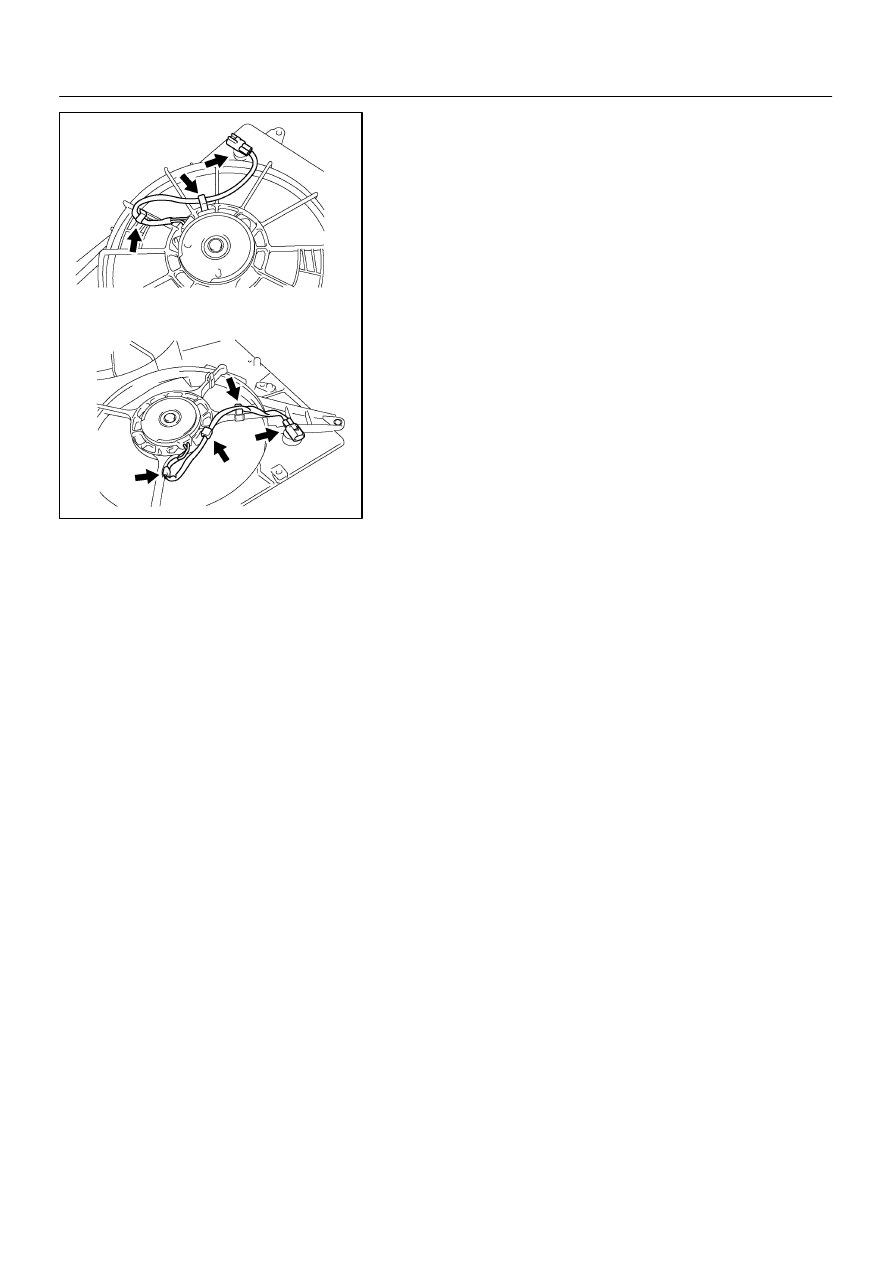

Install the wire and connector holder to the fan shroud.

2.

INSTALL FAN

Install the fan with the nut.

CO08E–01

CO–32

–

COOLING

ELECTRIC COOLING FAN

LEXUS RX300   (RM785E)

INSTALLATION

Installation is in the reverse order of removal (See page CO–29).
