Lexus RX300 (MCU15). Service manual - part 165
BR0TL–02
F13289

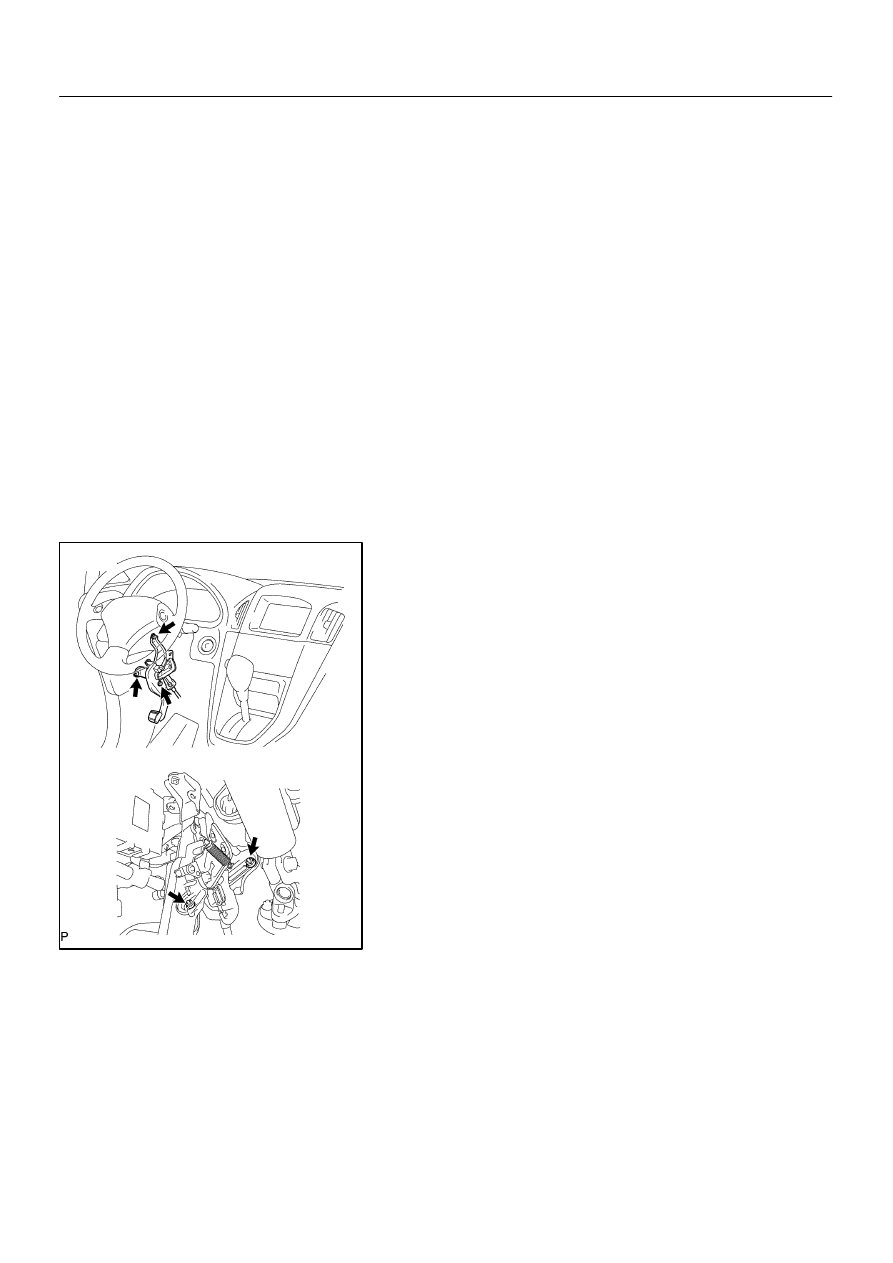

LHD:
RHD:
BR–12
–
BRAKE
PARKING BRAKE PEDAL
LEXUS RX300 (RM785E)
REMOVAL
1.
LHD:
REMOVE LOWER FINISH PANEL
2.
RHD:
REMOVE INSTRUMENT PANEL SAFETY PAD AND
REINFORCEMENT (See page BO–123)
3.
RELEASE PARKING BRAKE PEDAL
4.
DISCONNECT PARKING BRAKE SWITCH CONNEC-
TOR AND CLAMP
(a)
Disconnect the parking brake switch connector.
(b)
RHD:
Disconnect the 2 wire harness clamps from the bracket.
(c)
LHD:
Disconnect the wire harness clamp from the bracket.
5.
REMOVE PARKING BRAKE PEDAL ASSEMBLY
(a)
LHD:
Remove the 3 nuts and parking brake pedal assembly.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
(b)
RHD:
Remove the 2 nuts and parking brake pedal assembly.
Torque: 19 N·m (194 kgf·cm, 14 ft·lbf)
(c)
Remove the clip and disconnect the parking brake wire.
6.
REMOVE PARKING BRAKE SWITCH
Remove the screw and parking brake switch.
7.
REMOVE PEDAL PAD FROM PARKING BRAKE PED-
AL
