BODY ELECTRICAL
HEADLIGHT AND TAILLIGHT SYSTEM
BE–35
LEXUS RX300 (RM785E)
ADJUSTMENT

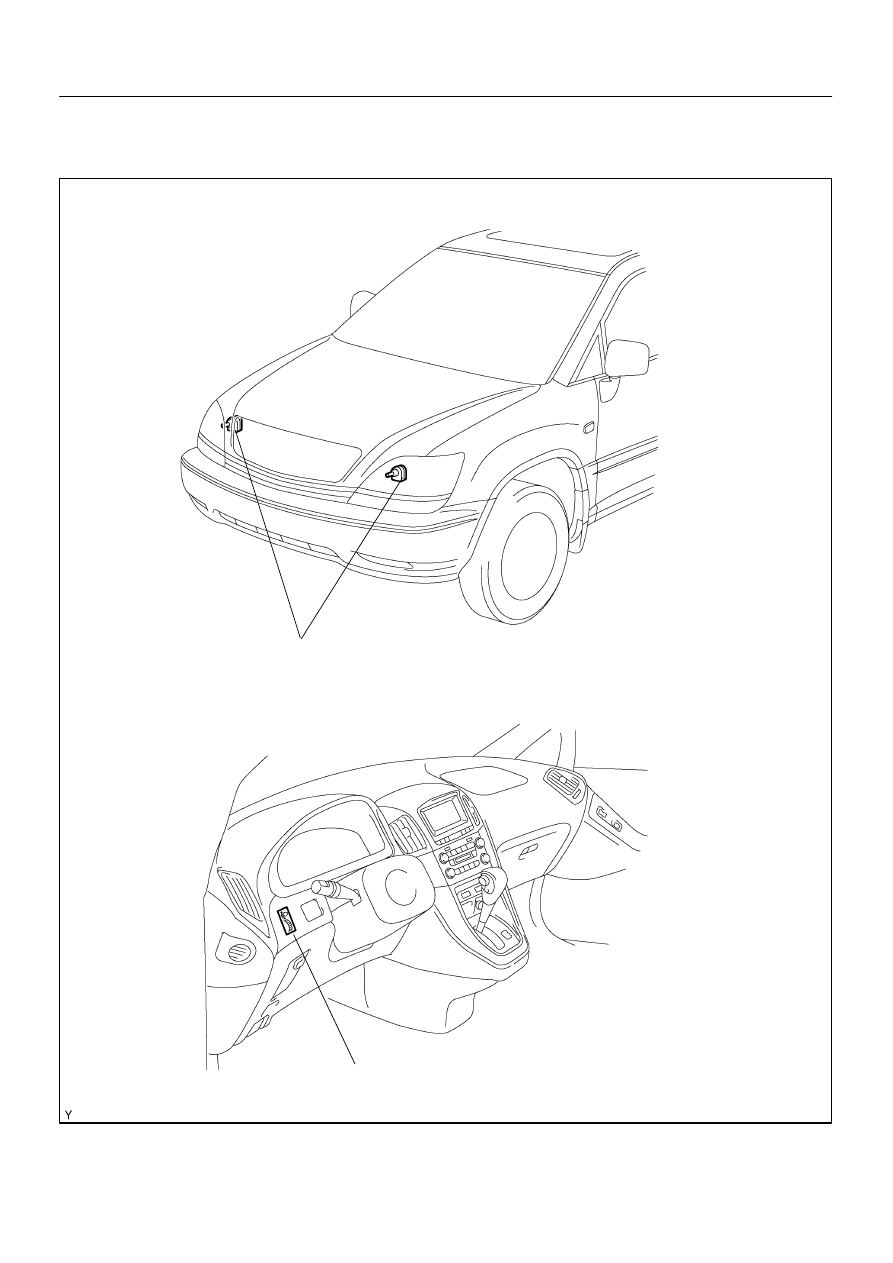

ADJUST HEADLIGHT AIM
(a)
Put the vehicle below conditions.
S
Make sure the body around the headlight is not de-
formed.
S
Park the vehicle on a level spot.
S
The driver gets into the driver’s seat and puts the
vehicle in a state ready for driving (with a full tank).
S
Bounce the vehicle several times.
S
Tire inflation pressure is the specified value.
S
Set the headlight leveling switch ”O” position.
(b)

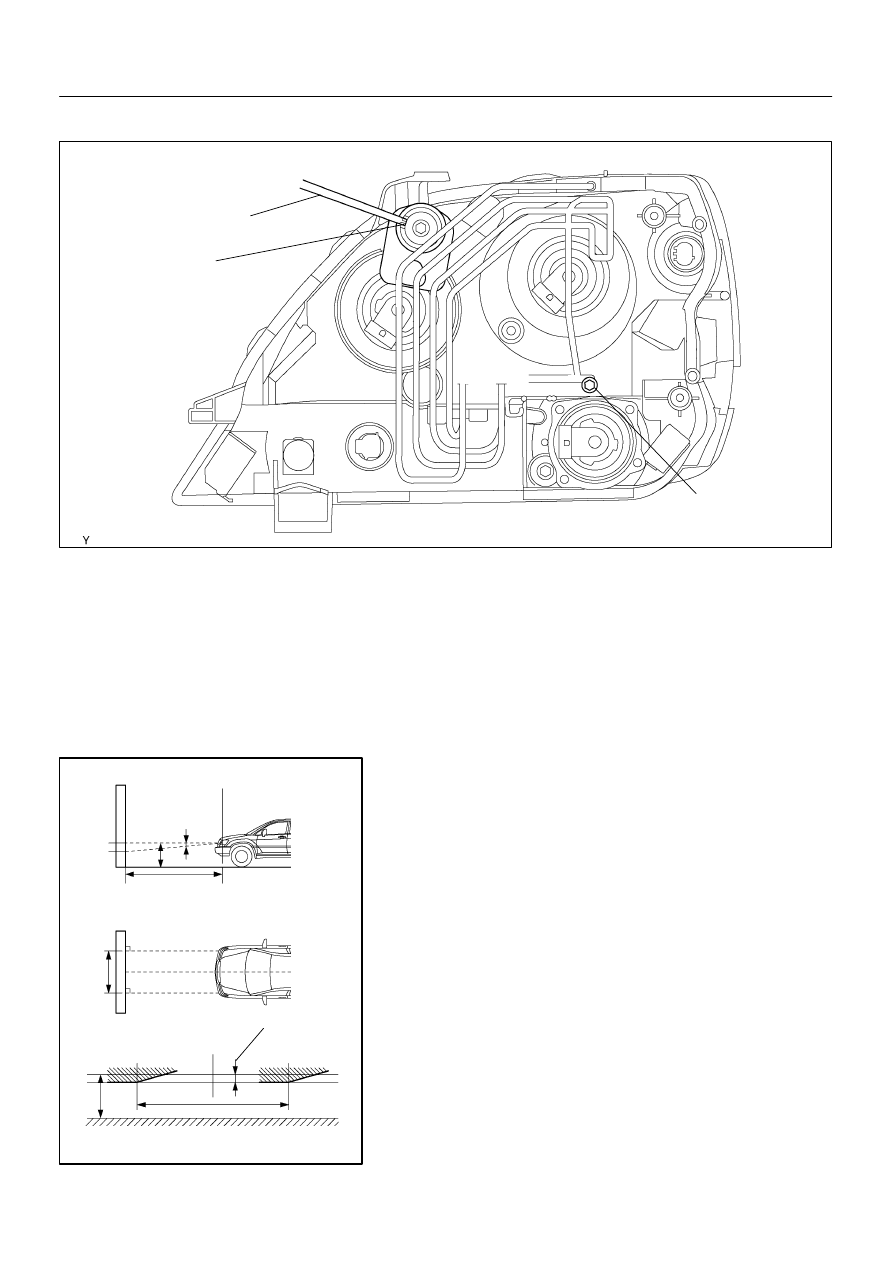

Prepare the thick white colored paper.
(c)
Stand the paper perpendicularly and ensure the distance
from it to the headlights is 3 m (93.84 ft).
(d)
Ensure that the center line of vehicle and the paper are
at a 90 degree angle as shown in the illustration.(H line)
(e)
Star the engine.
(f)
Draw a horizontal line on the paper where the headlights
(low beam center mark) of the vehicle are to be.
(g)
Draw a vertical line on the paper where the center line of
the vehicle is to be. (V center line)
