Lexus RX300 (MCU15). Service manual - part 52
CH
BO
CHASSIS — SUSPENSION AND AXLES
81

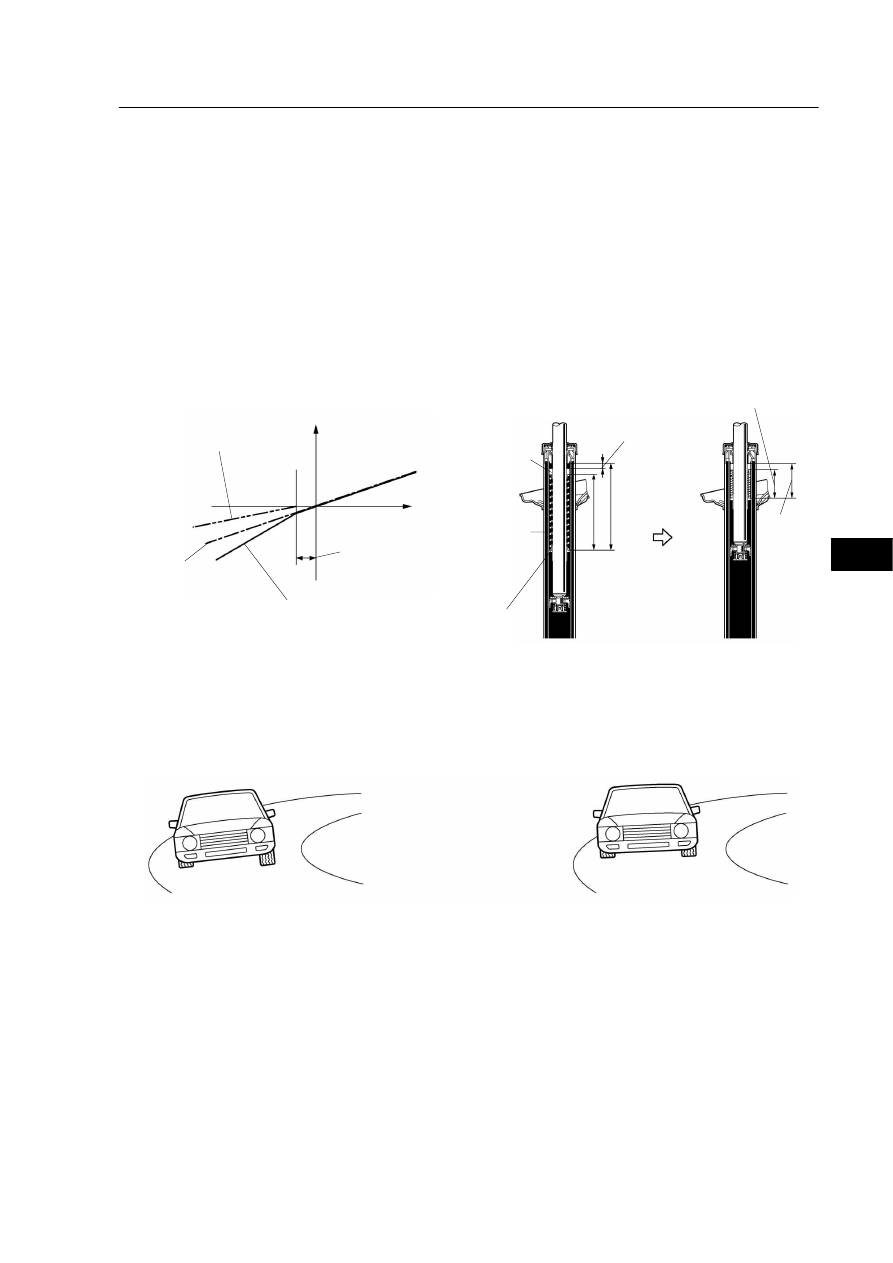

3) Rebound Spring
In the front shock absorber with a built in rebound spring, the function of the rebound spring that is
provided in the shock absorber case combines with the function of the coil spring in order to restrain
the elongation of the entire suspension during rebounds. Consequently, only the function of the coil
spring is applied when the suspension stroke is small during normal driving, in order to realize a soft
and comfortable ride. However, when the inner wheel makes large rebounds, such as when the vehicle
is cornering, the functions of both the rebound spring and the coil spring are combined in order to reduce
the elongation of the entire suspension. As a result, the vehicle’s excellent maneuverability and stability
have been realized.
Standard
Length
Rebound
Spring
Free Length
Beginning Stroke
of Rebound Spring
Rebound
Stopper
Rebound
Spring
Stopper Plate
Collapsed Height of
Rebound Spring
Fullstroke
State
Rebound
Spring
Rebound
Coil Spring
Entire Suspension
Characteristics of shock absorber
with built-in rebound spring
185CH16
Load
Bound
Stroke
Beginning Stroke
of Rebound Spring
185CH17
Without Rebound Spring
With Rebound Spring
187CH10
