Lexus RX300 (MCU15). Service manual - part 17

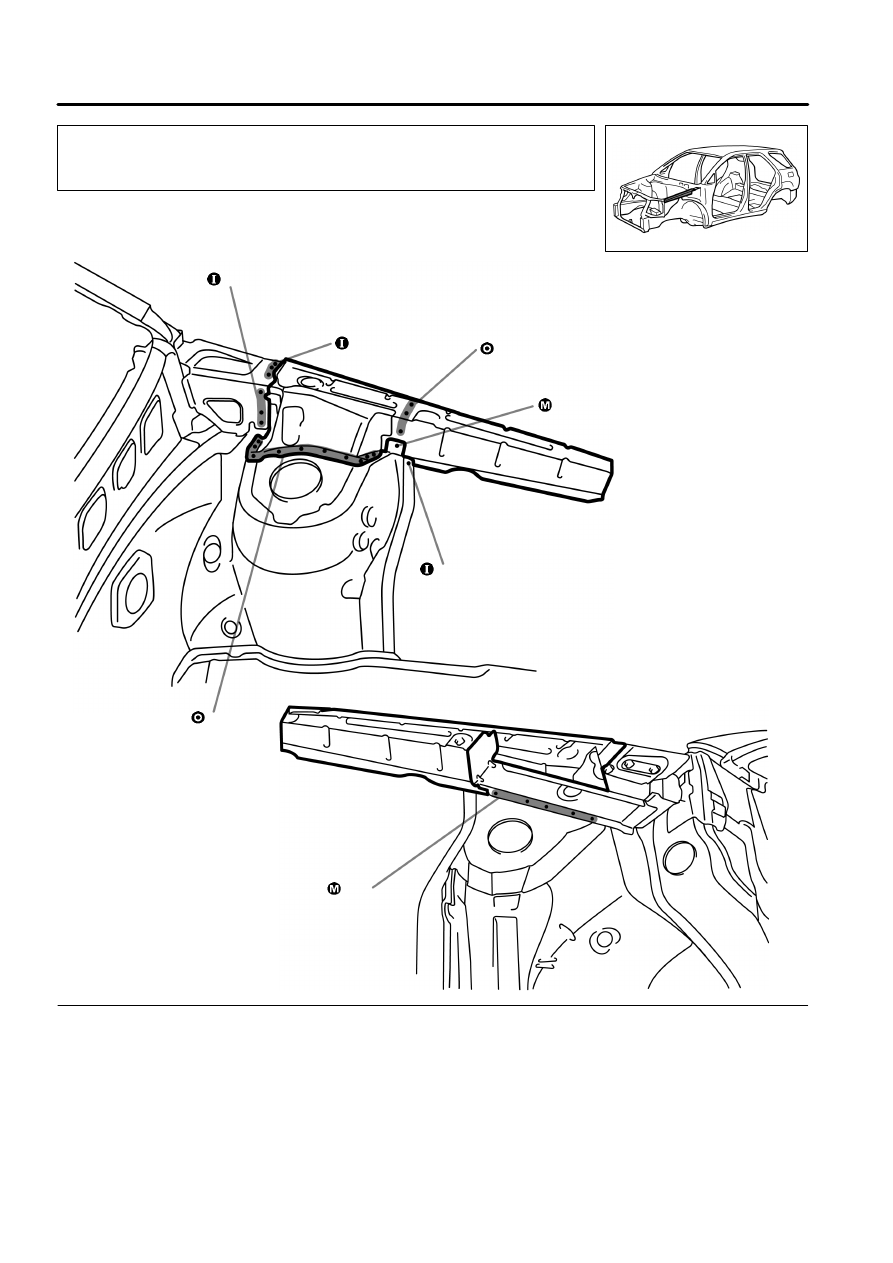

FRONT APRON TO COWL SIDE UPPER
MEMBER (ASSY)

REMOVAL (With the front fender front apron, front panel

upper reinforcement brace removed.)

— 3

— 3

— 3

— 1

— 1

— 10

— 5

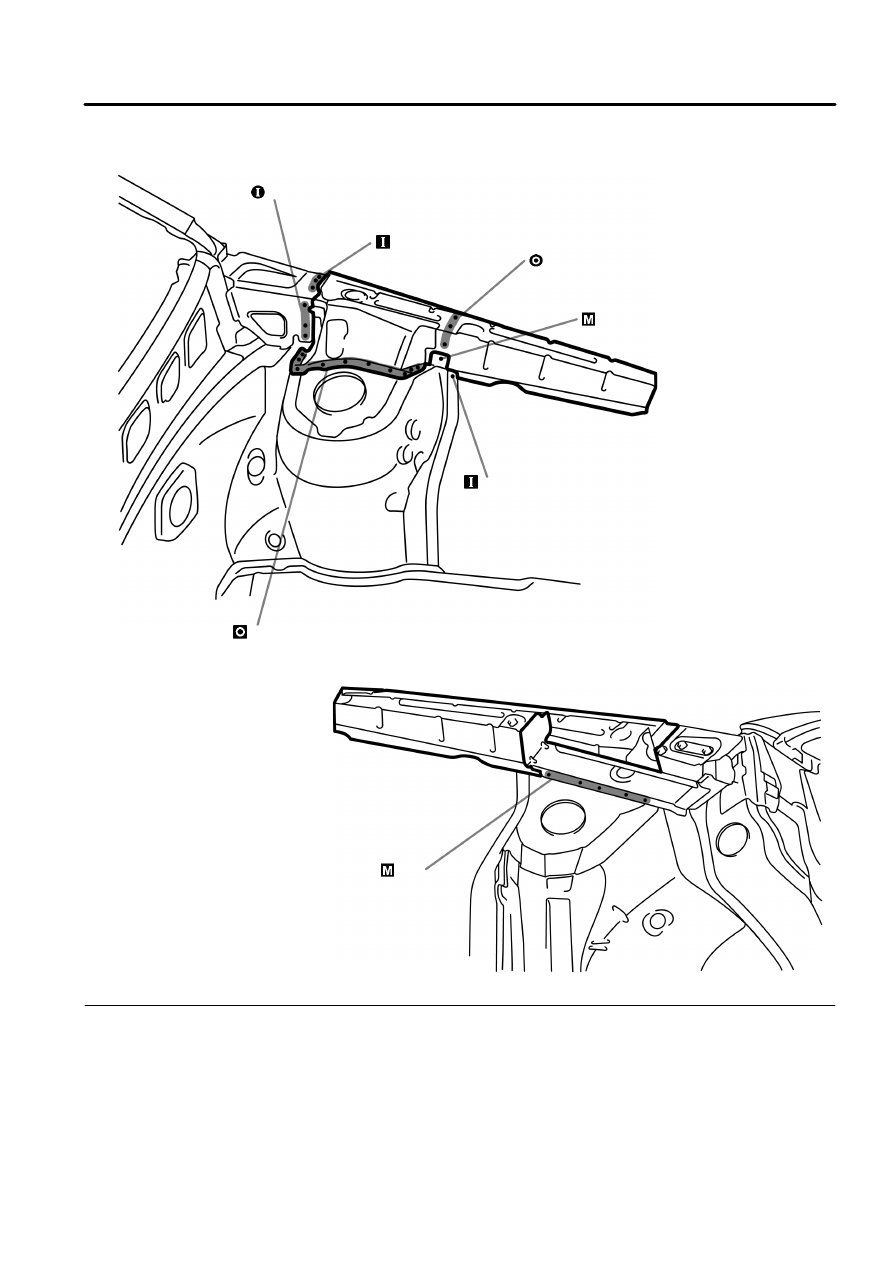

BODY PANEL REPLACEMENT

RE-14

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body di-
mension diagram.

2.

Temporarily install the front fender and hood
and check the fit.

— 4

— 3

— 4

— 1

— 1

— 10

— 5

BODY PANEL REPLACEMENT

RE-15

INSTALLATION

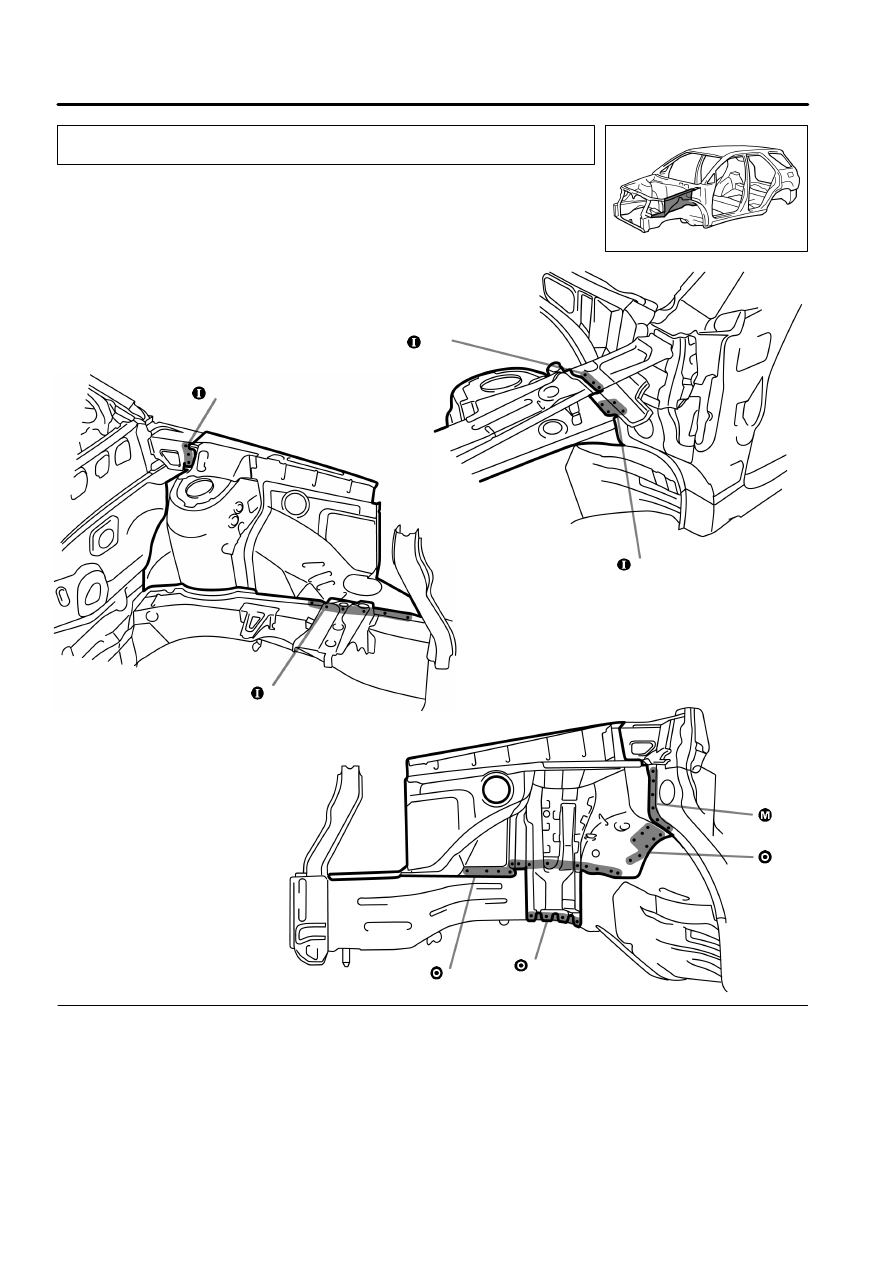

FRONT FENDER APRON (ASSY)

REMOVAL (With the radiator side support, front panel

upper reinforcement brace removed.)

— 3

— 3

— 4

— 6

— 6

— 8

— 4

— 13

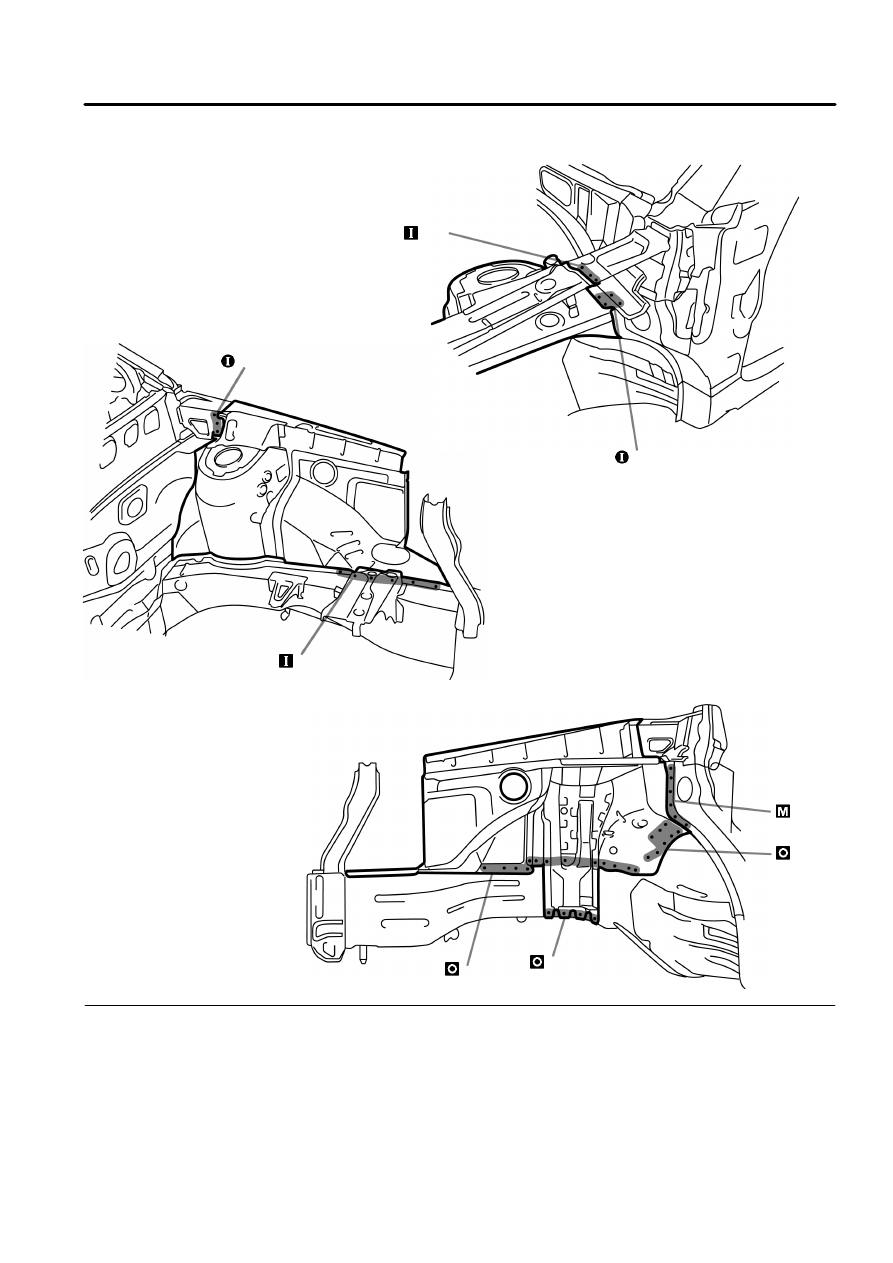

BODY PANEL REPLACEMENT

RE-16

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body di-
mension diagram.

2.

Measurements must be accurate with the
body dimension diagram, as this affects the
front wheel alignment.

3.

Temporarily install the front fender and hood,
and check the fit.

— 3

— 6

— 4

— 6

— 6

— 8

— 4

— 13

BODY PANEL REPLACEMENT

RE-17

INSTALLATION
