38

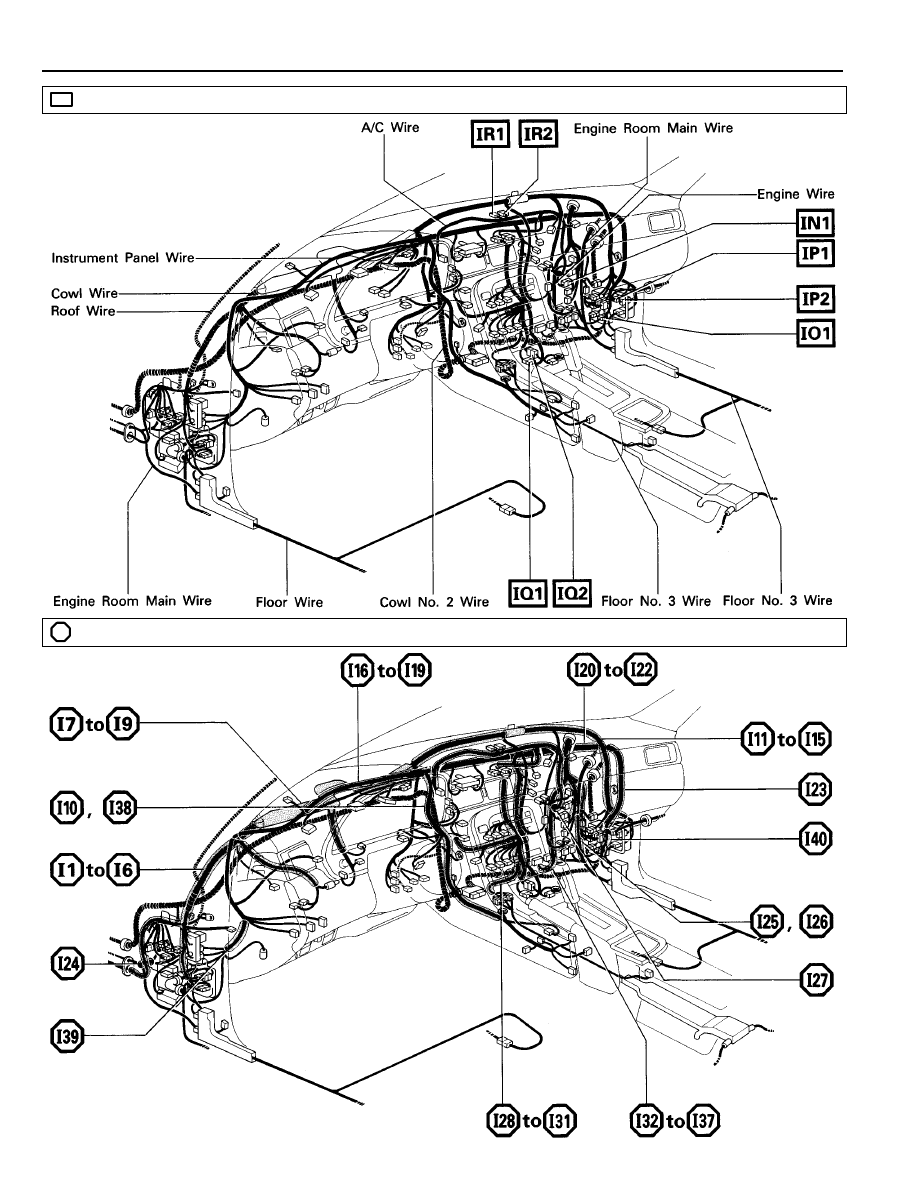

ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Splice Points

39

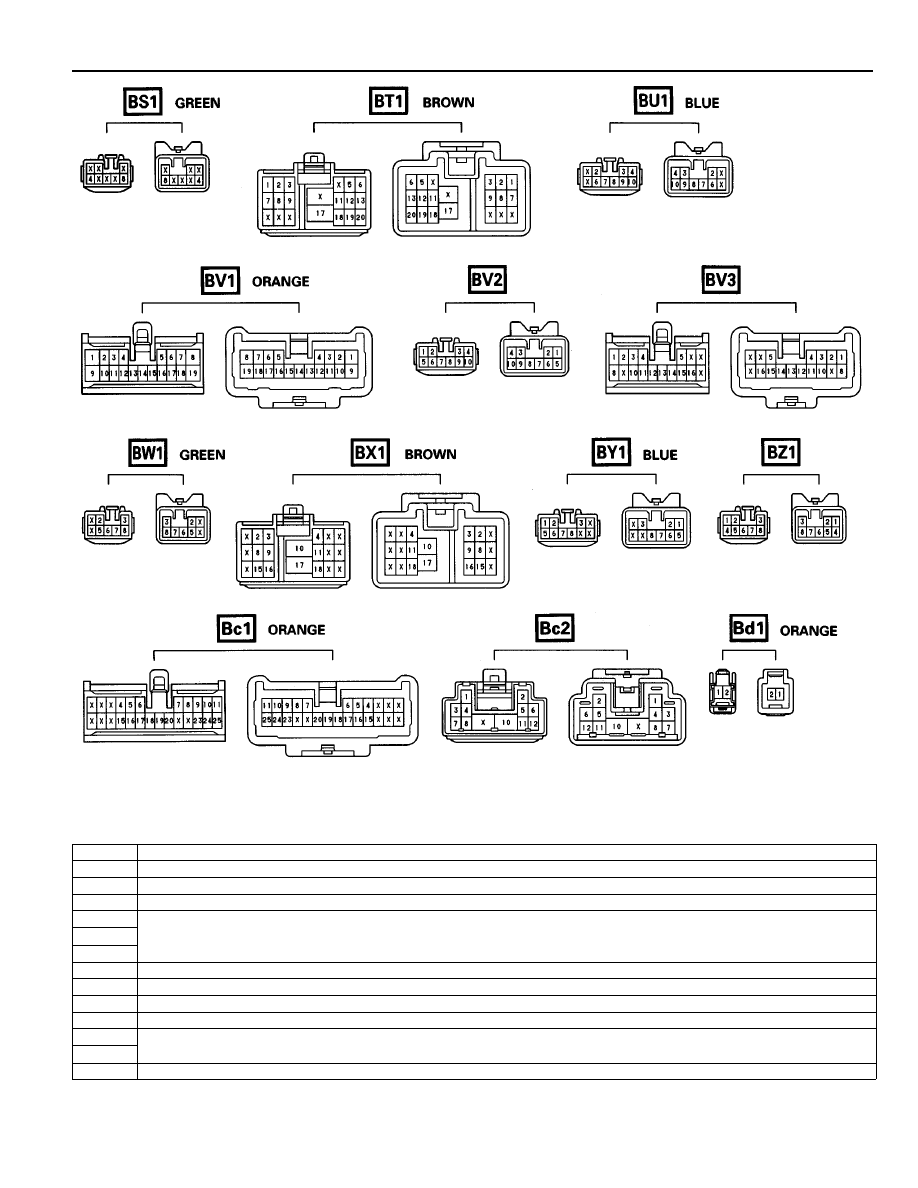

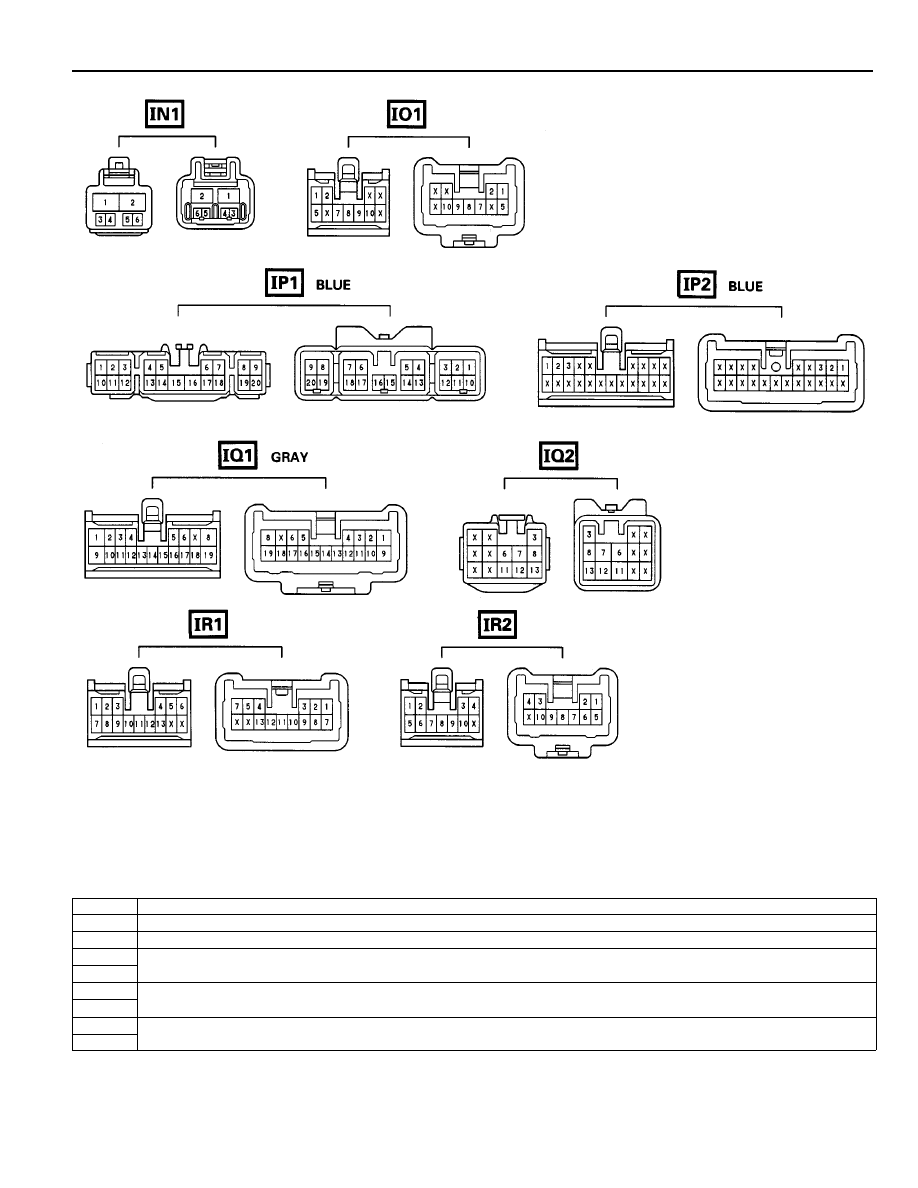

CODE

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

IN1

ENGINE ROOM MAIN WIRE AND A/C WIRE (BEHIND GLOVE BOX)

IO1

ENGINE ROOM MAIN WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)

IP1

FRONT DOOR RH WIRE AND COWL WIRE (RIGHT KICK PANEL)

IP2

FRONT DOOR RH WIRE AND COWL WIRE (RIGHT KICK PANEL)

IQ1

INSTRUMENT PANEL WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL CENTER)

IQ2

INSTRUMENT PANEL WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL CENTER)

IR1

CONSOLE BOX WIRE AND A/C WIRE (BEHIND GLOVE BOX)

IR2

CONSOLE BOX WIRE AND A/C WIRE (BEHIND GLOVE BOX)

40

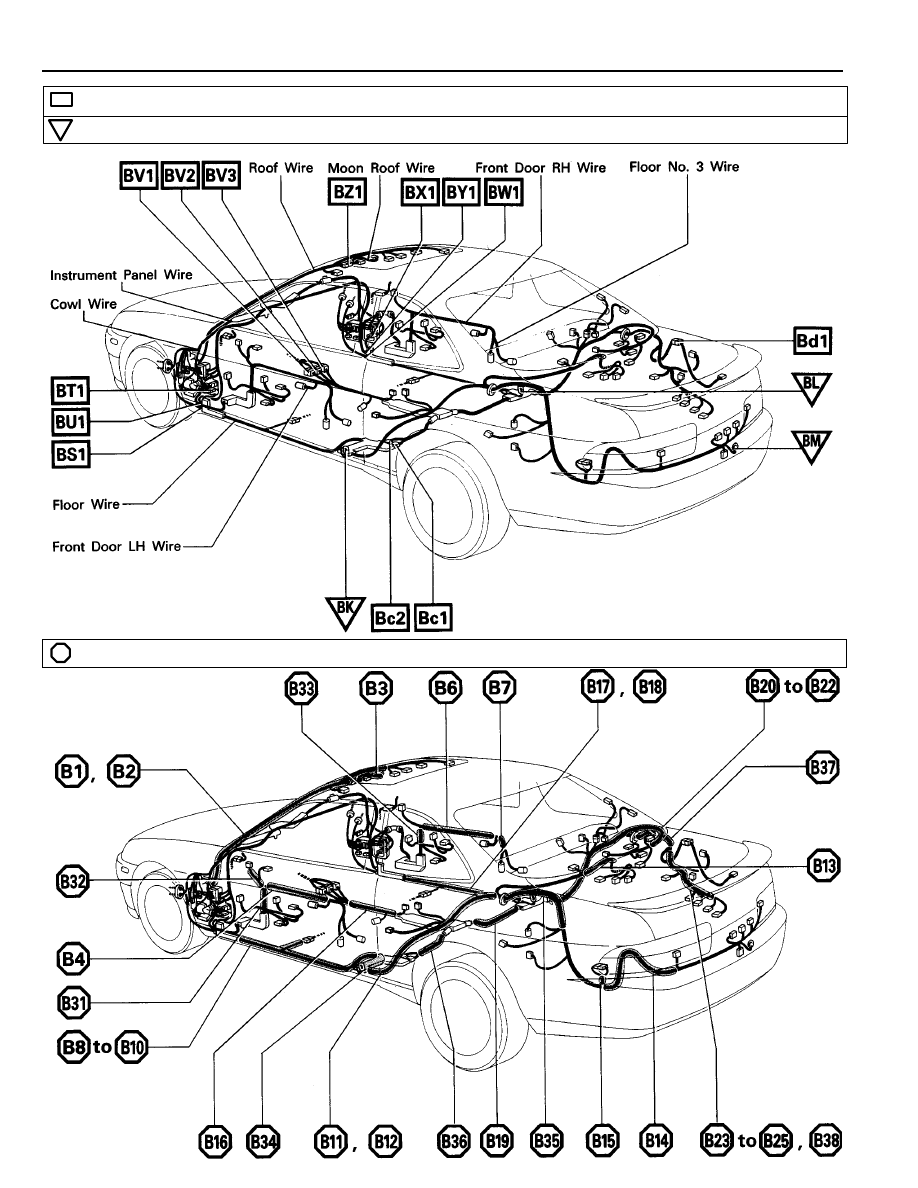

ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Ground Points

: Location of Splice Points

41

CODE

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

BS1

ENGINE ROOM MAIN WIRE AND FLOOR WIRE (LEFT KICK PANEL)

BT1

FLOOR WIRE AND COWL WIRE (LEFT KICK PANEL)

BU1

INSTRUMENT PANEL WIRE AND FLOOR WIRE (LEFT KICK PANEL)

BV1

BV2

FLOOR NO. 3 WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL CENTER)

BV3

FLOOR NO. 3 WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL CENTER)

BW1

ENGINE ROOM MAIN WIRE AND FLOOR NO. 3 WIRE (RIGHT KICK PANEL)

BX1

FLOOR NO. 3 WIRE AND COWL WIRE (RIGHT KICK PANEL)

BY1

INSTRUMENT PANEL WIRE AND FLOOR NO. 3 WIRE (RIGHT KICK PANEL)

BZ1

ROOF WIRE AND MOON ROOF WIRE (FRONT SIDE OF ROOF LEFT)

Bc1

FLOOR NO 3 WIRE AND FLOOR WIRE (UNDER THE LEFT SIDE OF REAR SEAT CUSHION)

Bc2

FLOOR NO. 3 WIRE AND FLOOR WIRE (UNDER THE LEFT SIDE OF REAR SEAT CUSHION)

Bd1

FLOOR NO. 3 WIRE AND LUGGAGE NO. 2 WIRE (RIGHT SIDE OF LUGGAGE COMPARTMENT)
