ENGINE TROUBLESHOOTING

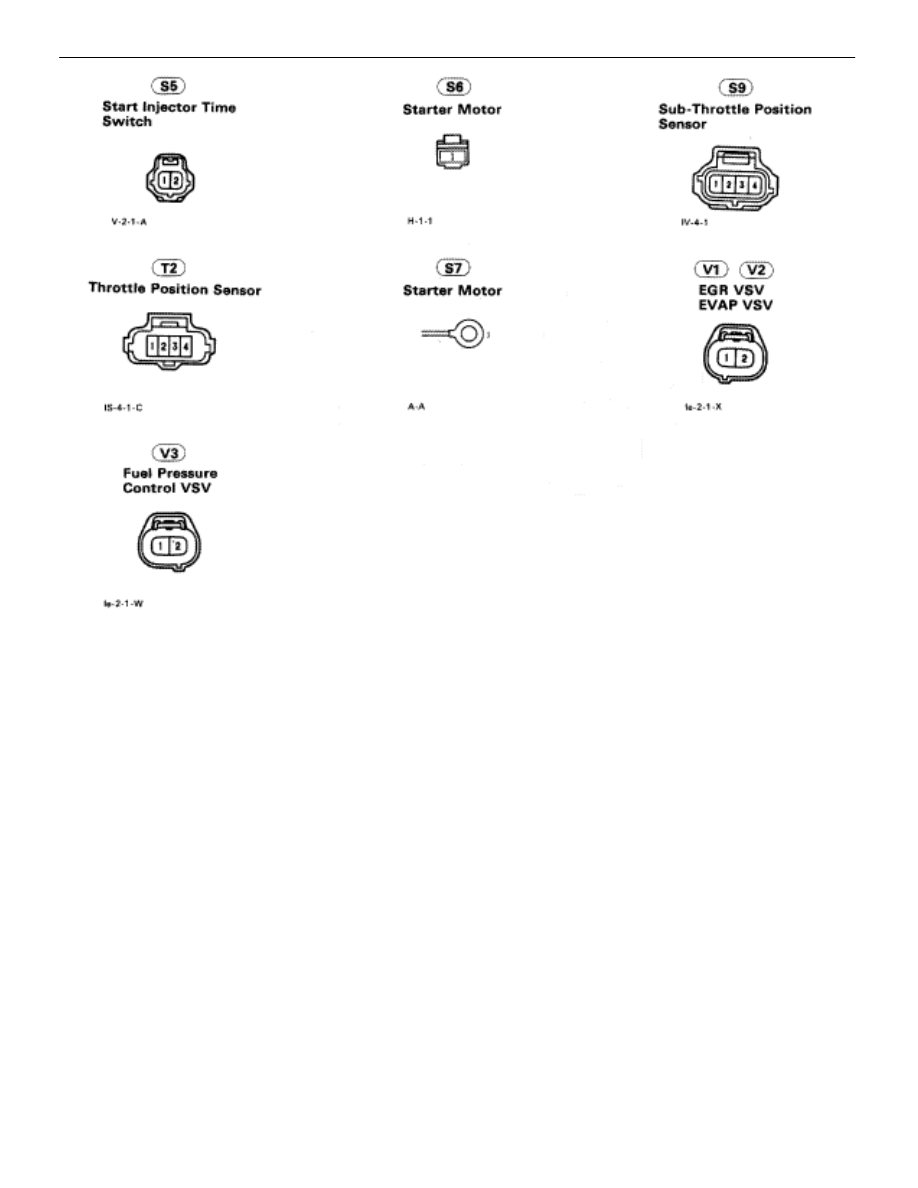

Location of Connectors

TR–39

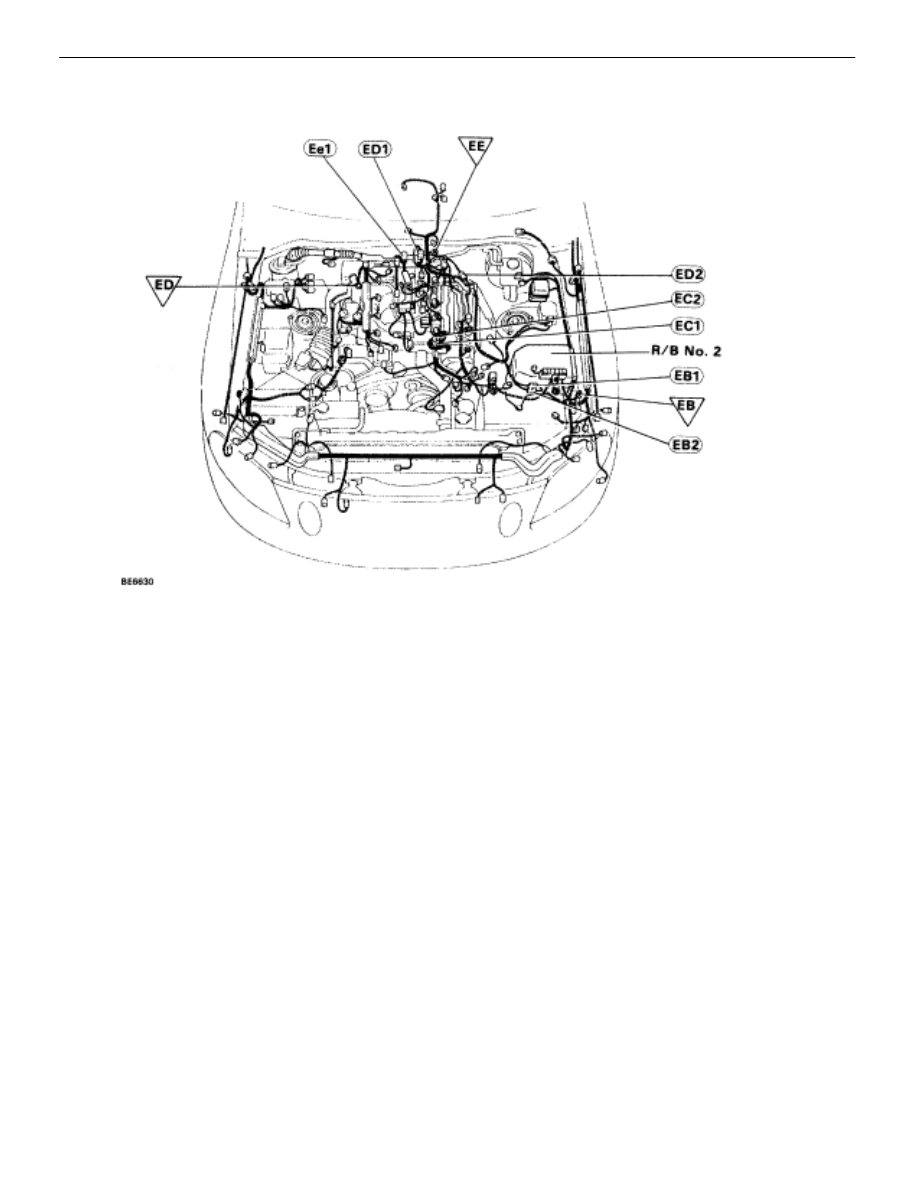

Location of Connectors in Engine Compartment (Cont’d)

TR–40

–

ENGINE TROUBLESHOOTING

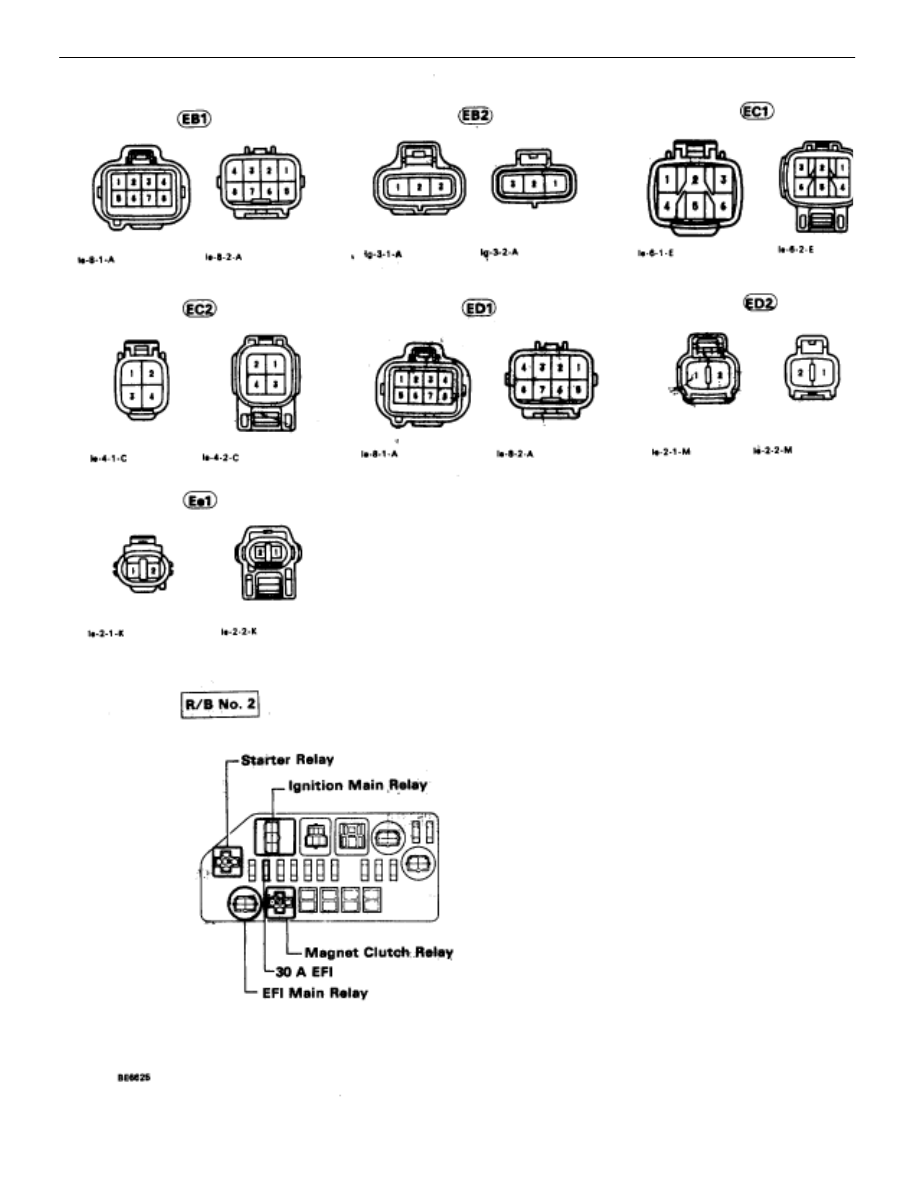

Location of Connectors

–

ENGINE TROUBLESHOOTING

Locations of Connectors

TR–41

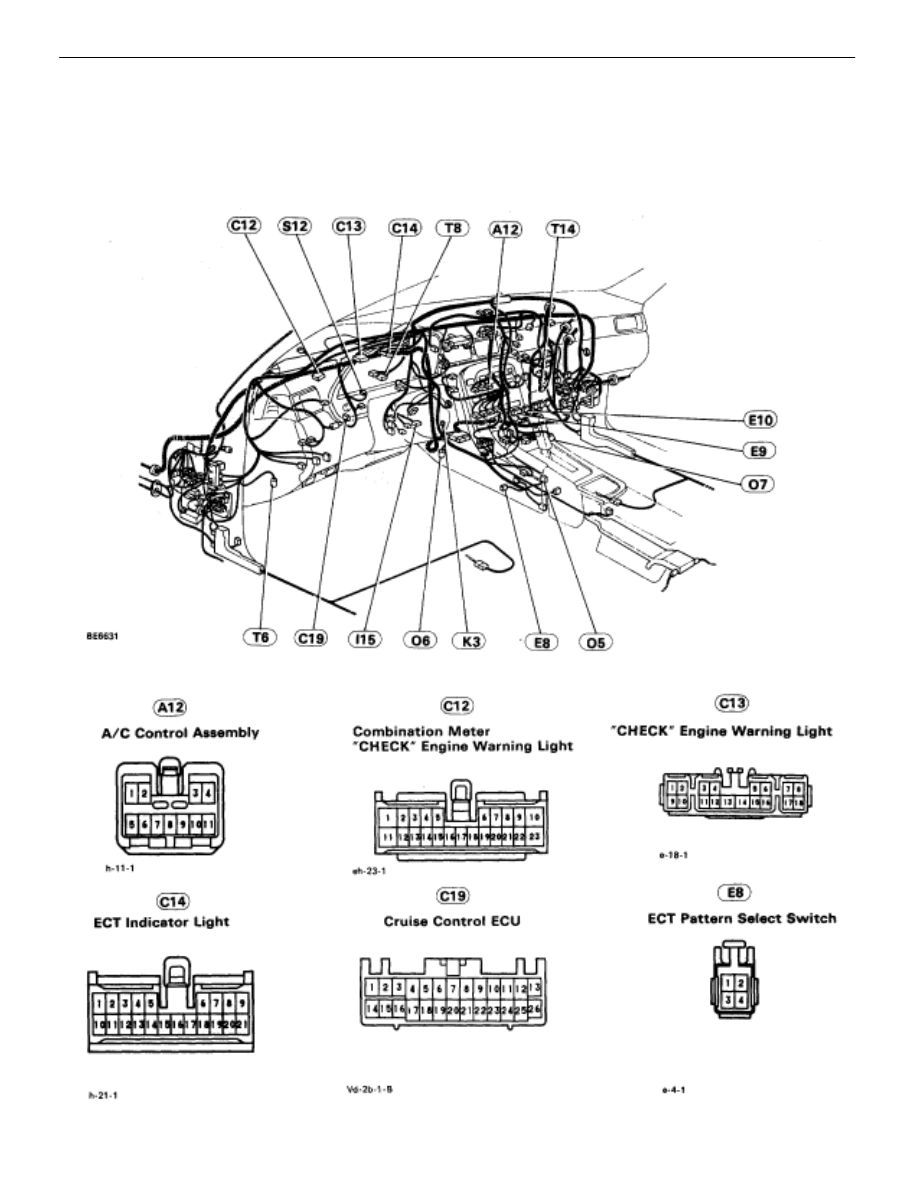

Location of Connectors in Instrument Panel

TR–42

–

ENGINE TROUBLESHOOTING

Locations of Connectors
