LOCATION OF CONNECTORS

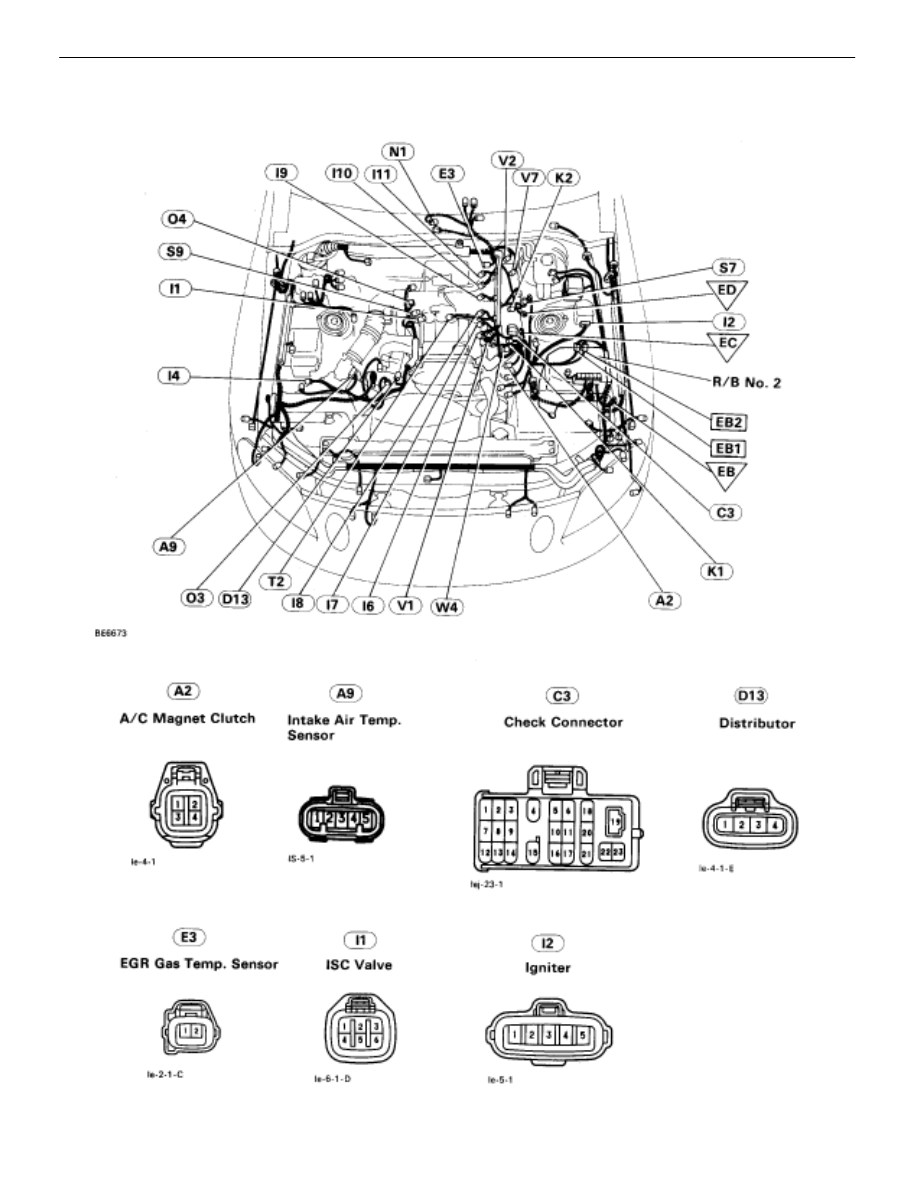

Location of Connectors in Engine Compartment

TR–40

–

ENGINE TROUBLESHOOTING

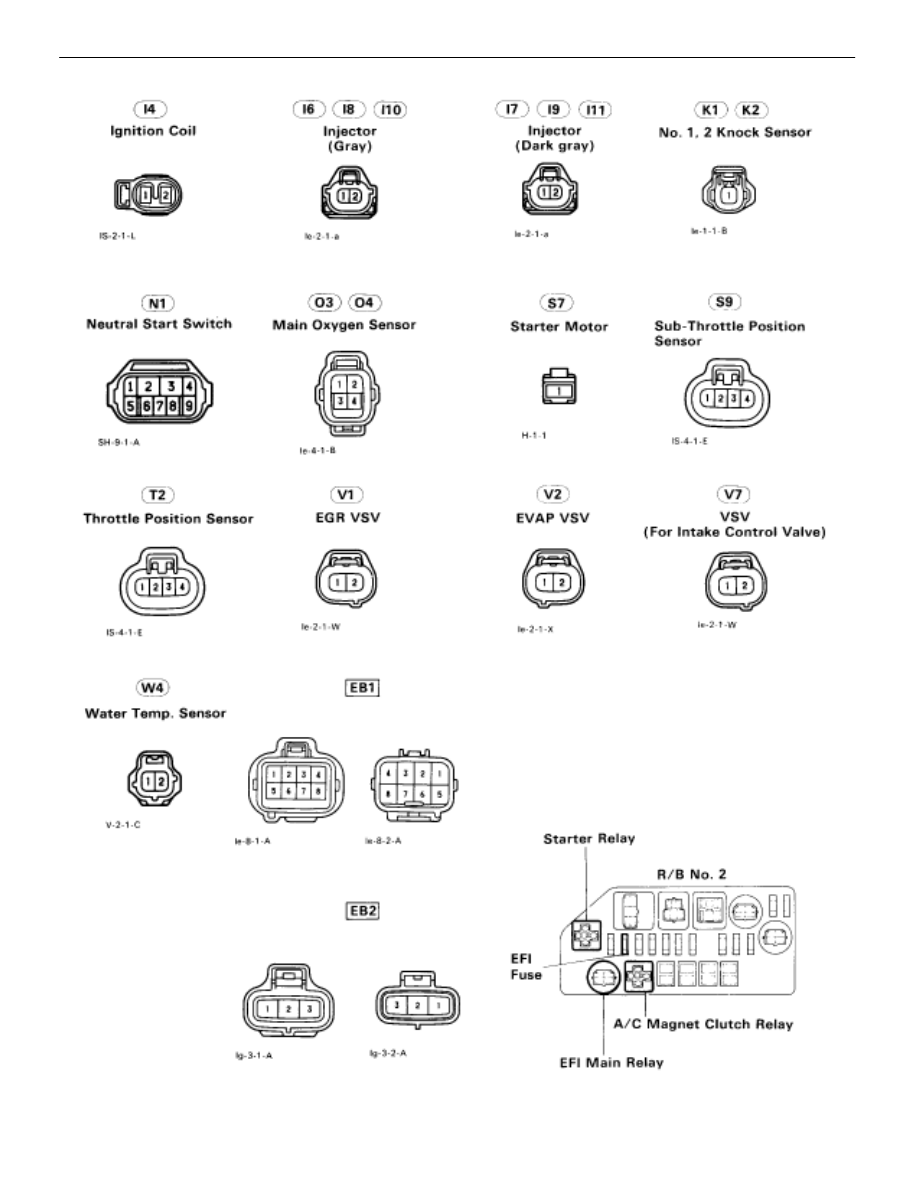

Location of Connectors

–

ENGINE TROUBLESHOOTING

Location of Connectors

TR–41

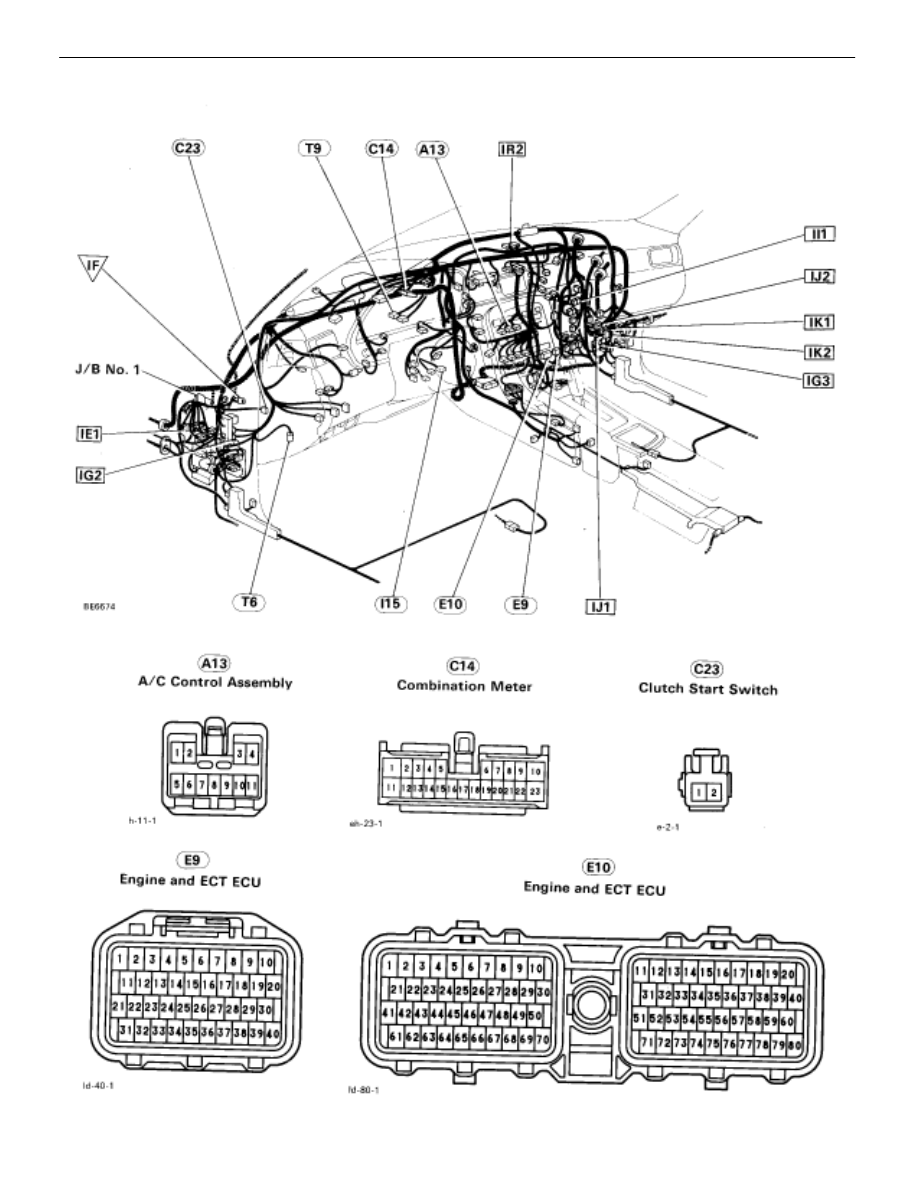

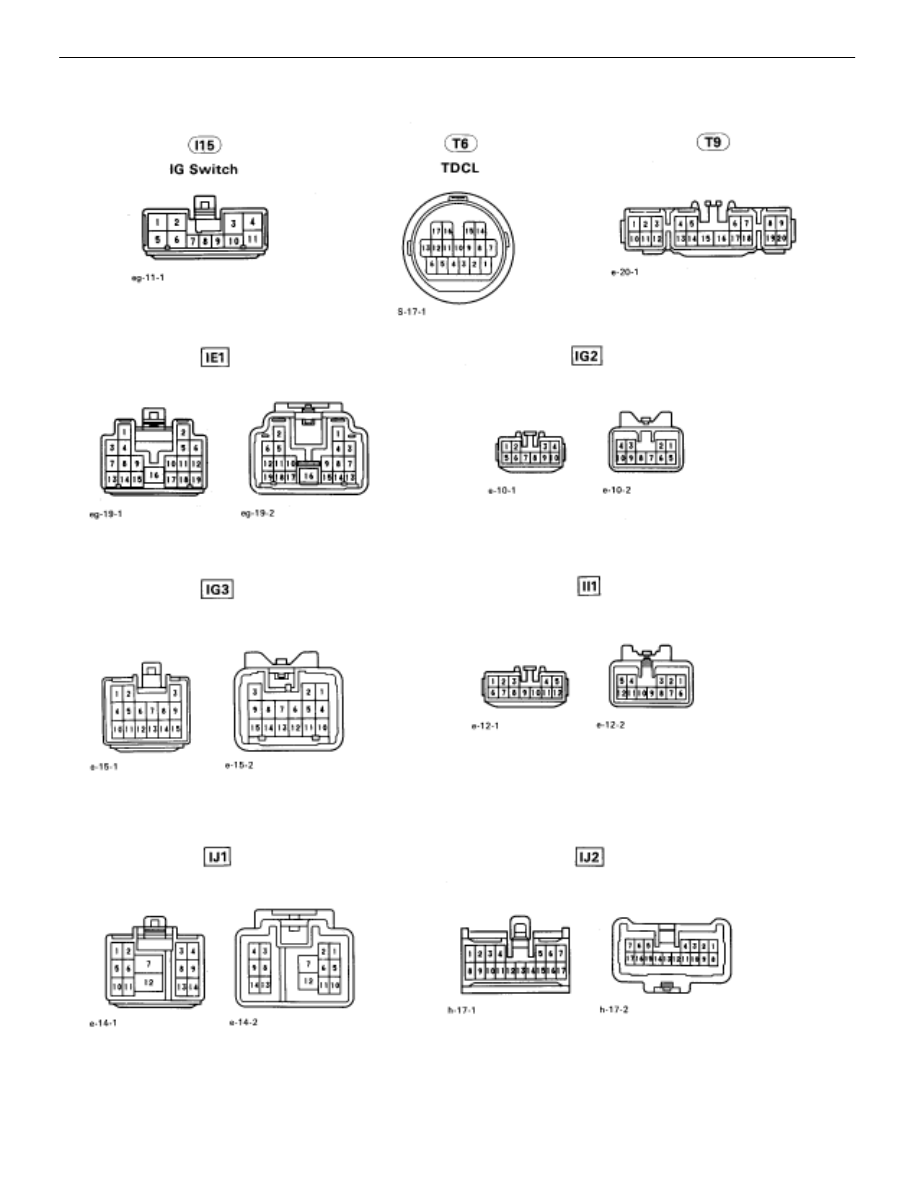

Location of Connectors in Instrument Panel

TR–42

–

ENGINE TROUBLESHOOTING

Location of Connectors

–

ENGINE TROUBLESHOOTING

Location of Connectors

TR–43
