Lexus SC300 / Lexus SC400. Service manual - part 208

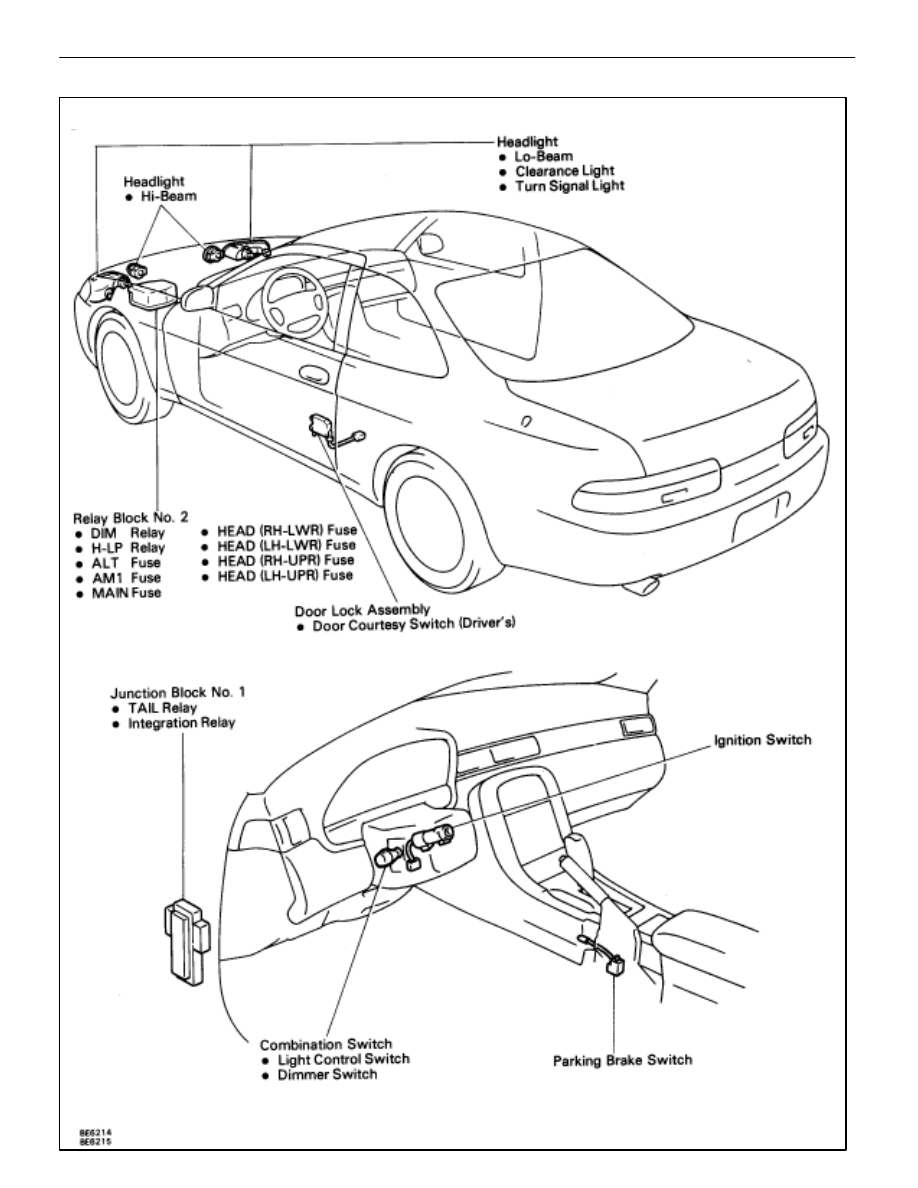

Parts Location – Headlight System

–

BODY ELECTRICAL SYSTEM

Lighting System

BE–33

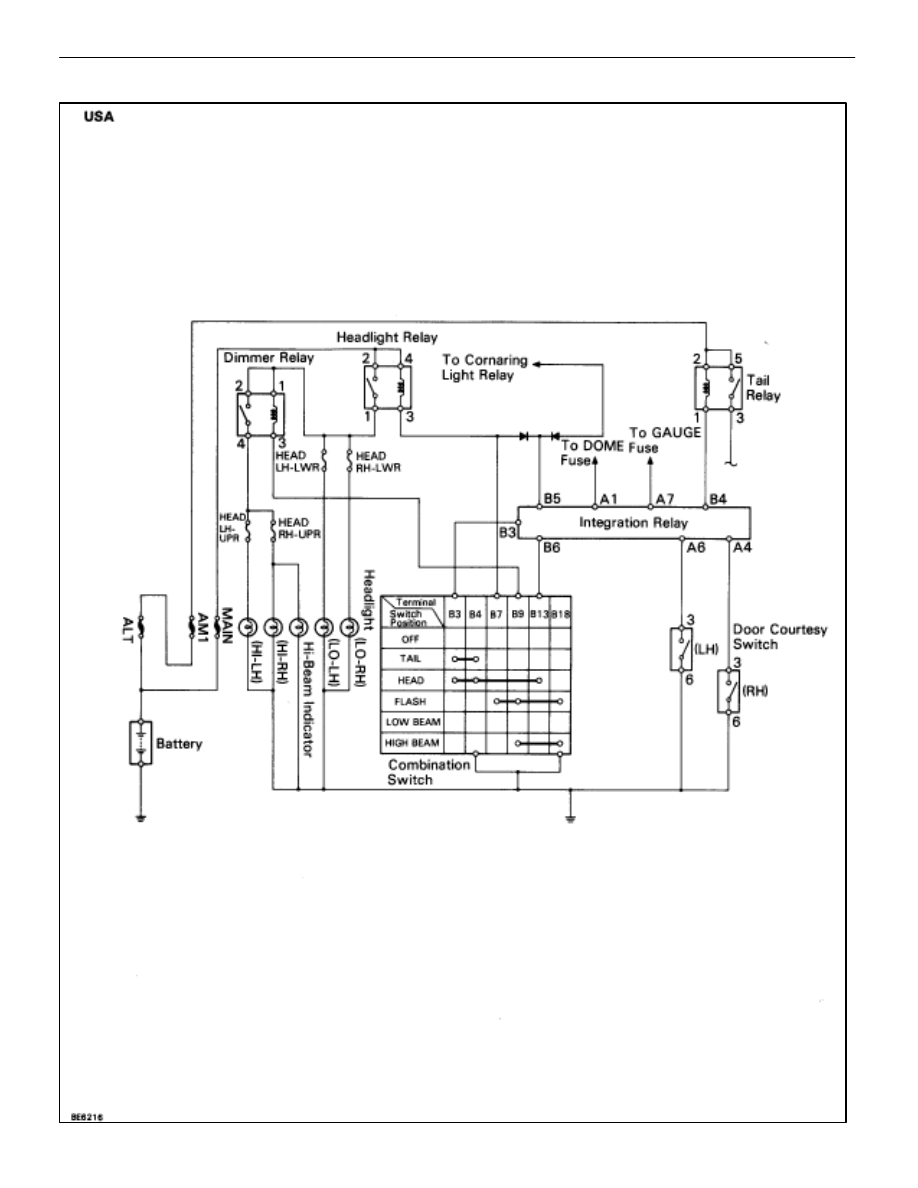

Wiring Diagram – Headlight System

BE–34

–

BODY ELECTRICAL SYSTEM

Lighting System

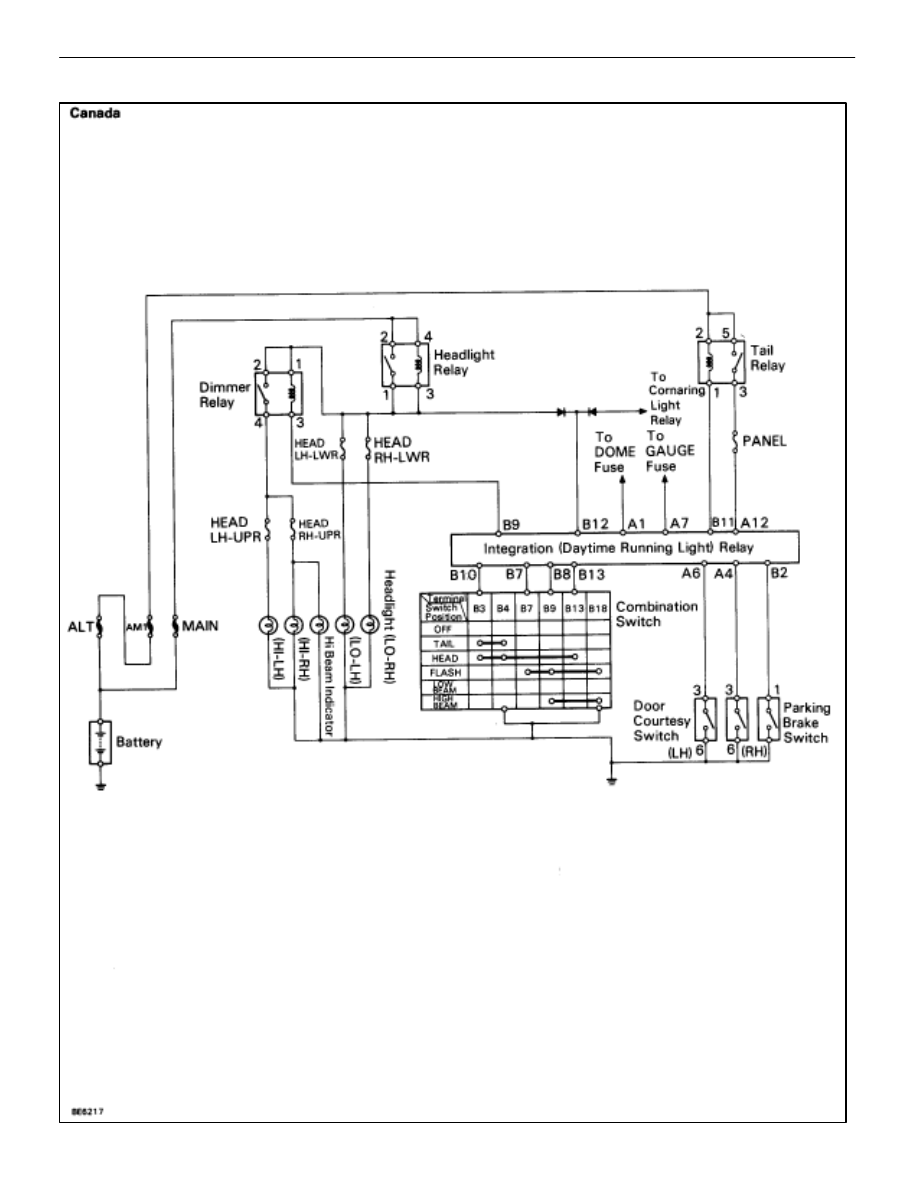

Wiring Diagram (Cont’d)

–

BODY ELECTRICAL SYSTEM

Lighting System

BE–35

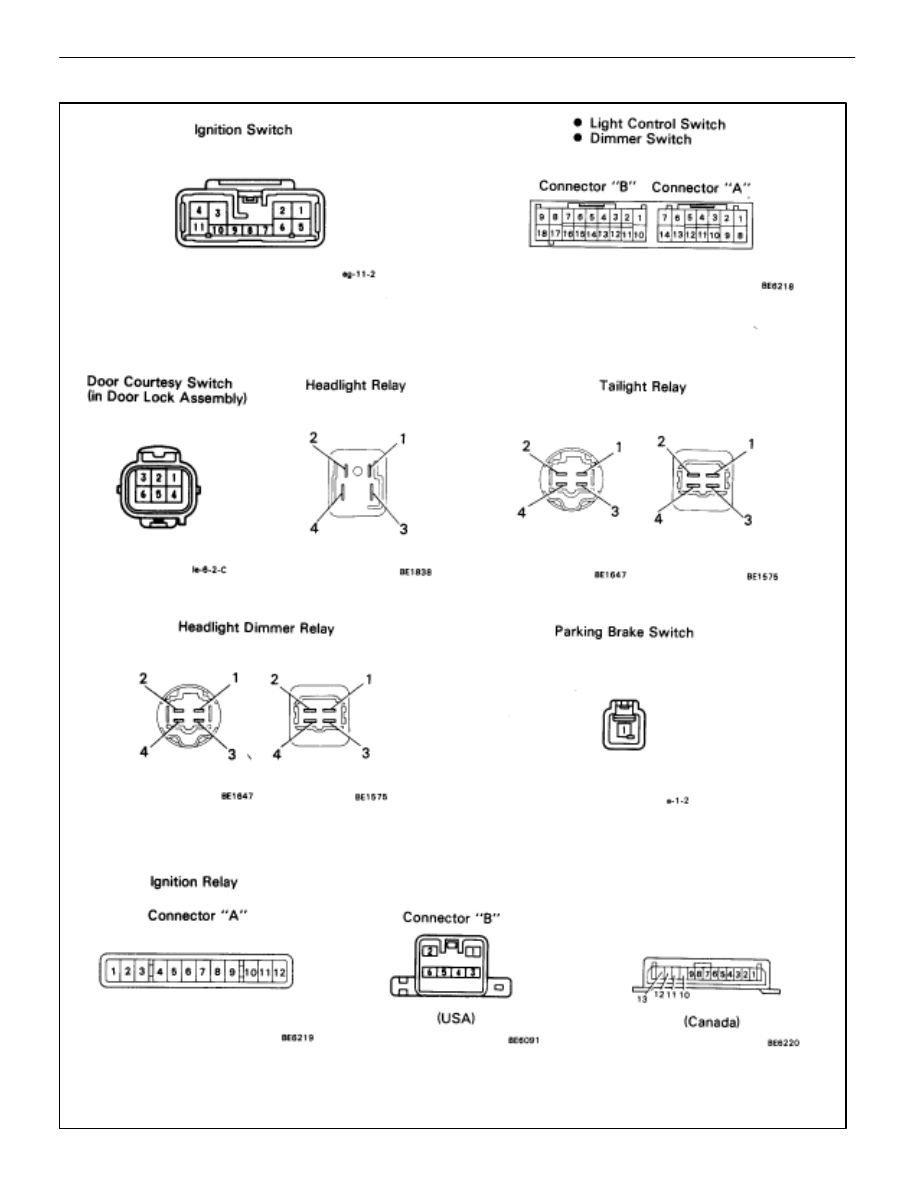

Connector Diagrams – Headlights

BE–36

–

BODY ELECTRICAL SYSTEM

Lighting System
