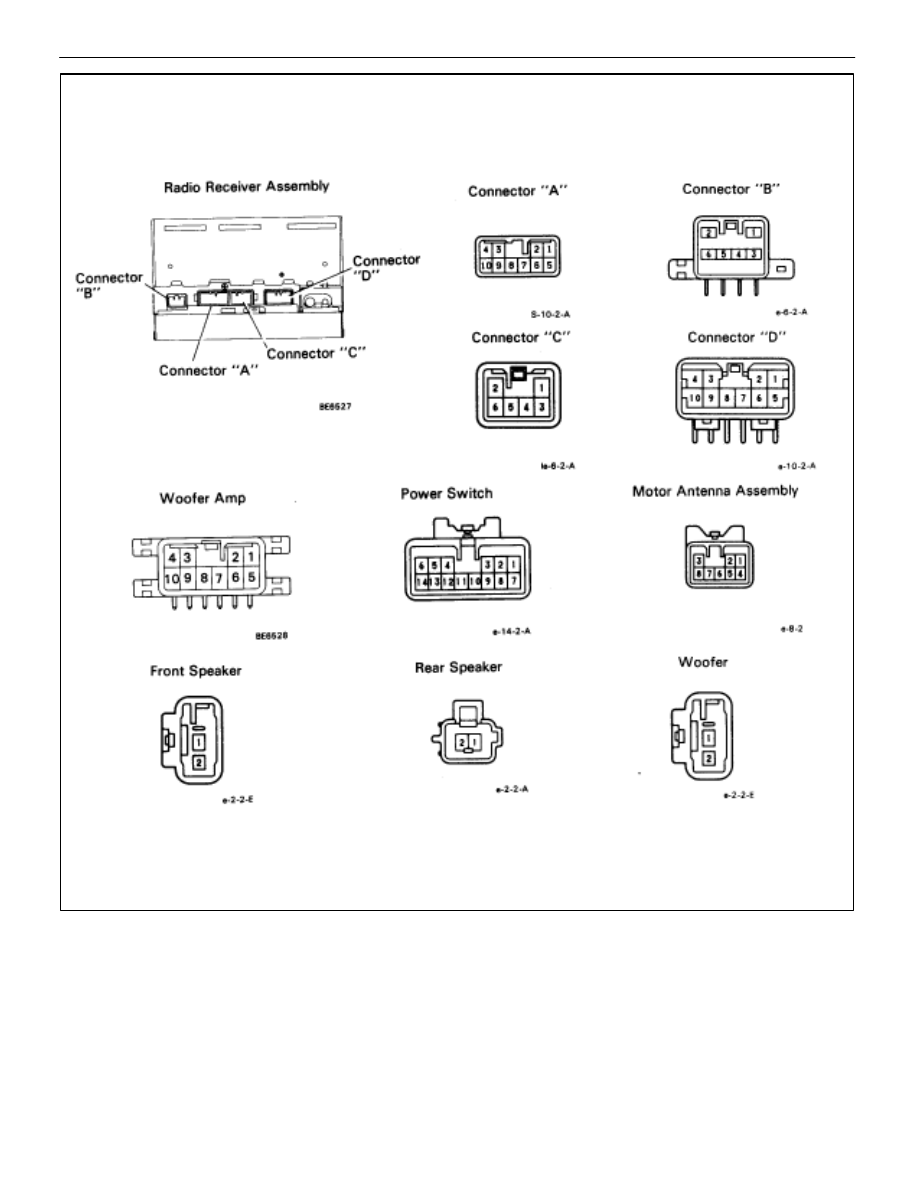

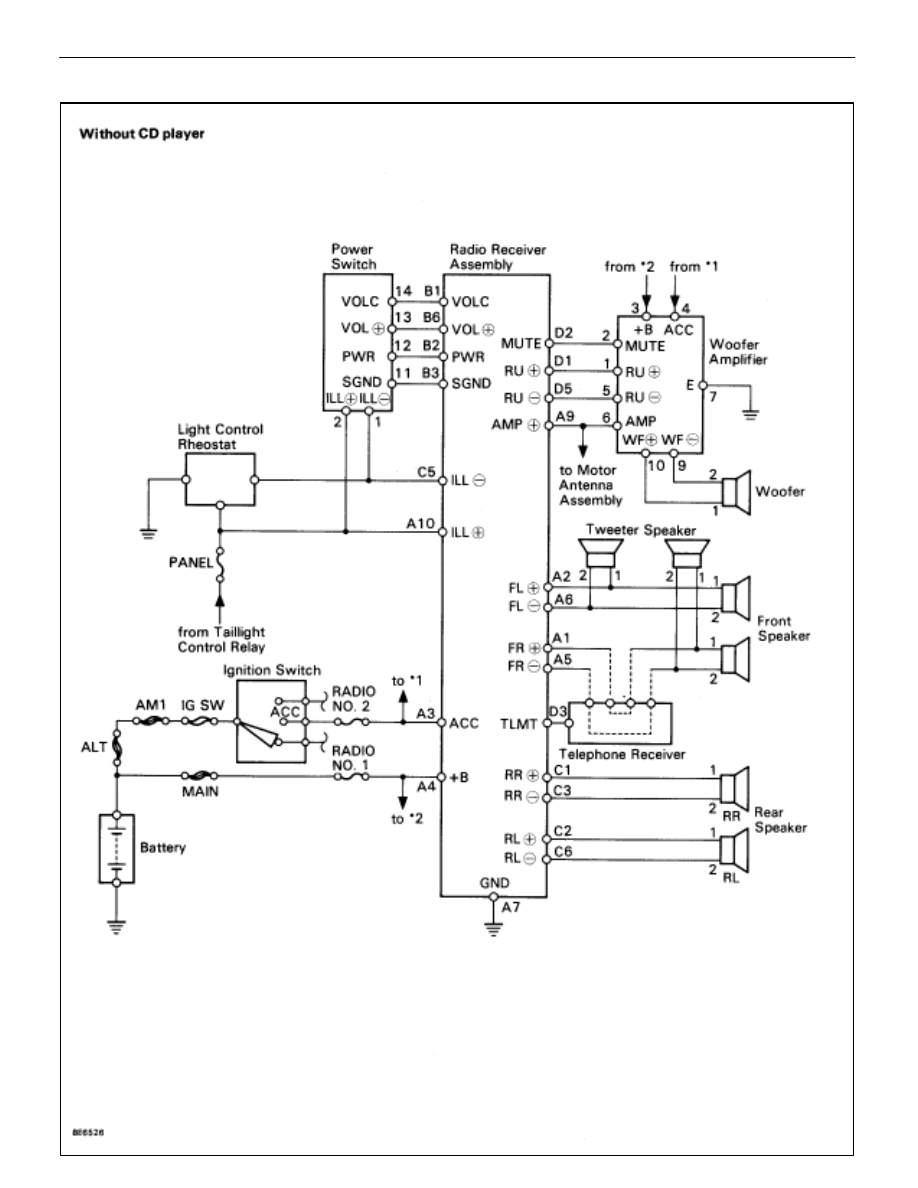

Wiring and Connector Diagrams

–

BODY ELECTRICAL SYSTEM

Audio System

BE–199

BE–200

–

BODY ELECTRICAL SYSTEM

Audio System

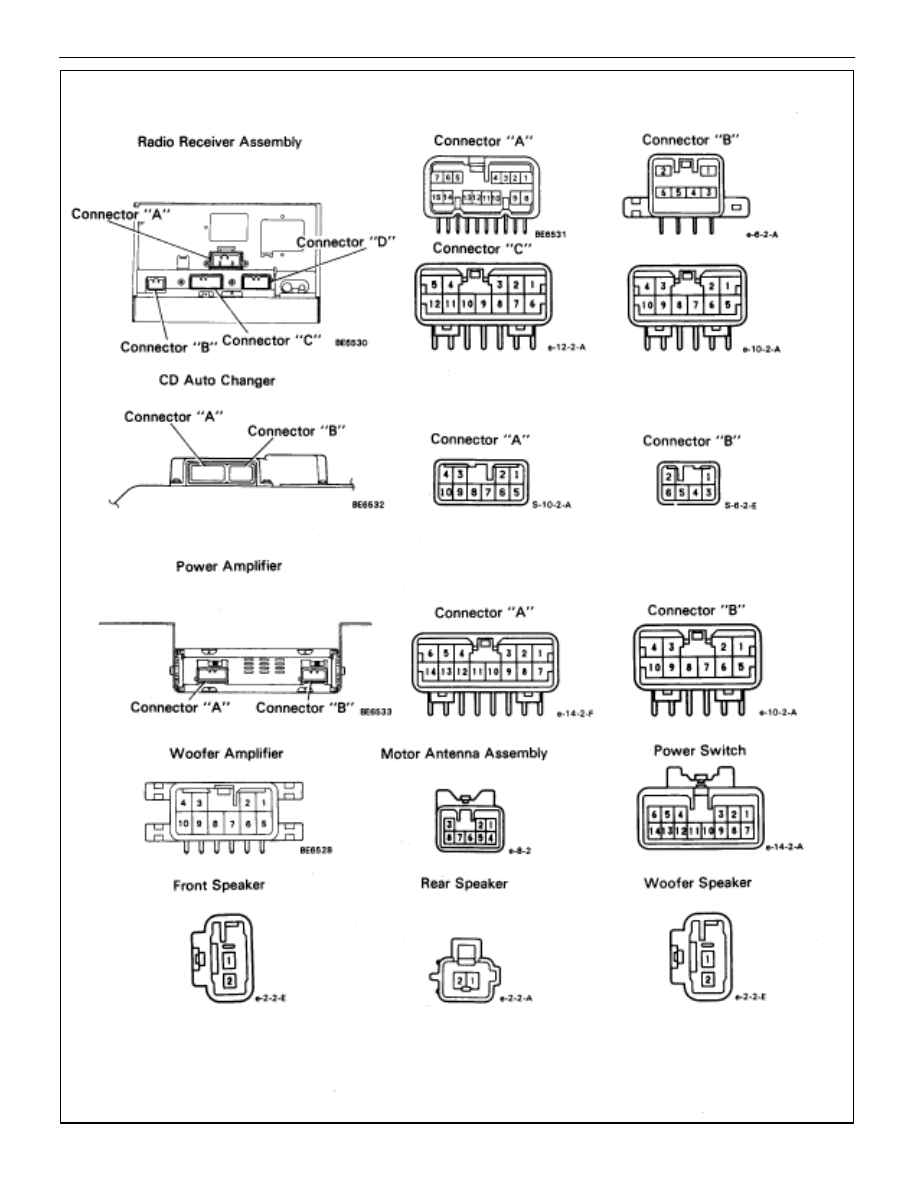

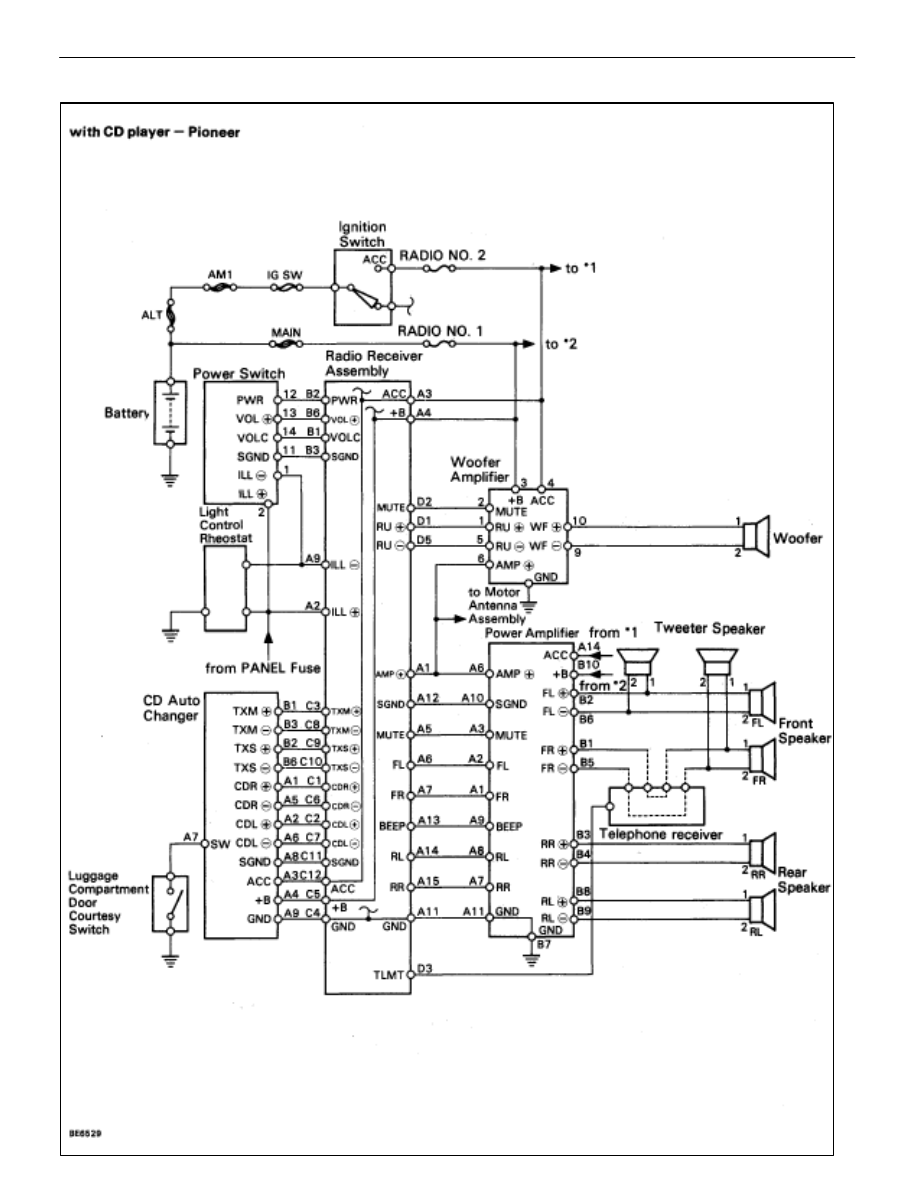

Wiring and Connector Diagrams

–

BODY ELECTRICAL SYSTEM

Audio System

BE–201

BE–202

–

BODY ELECTRICAL SYSTEM

Audio System
