TRANSPORT HOOK

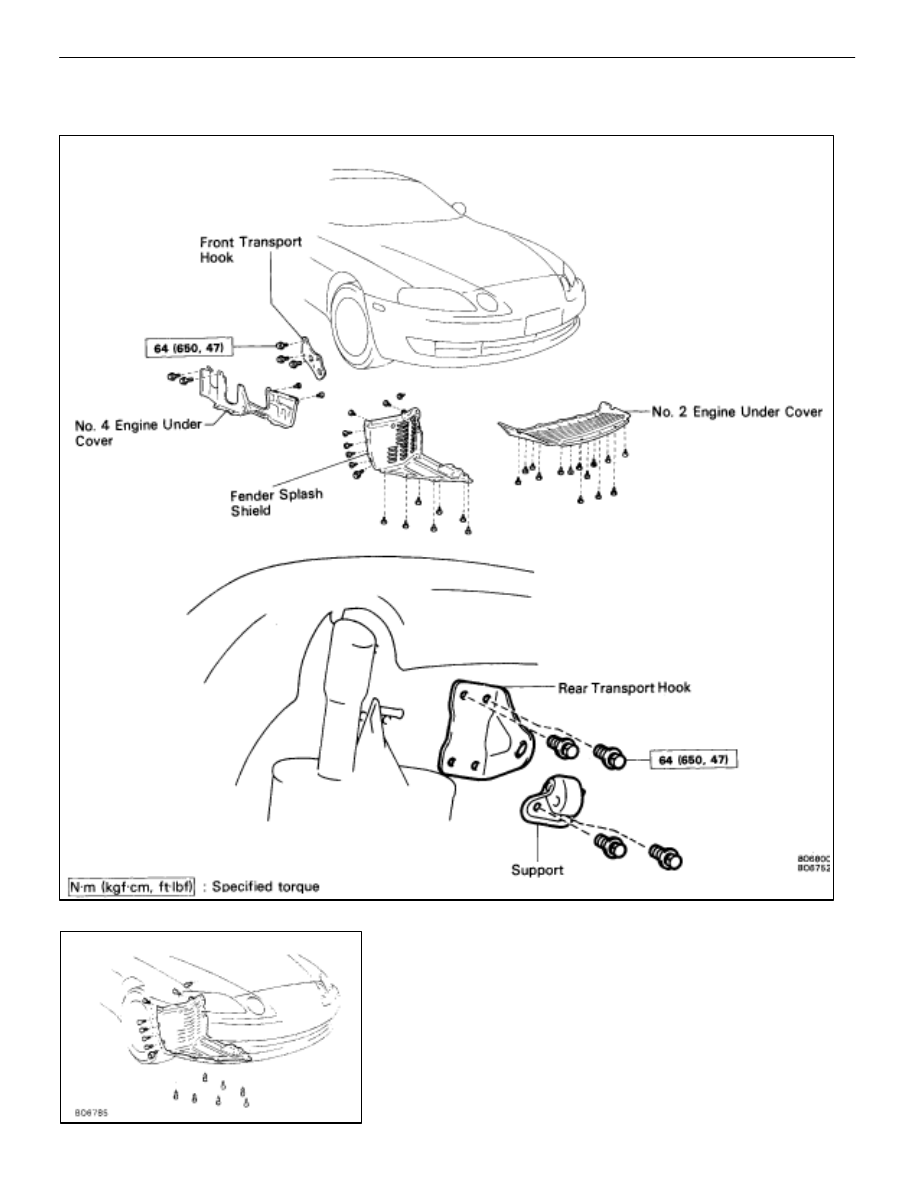

COMPONENTS

Front Transport Hook

REMOVAL AND INSTALLATION

1.

REMOVE FENDER SPLASH SHIELD
Remove fourteen screws, a bolt and the shield.

–

BODY

Transport Hook (Front Transport Hook)

BO–27

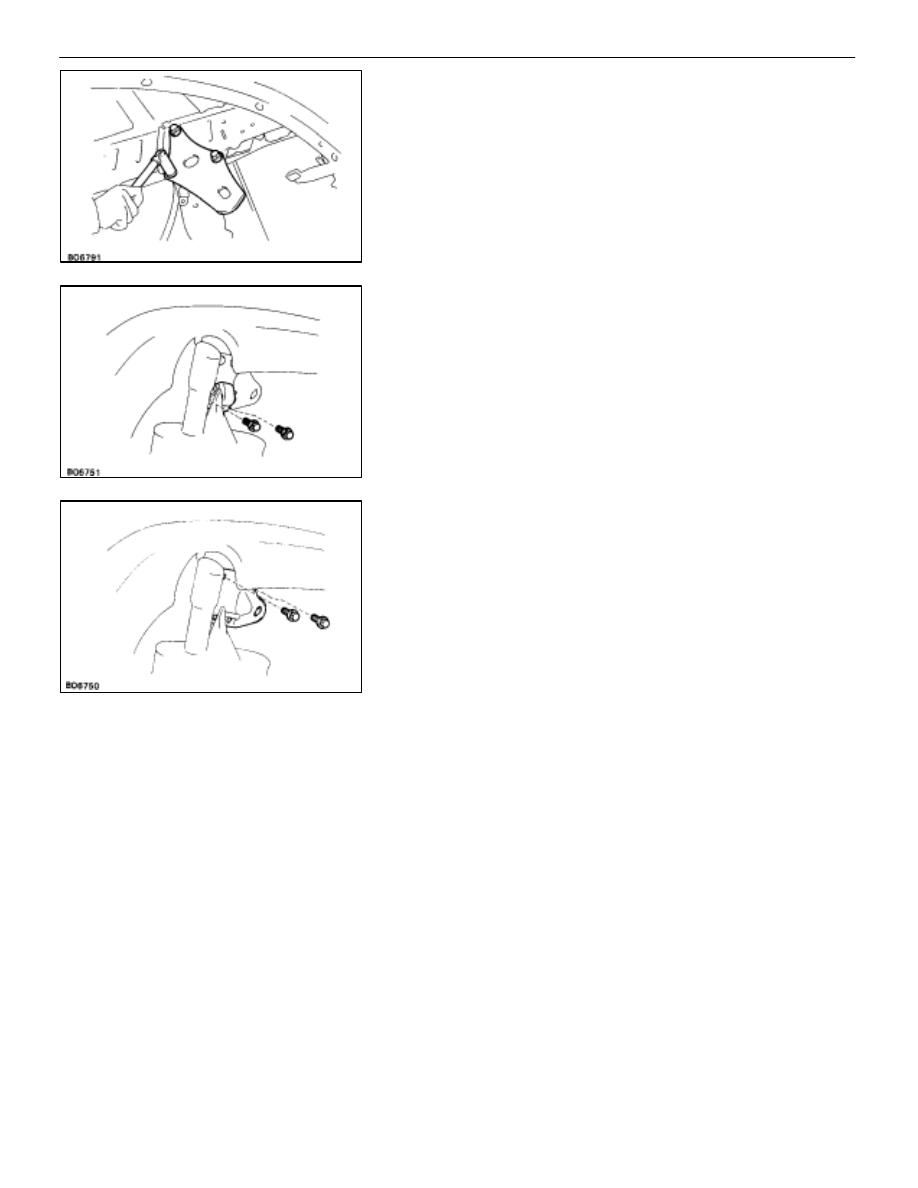

2.

REMOVE NO. 4 ENGINE UNDER COVER

3.

REMOVE FRONT TRANSPORT HOOK
Remove three bolts and the hook.

4.

INSTALL FRONT TRANSPORT HOOK
Install the hook with three bolts.

Torque: 64

N

⋅

m (650 kgf

⋅

cm, 47 ft

⋅

lbf)

5.

INSTALL NO. 4 ENGINE UNDER

6.

INSTALL FENDER SPLASH SHIELD

Rear Transport Hook

REMOVAL AND INSTALLATION

(See page

BO–27

)

1. REMOVE

SUPPORT

Remove two bolts and the support.

2.

REMOVE REAR TRANSPORT HOOK
Remove two bolts and the hook.

3.

INSTALL REAR TRANSPORT HOOK
Install the hook with two bolts.

Torque: 64

N

⋅

m (650 kgf

⋅

cm, 47 ft

⋅

lbf)

4. INSTALL

SUPPORT

Install the support with two bolts.

BO–28

–

BODY

Transport Hook (Front Transport Hook, Rear Transport Hook)

2.

REMOVE NO. 4 ENGINE UNDER COVER

3.

REMOVE FRONT TRANSPORT HOOK
Remove three bolts and the hook.

4.

INSTALL FRONT TRANSPORT HOOK
Install the hook with three bolts.

Torque: 64

N

⋅

m (650 kgf

⋅

cm, 47 ft

⋅

lbf)

5.

INSTALL NO. 4 ENGINE UNDER

6.

INSTALL FENDER SPLASH SHIELD

Rear Transport Hook

REMOVAL AND INSTALLATION

(See page

BO–27

)

1. REMOVE

SUPPORT

Remove two bolts and the support.

2.

REMOVE REAR TRANSPORT HOOK
Remove two bolts and the hook.

3.

INSTALL REAR TRANSPORT HOOK
Install the hook with two bolts.

Torque: 64

N

⋅

m (650 kgf

⋅

cm, 47 ft

⋅

lbf)

4. INSTALL

SUPPORT

Install the support with two bolts.

BO–28

–

BODY

Transport Hook (Front Transport Hook, Rear Transport Hook)

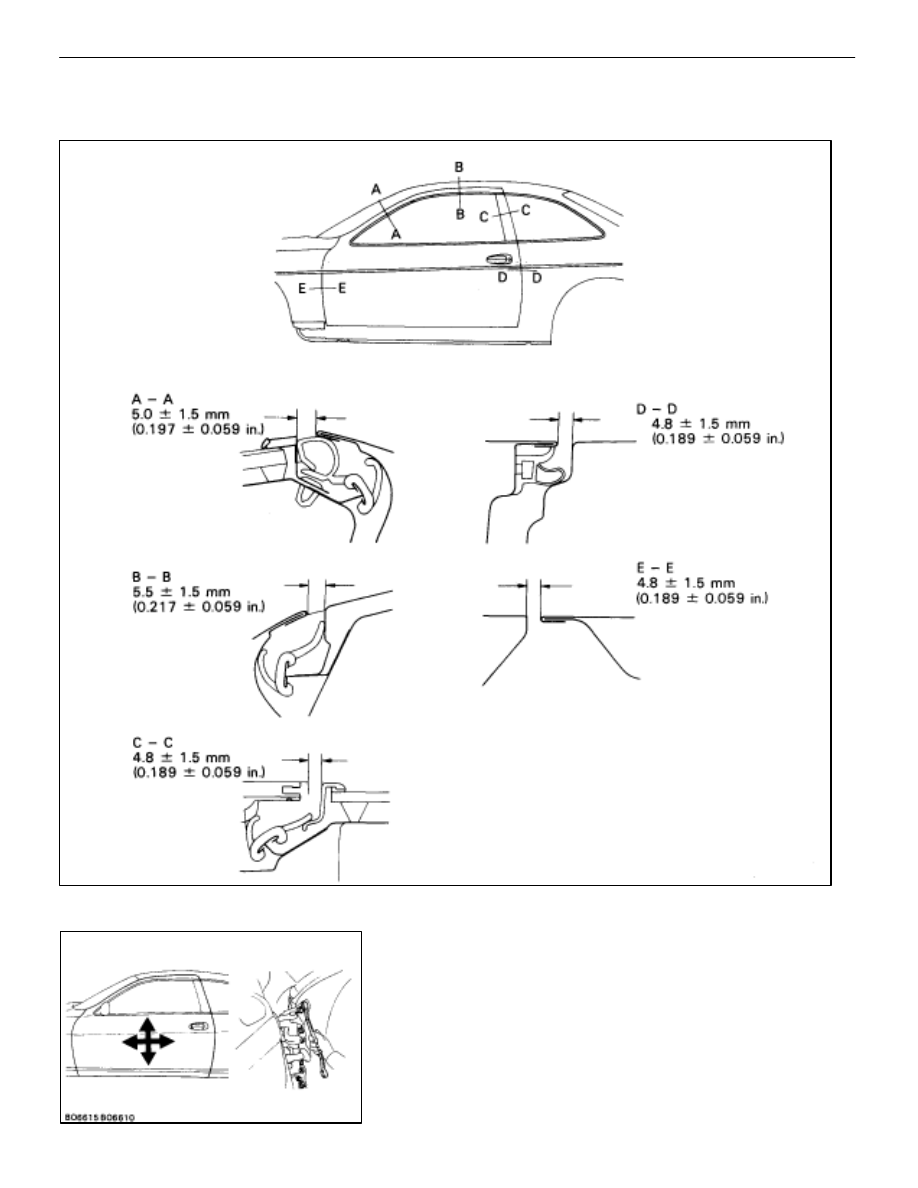

DOOR
Fitting Adjustments

HINT:

Adjust the door panel according to the following

method.

[ADJUSTMENT OF FRONT DOOR]

1.

ADJUST FRONT DOOR IN FORWARD/REARWARD AND
VERTICAL DIRECTIONS
Loosen the body side hinge bolts to adjust the door panel.
HINT:

Remove the pin on the body side before performing

adjustment and reinstall it when finished.

–

BODY

Front Door (Fitting Adjustments)
