BUMPER
Front Bumper

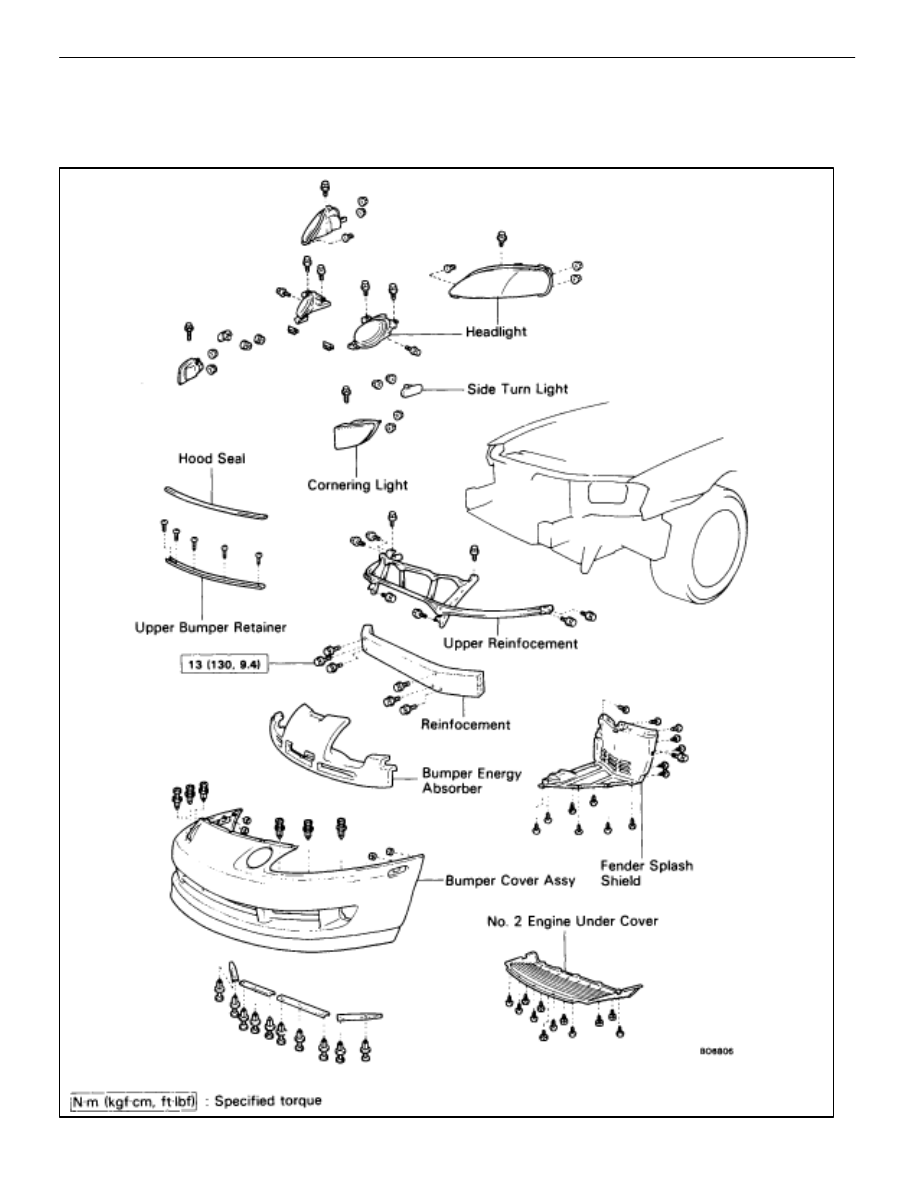

COMPONENTS

–

BODY

Bumper (Front Bumper)

BO–11

REMOVAL OF FRONT BUMPER

(See page

BO–11

)

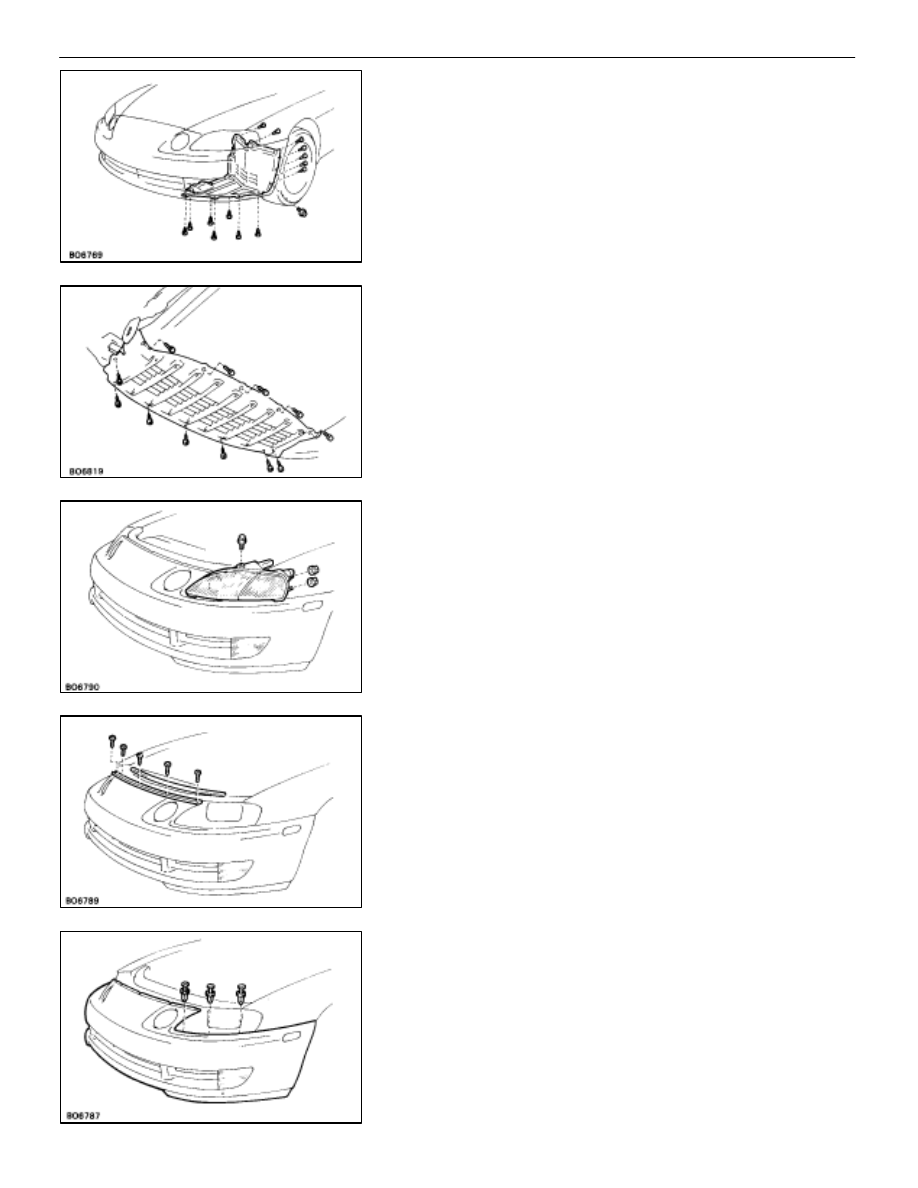

1.

REMOVE FENDER SPLASH SHIELD
Remove fourteen screws, a bolt and the shield.

2.

REMOVE NO. 2 ENGINE UNDER COVER
Remove seven screws, five bolts and the cover.

3. REMOVE

HEADLIGHT

(Low Beam)
(a)  Remove two nuts, a bolt and the headlight.
(b)  Disconnect the connectors.

4.

REMOVE UPPER BUMPER RETAINER
(a)  Remove the hood seal.
(b)  Remove five screws and the retainer.

5.

REMOVE BUMPER COVER ASSY
(a)  Remove six clips.

BO–12

–

BODY

Bumper (Front Bumper)

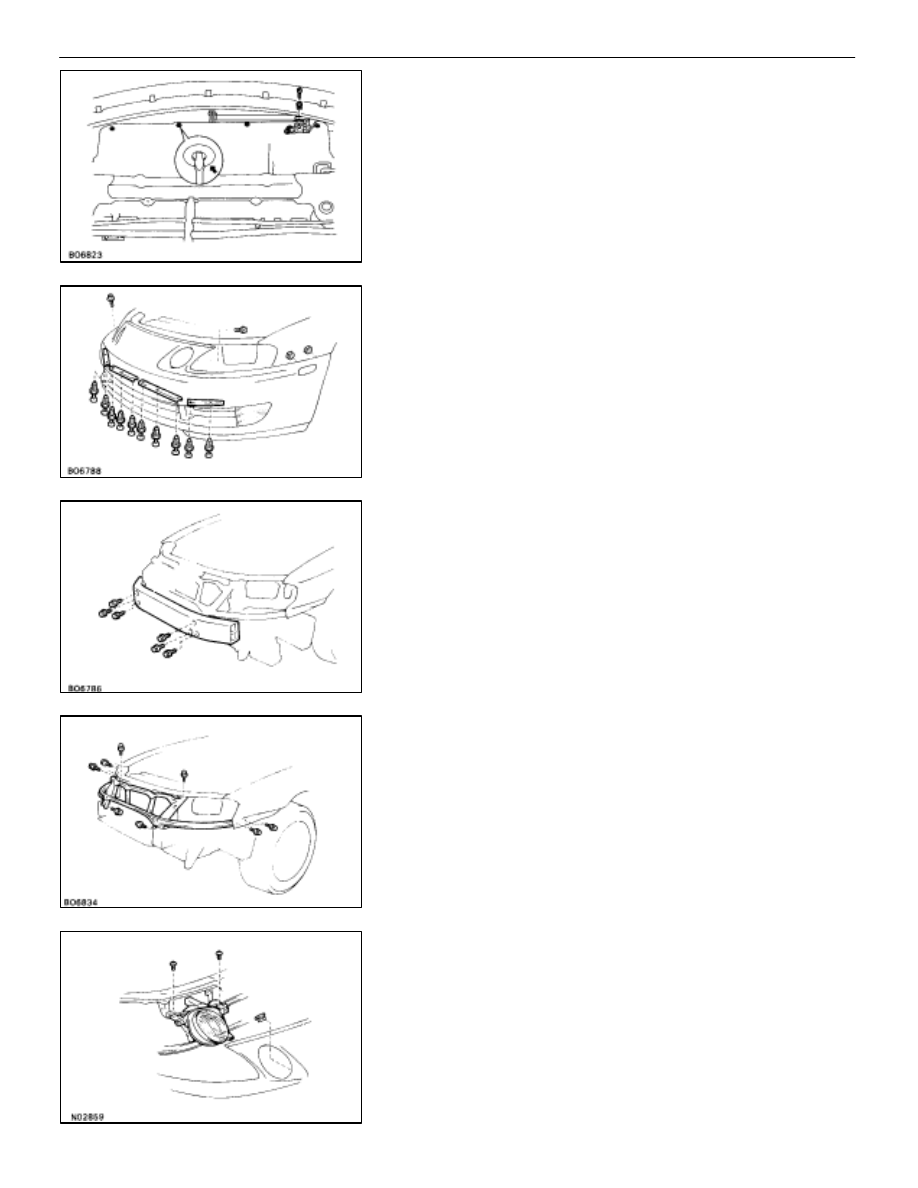

(b)  Remove four clips.
(c)  Remove the clip and ambient temperature sensor.

(d)  Remove four nuts.
(e)  Remove ten clips.
(f)  Remove two bolts.
(g)  Disconnect the connectors.
(h)  Remove the bumper cover assy.

6. REMOVE

REINFORCEMENT

Remove six bolts and the reinforcement.

7.

REMOVE UPPER REINFORCEMENT
Remove eight bolts and the reinforcement.

8. REMOVE

HEADLIGHT

(High Beam)
(a)  Remove two screws, a clip and the headlight.
(b)  Disconnect the connector.

–

BODY

Bumper (Front Bumper)

BO–13

INSTALLATION OF FRONT BUMPER

(See page

BO–11

)

INSTALL FRONT BUMPER PARTS BY FOLLOWING RE-
MOVAL SEQUENCE IN REVERSE

HINT:

•

When installing the bumper on the body, be careful
not to damage the serrated part of side bolts.

•

After installing the headlight, adjust the light aiming.

(See page

BE–38

).

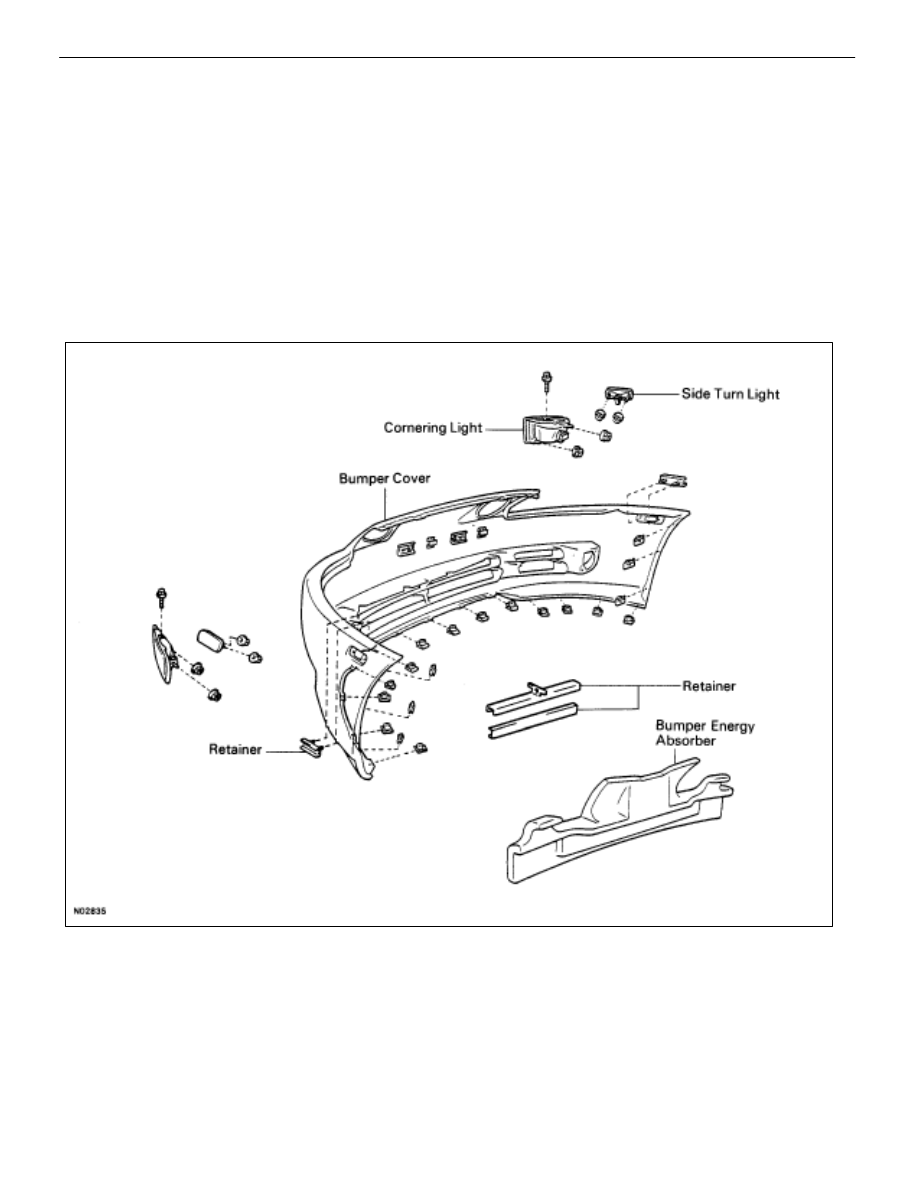

DISASSEMBLY AND ASSEMBLY OF
FRONT BUMPER

DISASSEMBLY AND ASSEMBLY BY
FOLLOWING PARTS:

(a) Cornering

lights

(b)  Side turn lights
(c)  Bumper energy absorber
(d) Retainers
(e) License

bracket

BO–14

–

BODY

Bumper (Front Bumper)
