Lexus SC300 / Lexus SC400. Service manual - part 113

2.

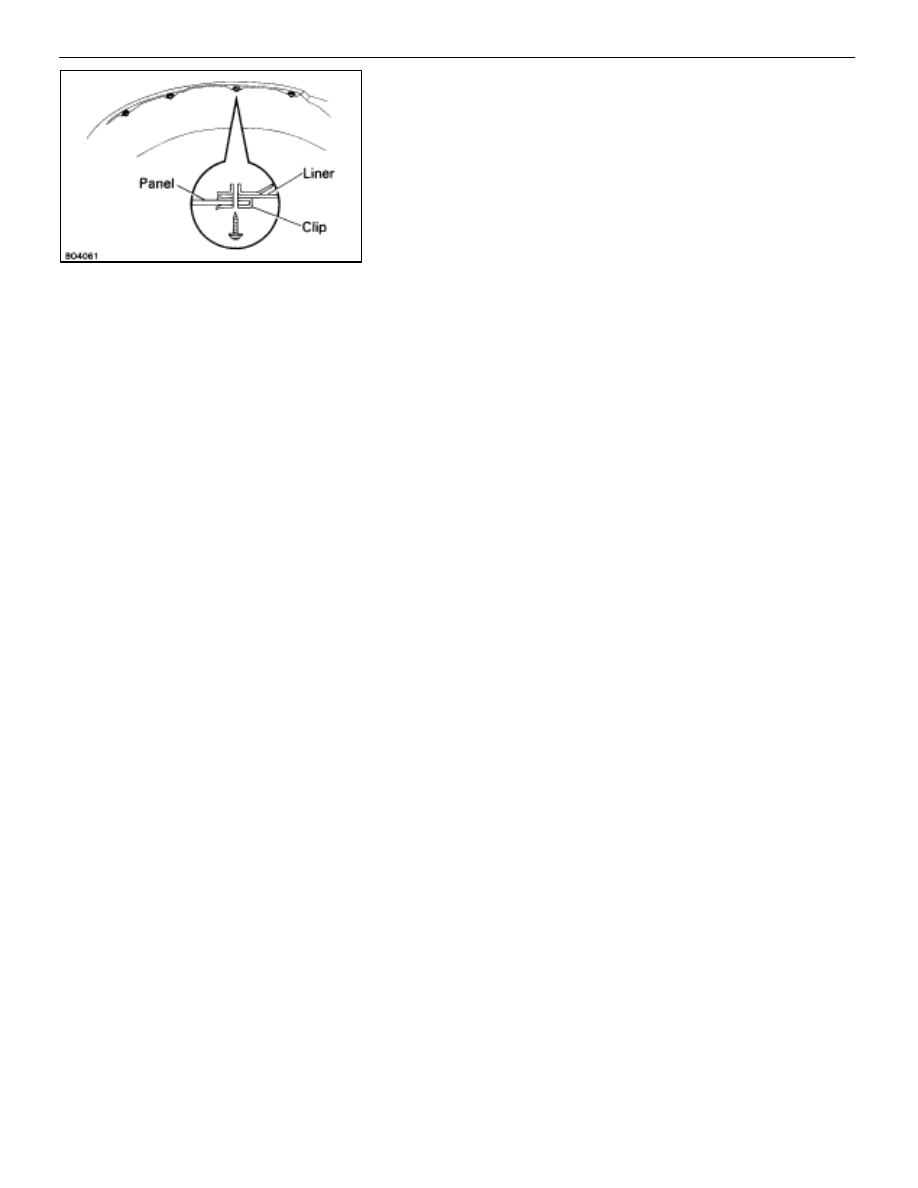

INSTALL FENDER LINER
(a)  Install four clips so that the screw can be inserted in the

manner shown in the drawing.

(b)  Install eight screws and the liner.

3.

INSTALL FRONT FENDER WHEEL OPENING MOULDING
(See page

BO–102

)

4.

INSTALL FRONT BUMPER
(See page

BO–14

)

–

BODY

Front Fender

BO–93

EMBLEM

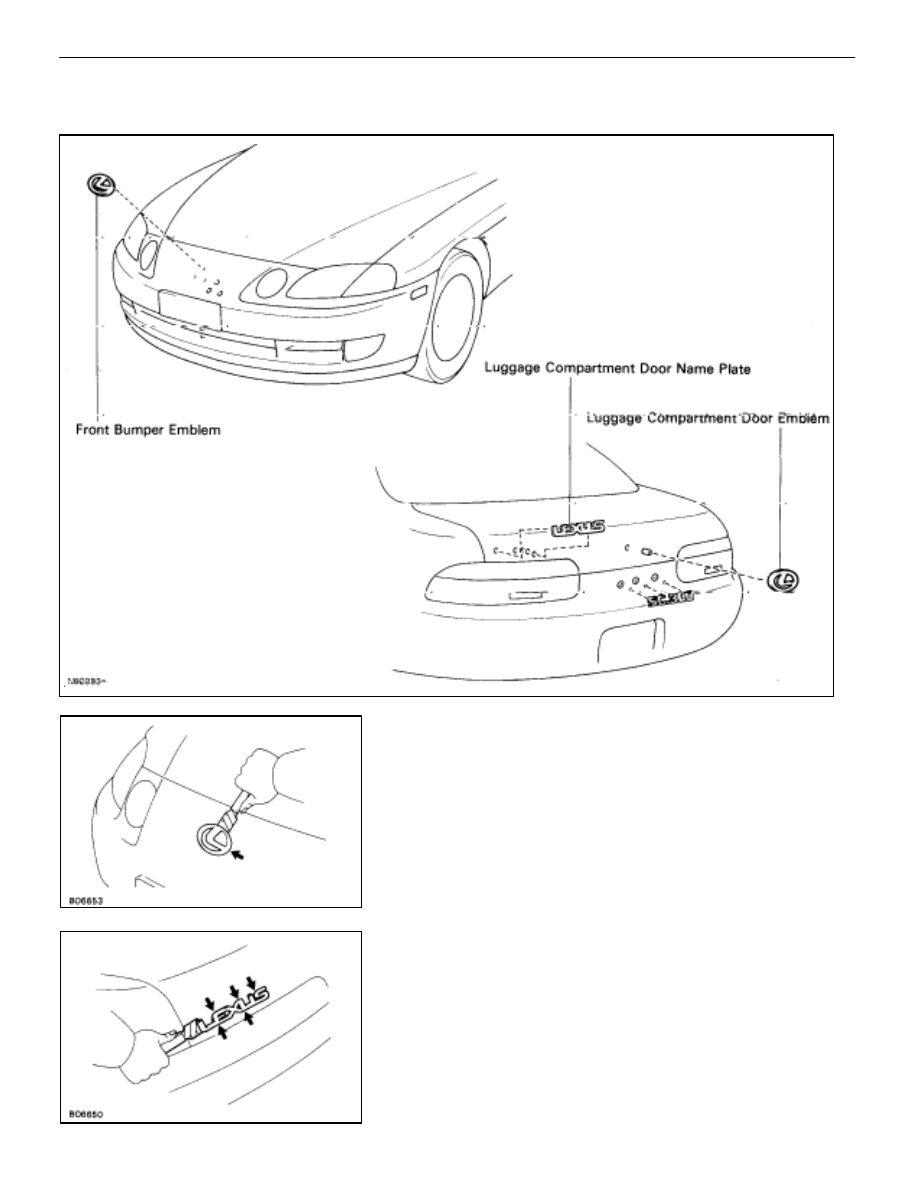

COMPONENTS

REMOVAL OF EMBLEM

1.

REMOVE FRONT AND REAR BUMPER EMBLEM
(a)  Remove three nuts.
(b)  Using a scraper, pry out the plate.

2.  REMOVE LUGGAGE COMPARTMENT DOOR NAME

PLATE
Using a scraper, pry out the plate.
HINT:

•

Tape the scraper tip before use.

•

To avoid damaging the emblem, insert the scraper
from various directions and gradually pry out the
plate from the body.

BO–94

–

BODY

Emblem

3.

REMOVE LUGGAGE COMPARTMENT DOOR EMBLEM
Using a scraper, pry out the plate.
HINT:

•

Tape the scraper tip before use.

•

To avoid damaging the emblem, insert the scraper from
various directions and gradually pry out the plate from
the body.

INSTALLATION OF EMBLEM

(See page

BO–95

)

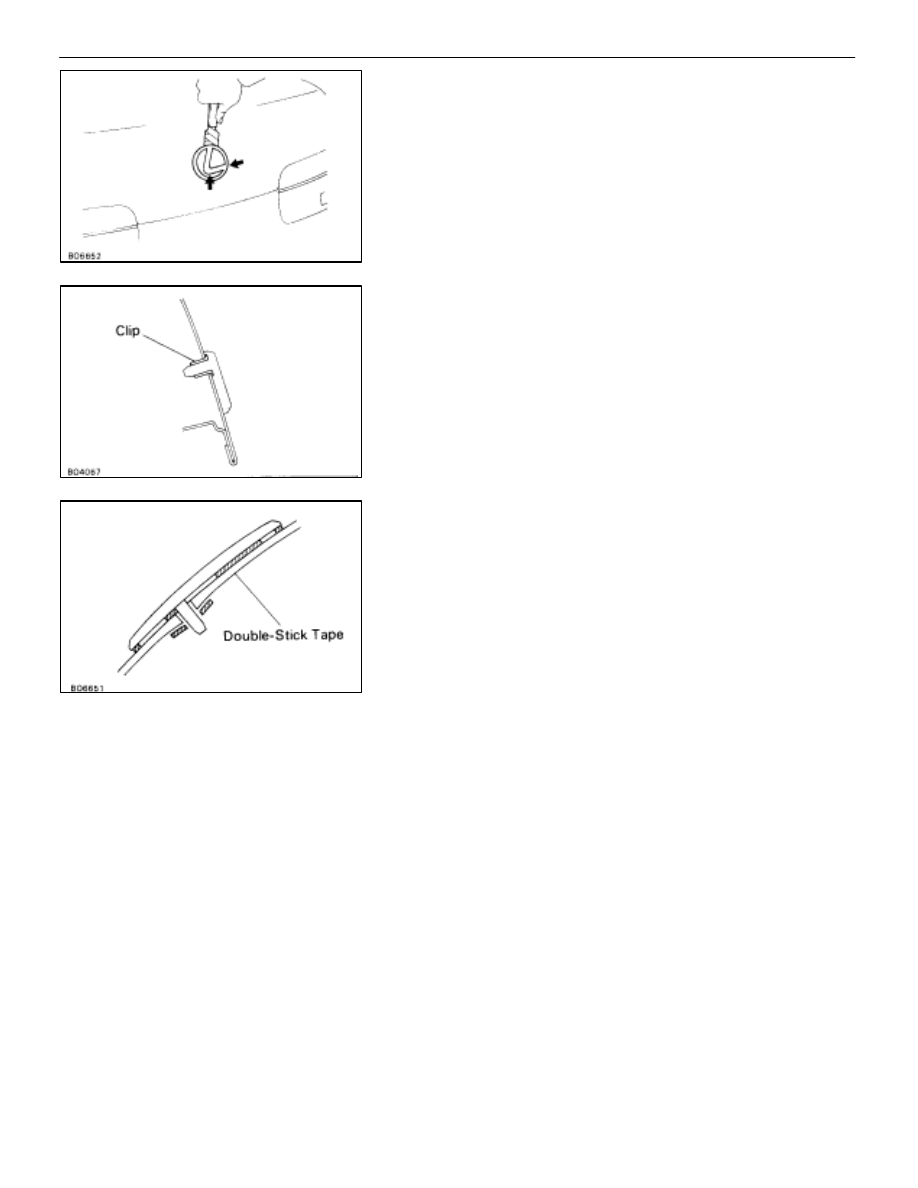

1.  INSTALL LUGGAGE COMPARTMENT DOOR NAME

PLATE
Push in the name plate and install it.

2.

INSTALL LUGGAGE COMPARTMENT DOOR EMBLEM
(a)  Set the clip in the holes in the door.
(b)  Push in the emblem and install it.

3.

INSTALL FRONT AND REAR BUMPER EMBLEM
(a)  Install the double–stick tape and the emblem.
(b) Install

nuts.

–

BODY

Emblem

BO–95

MOULDING
Windshield Moulding

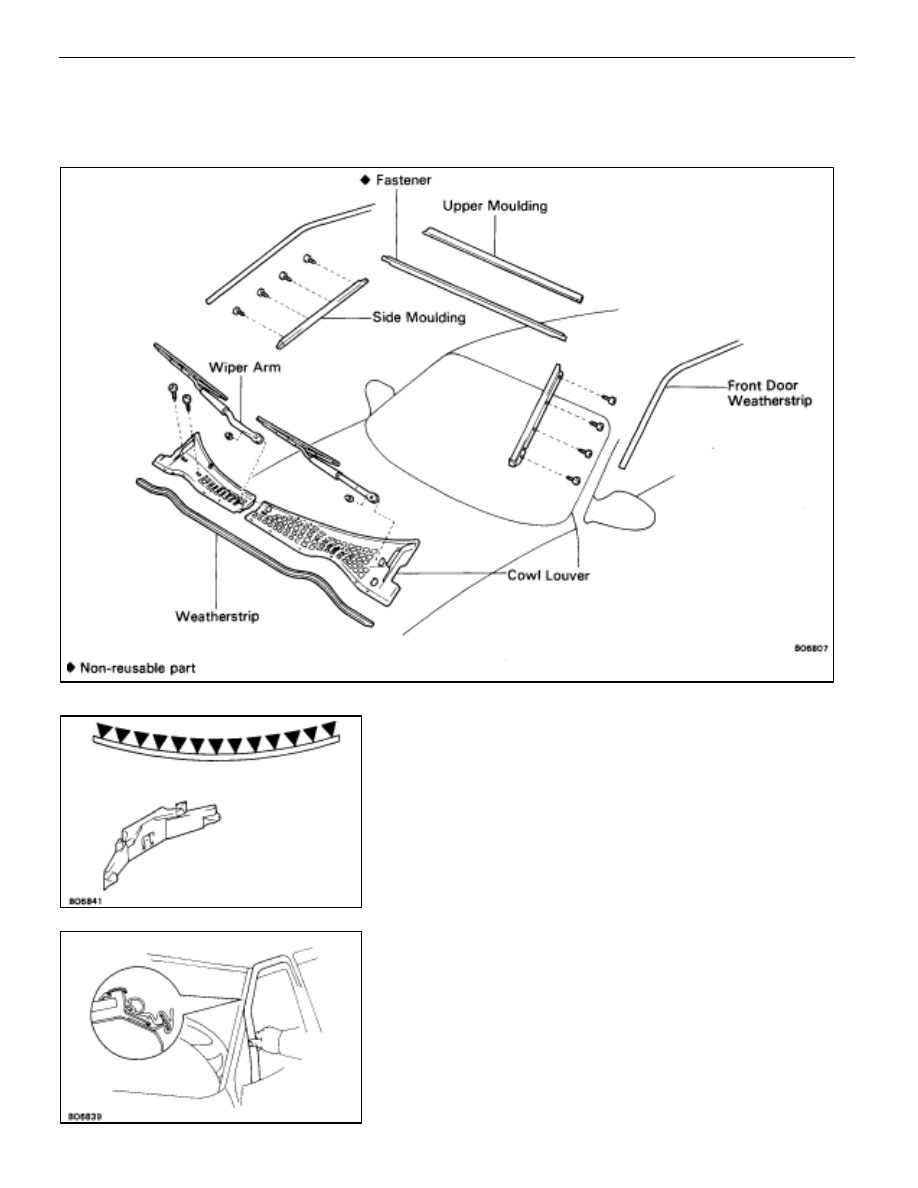

COMPONENTS

REMOVAL OF WINDSHIELD MOULDING

Location of clips is as shown. Carefully apply adhesive tape
to protect the body.

1.

REMOVE FOLLOWING PARTS:
(a) Wiper

arm

(b) Cowl

louver

2.

REMOVE FRONT DOOR WEATHERSTRIP

BO–96

–

BODY

Moulding (Windshield Moulding)
