LOCATION OF CONNECTORS

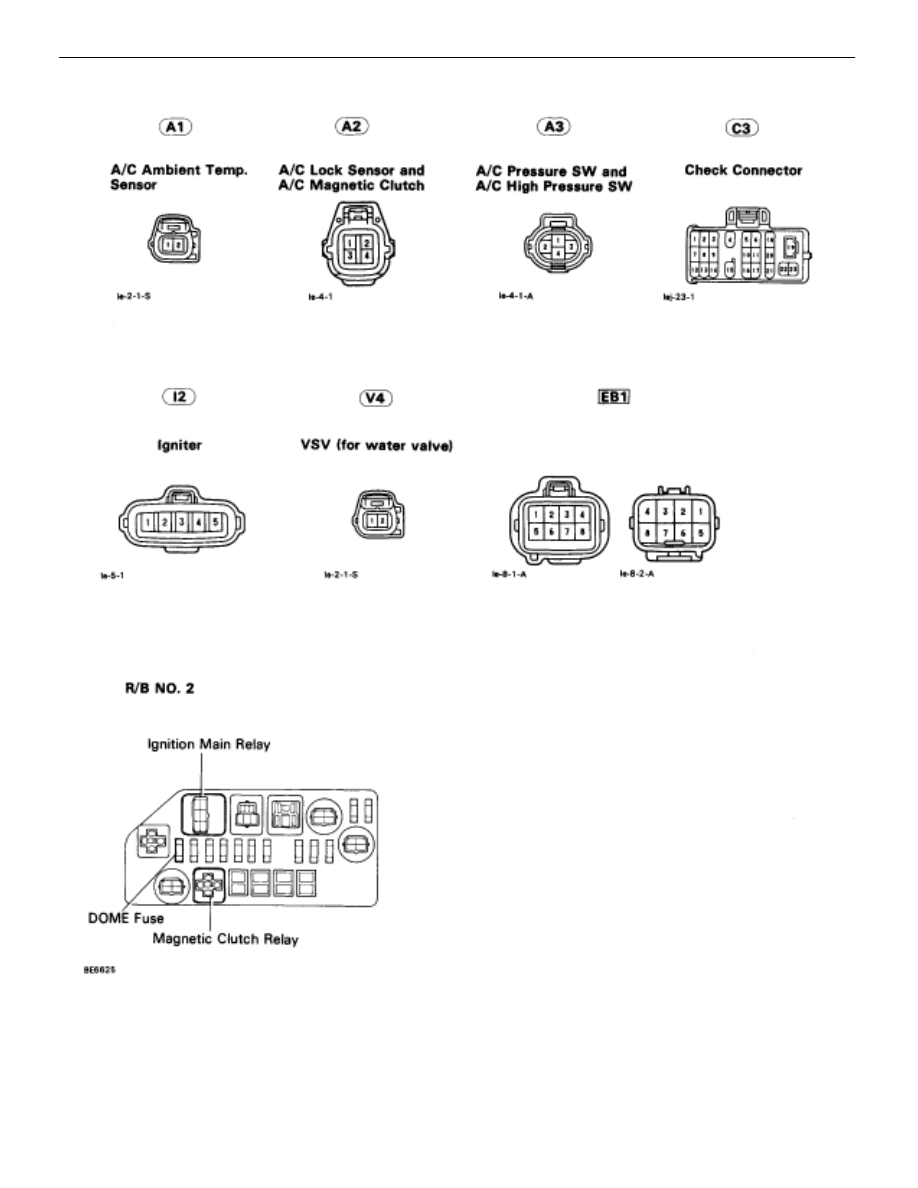

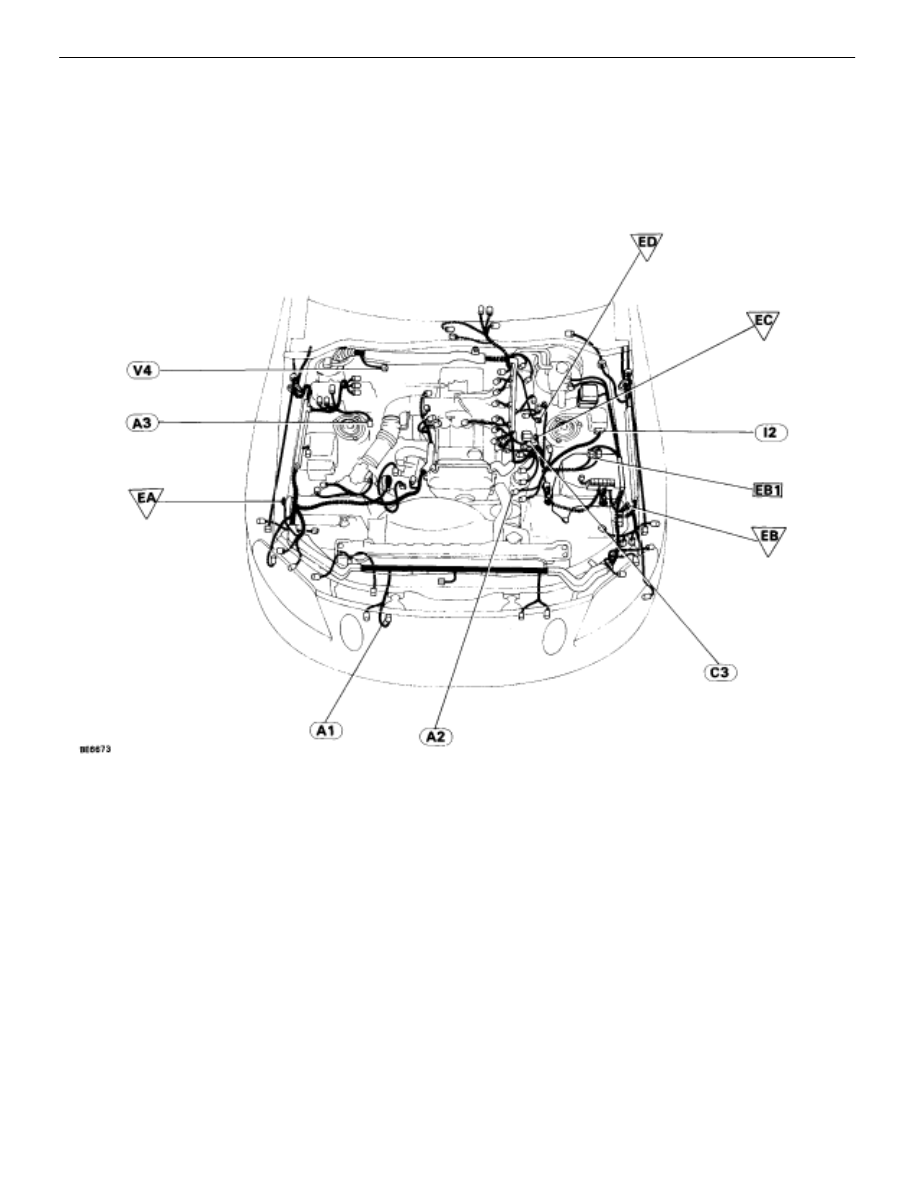

LOCATION OF CONNECTORS IN ENGINE COMPARTMENT

AC–38

–

AIR CONDITIONING SYSTEM

Troubleshooting

–

AIR CONDITIONING SYSTEM

Troubleshooting

AC–39

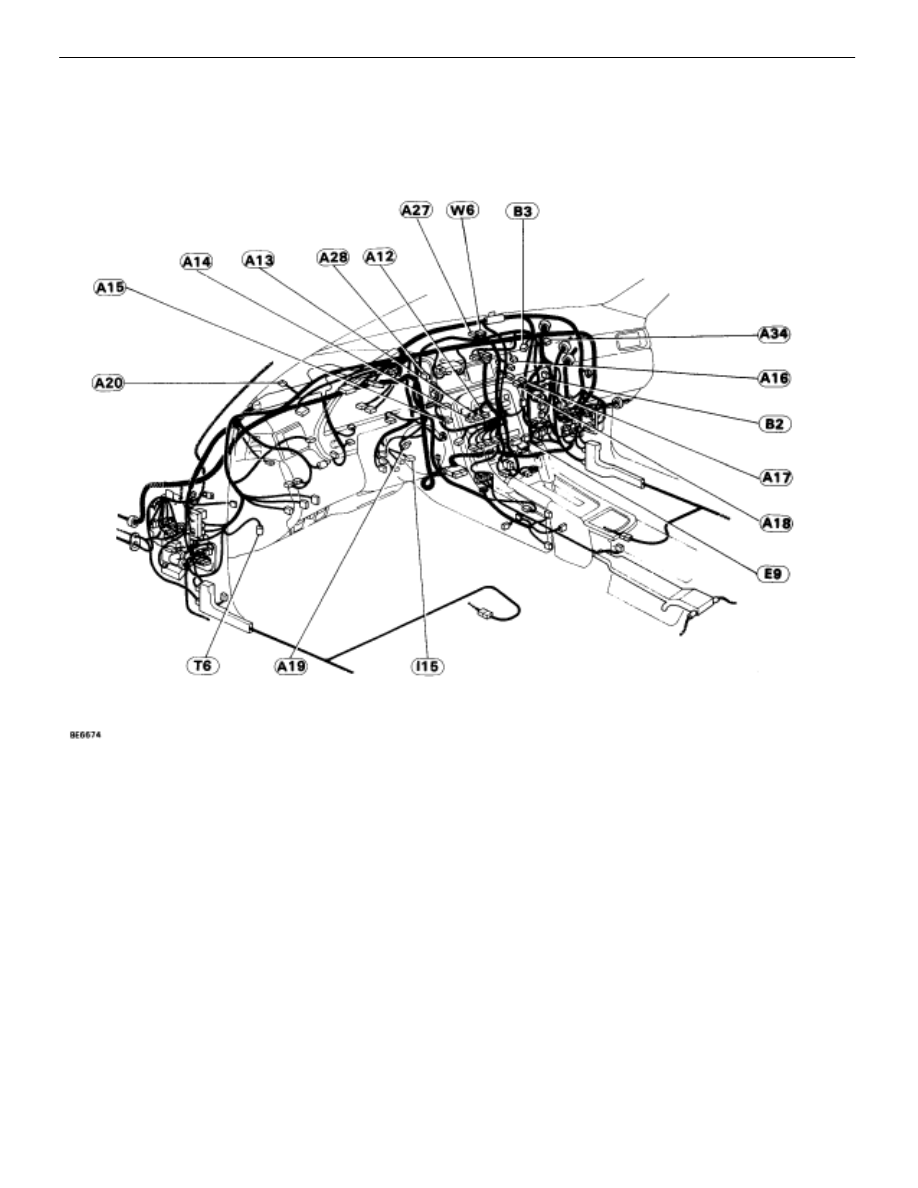

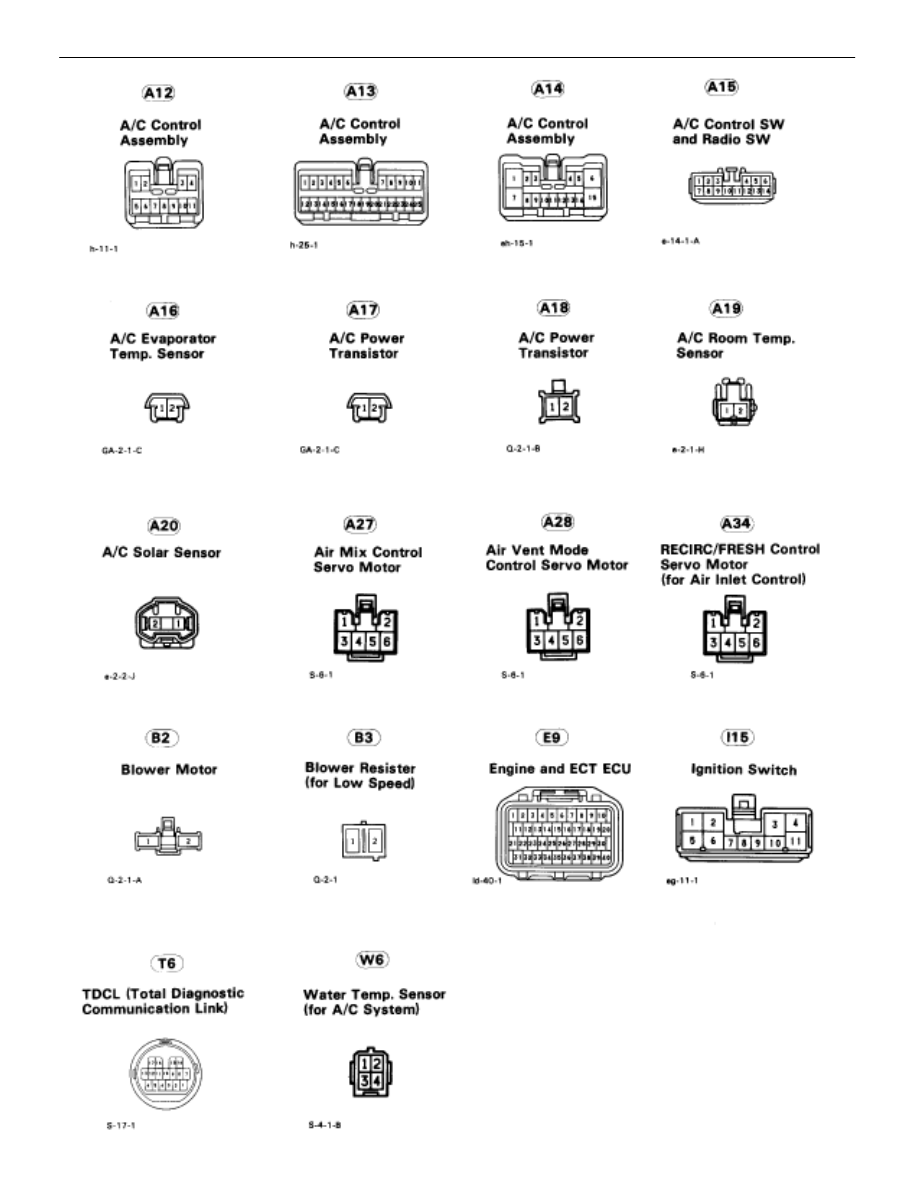

LOCATION OF CONNECTORS IN INSTRUMENT PANEL

AC–40

–

AIR CONDITIONING SYSTEM

Troubleshooting

–

AIR CONDITIONING SYSTEM

Troubleshooting

AC–41
