Lexus ES300 (2002 year). Service manual - part 326

C93266

E1

E2

SL1+

SL1-

SL2-

SL2+

SL3-

SL3+

E2

-

DIAGNOSTICS

ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT]

05-423

576

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

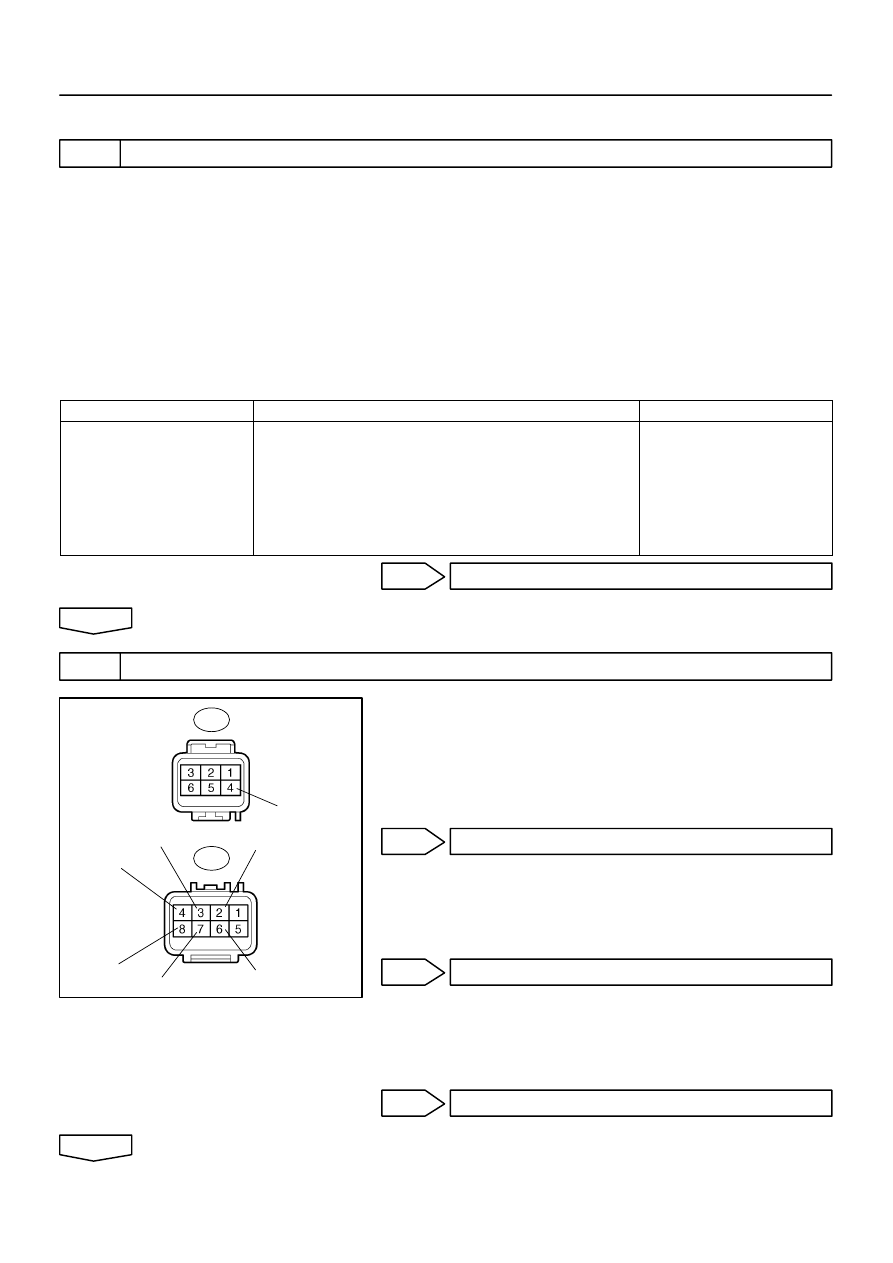

INSPECTION PROCEDURE

1

PERFORM ACTIVE TEST BY OBD II SCAN TOOL OR HAND-HELD TESTER

(a)

Warm up the engine.

(b)

Turn the ignition switch OFF.

(c)

Connect the OBD II scan tool or Hand-held tester to the DLC3.

(d)

Turn the ignition switch ON and push the OBD II scan tool or Hand-held tester main SW ON.

(e)

Select the item ”SHIFT” in the ACTIVE TEST and operate the shift solenoid valves on the OBD II scan
tool or Hand-held tester.

NOTICE:
The values given below for ”Normal Condition” are representative values, so a vehicle may still be
normal even if its value differs from those listed here. Do not depend solely on the ”Normal Condi-
tion” here when deciding whether or not the part is faulty.

Item

Test Details

Diagnostic Note

SHIFT

[Test Details]
Operate the shift solenoid valve and set the each shift position by your-
self.
[Vehicle Condition]
Less than 50 km/h (31 mph)
[Others]

Press

→

 button: Shift up

Press

←

 button: Shift down

Possible to check the operation of

the shift solenoid values.

OK

CHECK AND REPLACE ECM(See age

01-31

)

NG

2

INSPECT TRANSMISSION WIRE(SL1/SL2/SL3)

(a)

Disconnect the 2 transmission wire connectors from the
transaxle.

(b)

Measure the resistance between terminals SL1+ and
SL1-.
OK:
Resistance: 5.0 - 5.6

Ω

 at 20



C (68



F)

NG(A)

Go to step 5

(c)

Measure the resistance between terminals SL2+ and
SL2-.
OK:
Resistance: 5.0 - 5.6

Ω

 at 20



C (68



F)

NG(B)

Go to step 6

(d)

Measure the resistance between terminals SL3+ and
SL3-.
OK:
Resistance: 5.0 - 5.6

Ω

 at 20



C (68



F)

NG(C)

Go to step 7

OK

C93266

E2

E1

E2

S4

SR

C82158

C91565

E1

S4

SL1-

SL2+

SL1+

SL2-

SL3+

SL3-

SR

05-424

-

DIAGNOSTICS

ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT]

577

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

3

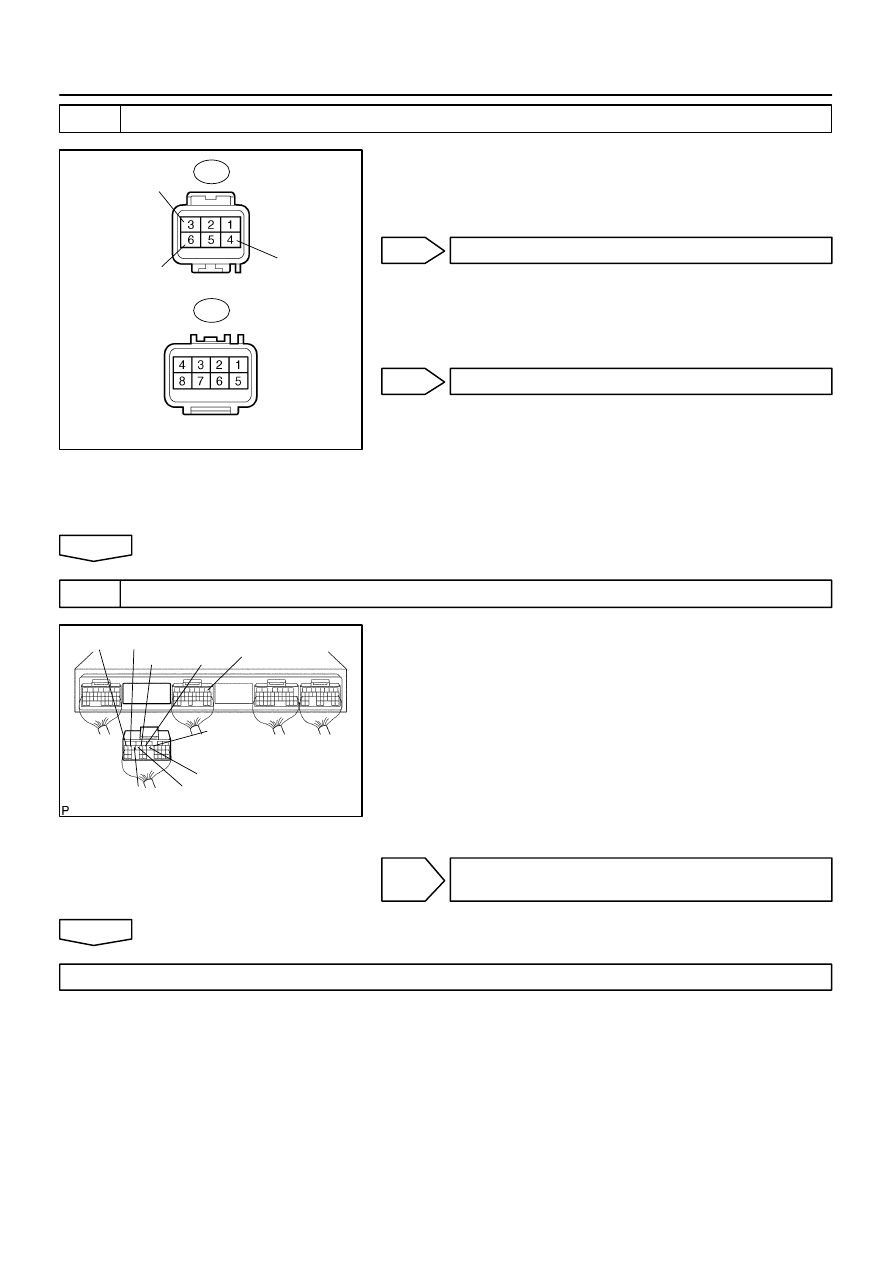

INSPECT TRANSMISSION WIRE(S4/SR)

(a)

Measure resistance between terminal S4 and body
ground.
OK:
Resistance: 11 - 15

Ω

 at 20



C (68



F)

NG(A)

Go to step 8

(b)

Measure resistance between terminal SR and body
ground.
OK:
Resistance: 11 - 15

Ω

 at 20



C (68



F)

NG(B)

Go to step 9

OK

4

CHECK HARNESS AND CONNECTOR(TRANSMISSION  WIRE-ECM)

(a)

Connect the 2 transmission connectors to the transaxle.

(b)

Disconnect the connector from the ECM.

(c)

Measure the resistance between terminals.
OK:
Resistance:
SL1+ - SL1-: 5.0 - 5.6

Ω

 at 20



C (68



F)

SL2+ - SL2-: 5.0 - 5.6

Ω

 at 20



C (68



F)

SL3+ - SL3-: 5.0 - 5.6

Ω

 at 20



C (68



F)

S4 - E1: 11 - 15

Ω

 at 20



C (68



F)

SR - E1: 11 - 15

Ω

 at 20



C (68



F)

NG

REPAIR OR REPLACE HARNESS OR
CONNECTOR(See page

01-31

)

OK

CHECK AND REPLACE ECM(See page

01-31

)

D25466

1

2

1

2

(+)

(-)

-

DIAGNOSTICS

ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT]

05-425

578

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

5

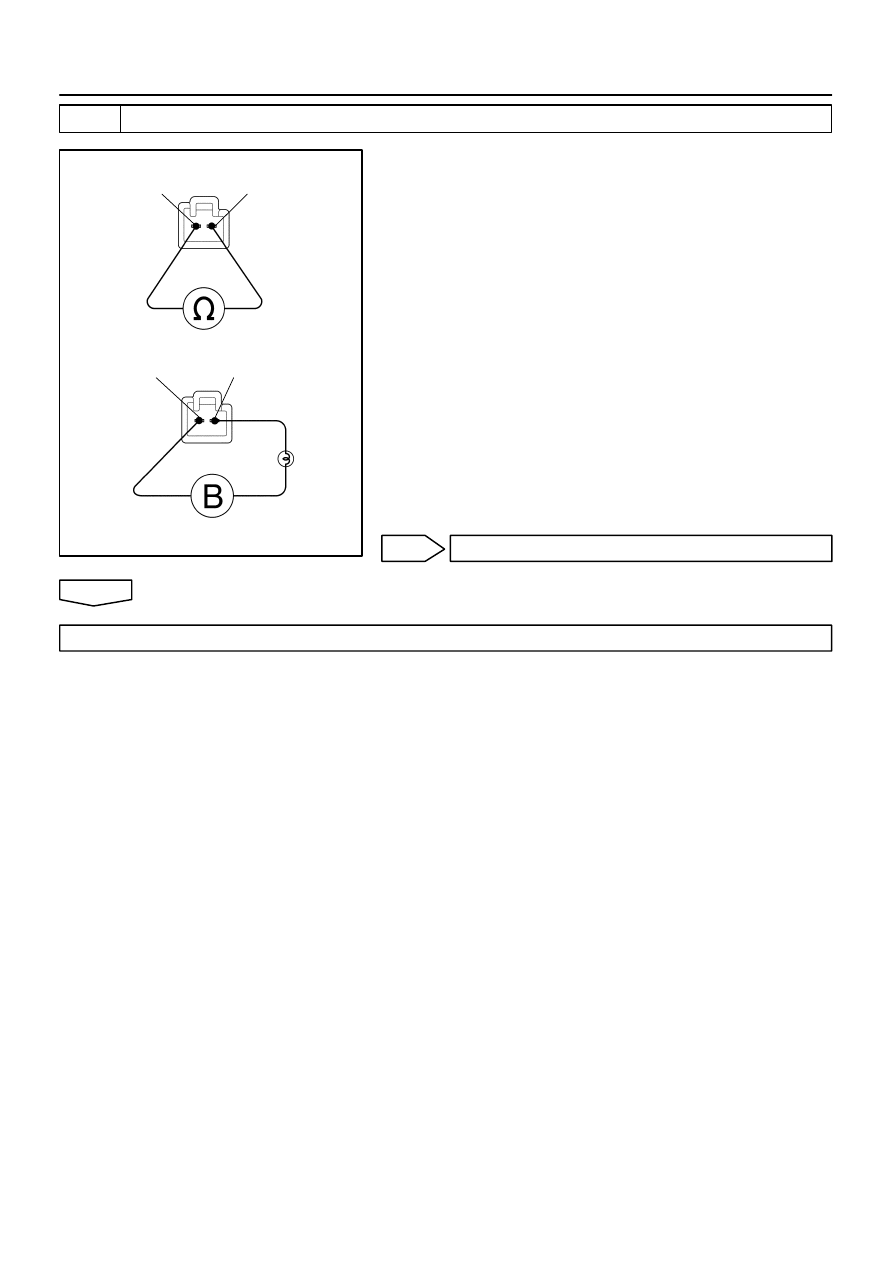

INSPECT SHIFT SOLENOID VALVE SL1

(a)

Remove the shift  solenoid valve SL1.

(b)

Measure the resistance between terminals.
OK:
Resistance: 5.0 - 5.6

Ω

 at 20

°

C (68

°

F)

(c)

Connect the positive (+) lead with a 21 W bulb to terminal
2 and the negative (-) lead to terminal 1 of the solenoid
valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating noise.

NG

REPLACE SHIFT SOLENOID VALVE SL1

OK

REPAIR OR REPLACE TRANSMISSION WIRE(See page

01-31

)

D25466

1

2

1

2

(+)

(-)

05-426

-

DIAGNOSTICS

ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT]

579

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

6

INSPECT SHIFT SOLENOID VALVE SL2

(a)

Remove the shift  solenoid valve SL2.

(b)

Measure the resistance between terminals.
OK:
Resistance: 5.0 - 5.6

Ω

 at 20

°

C (68

°

F)

(c)

Connect the positive (+) lead with a 21 W bulb to terminal
2 and the negative (-) lead to terminal 1 of the solenoid
valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating noise.

NG

REPLACE SHIFT SOLENOID VALVE SL2

OK

REPAIR OR REPLACE TRANSMISSION WIRE(See page

01-31

)
