PREPARATION

ENGINE MECHANICAL

02-1 1

54

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

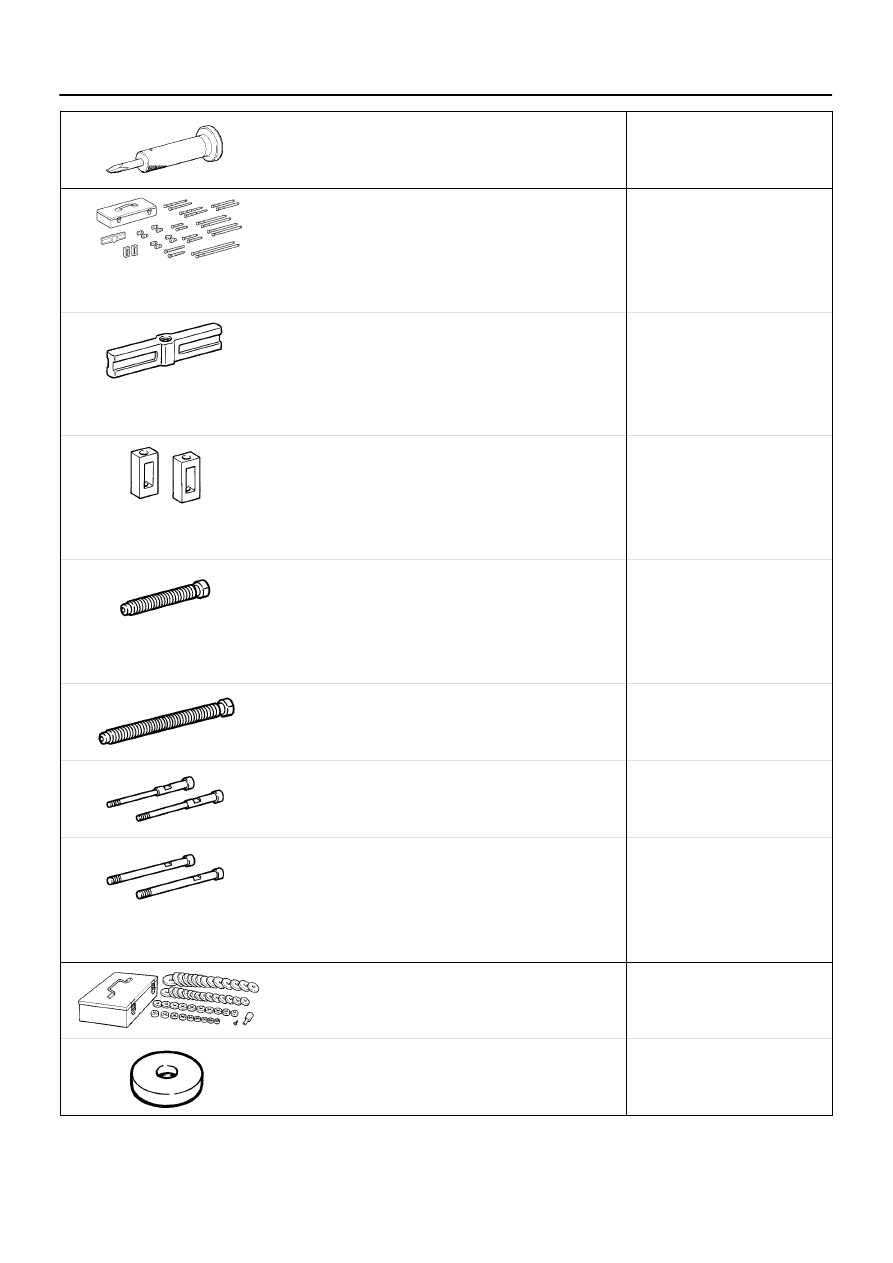

09930-00010

Drive Shaft Nut Chisel

PARTIAL ENGINE ASSY

09950-50013

Puller C Set

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

(09951-05010)

Hanger 150

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

(09952-05010)

Slide Arm

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

(09953-05010)

Center Bolt 100

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

(09953-05020)

Center Bolt 150

PARTIAL ENGINE ASSY

OIL PUMP SEAL

(09954-05010)

Claw No.1

PARTIAL ENGINE ASSY

OIL PUMP SEAL

(09954-05030)

Claw No.3

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

09950-60010

Replacer Set

PARTIAL ENGINE ASSY

(09951-00430)

Replacer 43

PARTIAL ENGINE ASSY

02-12

-

PREPARATION

ENGINE MECHANICAL

55

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

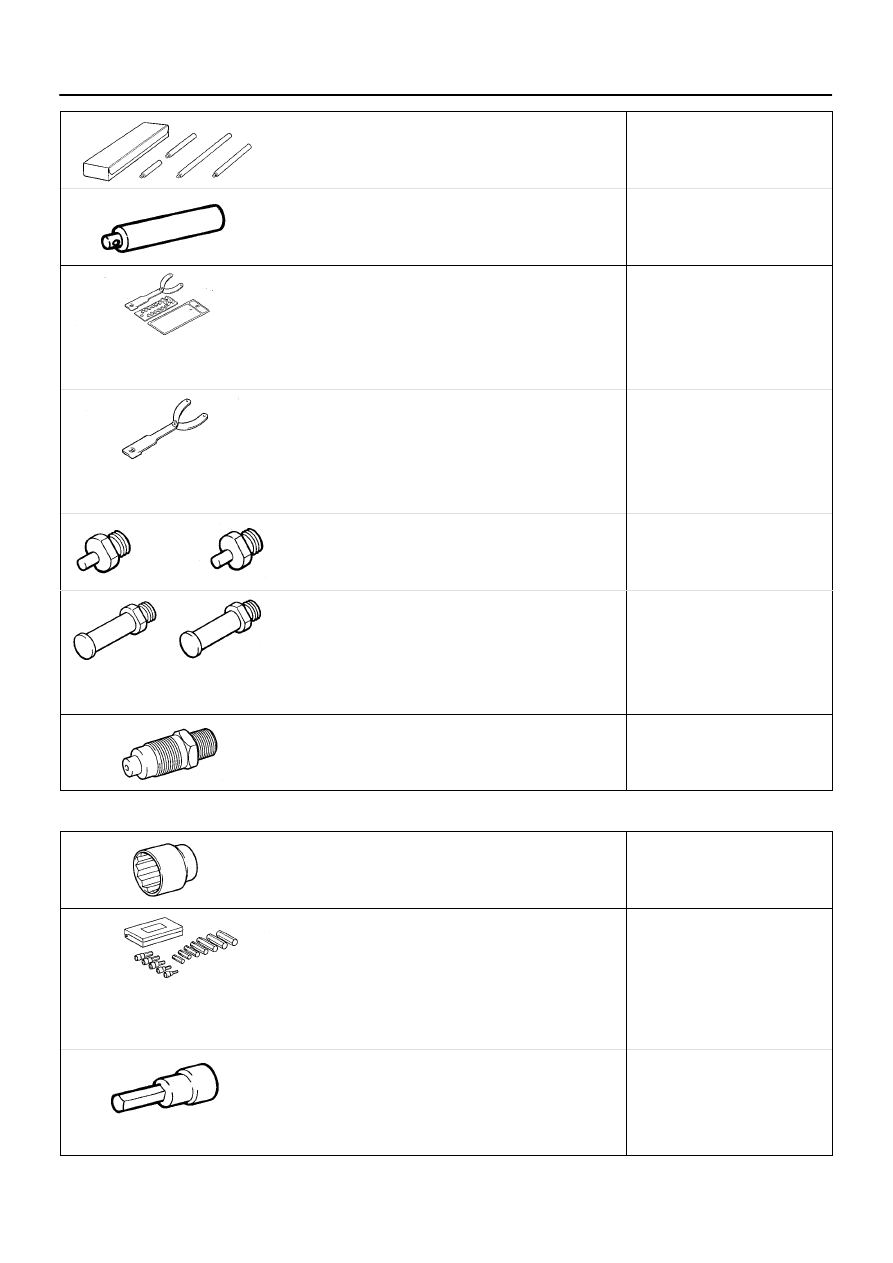

09950-70010

Handle Set

PARTIAL ENGINE ASSY

CYLINDER HEAD ASSY

ENGINE REAR OIL SEAL

(09951-07100)

Handle 100

PARTIAL ENGINE ASSY

CYLINDER HEAD ASSY

ENGINE REAR OIL SEAL

09960-10010

Variable Pin Wrench Set

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

(09962-01000)

Variable Pin Wrench Arm Assy

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

(09963-00500)

Pin 5

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

CAMSHAFT(LH BANK)

(09963-01000)

Pin 10

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

09992-00500

Compression Gauge Attachment

ENGINE ASSEMBLY

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

Recomended Tools

09011-12301

Socket Wrench 30 mm

PARTIAL ENGINE ASSY

09040-0001 1

Hexagon Wrench Set

PARTIAL ENGINE ASSY

CYLINDER HEAD ASSY

CYLINDER BLOCK

CAMSHAFT(RH BANK)

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

VALVE CLEARANCE

CAMSHAFT(LH BANK)

(09043-20050)

Socket Hexagon Wrench 5

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

VALVE CLEARANCE

CAMSHAFT(LH BANK)

-

PREPARATION

ENGINE MECHANICAL

02-13

56

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

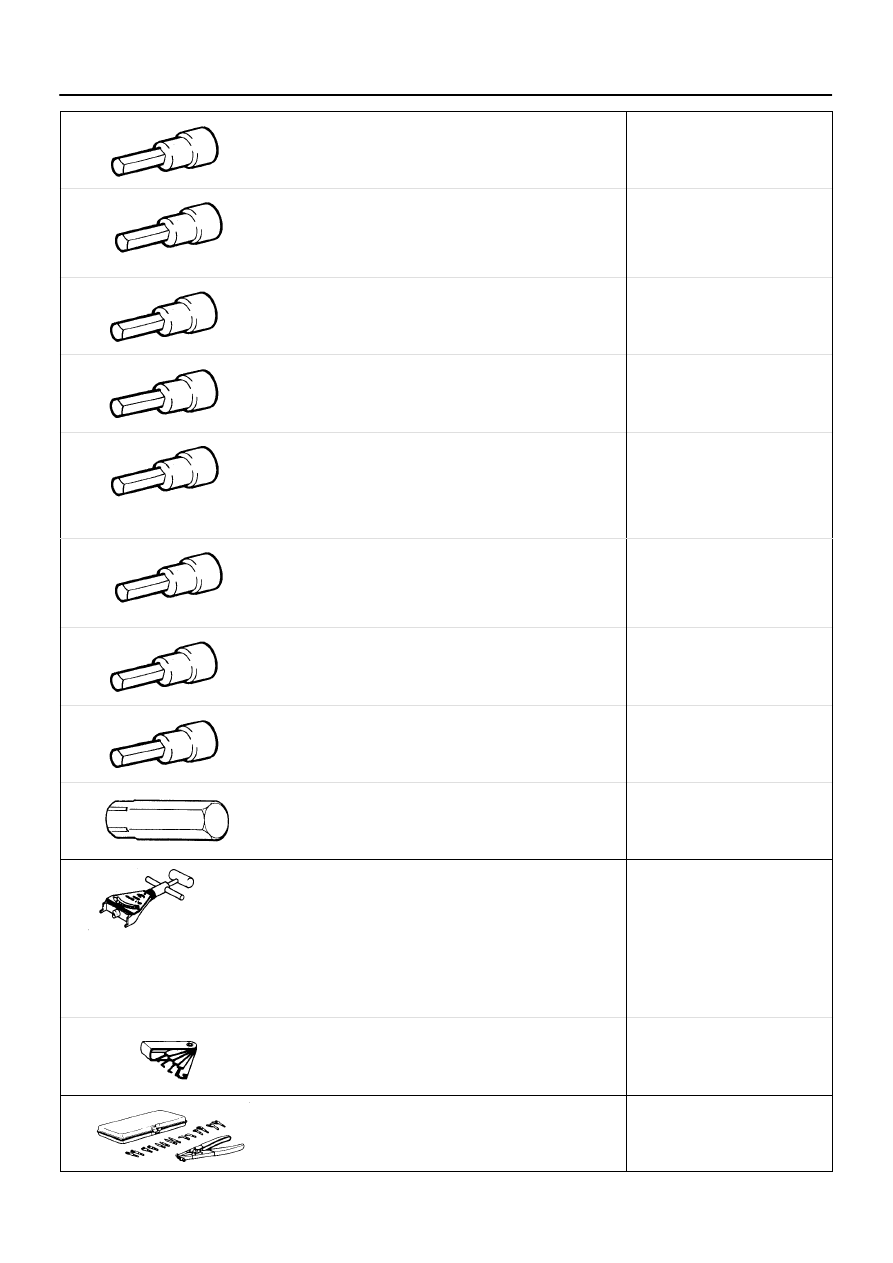

(09043-20060)

Socket Hexagon Wrench 6

PARTIAL ENGINE ASSY

(09043-20080)

Socket Hexagon Wrench 8

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

VALVE CLEARANCE

(09043-20100)

Socket Hexagon Wrench 10

PARTIAL ENGINE ASSY

CYLINDER BLOCK

(09043-20120)

Socket Hexagon Wrench 12

PARTIAL ENGINE ASSY

(09043-20050)

Socket Hexagon Wrench 5

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

VALVE CLEARANCE

CAMSHAFT(LH BANK)

(09043-20080)

Socket Hexagon Wrench 8

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

VALVE CLEARANCE

(09043-20100)

Socket Hexagon Wrench 10

PARTIAL ENGINE ASSY

CYLINDER BLOCK

(09043-20120)

Socket Hexagon Wrench 12

PARTIAL ENGINE ASSY

(09043-30140)

Straight  Hexagon Wrench 14

CYLINDER HEAD ASSY

09216-00021

Belt Tension Gauge

ENGINE ASSEMBLY

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

DRIVE BELT

TIMING BELT

CAMSHAFT(LH BANK)

(09857-00031)

Spark Plug Gap Gauge

ENGINE ASSEMBLY

09904-00010

Expander Set

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

CAMSHAFT(LH BANK)

02-14

-

PREPARATION

ENGINE MECHANICAL

57

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

(09904-00040)

No. 3 Claw

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

CAMSHAFT(LH BANK)

Equipment

12 mm Socket Wrench for 12 Pointed Head

V-block

Piston ring compressor

Piston ring expander

Valve seat cutter

CO/HC meter

Compression gauge

Connecting rod aligner

Cylinder gauge

Feeler gauge

Micrometer

Precision straight edge

Radiator cap tester

Steel square

Tachometer

Torque wrench

Vernier calipers

Dial indicator with magneticbase

Tire pressure gauge

Alignment tester

Toe-in gauge

Engine Sling Device

Chain Block

Spark plug cleaner

Spring tester

Plastigage

Angle gauge

Heater

Universal engine lifter

Plastic Hammer

Chisel

SSM

08826-00080

Seal Packing Black or equivalent

(FIPG)

PARTIAL ENGINE ASSY

CYLINDER HEAD ASSY

CAMSHAFT(RH BANK)

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

VALVE CLEARANCE

CAMSHAFT(LH BANK)

08826-00100

”Seal Packing 1282B,”

THREE BOND 1282B or equivalent

(FIPG)

PARTIAL ENGINE ASSY

CYLINDER BLOCK

08833-00070

”Adhesive 1324,”

THREE BOND 1324 or equivalent

PARTIAL ENGINE ASSY

CYLINDER HEAD ASSY

CYLINDER BLOCK

ENGINE REAR OIL SEAL
