Lexus ES300 (1997 year). Service manual - part 201

Z19376

Fuel Lid Opener Switch

Instrument Panel Junction Block

 DOOR Fuse

Fuel Lid Opener Solenoid

BE05Y–01

–

BODY ELECTRICAL

FUEL LID OPENER SYSTEM

BE–139

1523

1997 LEXUS ES300   (RM511U)

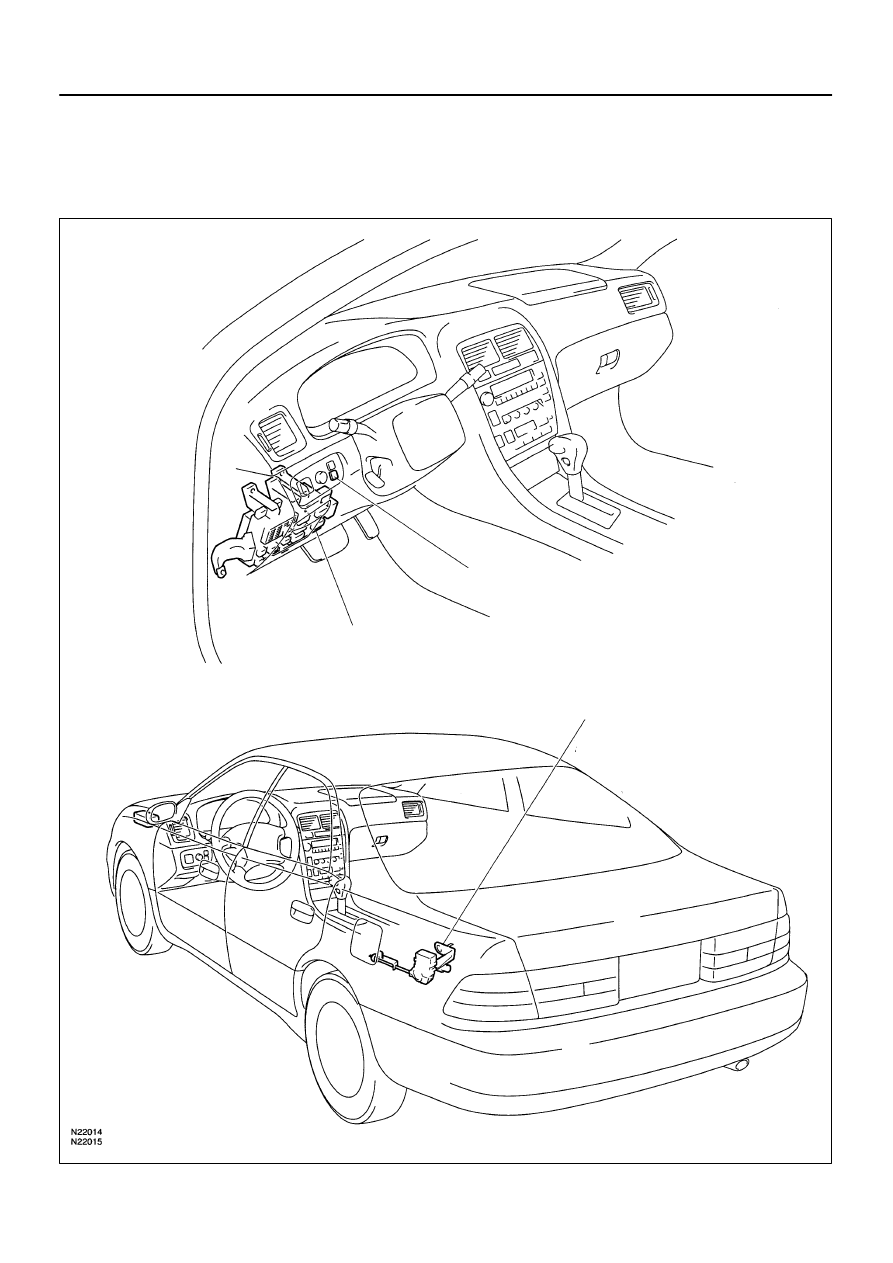

FUEL LID OPENER SYSTEM

LOCATION

BE05Z–01

N21235

ON

N21375

Wire Harness Side

N21210

BE–140

–

BODY ELECTRICAL

FUEL LID OPENER SYSTEM

1524

1997 LEXUS ES300   (RM511U)

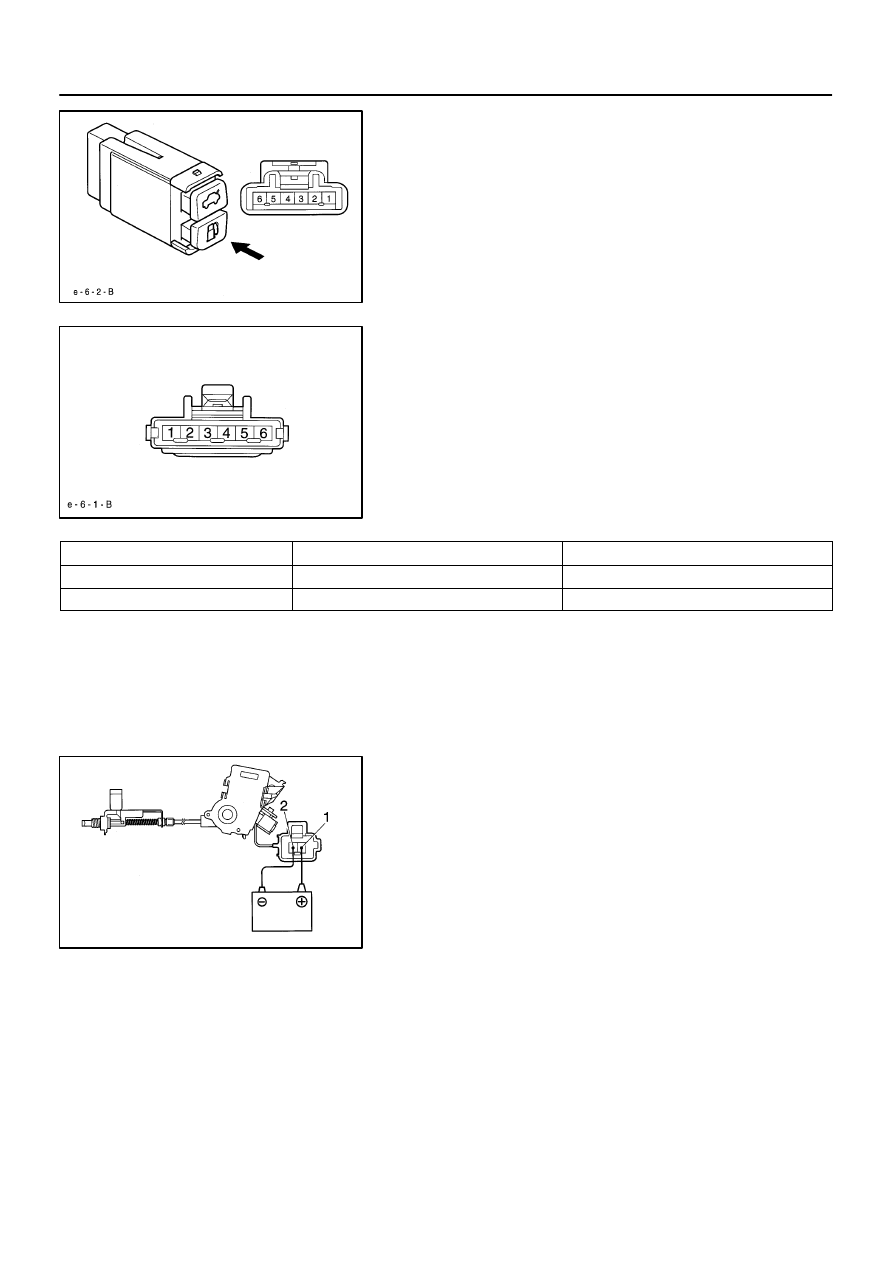

INSPECTION

1.

INSPECT FUEL LID OPENER SWITCH CONTINUITY

(a)

Check that continuity exists between terminals 2 and 3
with the switch ON.
(Switch button pushed)

(b)

Check that no continuity exists between terminals 2 and
3 with the switch OFF.
(Switch button released)

2.

INSPECT FUEL LID OPENER SWITCH CIRCUIT

Disconnect the connector from the switch and inspect the con-
nector on the wire harness side, as shown.

Tester connection

Condition

Specified condition

2 – Ground

Constant

Continuity

3 – Ground

Constant

Battery positive voltage

If the circuit is not specified, inspect power source or wire har-
ness.

3.

INSPECT FUEL LID OPENER SOLENOID OPERATION

Connect the positive (+) lead from the battery to terminal 1 and
the negative (–) lead to terminal 2, and check that the solenoid
operates in the open direction.
If operation is not as specified, replace the solenoid.

N21377

Wire Harness Side

–

BODY ELECTRICAL

FUEL LID OPENER SYSTEM

BE–141

1525

1997 LEXUS ES300   (RM511U)

4.

INSPECT FUEL LID OPENER SOLENOID CIRCUIT

Disconnect the connector from the solenoid and inspect the
connector on the wire harness side, as shown.

Tester connection

Condition

Specified condition

2 – Ground

Constant

Continuity

1 – Ground

Fuel lid opener switch OFF

No voltage

1 – Ground

Fuel lid opener switch ON

Battery positive voltage

If the circuit is not as specified, inspect the circuits connected
to other parts.

The radio wave bands used in radio broadcasting are as follows:

Frequency

Designation

Radio wave

Modulation method

LF: Low frequency MF: Medium Frequency HF: High Frequency VHF: Very High Frequency

Amplitude modulation

Frequency modulation

30 kHz

300 kHz

3 MHz

30 MHz

300 MHz

LF

MF

HF

VHF

AM

FM

BE060–01

BE2818

FM (Stereo)

FM (Monaural)

AM

BE2819

Fading

lonosphere

BE–142

–

BODY ELECTRICAL

AUDIO SYSTEM

1526

1997 LEXUS ES300   (RM511U)

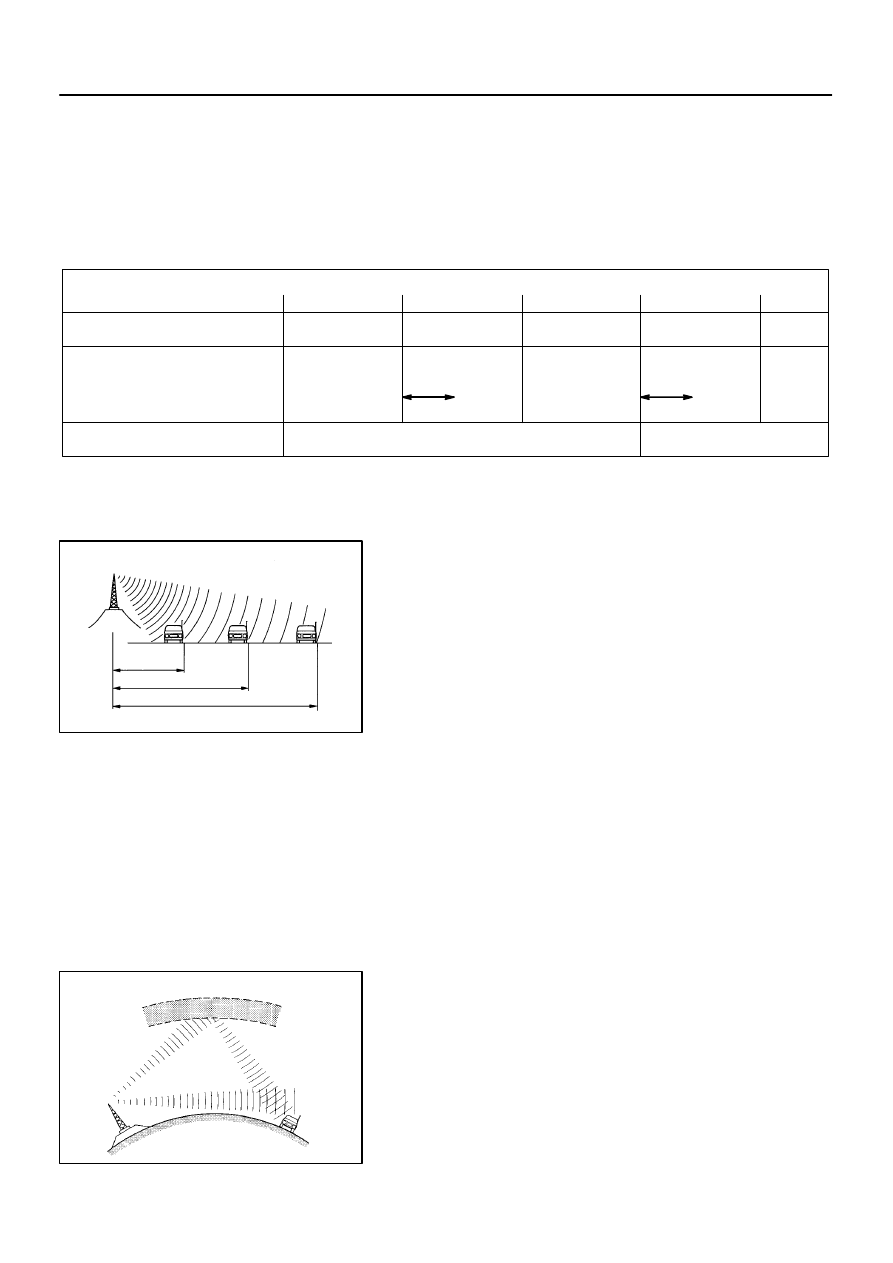

AUDIO SYSTEM

DESCRIPTION

1.

RADIO WAVE BAND

2.

SERVICE AREA

There are great differences in the size of the service area for AM
and FM monaural. Sometimes FM stereo broadcasts cannot be
received even through AM can be received in very clearly.
Not only does FM stereo have the smallest service area, but it
also picks up static and other types of interference (”noise”)
easily.

3.

RECEPTION PROBLEMS

Besides the problem of static, there are also the problems
called ”fading”, ”multipath” and ”fade out”. These problems are
caused not by electrical noise but by the nature of the radio
waves themselves.

(a)

Fading
Besides electrical interference, AM broadcasts are also
susceptible to other types of interference, especially at
night. This is because AM radio waves bounce off the ion-
osphere at night. These radio waves then interfere with
the signals from the same transmitter that reach the ve-
hicle’s antenna directly. This type of interference is called
”fading”.
