Beam Angle Gauge
(Horizontal Direction)
Front
BE6182
Beam Angle Gauge
(Vertical Direction)
OK
OK
OK
Bubble
Beam is
Upward
Front
Beam is
Downward
N21567
Beam Angle Gauge
(Horizontal Direction)
Front
BE–34
–
BODY ELECTRICAL
HEADLIGHT AND TAILLIGHT SYSTEM
1418
1997 LEXUS ES300 (RM511U)
(c)

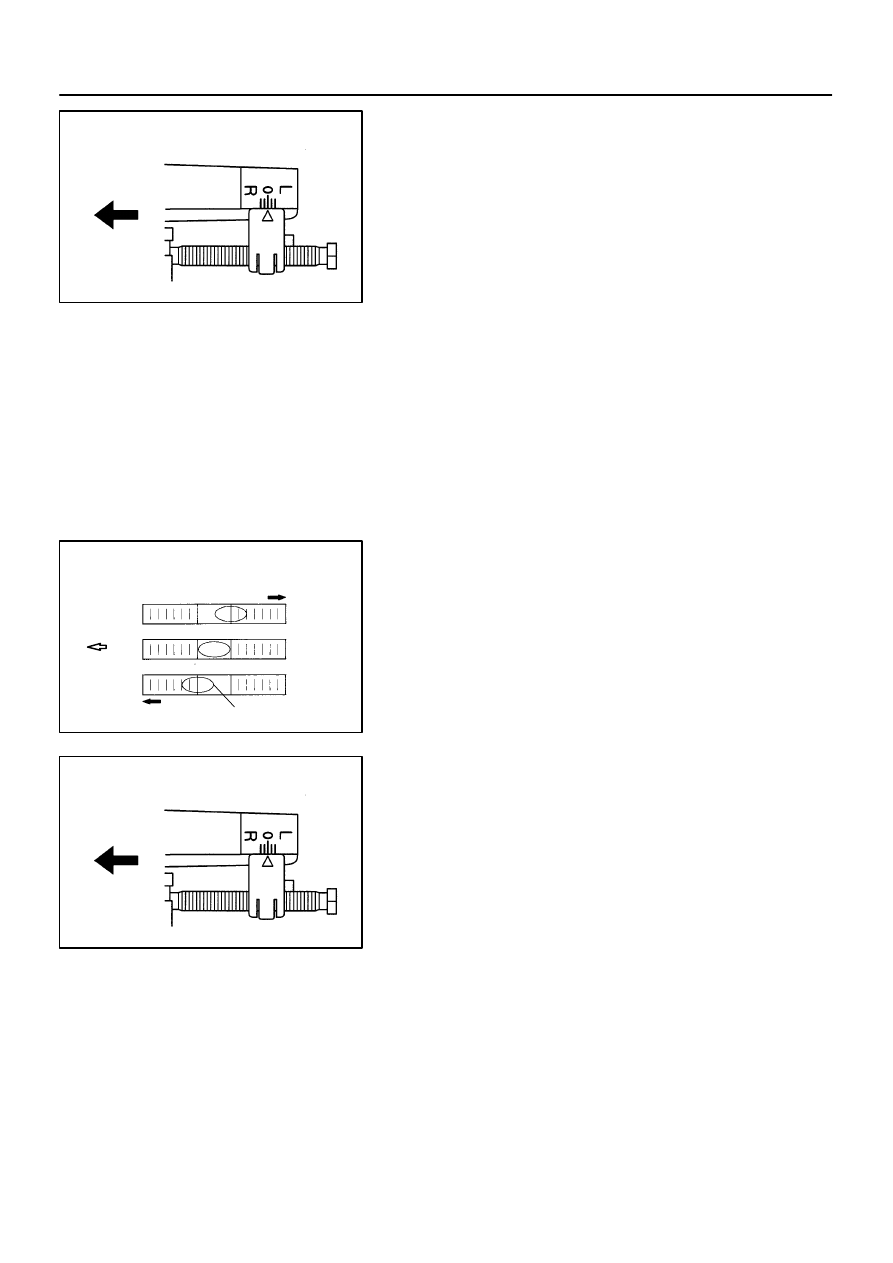

Adjust the headlight in horizontal direction.
If the ”0” moves away from the mark beyond the acceptable
range, adjust the ”0” back to the mark using adjusting screw B.
2.
REPLACING HEADLIGHT
(a)
Replace the headlight.
(b)
Put the vehicle in below conditions.
Make sure the body around the headlight is not de-
formed.
Park the vehicle on a level spot.
The driver gets into the driver’s seat and puts the
vehicle in a state ready for driving (with a full tank).
Bounce the vehicle several times.
(c)
Adjust the headlight in vertical direction.
(1)
Using adjusting screw A, adjust the headlight aim to
within the specifications.
(2)
Make sure that the gauge bubble is within the ac-
ceptable range.
HINT:
If the gauge bubble is outside the acceptable range, check that
the vehecle is parked on a level place.
Readjust the headlight aim after parking the vehicle on a level
place.
(d)
Adjust the headlight in horizontal direction.
(1)
Using adjusting screw B, adjust the headlight aim to
within the specifications.
(2)
Using adjusting nut C, adjust the ”0” back to the
mark.
3.
ADJUST SPIRAL CABLE
(See page
