SA–82

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

2082

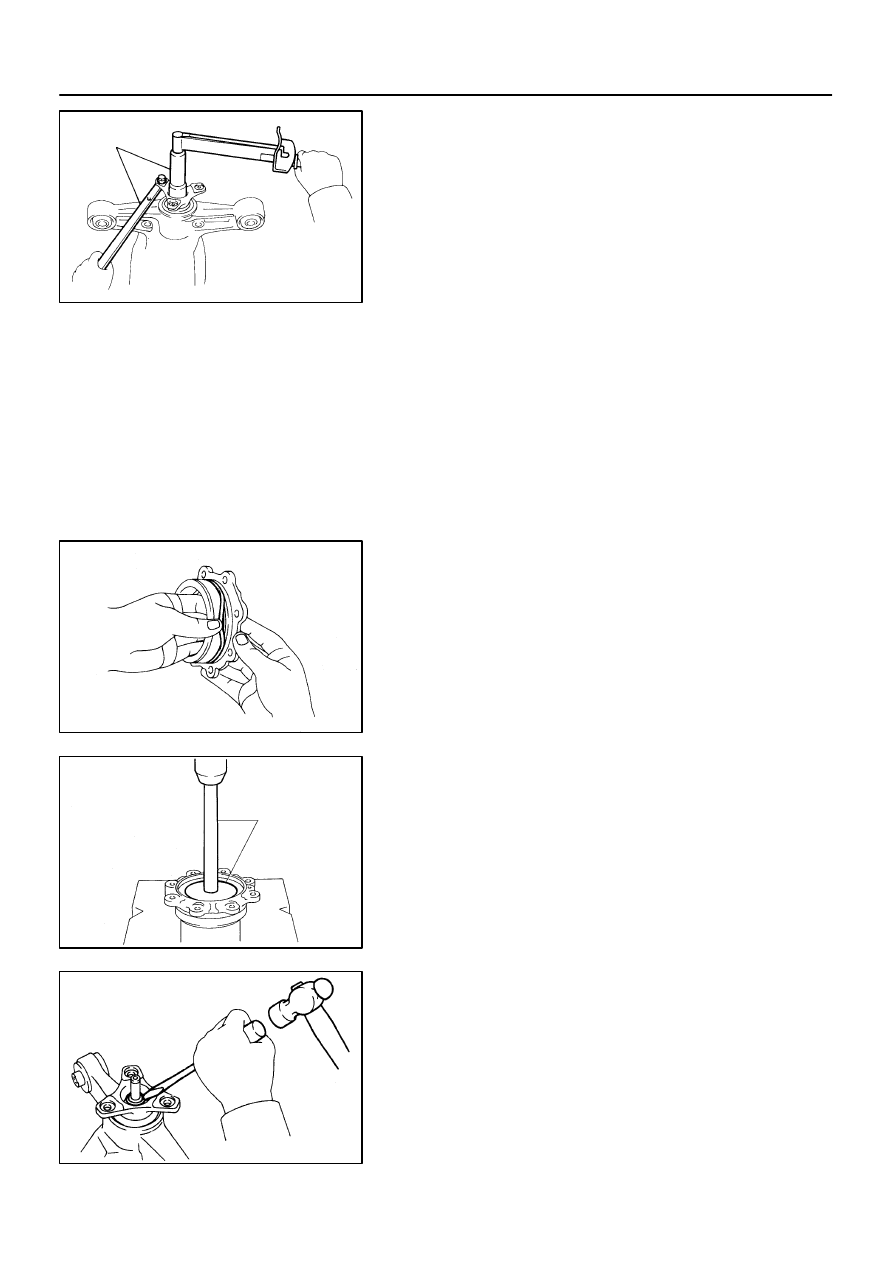

If the preload is greater than the specification, replace the
spacer.
If the preload is less than the specification, retighten the nut with
a force of 13 N·m (130 kgf·cm, 9 ft·lbf) at a time until the speci-
fied preload is reached.

Torque: 490 N·m (5,000 kgf·cm, 362 ft·lbf) or less

If the maximum torque is exceeded while retightening the nut,
replace the spacer and repeat the preload procedure.
Do not back off the nut to reduce the preload.
25.

CHECK RUNOUT OF DRIVE PINION SHAFT
(See page

SA–67

)

26.

INSTALL DIFFERENTIAL CASE IN CARRIER
(See step 11)

27.

INSTALL O–RING FROM DIFFERENTIAL CARRIER
RETAINERS

(a)

Coat 2 new O–rings with hypoid gear oil.

(b)

Install the 2 O–rings to the carrier retainers.

28.

INSTALL OIL SEALS FROM DIFFERENTIAL CARRIER
RETAINERS

(a)

Using SST and a press, install 2 new oil seals to the carrier
retainers.
SST

09608–32010,  09950–70010 (09950–07150)

(b)

Coat the MP grease to the oil seal lip.

29.

INSTALL DIFFERENTIAL CARRIER RETAINERS

30.

RECHECK BACKLASH, TOTAL PRELOAD AND
TOOTH CONTACT PATTERN

31.

STAKE DRIVE PINION NUT

32.

INSTALL SNAP RINGS TO SIDE GEAR SHAFTS

(a)

Install 2 new snap rings to the side gear shafts.

(b)

Coat the MP grease to the snap rings.

R00240

F02352

FIPG

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–83

2083

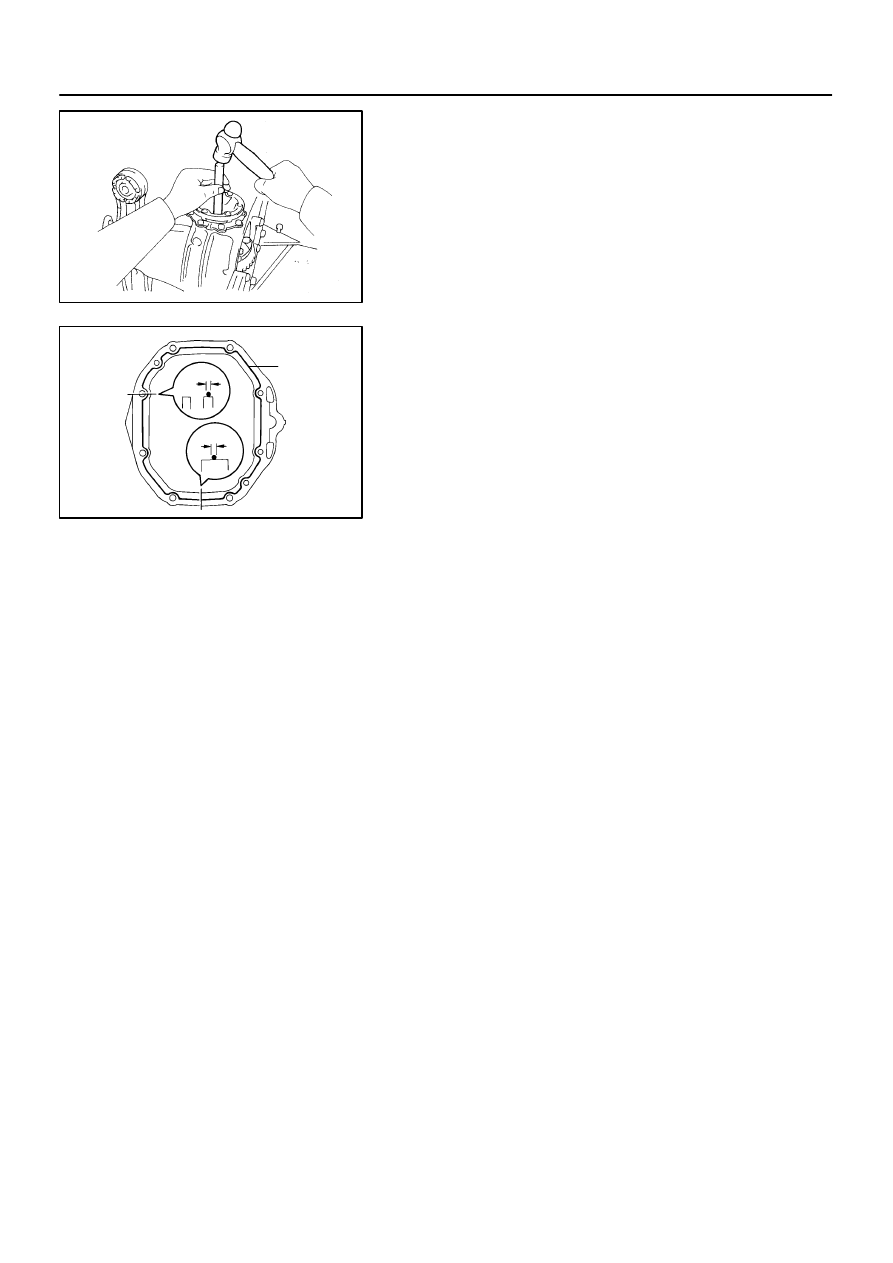

33.

INSTALL SIDE GEAR SHAFTS

Using a brass and hammer, install the 2 side gear shafts.
HINT:
Whether or not the side gear shaft is making contact with the
pinion shaft can be known by the sound or feeling when driving
it in.
NOTICE:
Be careful not to damage the oil seal.
34.

REMOVE DIFFERENTIAL CARRIER FROM OVER-
HAUL STAND, ETC.

35.

INSTALL DIFFERENTIAL CARRIER COVER

(a)

Clean the contact surfaces of the carrier and cover of any
residual FIPG material using cleaner.

(b)

Coat FIPG to the carrier or cover.
FIPG:
Part No. 08826–00090, THREE BOND 1281 or equiva-
lent

(c)

Install the carrier cover to the carrier with the 8 bolts.
Torque: 47 N·m (475 kgf·cm, 34 ft·lbf)

(d)

Install the breather plug.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)

SA0SG–01

SA–84

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

2084

INSTALLATION

Installation is in the reverse order of removal (See page

SA–65

).

AFTER INSTALLATION, FILL DIFFERENTIAL OIL (See page

SA–61

)

SA0SH–01

R00087

SST

R00089

RH Side

LH Side

Z04032

LH

RH

SST

R00088
R00090

–

SUSPENSION AND AXLE

DIFFERENTIAL MOUNTING CUSHION

SA–85

2085

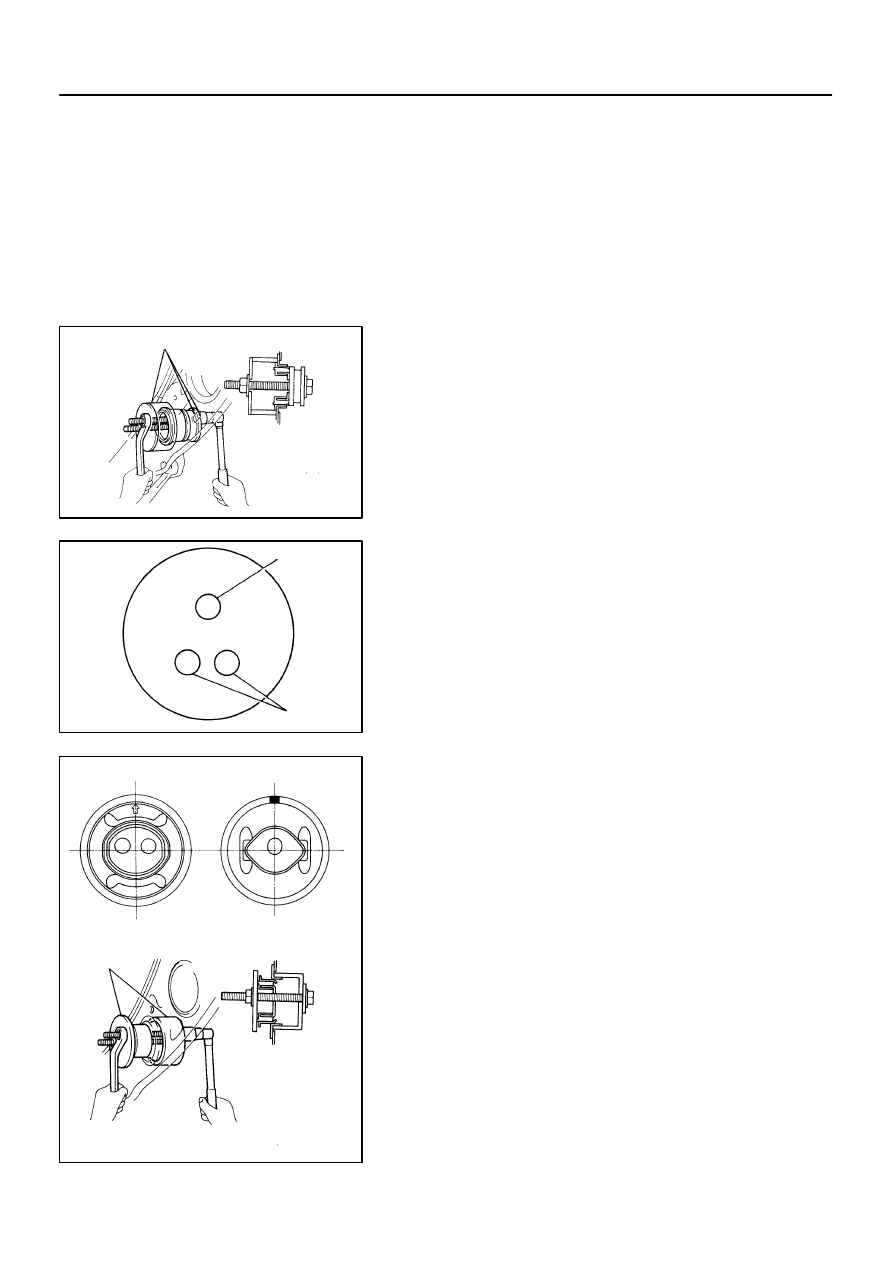

DIFFERENTIAL MOUNTING
CUSHION

REPLACEMENT

1.

REMOVE DIFFERENTIAL (See page

SA–65

)

2.

REMOVE DIFFERENTIAL MOUNTING CUSHION

Using SST, remove the differential mounting cushion.

SST

09316–12010, 09570–24010

NOTICE:

When driving out the mounting cushion, be careful
not to touch the suspension member with the SST.

Align the SST straight so that the bolt of the SST is
parallel with the center line of the mounting cushion.

When installing the bolts to the LH and RH differential
mounting cushions, make sure that the bolts are
passed through the correct holes in the SST, as
shown in the illustration.

3.

INSTALL DIFFERENTIAL MOUNTING CUSHION

Using SST, install the cushion so that the marks are positioned,
as shown in the illustration.

SST

09570–24010

NOTICE:

Pay enough attention to LH and RH sides or top and
bottom.

Set the SST after temporarily installing the differential
mounting cushion into the member so as not to install
at an angle.

To confirm that the differential mounting cushion is
aligned straight in relation to the member, check that
the SST is fully in contact with all of the cushion.

4.

INSTALL DIFFERENTIAL (See page

SA–84

)
