SUSPENSION AND AXLE

FRONT SHOCK ABSORBER

2024

INSTALLATION

Installation is in the reverse order or removal (See page

SA–18

).

AFTER INSTALLATION, CHECK ABS SPEED SENSOR SIGNAL (See page

DI–389

) AND FRONT

WHEEL ALIGNMENT (See page

SA–4

)

SA0RI–03

F02336

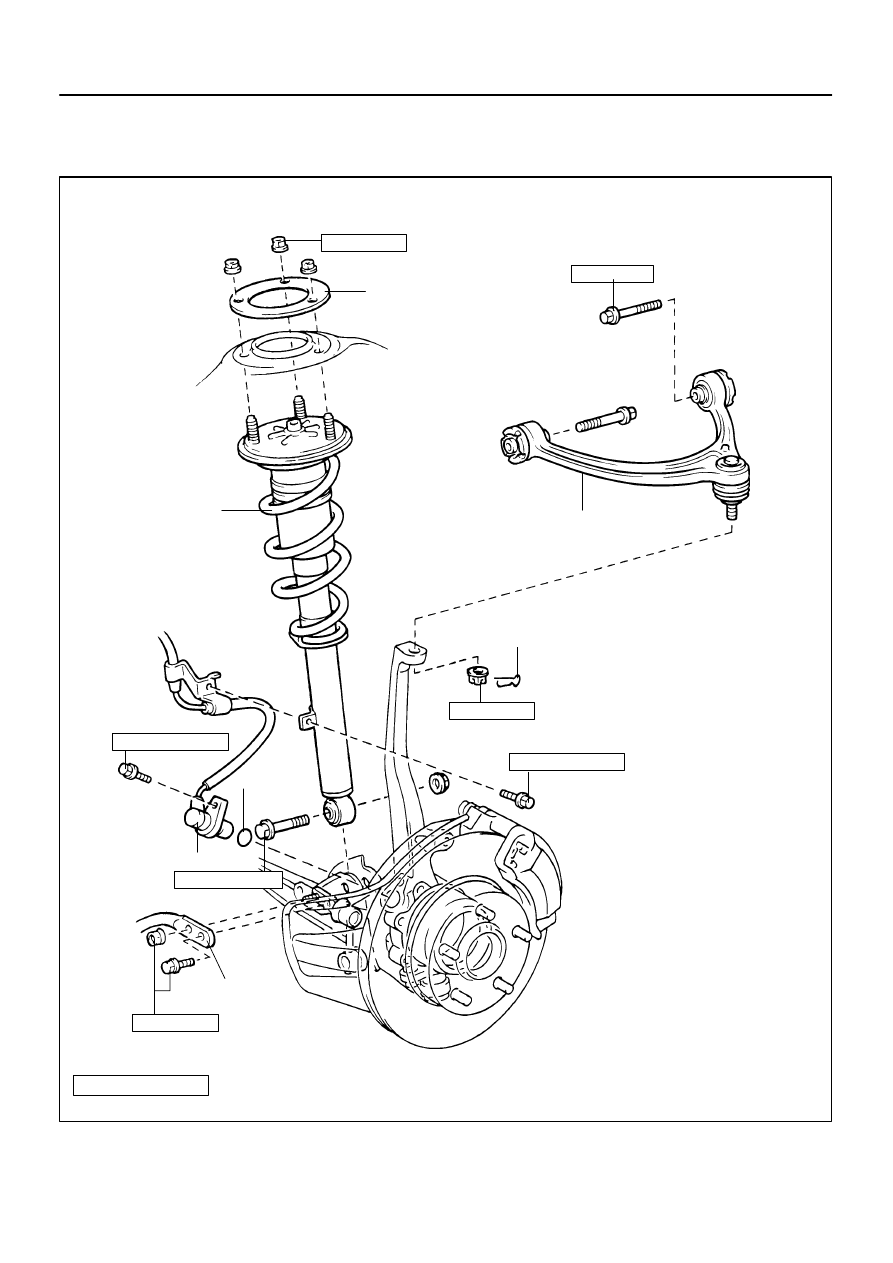

Suspension Support
No.1

Shock Absorber
With Coil Spring

Upper Suspension Arm

ABS Speed Sensor

Stabilizer Bar

O–Ring

7.8 (80, 69 in.·lbf)

87 (890, 64)

5.0 (55, 48 in.·lbf)

53 (540, 39)

Clip

: Specified torque

 Non–reusable part

N·m (kgf·cm, ft·lbf)

157 (1,600, 116)

55 (560, 43)

56 (570, 41)

–

SUSPENSION AND AXLE

FRONT UPPER SUSPENSION ARM

SA–25

2025

FRONT UPPER SUSPENSION ARM

COMPONENTS

SA0RJ–01

F02316

SA–26

–

SUSPENSION AND AXLE

FRONT UPPER SUSPENSION ARM

2026

REMOVAL

1.

REMOVE FRONT WHEEL
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)

2.

REMOVE FRONT SHOCK ABSORBER
(See page

SA–18

)

3.

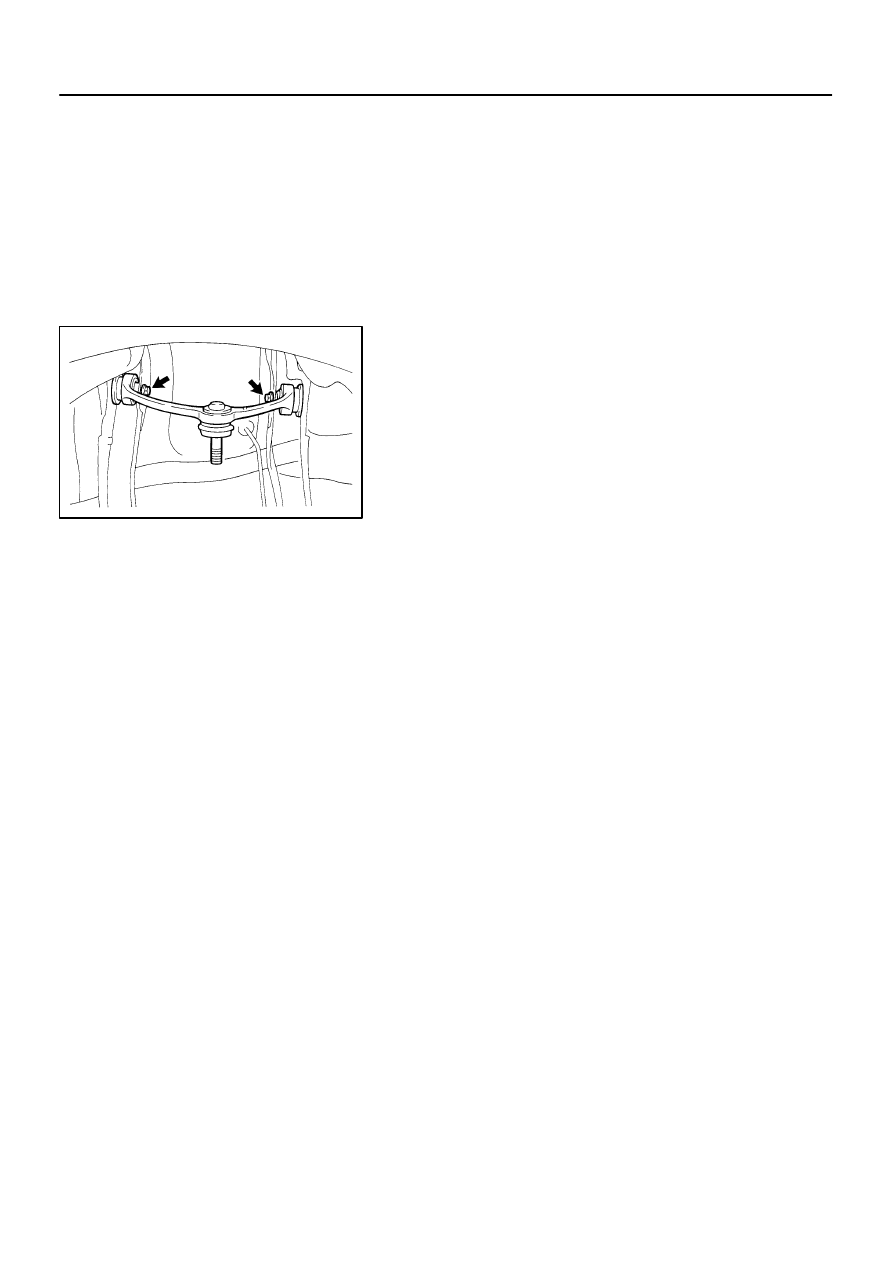

REMOVE UPPER SUSPENSION ARM

Remove the 2 bolts and upper suspension arm.

Torque: 53 N·m (540 kgf·cm, 39 ft·lbf)

HINT:
At the time of installation, after stabilizing the suspension,
torque the bolts.

SA0RL–01

SA–28

–

SUSPENSION AND AXLE

FRONT UPPER SUSPENSION ARM

2028

INSTALLATION

Installation is in the reverse order of removal (See page

SA–26

).

AFTER INSTALLATION, CHECK ABS SPEED SENSOR (See page

DI–389

) AND FRONT WHEEL

ALIGNMENT (See page

SA–4

)
