Lexus GS300/400 (2000 year). Service manual - part 257





SA0R8–01

W00274

SST

SST

R06214

SST

R08018

SST

SST

SA–14

–

SUSPENSION AND AXLE

FRONT AXLE HUB

2014

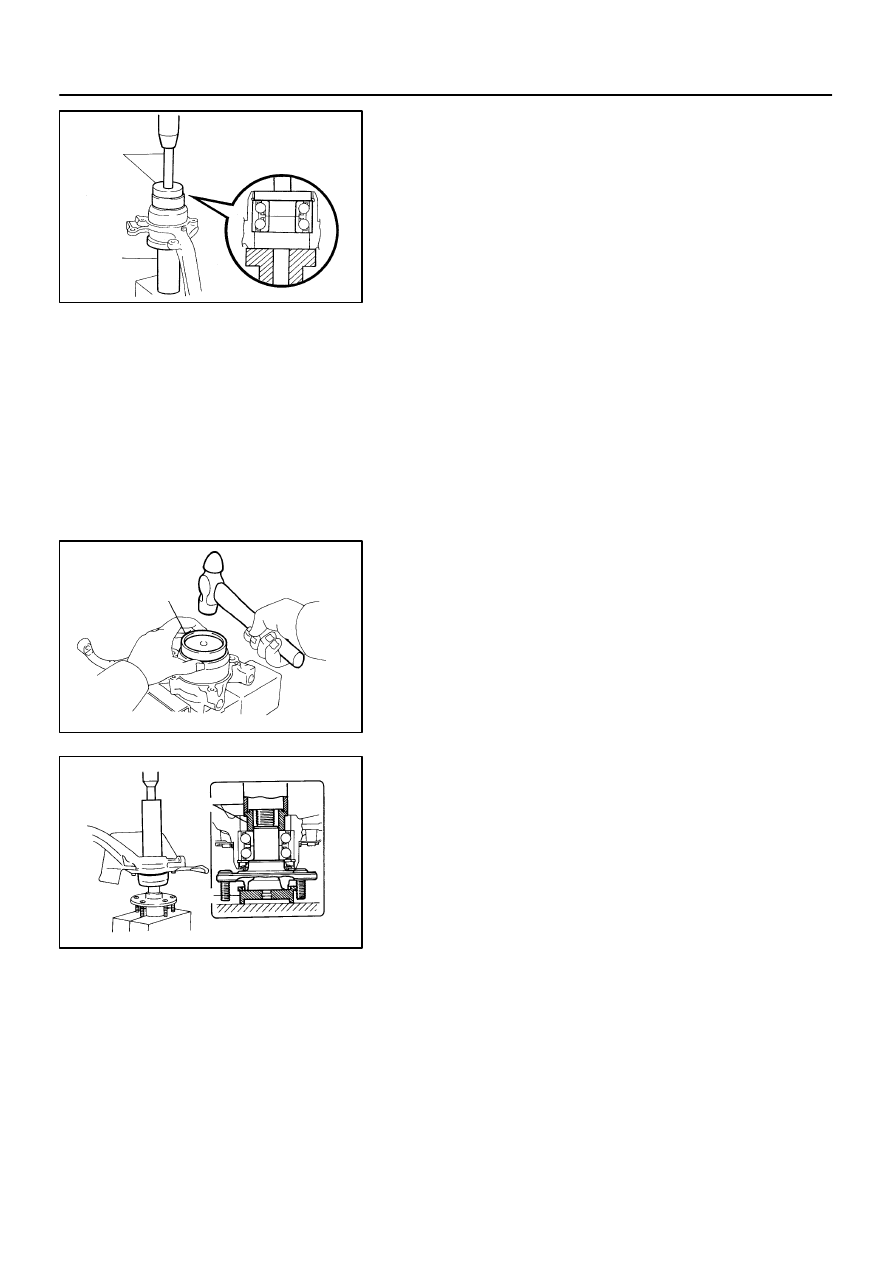

REASSEMBLY

1.

INSTALL BEARING

(a)

Using SST and a press, install a new bearing to steering
knuckle.
SST

09309–36010, 09950–60020 (09951–00720),
09950–70010  (09951–07150)

NOTICE:
If the inner race and balls come loose from the bearing out-
er race, make sure to install them on the same side as be-
fore.
(b)

Using snap ring pliers, install a new snap ring.

2.

INSTALL OIL SEAL

(a)

Install the inner race (outside).

(b)

Using SST and a hammer, install a new oil seal until it is
flush with the end surface of the steering knuckle.
SST

09608–32010

(c)

Coat MP grease to the oil seal lip.

3.

INSTALL AXLE HUB TO STEERING KNUCKLE

(a)

Install the brake dust cover to the steering knuckle with
the 4 bolts.
Torque: 8.3 N·m (85 kgf·cm, 74 in.·lbf)

(b)

Using SST and a press, install the axle hub to the steering
knuckle.
SST

09316–60011 (09316–00011, 09316–00071),
09608–32010

4.

INSTALL ABS SPEED SENSOR ROTOR

NOTICE:
Do not scratch the serrations of the sensor rotor.
5.

INSTALL AXLE HUB LOCK NUT

(a)

Install a new axle hub lock nut.
Torque: 199 N·m (2,030 kgf·cm, 147 ft·lbf)

(b)

Using a chisel and hammer, stake the lock nut.

6.

INSTALL FRONT HUB GREASE CAP

Using a screwdriver and hammer, install the grease cap to the
steering knuckle.

SA0R9–01

–

SUSPENSION AND AXLE

FRONT AXLE HUB

SA–15

2015

INSTALLATION

Installation is in the reverse order of removal (See page

SA–10

).

AFTER INSTALLATION, CHECK ABS SPEED SENSOR SIGNAL (See page

DI–389

) AND FRONT

WHEEL ALIGNMENT (See page

SA–4

)

SA0RA–01

F02311

R05811

SST

R05812

Washer

SA–16

–

SUSPENSION AND AXLE

FRONT WHEEL HUB BOLT

2016

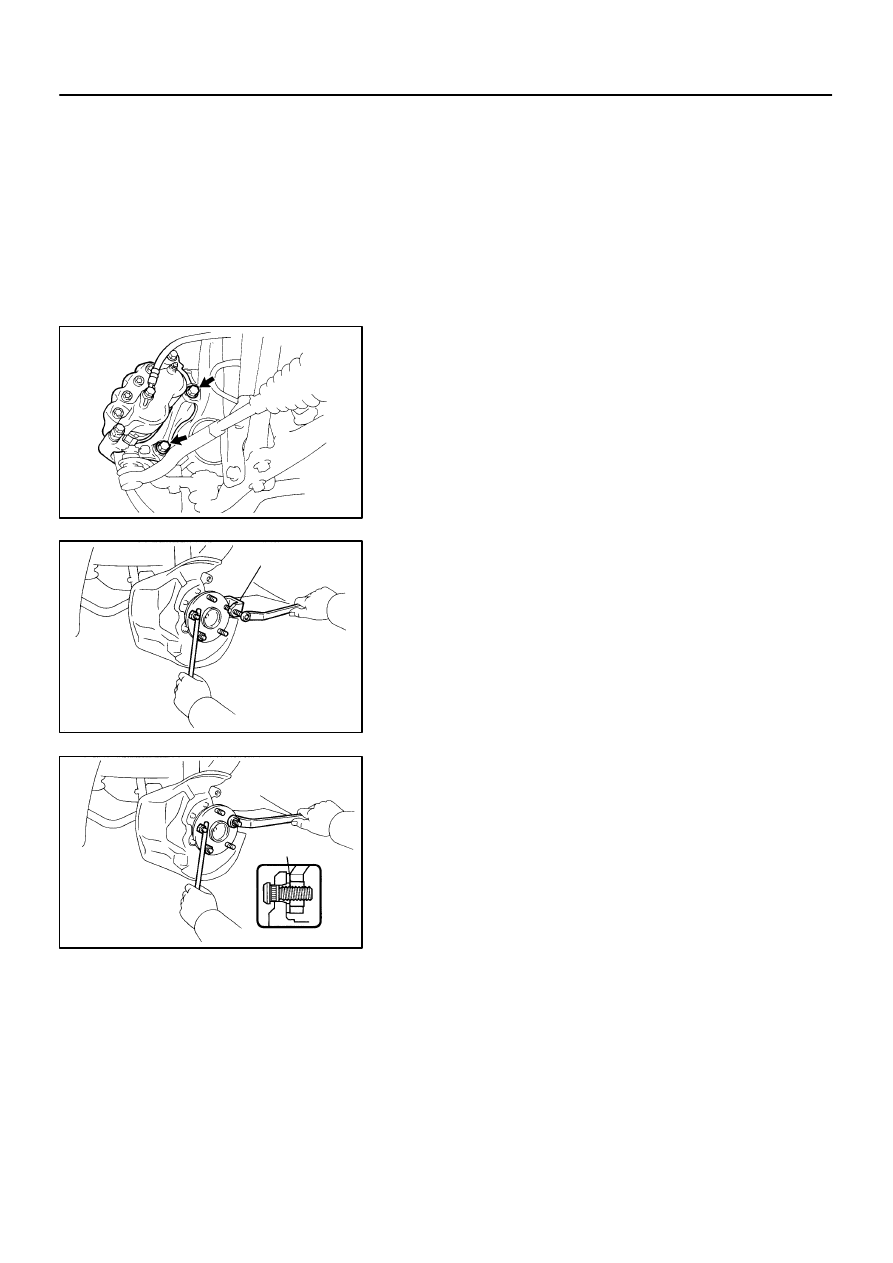

FRONT WHEEL HUB BOLT

REPLACEMENT

1.

REMOVE FRONT WHEEL

2.

REMOVE BRAKE CALIPER AND DISC

(a)

Remove the 2 bolts and remove the brake caliper from the
steering knuckle.

(b)

Support the brake caliper securely.

(c)

Remove the disc.

3.

REMOVE HUB BOLT

Using SST, remove the hub bolt.

SST

09628–10011

4.

INSTALL HUB BOLT

(a)

Install a washer and nut to the bolt, as shown in the il-
lustration.

(b)

Turn the wheel nut to pull the hub bolt until the underside
of the hub bolt head touches the axle hub.

5.

INSTALL DISC AND BRAKE CALIPER

(a)

Install the disc.

(b)

Install the brake caliper and 2 bolts to the steering
knuckle.
Torque: 118 N·m (1,200 kgf·cm, 87 ft·lbf)

6.

INSTALL FRONT WHEEL
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)

SA0RB–03

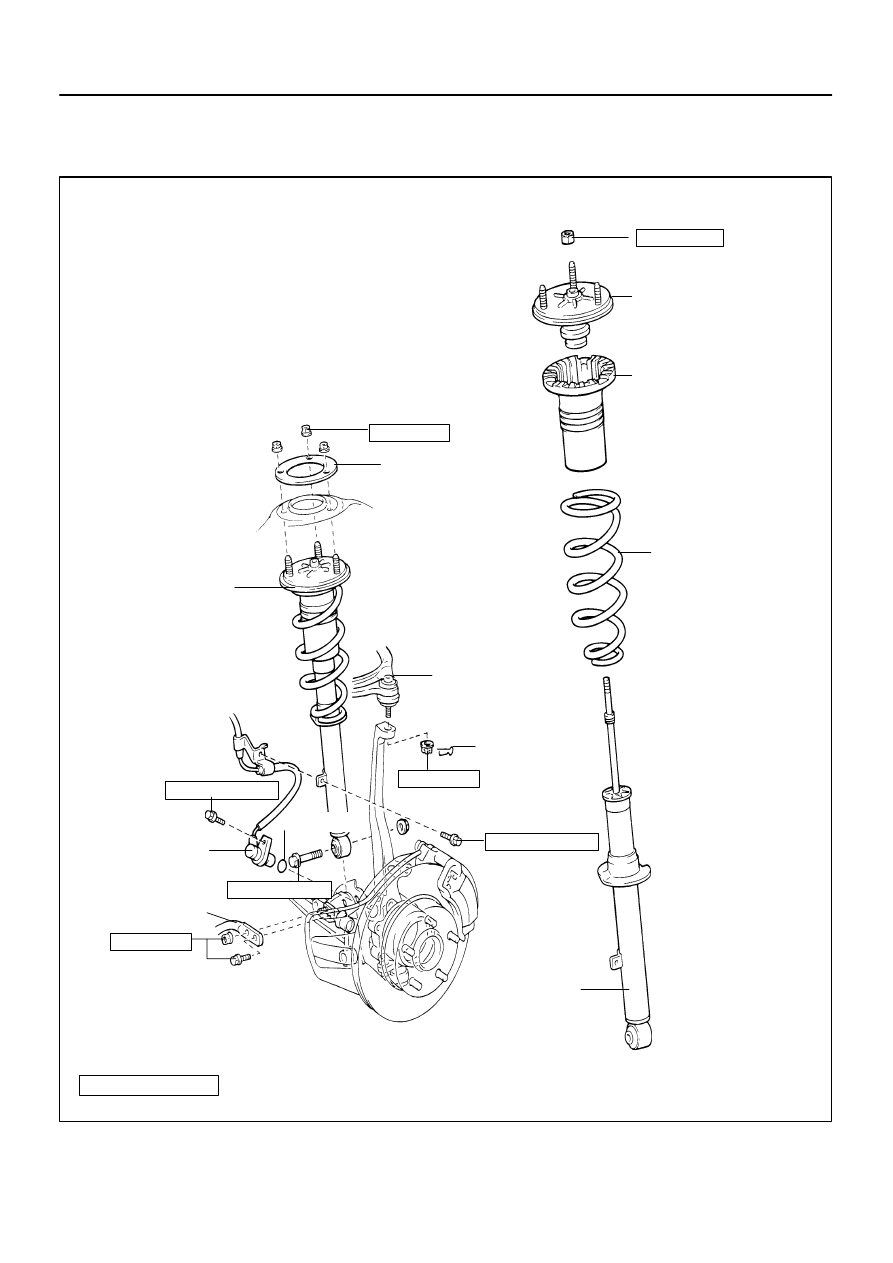

F02335

Suspension
Support No.2

Spring Bumper

Coil Spring

Suspension Support
No.1

Shock Absorber
With Coil Spring

Upper Suspension
Arm

Stabilizer Bar

ABS Speed Sensor

Shock Absorber

Clip

27 (280, 20)



56 (570, 41)

5.0 (55, 48 in.·lbf)

7.8 (80, 69 in.·lbf)

87 (890, 64)

O–Ring



 Non–reusable part

: Specified torque

N·m (kgf·cm, ft·lbf)



157 (1,600, 116)

55 (560, 41)

–

SUSPENSION AND AXLE

FRONT SHOCK ABSORBER

SA–17

2017

FRONT SHOCK ABSORBER

COMPONENTS
