ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

SF–45

1511

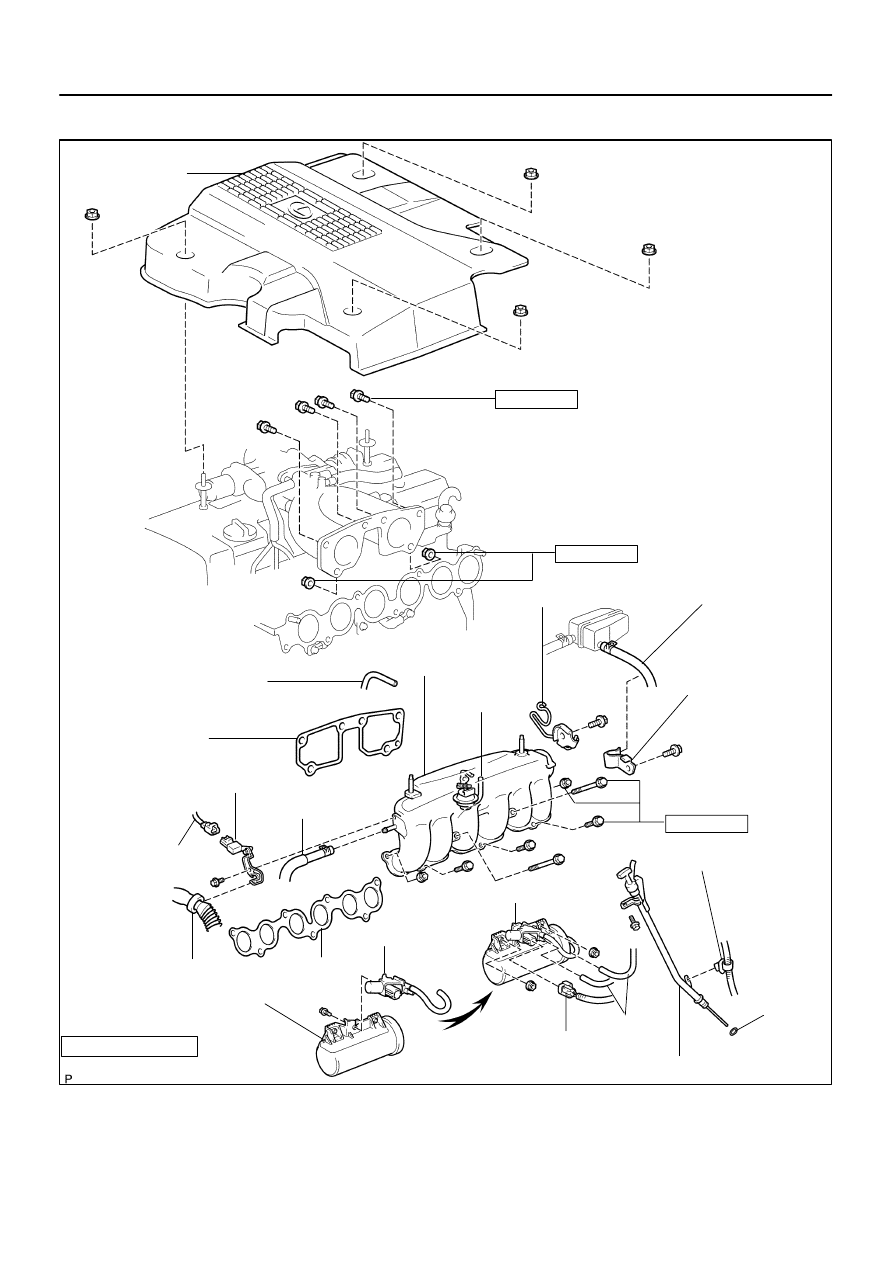

COMPONENTS

SF0NV–03

B01629

B01631

(f)

(g)

(e)

B09508

B09509

SF–46

–

SFI (2JZ–GE)

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

1512

REMOVAL

1.

REMOVE ENGINE COVER

Remove the engine cover and 4 nuts.

2.

REMOVE OIL DIPSTICK AND GUIDE FOR A/T
(See page

EM–62

)

3.

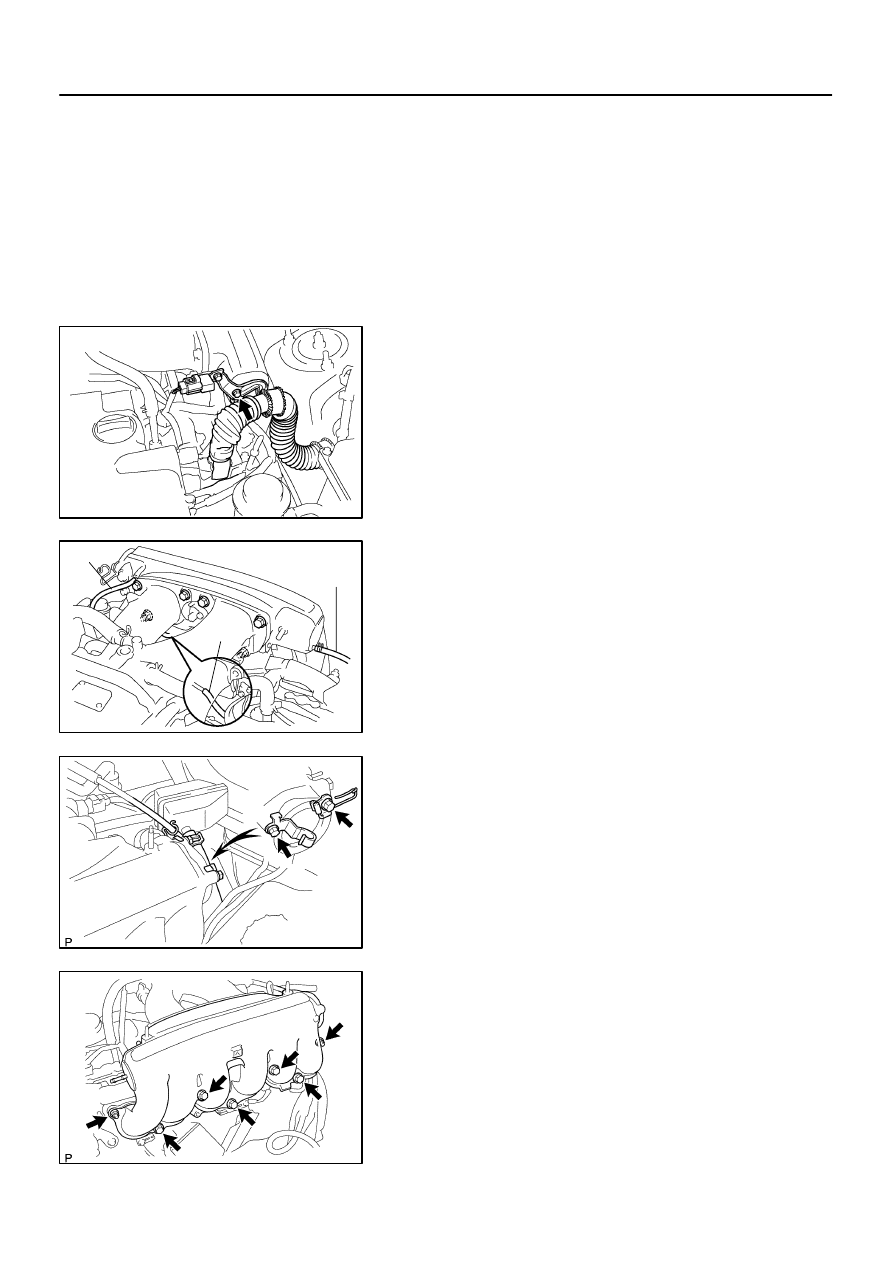

REMOVE AIR INTAKE CHAMBER (WITH INTAKE AIR
CONTROL VALVE)

(a)

Disconnect the noise filter connector.

(b)

Disconnect the engine wire clamp from the bracket.

(c)

Remove the bolt, bracket and noise filter.

(d)

Remove the 4 bolts and 2 nuts holding the intake air con-
nector to the air intake chamber,
Torque: 28 N·m (280 kgf·cm, 21 ft·lbf)

(e)

Disconnect the PS air hose from the air intake chamber.

(f)

Disconnect the vacuum hose (from No.2 vacuum pipe)
from the air intake chamber.

(g)

Disconnect the vacuum hose (from actuator for ACIS)
from the No.1 vacuum pipe.

(h)

Disconnect the accelerator cable, and  remove the bolt
and accelerator cable clamp.

(i)

Disconnect the EVAP hose, and remove the bolt and
clamp.

(j)

Remove the 5 bolts, 2 nuts, air intake chamber and 2 gas-
kets.
Torque: 28 N·m (280 kgf·cm, 21 ft·lbf)

4.

REMOVE VACUUM CONTROL VALVE SET
(See page

SF–54

)

B01585

A

–

SFI (2JZ–GE)

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

SF–47

1513

5.

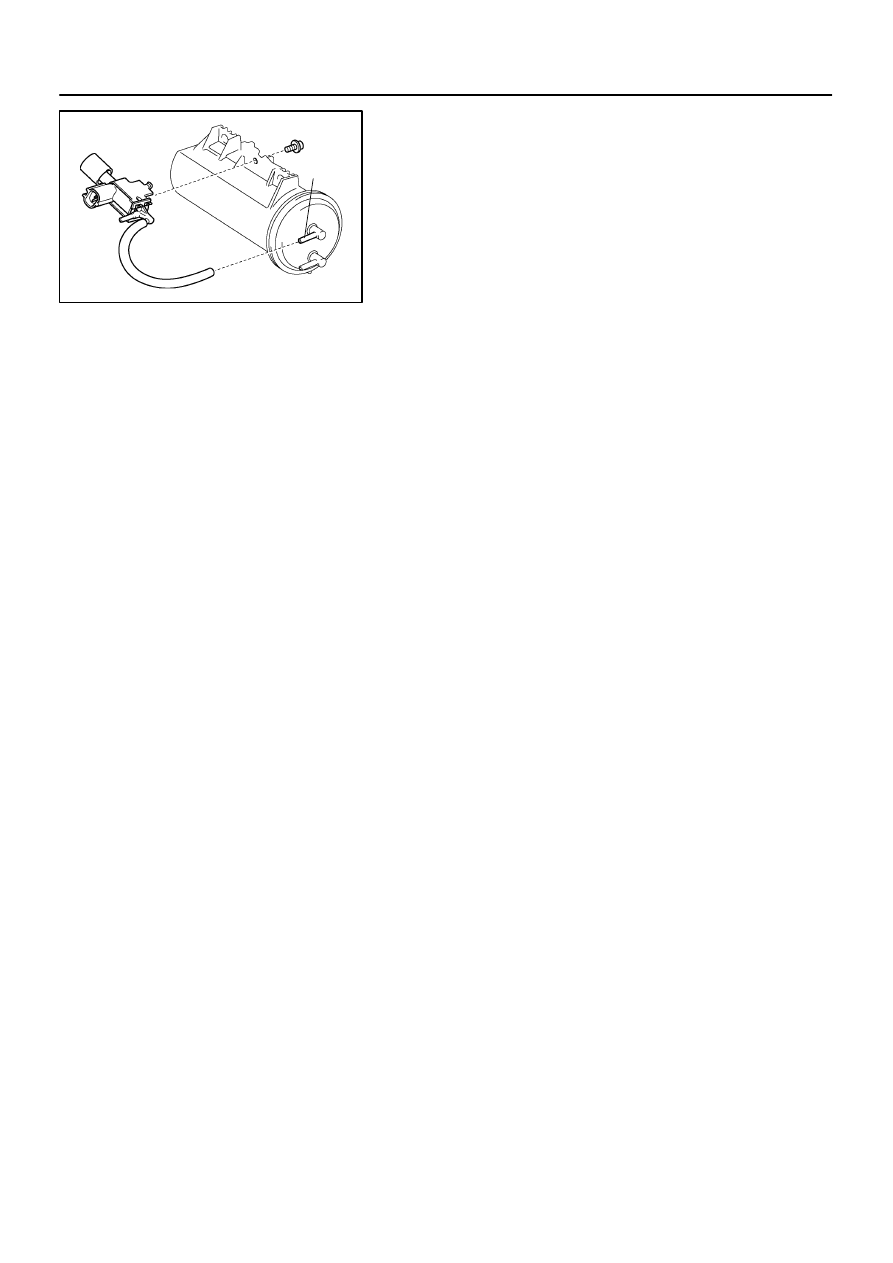

REMOVE VSV FROM VACUUM TANK

(a)

Disconnect the vacuum hose from port A of the vacuum
tank.

(b)

Remove the screw and VSV.

SF0NW–01

P10938

Close

Vacuum

P11994

Adjusting Screw

Vacuum

B01586

A

B

A

B

Air

Air

B01587

Vacuum

A

B

SF–48

–

SFI (2JZ–GE)

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

1514

INSPECTION

1.

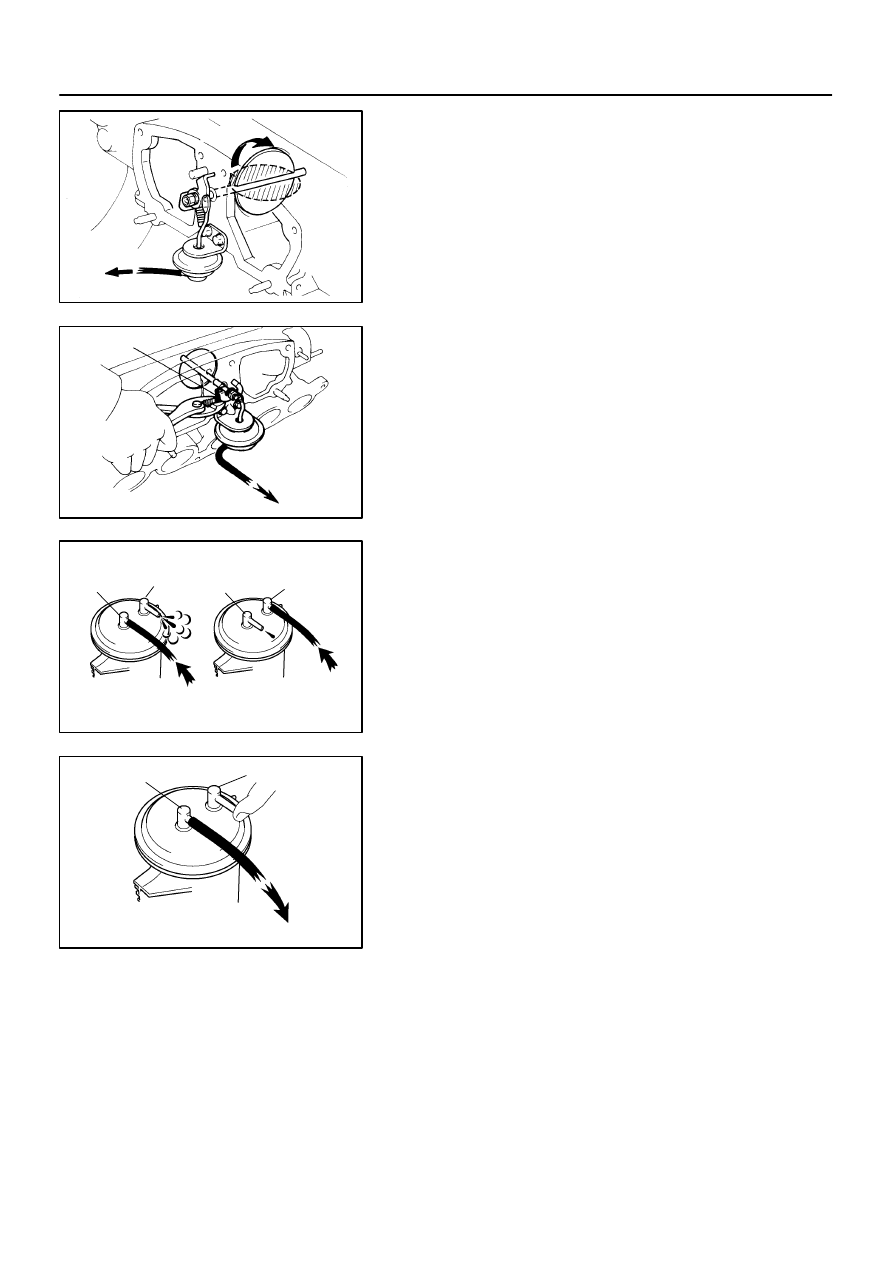

INSPECT INTAKE AIR CONTROL VALVE

(a)

With 53.3 kPa (400 mmHg, 15.75 in.Hg) of vacuum ap-
plied to the actuator, check that the actuator rod moves.

If operation is not as specified, turn the adjusting screw.
(b)

1 minute after applying the vacuum in (a), check that the
actuator rod does not return.

2.

INSPECT VACUUM TANK

(a)

Check that air flows from ports A to B.

(b)

Check that air does not flow ports B to A.

(c)

Plug port B with your finger, and apply 53.3 kPa (400
mmHg, 15.75 in.Hg) of vacuum to port A, and check that
there is no change in vacuum after 1 minute.

If operation is not as specified, replace the vacuum tank.
3.

INSPECT VSV (See page

SF–54

)
