Lexus GS300/400 (2000 year). Service manual - part 59

DTC

Diagnosis item

Diagnosis content

Countermeasure
and inspected parts

D1

FF

60

Radio receiver check.

FM tuner error

42

50 Cassette error

Transmitter error

Diagnosis no response

CD error

61 EJECT error

62

63

64

67

DISC inside out/flaw

Pickup temperature
detection
Excessive current
detection

Tray insertion/
discharging error

There is an error in FM tuner.

There is an error in cassette
deck.

Communication with the
equipment that is
communicating has failed
successively.

Result of diagnosis is not
issued from start to finish.

Error codes other than
61–69 are detected.

CD is not ejected.

CD is inserted inside
out or it has a flaw.

High temperature of CD
changer is detected.

Excessive current to
CD changer is detected.

An error occurs in insertion
and discharging operation of
CD changer tray.

Radio receiver check.

CD changer check.

CD changer check.
Magazine check.

CD check.

CD changer check.

CD changer check.
Magazine check.

Radio receiver check.
Wire harness and
connecter check.

CD
(240)
(360)

System
Check

Diagnosis

memory

X





X







X

X



X

X

X

X

X











Head
Unit
(190)

Parts
Name

51 Cassette eject error

Cassette can not be ejected
from Head Unit.



X

D2

Periodic
communication
no response

Error in periodic
communication.



 Wire harness and

   connector



X



68

D1

D4

Elevator error

Periodic communication
error

An error occurs in
elevator of CD changer
elevator.

X



X







Transmitter error



 Radio receiver check.



 Wire harness check.

CD changer check.

Communication with the
equipment that is
communicating has failed
successively.

Connection confirmation
has not come from the
equipment that is
communicating

BE–194

–

BODY ELECTRICAL

AUDIO SYSTEM

2495

3.

DIAGNOSIS CODE LIST



If there is ”O” in the column of system check, an error can be detected when the mode is switched to
the system check mode.



If there is ”O” in the column of diagnosis mode, each unit is monitoring whether or not it has failure.
In case of detectng failure, it memorizes DTC.

DTC

Diagnosis item

Diagnosis content

Countermeasure
and inspected parts

System
Check

Diagnosis

memory

X





AMP
(440)

D1

D4

Stereo component
amplifier check.



Parts
Name

Transmitter error

Periodic
communication
error



 Radio receiver check.



 Wire harness check.

Communication with the
equipment that is
communicating has failed
successively.

Connection confirmation
has not come from the
equipment that is
communicating

–

BODY ELECTRICAL

AUDIO SYSTEM

BE–195

2496

BE0GC–05

BE–196

–

BODY ELECTRICAL

AUDIO SYSTEM

2497

TROUBLESHOOTING

NOTICE:
When replacing the internal mechanism (computer part) of the audio system, be careful that no part
of your body or clothing comes in contact with the terminals of the leads from the IC, etc. of the re-
placement part (spare part).
HINT:
This inspection procedure is a simple troubleshooting which should be carried out on the vehicle during sys-
tem operation and was prepared on the assumption of system component troubles (except for the wires and
connectors, etc.).
Always inspect the trouble taking the following items into consideration.



Open or short circuit of the wire harness



Connector or terminal connection fault



For audio systems with anti–theft system, troubleshooting items  marked ( * ) indicate that ”Trou-
bleshooting for ANTI–THEFT SYSTEM” should be carried out first.

Problem

No.

Radio

Radio not operating when power switch turned to ’ON’.

1

Display indicates when power switch turned to ’ON’, but no sound (including

’noise’) is produced.

2

Noise present, but AM – FM not operating.

3

Any speaker does not work.

4

Any AM or FM does not work.

5

Few preset turning bands.

5

Reception poor.

6

Sound quality poor.

7

Preset memory disappears.

8

Tape Player

Cassette tape cannot be inserted.

9

Cassette tape inserted, but no power.

10

Power coming in, but tape player not operating.

11

Any speaker does not work.

12

Sound quality poor.

13

Tape jammed, malfunction with tape speed or auto–reverse.

14

Cassette tape will not eject.

15

CD Player

CD cannot be inserted.

16

CD inserted, but no power.

17

Power coming in, but CD player not operating.

18

Sound jumps.

19

Sound quality poor (Volume faint).

20

Any speaker does not work.

21

CD will not be ejected.

22

Power Amplifier

No power coming in.

23

Power coming in, but power amplifier not operating.

24

Any speaker does not work.

25

Noise

Noise occurs

26

Noise produced by vibration or shock while driving.

27

Noise produced when engine starts.

28

The term ”AM” includes LW,MW and SW, and the term ”FW” includes UKW.

V08418

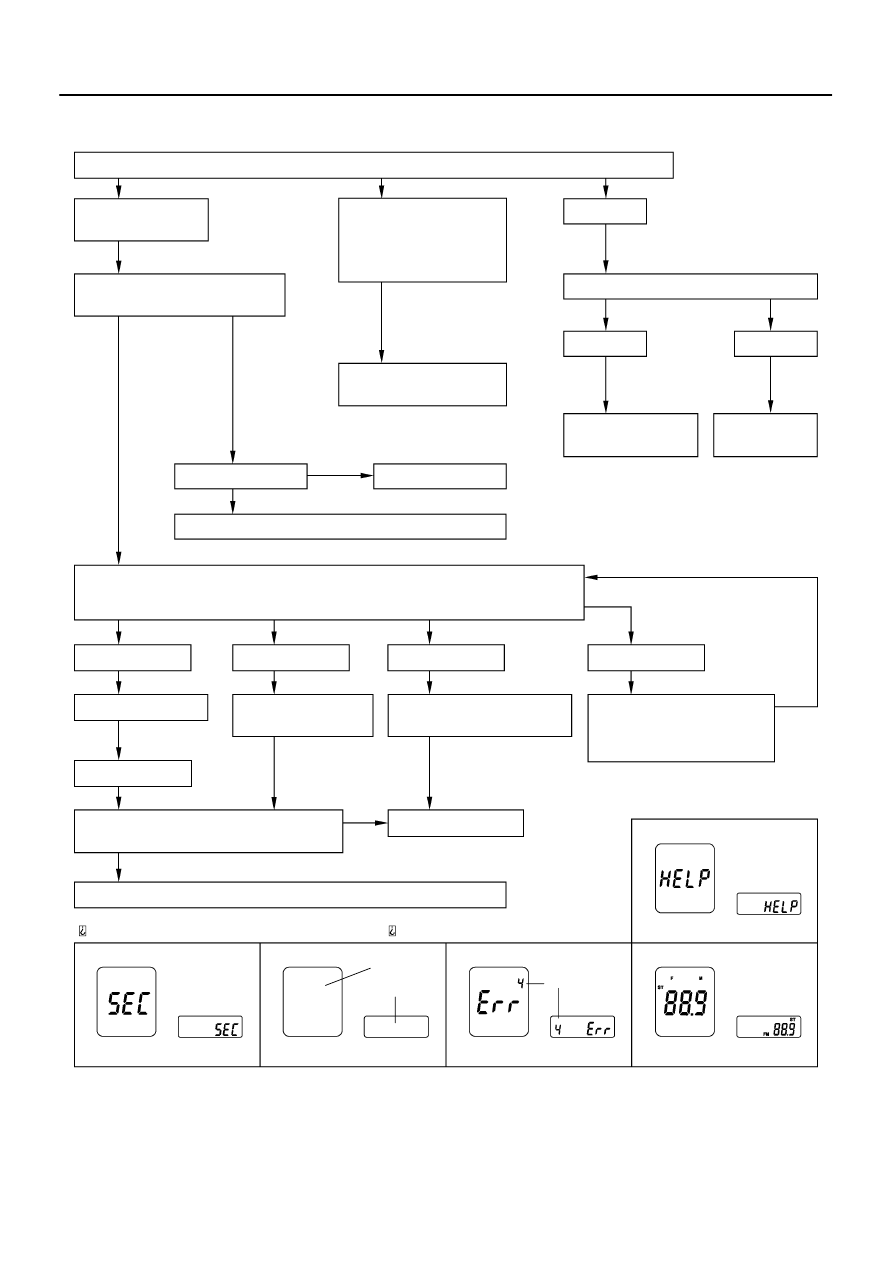

Turn ignition Key from LOCK position to ACC position.

Troubleshooting  for ANTI–THEFT SYSTEM

Display A:

ID Number is set.

Display E:

ANTI–THEFT SYSTEM opera-

tion condition. (ID number input

error 10 times or more.)

Display B

”SEC” display disappears after 1

second.

Radio switch ON.

Take to designated radio

service station.

Display B

Display D

Refer to each

malfunction item.

Normal

operation.

Radio switch ON.

Normal operation.

Cancel ID number, refer to each malfunction item.

Yes

No

OK

NG

ANTI–THEFT SYSTEM operation condition. (ID number input error 9 times or less.)

Input ID number to cancel ANTI–THEFT SYSTEM, and check display.

Display A

→

B

Display B

Display E

Display C

→

A

Radio switch ON.

Refer to each

malfunction item.

Take to designated

radio service station.

ANTI–THEFT SYSTEM not can-

celled. (ID number input error 10

times or less.)

Display D

ANTI–THEFT SYSTEM cancelled.

Check audio system again.

Normal operation.

OK

NG

Cancel ID number, refer to each malfunction item.

Liquid Crystal Display (LCD) or VFD for Audio System

Display ”A”

Display ”B”

Display ”C”

Display ”D” Example:

Display ”E”

2 DIN Type

1 DIN Type

Blank

No Illumination

2 DIN Type

1 DIN Type

2 DIN Type

1 DIN Type

Error Times

2 DIN Type

1 DIN Type

Radio Display

1 DIN Type

2 DIN Type

HINT:

 Refer to Owner’s Manual for operation details of ANTI–THEFT SYSTEM.

 When the ID number has been cancelled, reset the same number after completing the operation, or

inform the customer that it has been cancelled.

–
