On vehicles equipped with a rear subwoofer, there is a

second power outlet located in the rear cargo area and is

powered directly from the vehicle battery.

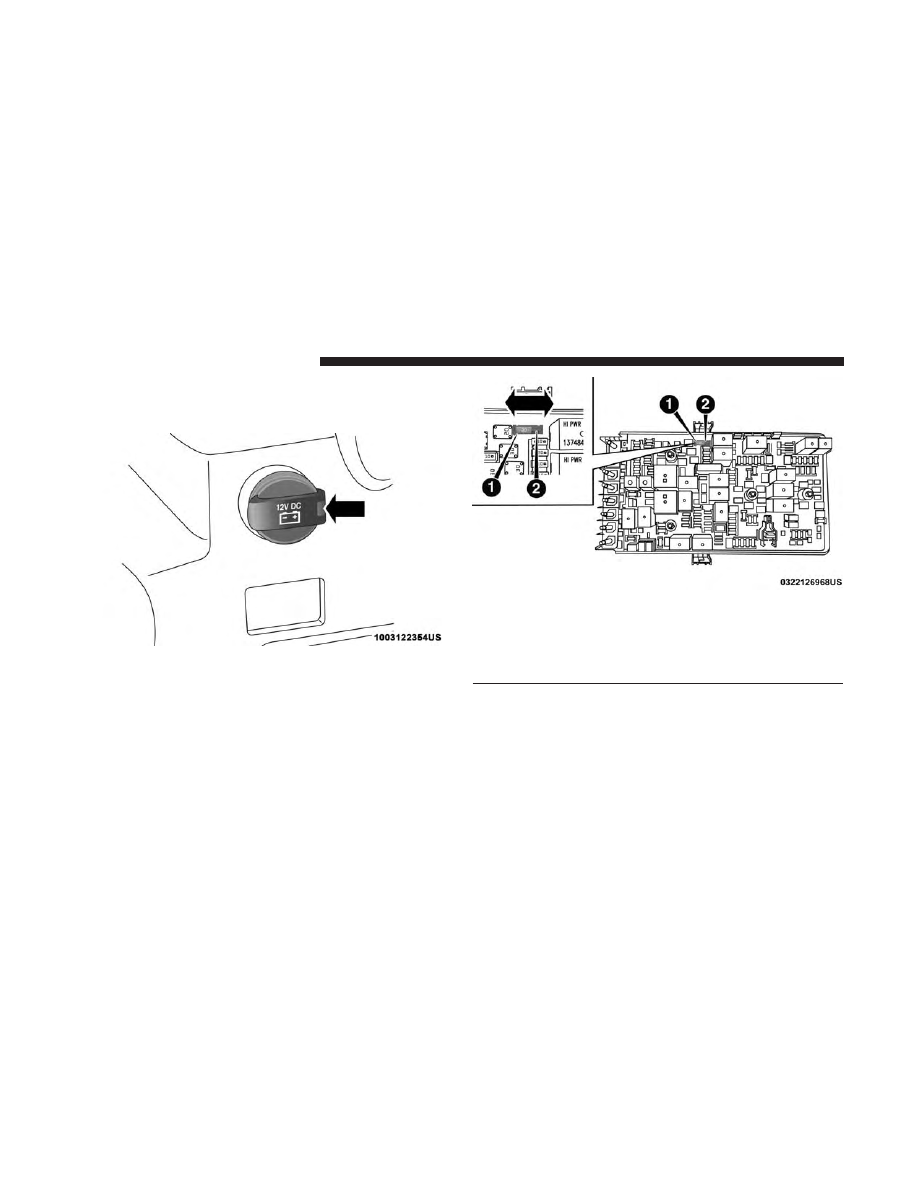

Rear Cargo Power Outlet

Power Outlets Fuse Locations

1 — F81 Fuse 20A Yellow Rear Power Outlet (battery powered at all
times)
2 — F91 Fuse 20A Yellow Rear Power Outlet (powered when the
ignition switch is in the ON or ACC position)

166

GETTING TO KNOW YOUR VEHICLE

CAUTION!

• Do not exceed the maximum power of 160 Watts (13

Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.

• Power outlets are designed for accessory plugs only.

Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.

WARNING!

To avoid serious injury or death:
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.), will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the alternator to
recharge the vehicle’s battery.

• Power outlets are designed for accessory plugs only.

Do not hang any type of accessory or accessory
bracket from the plug. Improper use of the power
outlet can cause damage.

GETTING TO KNOW YOUR VEHICLE

167

Power Inverter — If Equipped

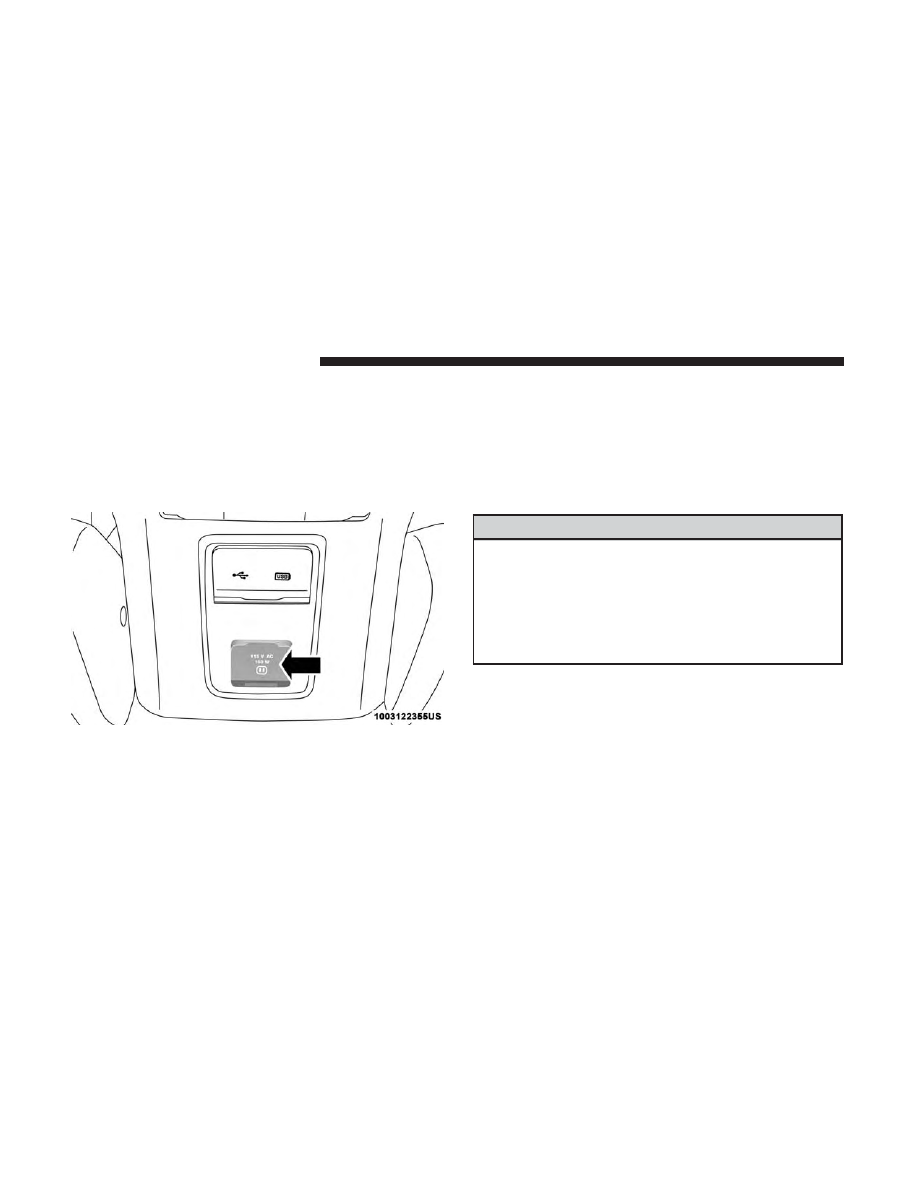

There is a 115 or 230 Volt, 150 Watt inverter outlet located

on the back of the center console to convert DC current to

AC current. This outlet can power cellular phones, elec-

tronics and other low power devices requiring power up to

150 Watts. Certain high-end video game consoles will

exceed this power limit, as will most power tools.

The power inverter is designed with built-in overload

protection. If the power rating of 150 Watts is exceeded, the

power inverter will automatically shut down. Once the

electrical device has been removed from the outlet, the

inverter should automatically reset. If the power rating

exceeds approximately 170 Watts, the power inverter may

have to be reset manually.

WARNING!

To avoid serious injury or death:
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

Power Inverter

168

GETTING TO KNOW YOUR VEHICLE

Auxiliary Switches — If Equipped

Four auxiliary switches located in the lower switch bank of

the instrument panel can be used to power various electri-

cal devices. You have the ability to configure the function-

ality of the auxiliary switches via the Uconnect settings. All

switches can be configured for setting the switch type

operation to latching or momentary, power source of either

battery or ignition, and ability to hold last state across key

cycles.

NOTE:

Holding last state conditions are met when switch

type is set to latching and power source is set to ignition.
For more information, refer to “Uconnect Settings” in

“Multimedia.”

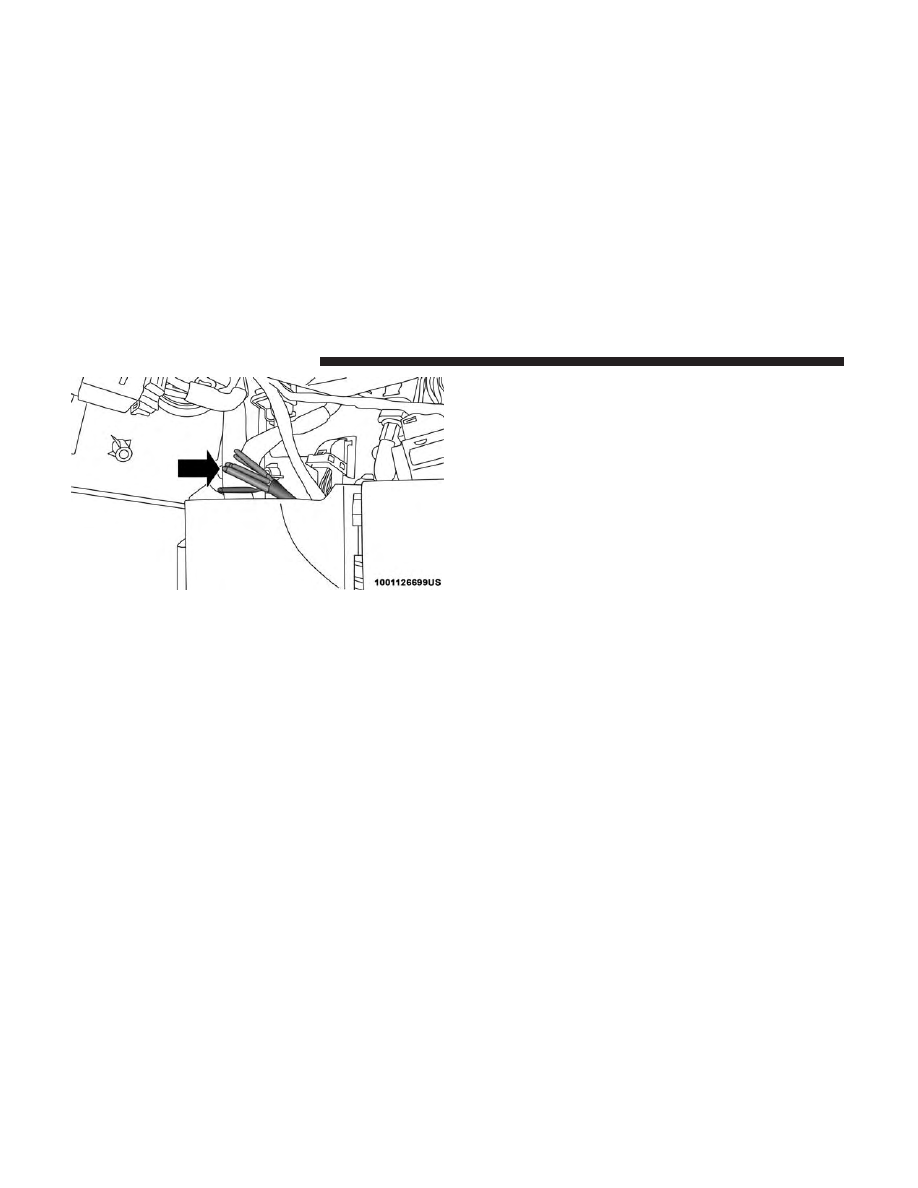

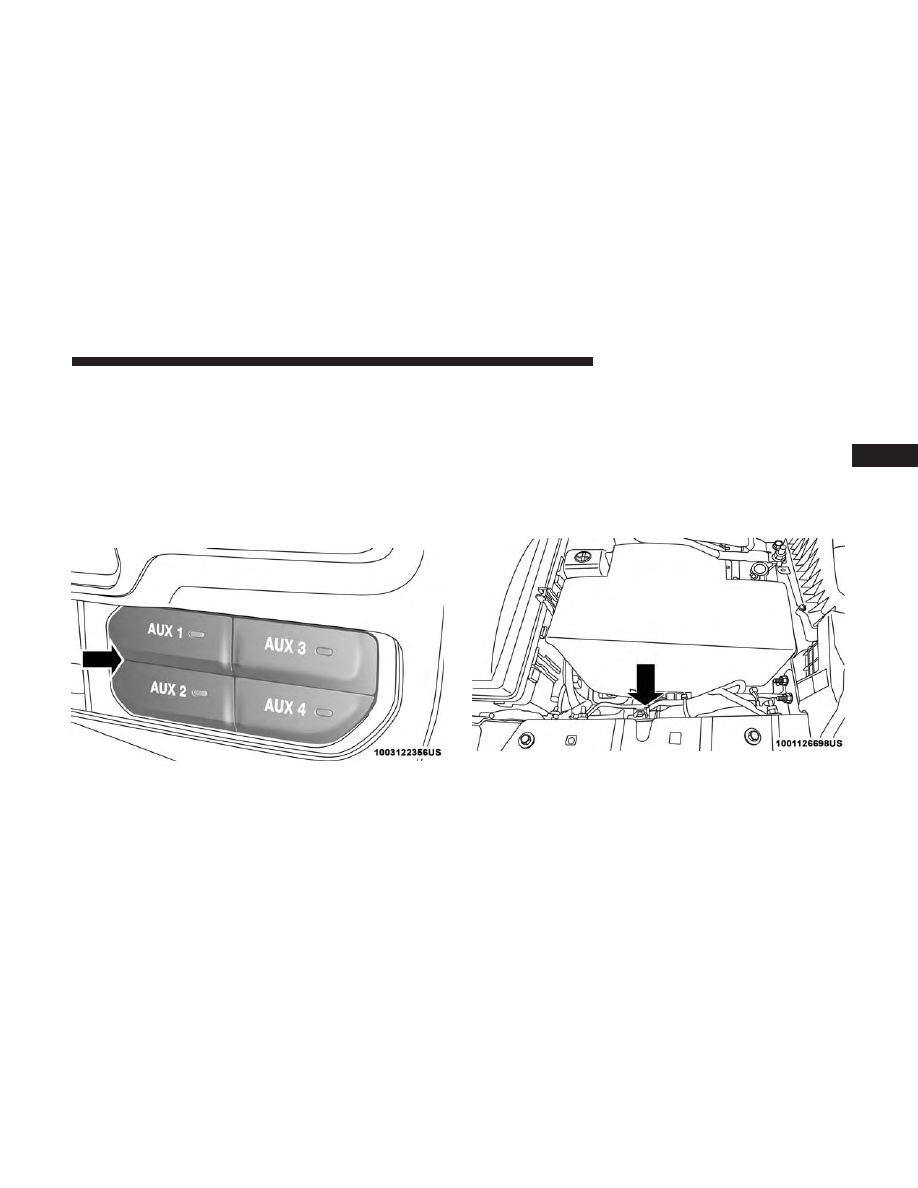

The auxiliary switches control relays that power four blunt

cut wires located in the interior passenger outboard foot

well area and on the right side of the engine compartment

near the battery.

Auxiliary Switches

Auxiliary Switch Connections – Under Hood

GETTING TO KNOW YOUR VEHICLE

169

In addition to the four auxiliary switch wires, a fused

battery wire and ignition wire are also located in the

interior, in the passenger outboard foot well area.
A kit of splices and heat shrink tubing are provided with

the auxiliary switches to aid in the connection/installation

of your electrical devices.

ROOF LUGGAGE RACK — IF EQUIPPED

NOTE:

Roof rack applications are for Hard Top models

ONLY

The load carried on the roof, when equipped with a

luggage rack, must not exceed 100 lbs (45 kg), this includes

the weight of the crossbars, and it should be uniformly

distributed over the cargo area.
Crossbars should always be used whenever cargo is placed

on the roof rack. Check the straps frequently to be sure that

the load remains securely attached.

NOTE:

Crossbars can be purchased at an authorized dealer

through Mopar parts.
External racks do not increase the total load carrying

capacity of the vehicle. Be sure that the total occupant and

luggage load inside the vehicle, plus the load on the

luggage rack, do not exceed the maximum vehicle load

capacity.

Auxiliary Switch Connections – Passenger Side Panel

170

GETTING TO KNOW YOUR VEHICLE

WARNING!

Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.

CAUTION!

• To avoid damage to the roof rack and vehicle, do not

exceed the maximum roof rack load capacity. Always
distribute heavy loads as evenly as possible and
secure the load appropriately.

• Long loads, which extend over the windshield, such

as wood panels or surfboards, should be secured to
both the front and rear of the vehicle.

• Place a blanket or other protection between the

surface of the roof and the load.

(Continued)

CAUTION! (Continued)

• Travel at reduced speeds and turn corners carefully

when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward loads. This is espe-
cially true on large flat loads and may result in
damage to the cargo or your vehicle.

• Load should always be secured to cross bars first,

with tie down loops used as additional securing
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratcheting
mechanisms with the tie loops. Check the straps
frequently to be sure that the load remains securely
attached.

GETTING TO KNOW YOUR VEHICLE

171

GETTING TO KNOW YOUR INSTRUMENT PANEL

CONTENTS

䡵 INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . . .174

▫ Instrument Cluster Descriptions . . . . . . . . . . . .175

䡵 INSTRUMENT CLUSTER DISPLAY . . . . . . . . . . .178

▫ Instrument Cluster Display Location And

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

▫ Oil Change Reset . . . . . . . . . . . . . . . . . . . . . .180
▫ Instrument Cluster Display Menu Items . . . . . .181
▫ Battery Saver On/Battery Saver Mode Message —

Electrical Load Reduction Actions —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . .185

䡵 WARNING LIGHTS AND MESSAGES . . . . . . . . .187

▫ Red Warning Lights . . . . . . . . . . . . . . . . . . . . .188
▫ Yellow Warning Lights . . . . . . . . . . . . . . . . . . .192

▫ Yellow Indicator Lights. . . . . . . . . . . . . . . . . . .196
▫ Green Indicator Lights . . . . . . . . . . . . . . . . . . .197
▫ White Indicator Lights . . . . . . . . . . . . . . . . . . .198
▫ Blue Indicator Lights . . . . . . . . . . . . . . . . . . . .199
▫ Gray Indicator Lights . . . . . . . . . . . . . . . . . . . .199

䡵 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .200

▫ Onboard Diagnostic System (OBD II)

Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . .200

䡵 EMISSIONS INSPECTION AND MAINTENANCE

PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . .201

INSTRUMENT CLUSTER

Base Instrument Cluster

174

GETTING TO KNOW YOUR INSTRUMENT PANEL

Instrument Cluster Descriptions

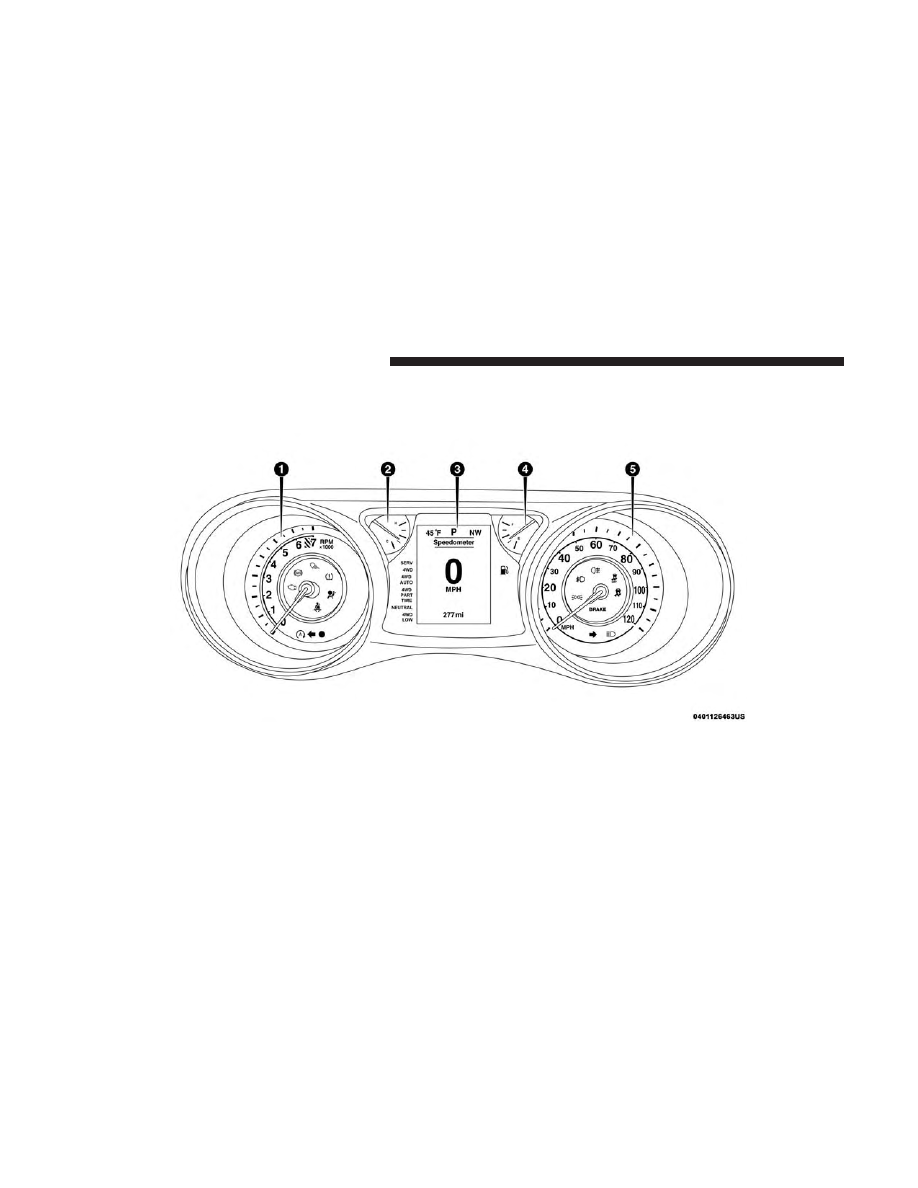

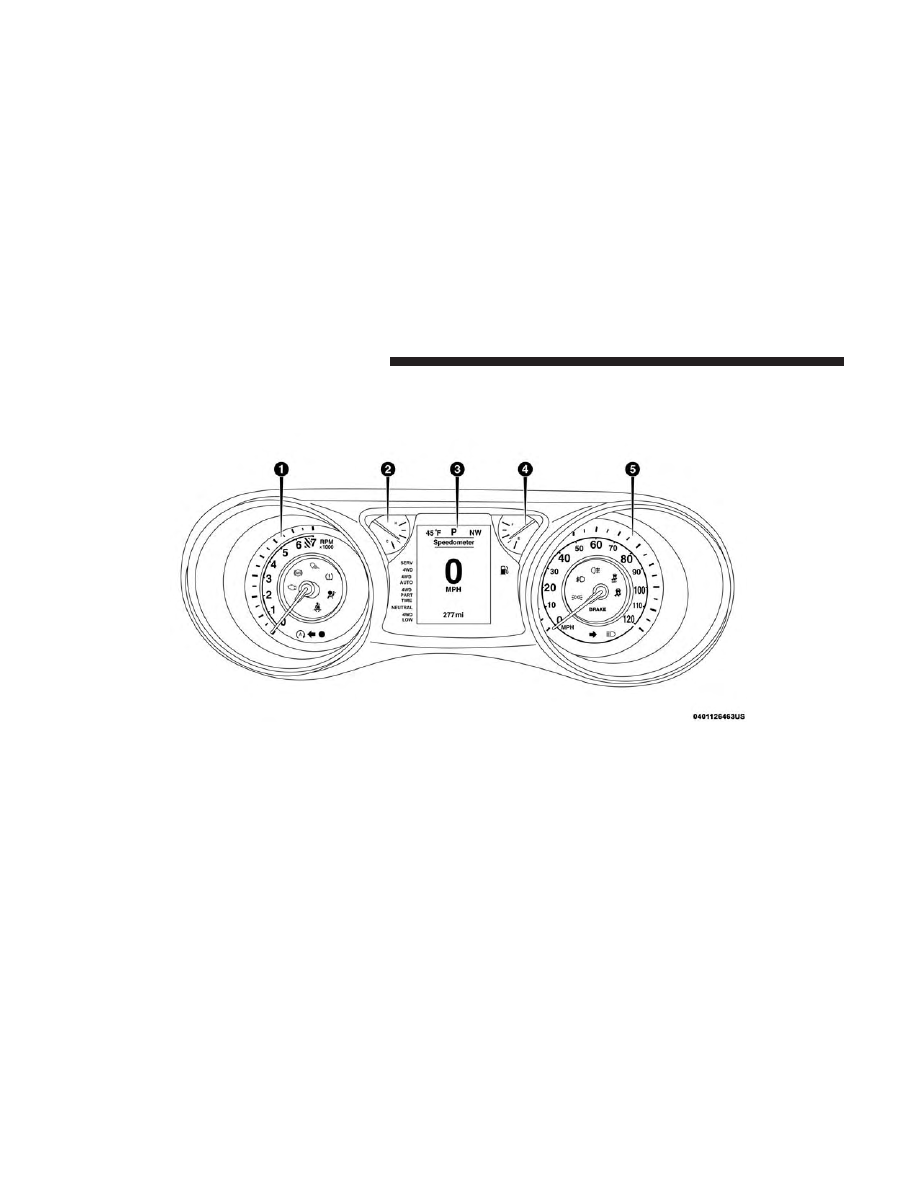

Base Instrument Cluster Descriptions

1. Tachometer

• Indicates the engine speed in revolutions per minute

(RPM x 1000).

CAUTION!

Do not operate the engine with the tachometer pointer
in the red area. Engine damage will occur.

Premium Instrument Cluster

GETTING TO KNOW YOUR INSTRUMENT PANEL

175

2. Temperature Gauge

• The temperature gauge shows engine coolant tem-

perature. Any reading within the normal range indi-

cates that the engine cooling system is operating

satisfactorily.

• The gauge pointer will likely indicate a higher tem-

perature when driving in hot weather, up mountain

grades, or when towing a trailer. It should not be

allowed to exceed the upper limits of the normal

operating range.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call your authorized dealer
for service if your vehicle overheats.

CAUTION!

Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call your
authorized dealer for service.

3. Instrument Cluster Display

• The instrument cluster display features a driver-

interactive display. Refer to “Instrument Cluster Dis-

play” in “Getting To Know Your Instrument Panel” for

further information.

4. Fuel Gauge

• The pointer shows the level of fuel in the fuel tank

when the ignition switch is in the ON/RUN position.

•

The fuel pump symbol points to the side of the

vehicle where the fuel filler door is located.

5. Speedometer

• Indicates vehicle speed.

176

GETTING TO KNOW YOUR INSTRUMENT PANEL

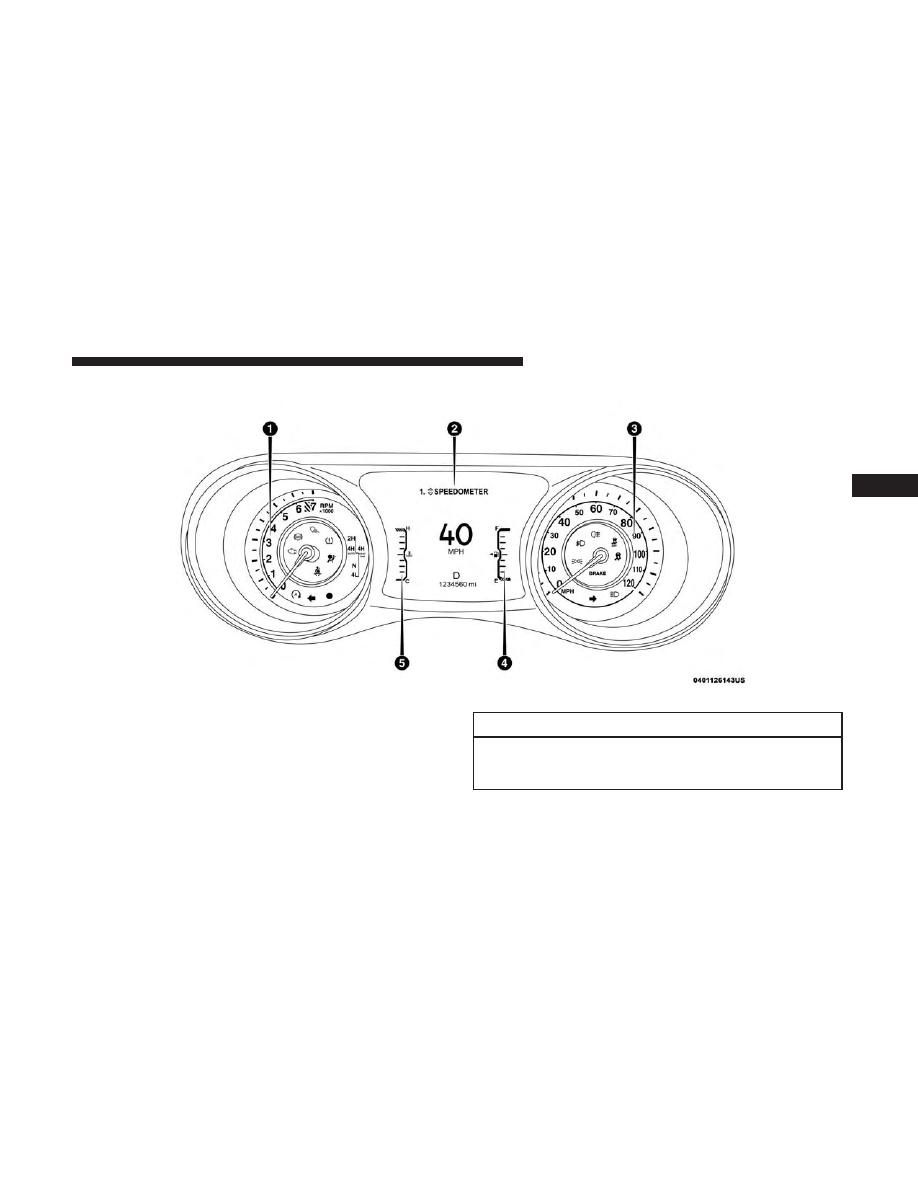

Premium Instrument Cluster Descriptions

1. Tachometer

• Indicates the engine speed in revolutions per minute

(RPM x 1000).

CAUTION!

Do not operate the engine with the tachometer pointer
in the red area. Engine damage will occur.

2. Instrument Cluster Display

• The instrument cluster display features a driver-

interactive display. Refer to “Instrument Cluster Dis-

play” in “Getting To Know Your Instrument Panel” for

further information.

3. Speedometer

• Indicates vehicle speed.

4. Fuel Gauge

• The pointer shows the level of fuel in the fuel tank

when the ignition switch is in the ON/RUN position.

•

The fuel pump symbol points to the side of the

vehicle where the fuel filler door is located.

5. Temperature Gauge

• The temperature gauge shows engine coolant tempera-

ture. Any reading within the normal range indicates that

the engine cooling system is operating satisfactorily.

• The gauge pointer will likely indicate a higher tempera-

ture when driving in hot weather, up mountain grades,

or when towing a trailer. It should not be allowed to

exceed the upper limits of the normal operating range.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call your authorized dealer
for service if your vehicle overheats.

CAUTION!

GETTING TO KNOW YOUR INSTRUMENT PANEL

177

INSTRUMENT CLUSTER DISPLAY

Your vehicle may be equipped with an instrument cluster

display, which offers useful information to the driver. With

the ignition in the STOP/OFF mode, opening/closing of a

door will activate the display for viewing, and display the

total miles, or kilometers, in the odometer. Your instrument

cluster display is designed to display important informa-

tion about your vehicle’s systems and features. Using a

driver interactive display located on the instrument panel,

your instrument cluster display can show you how sys-

tems are working and give you warnings when they aren’t.

The steering wheel mounted controls allow you to scroll

through and enter the main menus and submenus. You can

access the specific information you want and make selec-

tions and adjustments.

Instrument Cluster Display Location And Controls

The instrument cluster display is located in the center of

the instrument cluster.

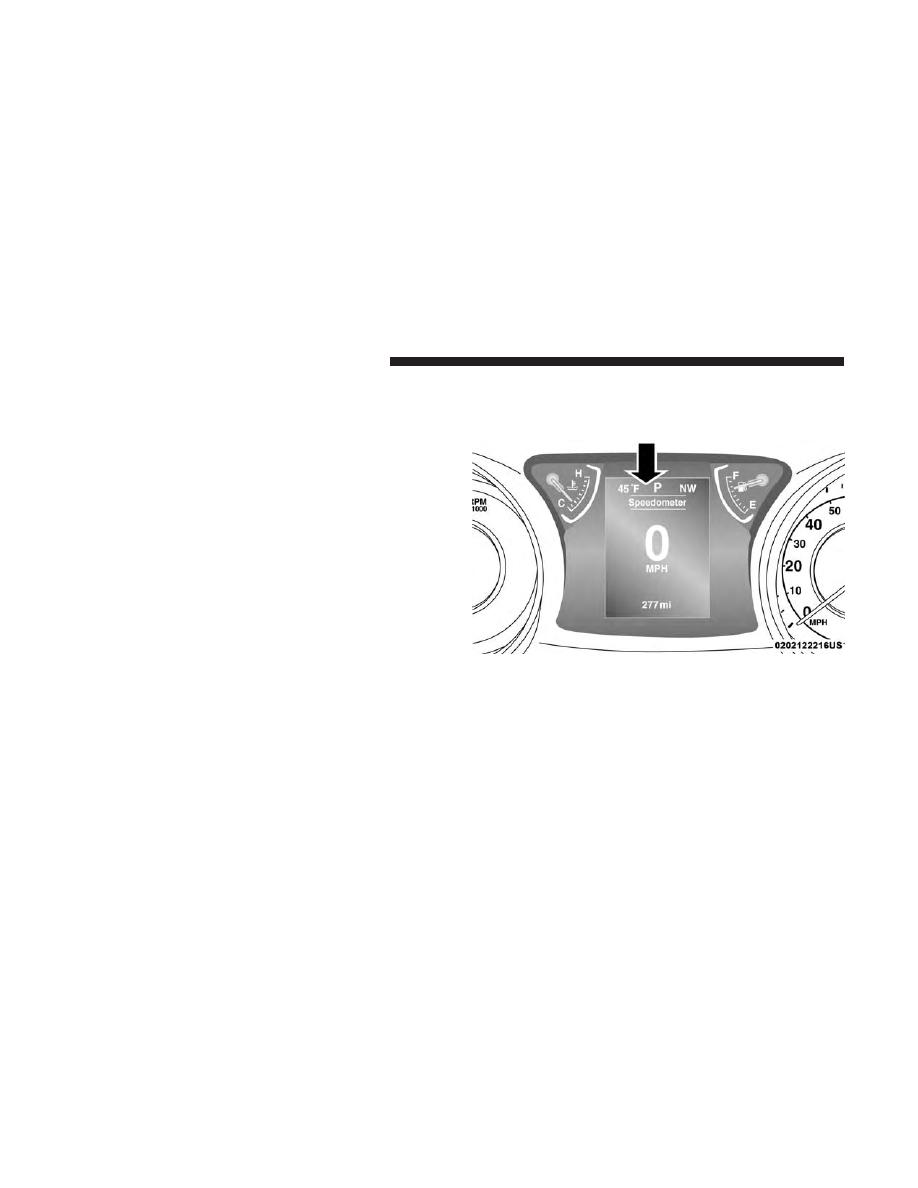

3.5 Inch Instrument Cluster Display Location

178

GETTING TO KNOW YOUR INSTRUMENT PANEL

The system allows the driver to select information by

pushing the following buttons mounted on the steering

wheel:

• Up Arrow Button

Push and release the up arrow button to scroll

upward through the Main Menu items.

7.0 Inch Instrument Cluster Display Location

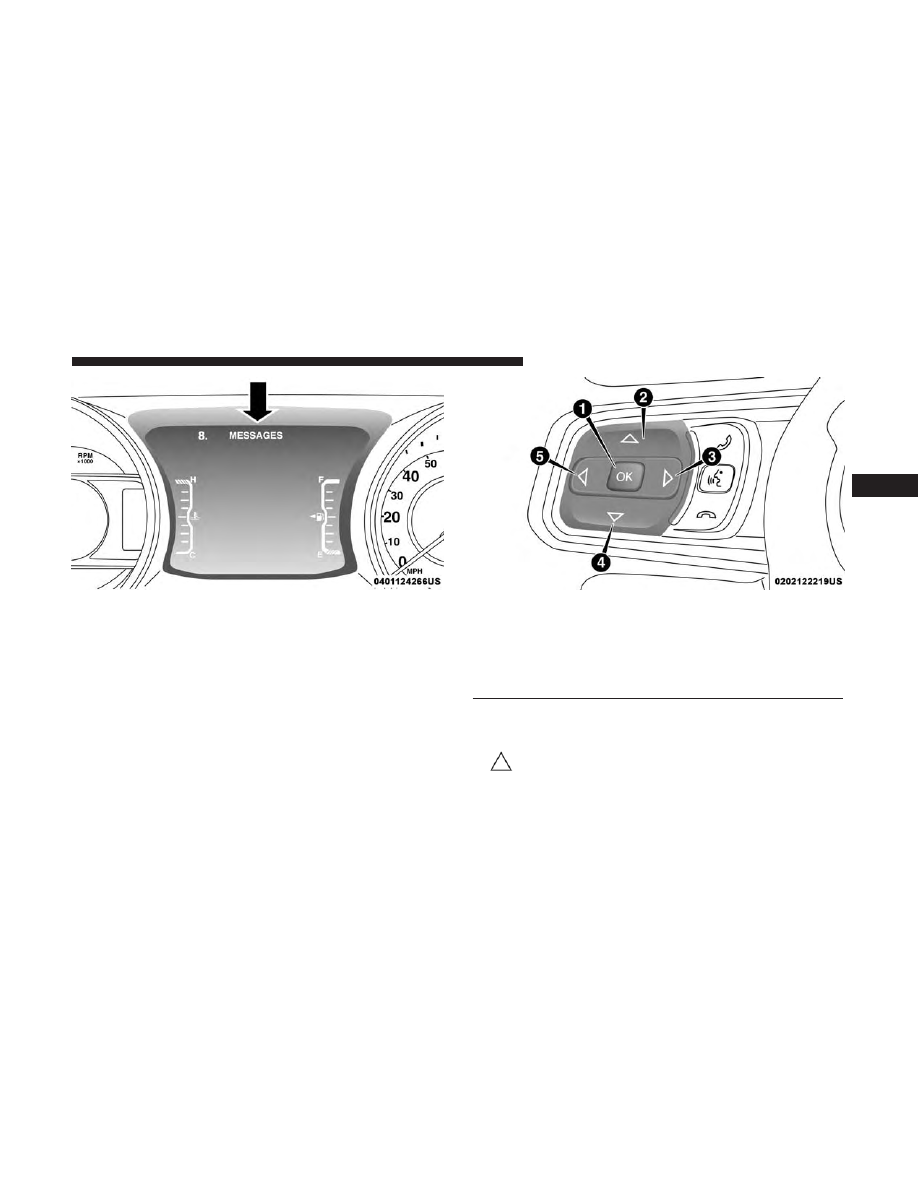

Instrument Cluster Display Control Buttons

1 — OK Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — Left Arrow Button

GETTING TO KNOW YOUR INSTRUMENT PANEL

179

• Down Arrow Button

Push and release the down arrow button to scroll

downward through the Main Menu items.

• Right Arrow Button

Push and release the right arrow button to access

the information screens or submenu screens of a

main menu item.

• Left Arrow Button

Push and release the left arrow button to access

the information screens or submenu screens of a

main menu item.

• OK Button
Push the OK button to access/select the information

screens or submenu screens of a Main Menu item. Push

and hold the OK arrow button for two seconds to reset

displayed/selected features that can be reset.
The Main Menu items consists of the following:
• Speedometer
• Vehicle Info

• Off Road— If Equipped
• Fuel Economy
• Trip Info
• Stop/Start — If Equipped
• Audio
• Messages
• Screen Setup

Oil Change Reset

Your vehicle is equipped with an engine oil change indi-

cator system. The “Oil Change Required” message will

display in the instrument cluster display for five seconds

after a single chime has sounded to indicate the next

scheduled oil change interval. The engine oil change indi-

cator system is duty cycle based, which means the engine

oil change interval may fluctuate, dependent upon your

personal driving style.
Unless reset, this message will continue to display each

time you cycle the ignition to the ON/RUN position. To

turn off the message temporarily, push and release the OK

button. To reset the oil change indicator system (after

performing the scheduled maintenance), refer to the fol-

lowing procedure.

180

GETTING TO KNOW YOUR INSTRUMENT PANEL

Oil Life Reset

1. Without pushing the brake pedal, push and release the

ENGINE START/STOP button and place the ignition to

the ON/RUN position (do not start the engine).

2. Navigate to

⬙Oil Life⬙ submenu in ⬙Vehicle Info⬙ in the

instrument cluster display.

3. Push and hold the OK button until the gauge resets to

100%.

Secondary Method For Oil Change Reset Procedure

1. Without pushing the brake pedal, push and release the

ENGINE START/STOP button and place the ignition to

the ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times

within ten seconds.

3. Without pushing the brake pedal, push and release the

ENGINE START/STOP button once to return the igni-

tion to the OFF/LOCK position.

NOTE:

If the indicator message illuminates when you

start the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

Instrument Cluster Display Menu Items

NOTE:

The instrument cluster display menu items display

in the center of the instrument cluster. Menu items may

vary depending on your vehicle features.

Speedometer

Push and release the up or down arrow button until the

speedometer menu icon is displayed in the instrument

cluster display. Push and release the OK button to toggle

between MPH and km/h.

Vehicle Info

Push and release the up or down arrow button until the

Vehicle Info menu icon is displayed in the instrument

cluster display. Push and release the left or right arrow

button to scroll through the information submenus and

push and release the OK button to select or reset the

resettable submenus.

• Tire Pressure

• Coolant Temperature

• Transmission

Tem-

perature — Automatic

Transmission Only

• Oil Pressure

• Oil Temperature

• Oil Life

• Battery Voltage

GETTING TO KNOW YOUR INSTRUMENT PANEL

181

Content .. 9 10 11 12 ..
