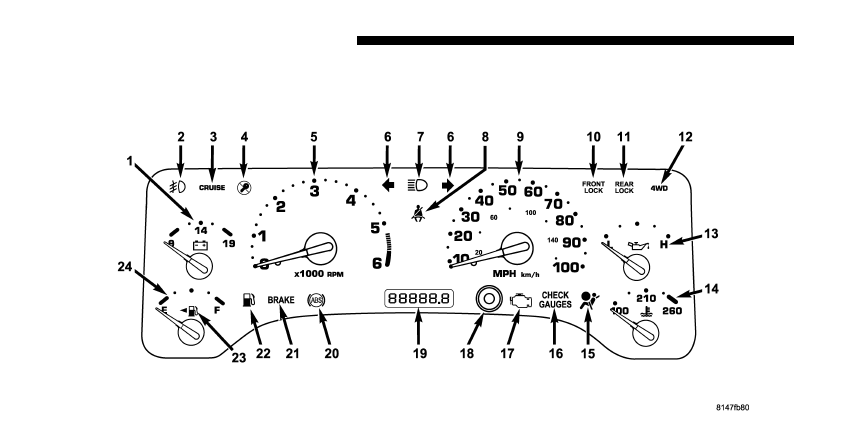

INSTRUMENT CLUSTER DESCRIPTION
Your vehicle is equipped with the instrument cluster
described on the following pages.

1. Voltmeter

Indicates available battery voltage and charging
system operation. The lower red zone indicates

that battery charge may be too low to start the engine.
With the engine running, the normal operating range is
between 11 and 15 volts. Prolonged gauge readings
between 8-11 (undercharge) or above 15 (overcharge)
indicate possible malfunction of generator, voltage regu-
lator or battery. See your dealer if such indications occur.

2. Front Fog Light Indicator Light — If Equipped

This light shows when the front fog lights are on.

3. Cruise Indicator Light

This light shows when the electronic speed
control system is turned on.

4. Sentry Key Indicator Light — If Equipped

Refer to “Sentry Key Immobilizer System” in
Section 2 of this manual. (See page 14 for more
information.)

5. Tachometer
Indicates the engine speed in revolutions per minute
(RPM).

CAUTION!

Do not operate the engine with the tachometer
pointer in the red area. Engine damage will occur.

6. Turn Signal Indicator Lights

The arrows will flash with the exterior turn signals
when the turn signal lever is operated. A tone will

chime if the turn signals are left on for more than 1 mile
(2 km).

UNDERSTANDING YOUR INSTRUMENT PANEL

147

7. High Beam Indicator Light

This light shows that the headlights are on high
beam. Pull the turn signal lever towards the

steering wheel to switch the headlights from high or low.
If the driver’s door is open, and the headlights or
parklights are left on, the “High Beam Indicator Light”
will flash and a chime will sound.

8. Seat Belt Indicator Light

A warning chime and an indicator light will alert
you to buckle the seat belts. When the belt is
buckled, the chime will stop, but the light will stay

on until it times out (about 6 seconds).

9. Speedometer
Indicates vehicle speed.

10. Front Axle Lock Indicator Light — If Equipped

Indicates when the front axle lock has been
activated. (See page 199 for more information.)

11. Rear Axle Lock Indicator Light — If Equipped

Indicates when the rear axle lock has been
activated. (See page 199 for more information.)

12. 4WD Indicator Light

This light alerts the driver that the vehicle is in
the four-wheel drive mode, and the front and
rear driveshafts are mechanically locked to-
gether forcing the front and rear wheels to

rotate at the same speed. (See page 194 for more infor-
mation.)

148

UNDERSTANDING YOUR INSTRUMENT PANEL

13. Oil Pressure Gauge

Indicates engine oil pressure. This gauge does not
indicate oil level, and pressure varies with engine

speed, temperature and oil viscosity. Consistent lower
readings indicate possible malfunction. Seek authorized
service.

14. Coolant Temperature Gauge

Indicates engine coolant temperature. The red
zone to the far right indicates possible overheat-
ing. Seek authorized service immediately if the

gauge operates in the red zone. In U.S. vehicles, tempera-
ture is indicated in degrees fahrenheit; in Canadian
vehicles in degrees centigrade.

15. Airbag Warning Light

This indicator lights and remains lit for 6 to 8
seconds when the ignition is first turned on. If
the light does not come on for 6 to 8 seconds,

stays on or comes on while driving, have the airbag
system checked by an authorized dealer.

16. Check Gauges Warning Light

This light monitors the engine coolant tem-
perature, engine oil pressure, and voltage
gauges. If it detects an extreme condition a

chime will sound and the light will come on. If the light
comes on, check the operation of these gauges for a
malfunction condition.

17. Malfunction Indicator Light

This light is a part of an Onboard Diagnostic
System called OBD II that monitors engine, and
automatic transmission control systems. The light

will illuminate when the ignition is in the ON position
before engine start. If the bulb does not come on when
turning the key from OFF to ON, have the condition
checked promptly.

UNDERSTANDING YOUR INSTRUMENT PANEL

149

Certain conditions such as a loose or missing gas cap,
poor quality fuel, etc. may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several typical driving styles. In most
situations, the vehicle will drive normally and will not
require towing.

When the engine is running, the “Malfunction Indicator
Light” may flash to alert serious conditions that could
lead to immediate loss of power or severe catalytic
converter damage. The vehicle should be serviced as
soon as possible if this occurs. (See page 268 for more
information.)

18. Trip Odometer Button
Press and release this button to toggle between the
odometer and trip odometer displays. This button is also
used to reset the trip odometer to 0. While the display is
showing the trip odometer, press and hold the button for
approximately 2 seconds and the display will reset to 0.

19. Odometer/Trip Odometer
The odometer shows the total distance the vehicle has
been driven.

The odometer will “illuminate” when the driver’s door
has been opened, and will remain on for 20 seconds after
exiting the vehicle.

U.S. federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. There-
fore, if the odometer reading is changed during repair or
replacement, be sure to keep a record of the reading
before and after the service so the correct mileage can be
determined.

The trip odometer shows individual mileage up to 999.9
miles (1 600 km). To switch from odometer to trip
odometer, press the trip odometer button.

150

UNDERSTANDING YOUR INSTRUMENT PANEL

20. Anti-Lock (ABS) Warning Light

After ignition is turned on, illuminates to indicate
function check at vehicle start-up. If light remains

on after start-up or comes on and stays on at road speeds,
it may indicate that the ABS has detected a malfunction
or has become inoperative. The system reverts to stan-
dard non-anti-lock brakes.

If both the red BRAKE warning light and the amber ABS
warning light are on, see your dealer immediately. Refer
to “Anti-Lock Brake System” in Section 5 of this manual.

21. Brake Warning Light

After ignition is turned on, illuminates to indicate
function check at vehicle start-up. Indicates park-
ing brake is applied. If the light stays on when the

parking brake is off, it indicates a possible brake system
fluid leak or low pressure level, see your authorized
dealer immediately.

If the parking brake is applied and the vehicle is in
motion, the red BRAKE warning light will “flash” and a
chime will sound.

The operation of the BRAKE warning light can be
checked by turning the ignition switch from the OFF
position to the ON position. The light should illuminate
for approximately two seconds. The light should then
turn off unless the parking brake is applied or a brake
fault is detected. If the light does not illuminate, have the
light inspected by an authorized dealer.

22. Low Fuel Warning Light

When the fuel level reaches approximately 2 U.S.
Gallons (7.6L) this light will come on and remain on
until fuel is added. The “Low Fuel Warning Light”

may turn on and off again, especially during and after
hard braking, accelerations, or turns. This occurs due to
the shifting of the fuel in the tank.

UNDERSTANDING YOUR INSTRUMENT PANEL

151

23. Fuel Cap Indicator

This symbol indicates the side of the vehicle
where the fuel cap is located.

24. Fuel Gauge
The pointer shows the level of fuel in the fuel tank. When
the fuel gauge pointer initially moves to E, for your
safety, approximately 2 U.S. Gallons (7.6L) of fuel remain.

NOTE:

When the ignition switch is turned to OFF, the

fuel gauge, voltmeter, oil pressure and temperature
gauges may not show accurate readings. When the
engine is not running, turn the ignition switch to ON to
obtain accurate readings.

ELECTRONIC DIGITAL CLOCK

The clock and radio each use the display panel built into
the radio. A digital readout shows the time in hours and
minutes whenever the ignition switch is in the ON or
ACC position and the time button is pressed.

When the ignition switch is in the OFF position, or when
the radio frequency is being displayed, time keeping is
accurately maintained.

Clock Setting Procedure

1. Turn the ignition switch to the ON or ACC position
and press the time button. Using the tip of a ballpoint pen
or similar object, press either the hour (H) or minute (M)
buttons on the radio.

2. Press the H button to set hours or the M button to set
minutes. The time setting will increase each time you
press a button.

152

UNDERSTANDING YOUR INSTRUMENT PANEL

RADIO GENERAL INFORMATION

Radio Broadcast Signals
Your new radio will provide excellent reception under
most operating conditions. Like any system, however, car
radios have performance limitations, due to mobile op-
eration and natural phenomena, which might lead you to
believe your sound system is malfunctioning. To help
you understand and save you concern about these “ap-
parent” malfunctions, you must understand a point or
two about the transmission and reception of radio sig-
nals.

Two Types of Signals
There are two basic types of radio signals... AM or
Amplitude Modulation, in which the transmitted sound
causes the amplitude, or height, of the radio waves to
vary... and FM or Frequency Modulation, in which the
frequency of the wave is varied to carry the sound.

Electrical Disturbances
Radio waves may pick up electrical disturbances during
transmission. They mainly affect the wave amplitude,
and thus remain a part of the AM reception. They
interfere very little with the frequency variations that
carry the FM signal.

AM Reception
AM sound is based on wave amplitude, so AM reception
can be disrupted by such things as lightning, power lines
and neon signs.

FM Reception
Because FM transmission is based on frequency varia-
tions, interference that consists of amplitude variations
can be filtered out, leaving the reception relatively clear,
which is the major feature of FM radio.

UNDERSTANDING YOUR INSTRUMENT PANEL

153

NOTE:

On vehicles so equipped the radio, steering

wheel radio controls and 6 disc CD/DVD changer will
remain active for up to 45 seconds after the ignition
switch has been turned off. Opening a vehicle front door
will cancel this feature.

SALES CODE RBK—AM/ FM STEREO RADIO
WITH CD PLAYER AND CD CHANGER
CONTROLS

NOTE:

The radio sales code is located on the lower left

side of your radio faceplate.

Radio Operation

Power/Volume Control
Press the ON/VOL control to turn the radio on. Turn the
volume control clockwise to increase the volume.

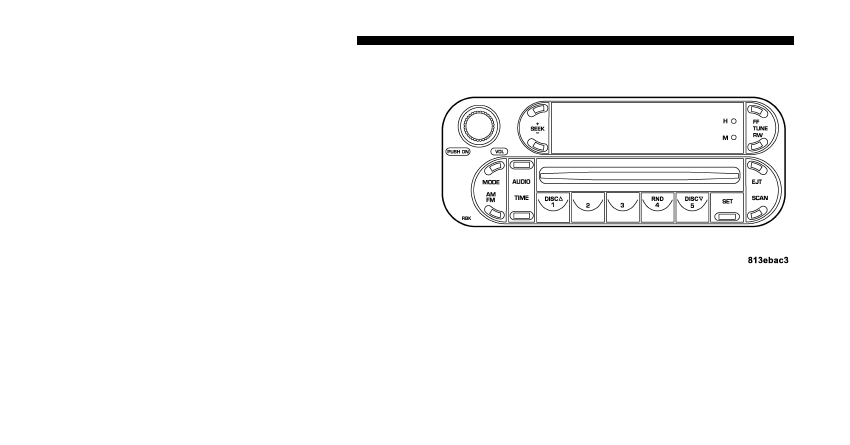

RBK Radio

154

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

Power to operate the radio is supplied through

the ignition switch. It must be in the ON or ACC position
to operate the radio.

Seek
Press and release the SEEK button to search for the next
station in either the AM or FM mode. Press the top of the
button to seek up or the bottom to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding the button in will bypass
stations without stopping until you release it.

Tune
Press the TUNE control up or down to increase or
decrease the frequency. If you press and hold the button,
the radio will continue to tune until you release the
button. The frequency will be displayed and continu-
ously updated while the button is pressed.

To Set The Radio Push-Button Memory
When you are receiving a station that you wish to
commit to push-button memory, press the SET button.
SET 1 will show in the display window. Select the “1–5”
button you wish to lock onto this station and press and
release that button. If a button is not selected within 5
seconds after pressing the SET button, the station will
continue to play but will not be locked into push-button
memory.

You may add a second station to each push-button by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2 in
both AM and FM. This allows a total of 10 AM and 10 FM
stations to be locked into push-button memory. The
stations stored in SET 2 memory can be selected by
pressing the push-button twice. Every time a preset
button is used a corresponding button number will be
displayed.

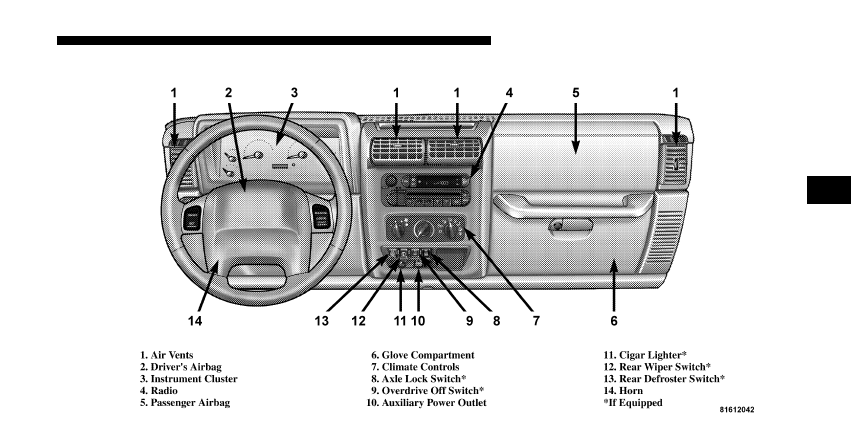

UNDERSTANDING YOUR INSTRUMENT PANEL

155

Audio
The audio button controls the BASS, TREBLE, BAL-
ANCE, and FADE.

Press the AUDIO button and BASS will be displayed.
Press the SEEK + or SEEK – to increase or decrease the
Bass tones.

Press the AUDIO button a second time and TREB will be
displayed. Press the SEEK + or SEEK – to increase or
decrease the Treble tones.

Press the AUDIO button a third time and BAL will be
displayed. Press the SEEK + or SEEK – to adjust the
sound level from the right or left side speakers.

Press the AUDIO button a fourth time and FADE will be
displayed. Press the SEEK + or SEEK – to adjust the
sound level between the front and rear speakers.

Press the AUDIO button again or wait 5 seconds to exit
setting tone, balance, and fade.

AM/FM Selection
Press the AM/FM button to change from AM to FM. The
operating mode will be displayed next to the station
frequency. The display will show ST when a stereo
station is received.

Time
Press the TIME button to change the display between
radio frequency and time.

General Information
This radio complies with Part 15 of FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference,

2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.

156

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

Changes or modifications not expressively ap-

proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

CD Player Operation

NOTE:

The ignition switch must be in the ON or ACC

position and the volume control ON before the CD player
will operate.

Inserting The Compact Disc

CAUTION!

This CD player will accept 4

⁄

inch (12 cm) discs

only. The use of other sized discs may damage the
CD player mechanism.

You may either insert or eject a disc with the radio OFF.

If you insert a disc with the ignition ON and the radio
OFF, the display will show the time of day.

If the power is ON, the unit will switch from radio to CD
mode and begin to play when you insert the disc. The
display will show the track number and index time in
minutes and seconds. Play will begin at the start of track
one.

Seek
Press the top of the SEEK button for the next selection on
the CD. Press the bottom of the button to return to the
beginning of the current selection, or return to the
beginning of the previous selection if the CD is within the
first second of the current selection.

EJT — Eject
Press the EJT button and the disc will unload and move
to the entrance for easy removal. The unit will switch to
the radio mode.

UNDERSTANDING YOUR INSTRUMENT PANEL

157

If you do not remove the disc within 15 seconds, it will be
reloaded. The unit will continue in radio mode.

The disc can be ejected with the radio and ignition OFF
(except on convertibles).

FF/TUNE/RW
Press FF (Fast Forward) and the CD player will begin to
fast forward until FF is released. The RW ( Reverse)
button works in a similar manner.

Random Play — RND/Program Button 4
Press the RND (button 4) button while the CD is playing
to activate Random Play. This feature plays the tracks on
the selected disc in random order to provide an interest-
ing change of pace.

Press the SEEK button to move to the next randomly
selected track.

Press the RND (button 4) button a second time to stop
Random Play.

Mode
Press the MODE button repeatedly to select between the
CD player, the optional remote CD changer and the
Satellite Radio (if equipped). When Satellite Radio (if
equipped) is selected “SAT” will appear in your radio
display.

A CD or tape may remain in the player while in the
Satellite mode.

Time
Press the TIME button to change the display from
elapsed CD playing time to time of day.

CD Changer Control Capability — If Equipped
This radio is compatible with a remote mounted CD
changer available through Mopar Accessories. The fol-
lowing instructions are for the radio controls that operate
this CD changer.

158

UNDERSTANDING YOUR INSTRUMENT PANEL

Mode Button
To activate the CD changer, press the MODE button until
CD information appears on the display.

Disc Up/Program Button 1
Press the DISC up (button 1) button to play the next
available disc.

Disc Down/Program Button 5
Press the DISC down (button 5) button to play the
previous disc.

Seek Button
Press the SEEK up or down to select another track on the
same disc. A SEEK symbol will appear on the display.

Fast Forward And Rewind Buttons
Press and hold the FF button for fast forward. Press and
hold the RW button for fast reverse.

The audio output can be heard when fast forward and
fast reverse are activated.

Random Play (RND)
Press the Random button to play the tracks on the
selected disc in random order for an interesting change of
pace.

Random can be cancelled by pressing the button a second
time or by ejecting the CD from the changer.

Operating Instructions - Satellite Radio Mode (If
Equipped)
Refer to the Satellite Radio section of the Owner’s
Manual.

CD Diagnostic Indicators
When driving over a very rough road, the CD player may
skip momentarily. Skipping will not damage the disc or
the player, and play will resume automatically.

As a safeguard and to protect your CD player, one of the
following warning symbols may appear on your display.

A CD HOT symbol indicates the player is too hot.

UNDERSTANDING YOUR INSTRUMENT PANEL

159

CD HOT will pause the operation. Play can be resumed
when the operating temperature is corrected or another
MODE is selected.

An ERR symbol will appear on the display if the laser is
unable to read the Disc data for the following reasons:

• Excessive vibration
• Disc inserted upside down
• Damaged disc
• Water condensation on optics

SALES CODE RBQ—AM/FM STEREO RADIO
WITH 6 - DISC CD CHANGER

NOTE:

The radio sales code is located on the lower left

side of your radio faceplate.

Radio Operation

Power/Volume Control
Press the PWR/VOL control to turn the radio on. Turn
the volume control clockwise to increase the volume.

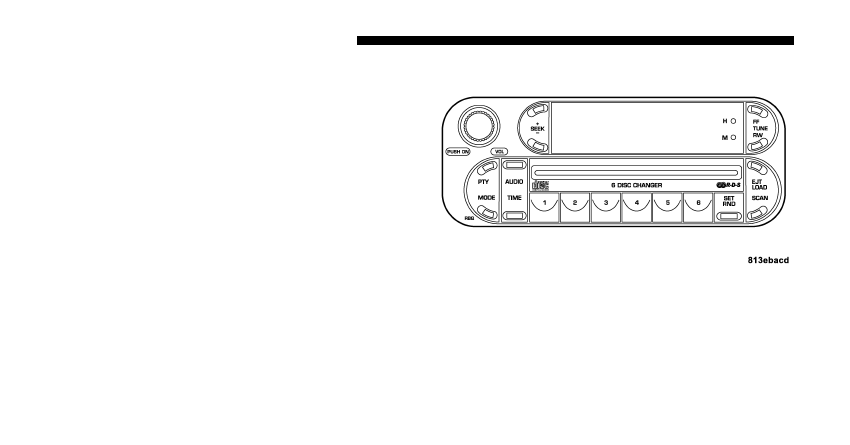

RBQ Radio

160

UNDERSTANDING YOUR INSTRUMENT PANEL

Jeep TJ (2006 year). Manual - part 10
