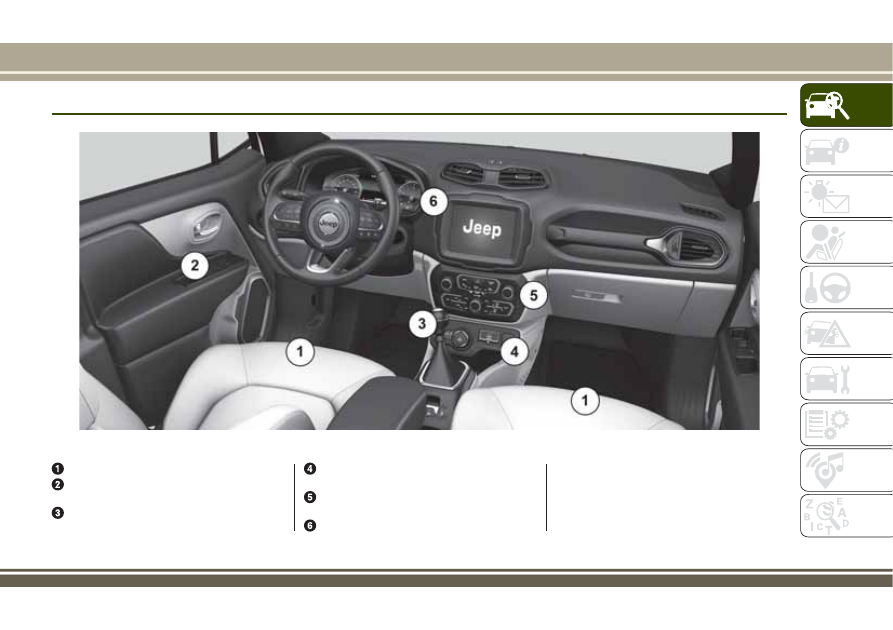

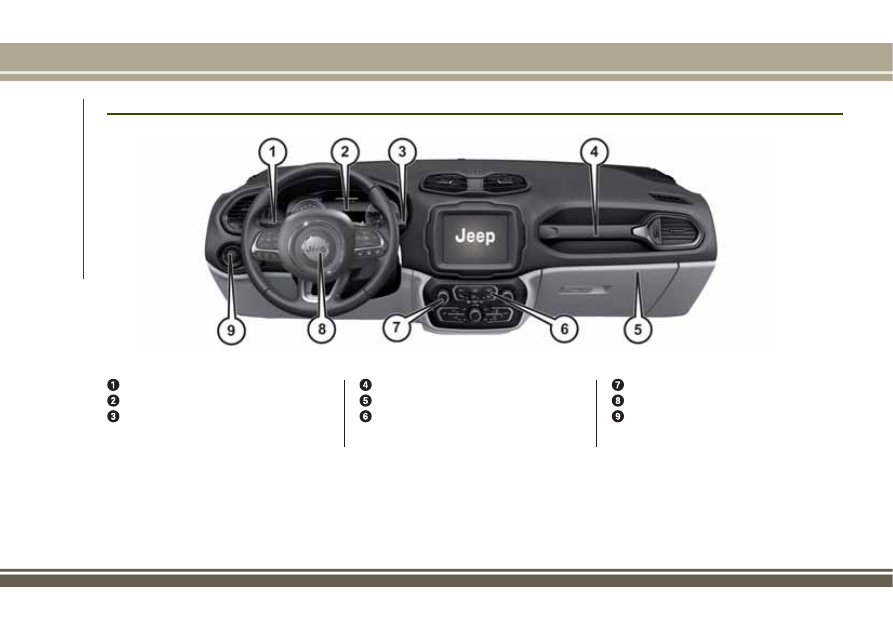

DASHBOARD

LEFT STALK
INSTRUMENT PANEL
RIGHT STALK

GRAB HANDLE
GLOVE COMPARTMENT
CONTROL BUTTONS

CLIMATE CONTROL SYSTEM
STEERING WHEEL
LIGHT SWITCH

J0A0634C

GRAPHICAL

INDEX

VEHICLE INTERIOR

SEATS
ELECTRIC WINDOWS/ELECTRIC

DOOR MIRRORS

GEARBOX/TRANSMISSION

SELEC-TERRAIN DEVICE (where

provided)

CLIMATE CONTROL/HEATING

SYSTEM

UCONNECT SYSTEM

J0A0772C

GETTING TO KNOW YOUR CAR

In-depth knowledge of your new vehicle
starts here.

The booklet that you are reading simply
and directly explains how it is made and
how it works.

That’s why we advise you to read it
seated comfortably on board, so that you
can see immediately what is described
here for yourself.

THE KEYS . . . . . . . . . . . . . . . . .16
IGNITION DEVICE . . . . . . . . . . . . .17
SENTRY KEY® . . . . . . . . . . . . . . .19
ALARM . . . . . . . . . . . . . . . . . . .20
DOORS . . . . . . . . . . . . . . . . . . .21
SEATS . . . . . . . . . . . . . . . . . . . .24
HEAD RESTRAINTS. . . . . . . . . . . .27
STEERING WHEEL . . . . . . . . . . . .28
REAR VIEW MIRRORS . . . . . . . . . .29
EXTERIOR LIGHTS . . . . . . . . . . . .31
INTERIOR LIGHTS . . . . . . . . . . . .35
WINDSCREEN/REAR WINDOW
WIPER . . . . . . . . . . . . . . . . . . .35
CLIMATE CONTROL SYSTEM . . . . . .38
ELECTRIC WINDOWS. . . . . . . . . . .45
ELECTRIC SUN ROOF . . . . . . . . . .46
MySky SUN ROOF . . . . . . . . . . . . .48
BONNET . . . . . . . . . . . . . . . . . .52
LUGGAGE COMPARTMENT . . . . . . .54
VERSION WITH LPG SYSTEM . . . . .56

THE KEYS

KEY WITH REMOTE CONTROL

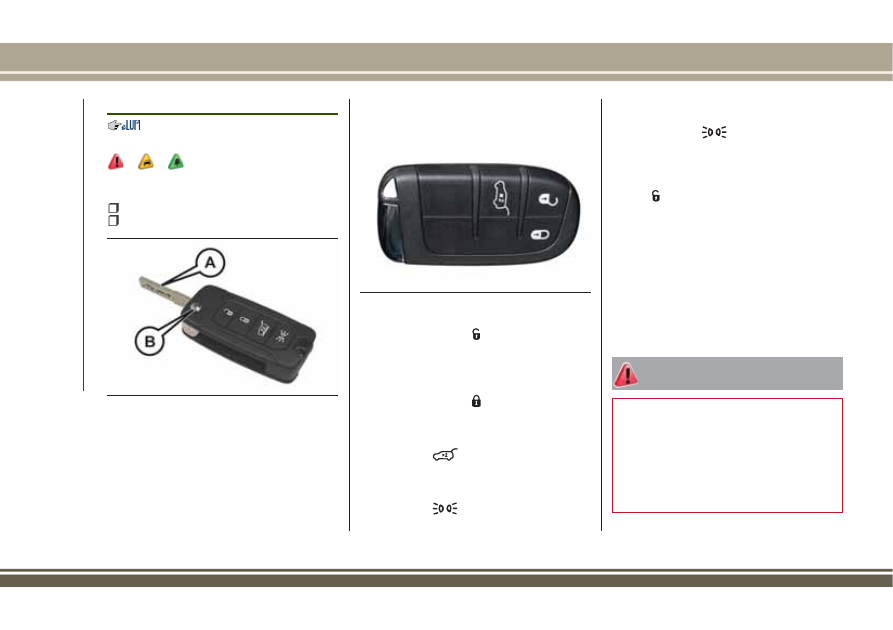

The metal insert A fig. 4 of the key
operates:

the ignition switch;
the door lock.

Press button B to open/close the metal
insert.

ELECTRONIC KEY

(versions with "Keyless Enter-N-Go"
system)
On versions equipped with "Keyless
Enter-N-Go" system, the vehicle features

an electronic keyfig. 5, of which two
copies are provided.

Briefly press button

: unlocking of

doors and luggage compartment, timed
switching-on of internal lights and double
flashing of direction indicators (where
provided).
Briefly press button

: lock of doors and

luggage compartment with roof lights off
and single flash of direction indicators
(where provided).
Press button

: remote opening of

the luggage compartment (to open the
luggage compartment press the button
twice in quick succession).
Press button

: remote switching on

of the main beam headlights, for a
maximum of 90 seconds.
Pressing button

again or at the end

of the 90 seconds, the lights switched on
previously will go off (if the parking light
function was already active it will remain
so). If, when 90 seconds have passed,
button

is pressed, the main beam

headlights and the side lights will stay on
for further 30 seconds.

REQUEST FOR ADDITIONAL
KEYS

Should a new key with remote control or
a new electronic key be necessary, go to
a Jeep Dealership, taking an ID
document and the vehicle ownership
documents.

WARNING

1) Press button B only with the key away
from your body, especially your eyes and
from objects which could get damaged
(e.g. your clothes). Do not leave the key
unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.

J0A0181C

J0A0315C

GETTING

KNOW

YOUR

CAR

IMPORTANT

1) The electronic components inside the
key may be damaged if the key is
subjected to strong shocks. In order to
ensure complete efficiency of the
electronic devices inside the key, it should
never be exposed to direct sunlight.

IMPORTANT

1) Remote control used batteries may be
harmful to the environment if not disposed
of correctly. They must be disposed of as
specified by law in the special containers
or taken to a Jeep Dealership, which will
take care of their disposal.

IGNITION DEVICE

2) 3) 6) 7)

VERSIONS WITH MECHANICAL KEY

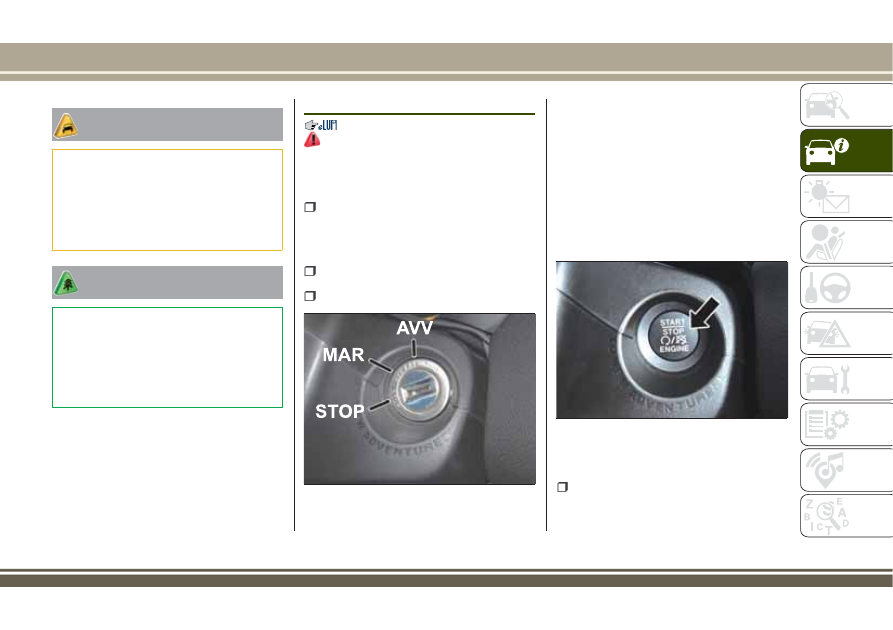

The key can be turned to three different
positions fig. 6:

STOP: engine off, key can be removed,

steering column locked (with key
removed). Some electrical devices (e.g.
central door locking system, alarm, etc.)
are still available;

MAR: driving position. All electrical

devices are available;

AVV: engine starting.

NOTE On versions with automatic

transmission the ignition key can only be
removed when the gear lever is at P
(Park).

VERSIONS WITH ELECTRONIC KEY

(Keyless Enter-N-Go system)
To activate the ignition device the
electronic key must be inside the
passenger compartment. The ignition
device fig. 7 activates also if the
electronic key is inside the luggage
compartment or on the rear shelf.

The ignition device has the following
possible states:

STOP: engine off, steering column

locked. Some electrical devices (e.g.
central door locking system, alarm, etc.)
are still available;

J0A0021C

J0A0022C

MAR: driving position. All electrical

devices are available. This state can be
entered by pressing the ignition device
button once, without pressing the brake
pedal (versions with automatic
transmission) or the clutch pedal
(versions with manual gearbox);

AVV: engine starting.

Starting the engine (with electronic key
battery flat): in this case, rest the rounded
edge of the electronic key (the side
opposite the metal insert) on the ignition
device and press the button using the
electronic key.
Stopping the engine (with electronic key
battery flat): to switch off the engine in
this situation, hold down the ignition
device button for a while or press it
3 times in a row within a few seconds.
NOTE The ignition device does NOT
activate if the electronic key is inside the
boot and this is open.
NOTE With the ignition device at MAR, if
30 minutes pass with the vehicle
stationary (versions with manual gearbox)
or with the gear lever at P (Park)
(versions with automatic transmission)
and the engine off, the ignition device
will automatically move to the STOP
position.
NOTE If the device does switch off the
car, refer to the “Display” paragraph in
the “Knowing the instrument panel”

chapter, where available, and contact the
Jeep Dealership as soon as possible.
For more information on the engine
start-up, see the description in the
"Starting the engine" paragraph, in the
"Starting and driving" chapter.

STEERING LOCK

Activation

Versions with mechanical key: with the
device in the STOP position, remove the
key and turn the wheel until it locks.
WARNING Locking the steering wheel
can only be done after removing the
starter key if the key has been turned in
the starter from the position MAR to
STOP.
Versions with electronic key: the steering
lock is inserted into the driver's door with
the starter device button in the STOP
position and the speed is less than
3km/h.

Deactivation

Versions with mechanical key: move the
wheel lightly, turn the key to MAR
position.
Versions with electronic key: the steering
lock is removed when the starter button
is pressed and the electronic key is
recognised.
WARNING On automatic transmission

versions, to remove the key smoothly, we
advise you to position the gear shift to P,
release the brake in safe conditions and
then turn off the engine.

4) 5)

WARNING

2) If the ignition device has been
tampered with (e.g. an attempted theft),
have it checked over by a Jeep Dealership
before driving again.
3) Always take the key with you when you
leave your vehicle to prevent someone
from accidentally operating the controls.
Remember to engage the electric parking
brake. Never leave children unattended in
the vehicle.
4) It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of
anti-theft device) that could adversely
affect performance, invalidate the
warranty, cause serious safety problems
and also result in the car not meeting
type-approval requirements.

GETTING

KNOW

YOUR

CAR

5) Never extract the mechanical key while
the vehicle is moving. The steering wheel
will automatically lock as soon as it is
turned. This holds true for cars being
towed as well.
6) Before leaving the vehicle, ALWAYS
engage the handbrake. On versions
equipped with automatic transmission,
move the gear lever to STOP (Park) and
press the ignition device to set it to STOP.
When leaving the vehicle, always lock all
the doors by pressing the button on the
handle.
7) For versions equipped with the Keyless
Enter-N-Go system, do not leave the
electronic key inside or near the car or in
a place accessible to children. Do not
leave the vehicle with the ignition device
in MAR position. A child could activate
the electric window winders, other
controls or even start the vehicle.

SENTRY KEY®

The Sentry Key® system, prevents
unauthorised use of the vehicle,
disabling engine starting.

The system does not need to be
enabled/activated: operation is
automatic, regardless of the fact that the
vehicle's doors are locked or unlocked.
When the ignition device is taken to
MAR, the Sentry Key® system identifies
the code transmitted by the key. If the
code is recognised as valid, the Sentry
Key® system enables engine starting.

When the ignition device is brought back
to STOP, the Sentry Key® system
deactivates the control unit controlling
the engine, thus preventing its starting.

For the correct engine starting
procedures, see the instructions in the
"Starting the engine" paragraph, "Starting
and driving" chapter.

IRREGULAR OPERATION

If, during starting, the key code is not
correctly recognised, the

icon is

displayed on the instrument panel (see
the instructions in the "Warning lights
and messages" paragraph, "Knowing the
instrument panel" chapter). This
condition leads to the engine switching
off after 2 seconds. In this case, bring

the ignition device to STOP and then to
MAR; if it is still blocked, try with the
other keys provided. If it is still not
possible to start the engine, contact a
Jeep Dealership.
If the

icon is displayed while driving,

this means that the system is running a
self-diagnosis (e.g. due to a voltage
drop). If the displaying is still on, contact
a Jeep Dealership.

ALARM

Activation of the alarm triggers the
acoustic warning and the direction
indicators.

IMPORTANT The alarm is adapted to
meet requirements in various
countries.

SWITCHING ON THE ALARM

With the doors, bonnet and tailgate
closed and the ignition device turned to
STOP, point the key with remote control
(or electronic key) towards the vehicle
and press and release button

Except for specific markets, the system
emits a visual and acoustic signal and
enables door locking.

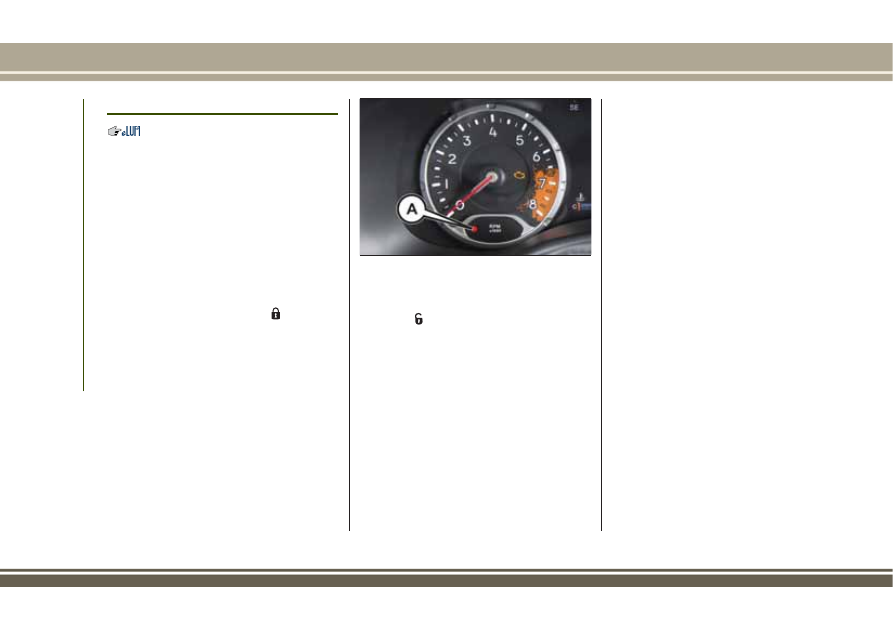

With the alarm on, warning light A
fig. 8 flashes on the instrument panel.

TURNING THE ALARM OFF

Press the

button.

IMPORTANT The alarm does not
switch off when the central opening is
activated using the metal insert in the
key.

DISABLING THE ALARM

To completely deactivate the alarm (e.g.
during a long period of vehicle inactivity),
close the doors by turning the metal
insert of the key with remote control in
the door lock.

IMPORTANT If the batteries of the key
with the remote control run out or the
system fails, the alarm can be
switched off by placing the ignition
device to MAR. On versions equipped
with Keyless Enter-N-Go system,
manually open the doors by placing
the metal insert that is in the key in
the driver side door pawl and then
place the same electronic key on the
ignition device.

J0A0191C

GETTING

KNOW

YOUR

CAR

DOORS

LOCKING/UNLOCKING DOORS
FROM THE INSIDE

If all doors are closed properly, they will
automatically be locked once the vehicle
has exceeded 20 km/h ("Autoclose"
function).

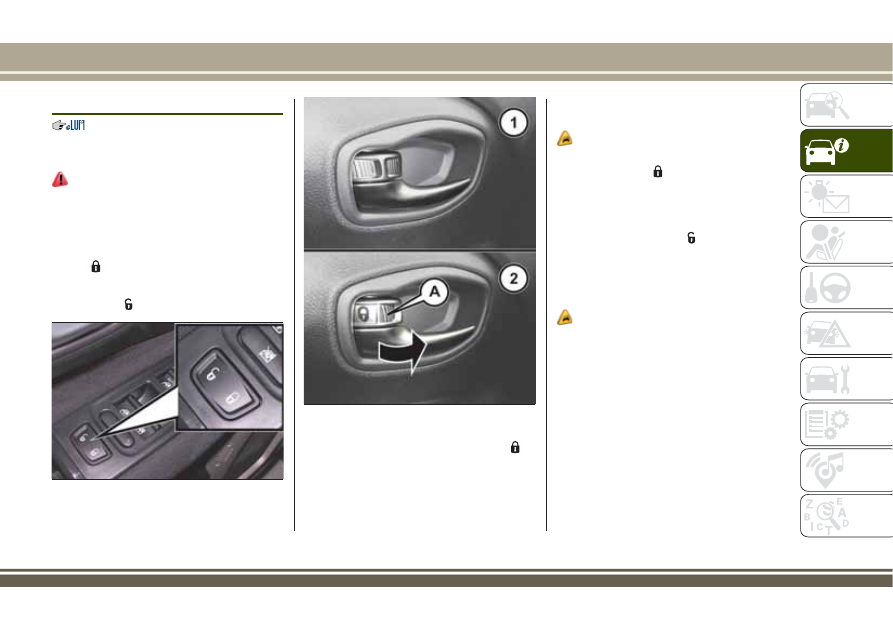

Central locking/unlocking: press the
button

on the driver side door panel

trim fig. 9 or on the passenger side door
to lock the doors. With doors locked,
press button

to unlock them.

Manual locking/unlocking: use lever A
fig. 10 on the front door handle.

Position 1: door unlocked / Position 2

door locked.

LOCKING/UNLOCKING DOORS
FROM THE OUTSIDE

Door locking from outside: with the doors
closed, press the

button on the key or

fit and then turn the metal insert
(located inside the key) in the driver side
door lock.
Door unlocking from outside: with the
doors closed, press the

button on the

key or fit and then turn the metal insert
(located inside the key) in the driver side
door lock.

PASSIVE ENTRY

The Passive Entry system can identify the
presence of an electronic key near the
doors and the tailgate. Thanks to it, you
can unlock/lock the doors (or the
tailgate) without having to press any
button on the electronic key.
If the system identifies that the
electronic key found is valid, the owner
of the key can simply grasp one of the
front handles to release the alarm and
unlock the door and tailgate opening
mechanism.
After the unlocking, pulling the opening
handle all doors can be opened
depending on the mode set through the

J0A0079C

J0A0027C

display menu or the Uconnect™ system.
Press the electric opening button A
fig. 11 (located under the handle) to
access the boot.
NOTE If there is an alarm system, the
latter will be temporarily disabled only
for the boot area. After closing the boot,
the alarm system will be reactivated
again.
NOTE Ensure that you always have the
electronic key with you (e.g. in your
pocket) so that the system recognises it
and lets you enter the passenger
compartment and start the engine.

Driver side door emergency opening

If the electronic key does not work (e.g.
because its battery does not work

anymore, or the vehicle battery is flat),
the emergency metal insert, located
inside the key, can be used to unlock the
driver side door lock.

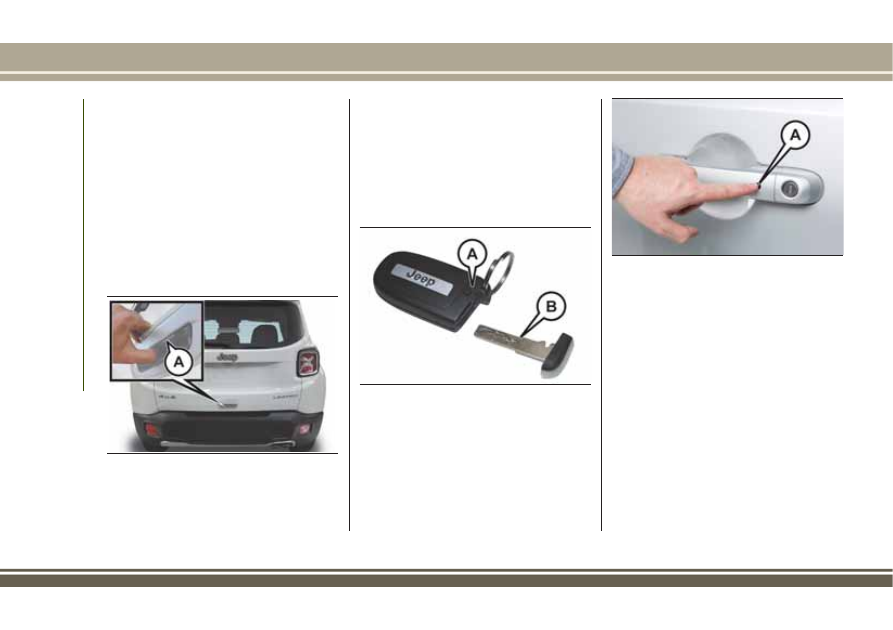

Removing the metal insert: operate on
device A fig. 12 and extract the metal
insert B pulling it outwards. Then fit the
metal insert in the driver side door lock
and rotate it to release the door lock.

Door locking: make sure that you have the
electronic key and are within the
1.5-metre operating range of the driver or
passenger side door handle. Press button
A fig. 13 on the handle: this will lock all
doors and the tailgate. Door locking will
also activate the alarm as well (where
provided).

IMPORTANT After pressing the "door
locking" button, wait two seconds
before the doors can be unlocked
again using the door handle. It is
therefore possible to check whether
the vehicle is locked correctly by
pulling the door handle within
2 seconds; the doors will not be
unlocked again.

IMPORTANT Do not simultaneously
lock and unlock by pulling the handle
(see fig. 14 ).

J0A0895C

J0A0038C

J0A0040C

GETTING

KNOW

YOUR

CAR

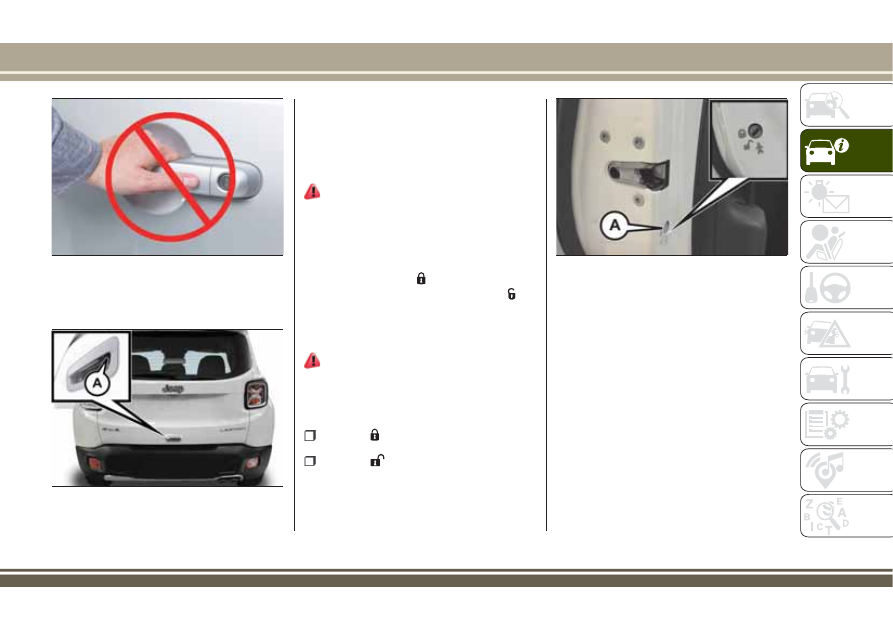

Tailgate lock locking: with tailgate closed
press button A fig. 15.

NOTE The tailgate door lock also
performs a central locking of the doors.
Boot opening is disabled while the car is
moving.

DEAD LOCK

(where provided)

This inhibits the operation of the interior
door handles and the door
locking/unlocking button.
Activating the device: the device is
enabled on all the doors by quickly
double-pressing the

button on the key.

Deactivating the device: press button

the key with remote control or place the
ignition device to MAR.

CHILD SAFETY DEVICE

10)

This system prevents the rear doors from
being opened from the inside.
The device A fig. 16 can only be engaged
with the doors open:

position

: device engaged (door

locked);

position

: device not engaged (door

may be opened from the inside).

The device remains engaged even if the
doors are electrically unlocked.

IMPORTANT The rear doors cannot be
opened from the inside when the child
lock device is engaged.

J0A0621C

J0A0896C

J0A0041C

WARNING

8) NEVER leave children unattended
inside the car, let alone leave the car with
the doors unlocked in a place that
children can access easily. Children may
seriously, or even fatally, injure
themselves. Also ensure that children do
not inadvertently operate the electric
parking brake, the brake pedal or the
automatic transmission lever.
9) Always use this device when carrying
children. After engaging the child lock on
both rear doors, check for effective
engagement by trying to open a door with
the internal handle.
10) Once the Dead Lock system is
engaged, it is impossible to open the
doors from inside the vehicle. Before
getting out of the car, please therefore
check that there is no-one left inside.

IMPORTANT

2) Make sure to take the key with you once
a door or the tailgate is locked, to prevent
locking the same key inside the vehicle. If
the key has been locked in, it can only be
recovered using the second provided key.
3) The operation of the recognition system
depends on various factors, such as, for
example, any electromagnetic wave
interference from external sources (e.g.
mobile phones), the charge of the battery
in the electronic key and the presence of
metal objects near the key or the car. In
these cases it is still possible to unlock the
doors by using the metal insert in the
electronic key (see description on the
following pages).

SEATS

FRONT SEATS WITH MANUAL
ADJUSTMENT

11)

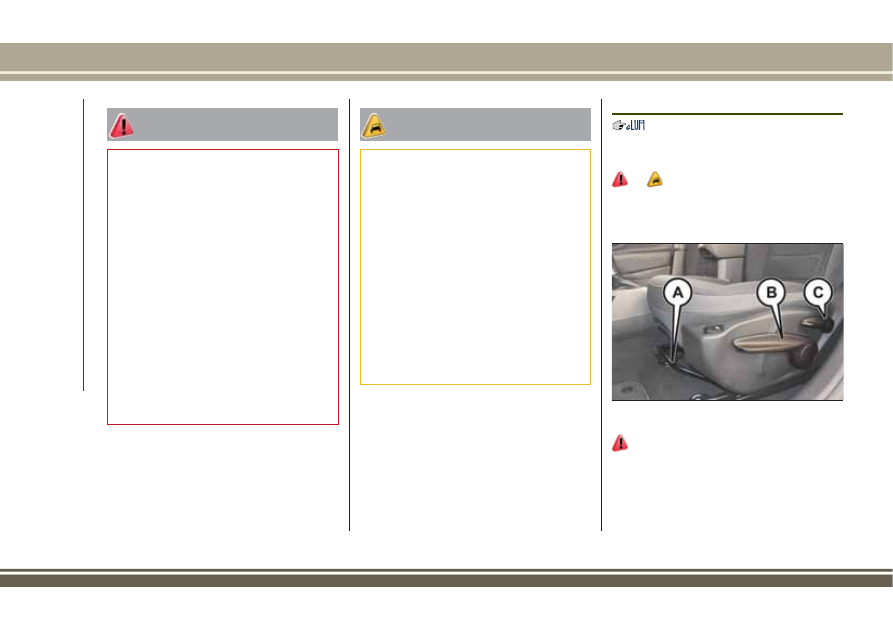

Longitudinal adjustment: lift the lever A
fig. 17 and push the seat fully forward or
backward.

12)

IMPORTANT Carry out the adjustment
while sitting on the seat involved
(driver side or passenger side).

Height adjustment (where provided): move

J0A0043C

GETTING

KNOW

YOUR

CAR

lever B upwards or downwards to achieve
the required height.
Backrest angle adjustment: move lever C
to adjust the backrest angle,
accompanying it with the movement of
the chest (operate the lever until the
desired position is reached, then release
it).

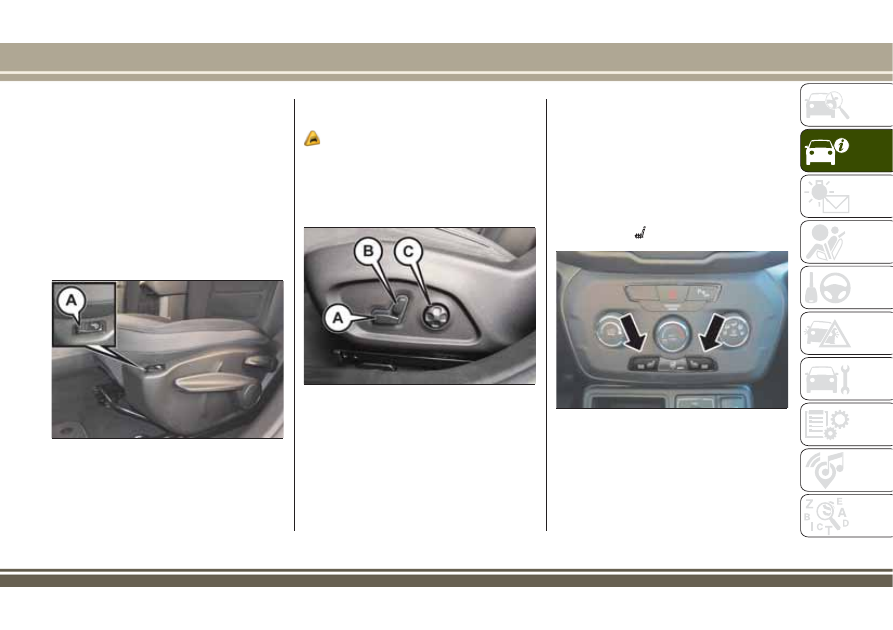

Electric lumbar adjustment (where
provided): with the ignition device at
MAR, press button A fig. 18 to actuate
the lumbar area device until getting top
comfort while driving.

ELECTRICALLY ADJUSTABLE
FRONT SEATS

These buttons (located on the outer side
of the backrest) can be used to adjust
the height, the lengthwise position in
relation to the vehicle and the angle of
the backrest.

Height adjustment: use the front or rear
part of the switch A fig. 19 to modify the
height and/or the angle of the seat
cushion.
Longitudinal adjustment: push switch A
forwards or backwards to move the seat
in the corresponding direction.
Backrest angle adjustment: push switch B

forwards or backwards to adjust the
backrest in the corresponding direction.
Electric lumbar adjustment: use the
joystick C to actuate the lumbar area
device until getting top comfort while
driving.

FRONT SEAT ELECTRIC HEATING

(where provided)
With ignition device in the MAR position,
press buttons

fig. 20.

You can select two heating levels: “ low
heating” (one amber LED on buttons) / “
high heating” (two LED amber LEDs on
the buttons).
After selecting one heating level, you

J0A0399C

J0A0044C

J0A0898C

need to wait for a few minutes until warm
air flows into the compartment.

IMPORTANT To preserve the battery
charge, this function cannot be
activated when the engine is off.

Auto On Comfort (where provided)

The electric heated driver seat is
switched on automatically to "maximum
heating" whenever the engine is started
and the outside temperature is lower
than 4.4°C. This functionality can be
enabled or disabled from the Uconnect™
system Menu.

REAR SEATS

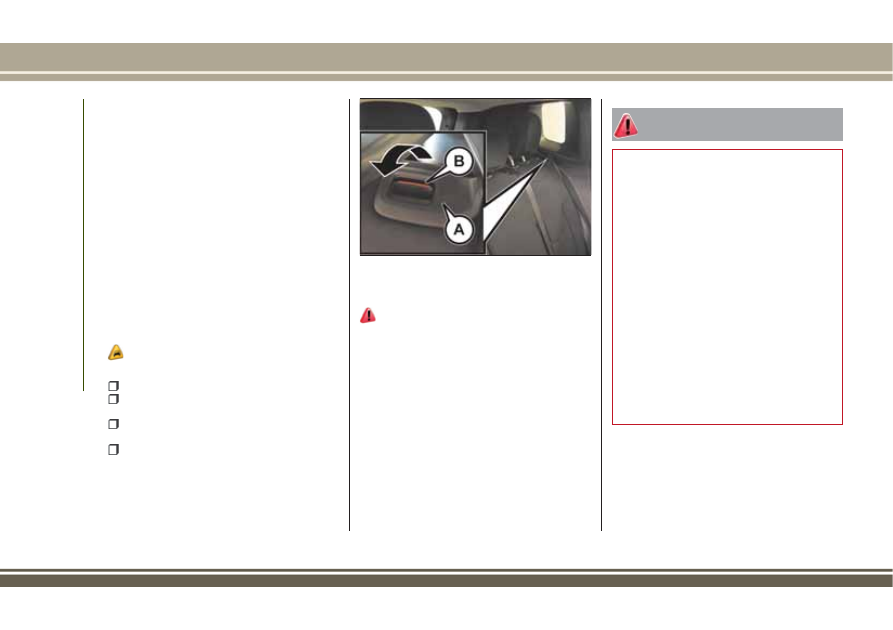

Partial extension of the luggage
compartment (1/3 or 2/3)

Proceed as follows:

remove the parcel shelf, if present;

completely lower the rear seat head

restraints;

make sure that the seat belt is

positioned on trim A fig. 21;

operate lever B to tilt the left or right

part of the backrest: it will automatically
tilt forward. If necessary, accompany the
backrest during the initial stage of tilting.
When you lift the lever, you will see a red
mark.

Repositioning the backrests

13) 14)

Move the seat belts to the side, checking
that they are correctly extended and not
twisted or pinched behind the backrests.
Make sure that the seat belts are
positioned on trims A fig. 21 (where
provided), then lift up the backrests and
push them back until a click is heard for
both locking mechanisms, at the side.
Make sure that the "red marks" on levers
A fig. 21 are not visible any more (the
"red mark" means that the backrest is not
locked properly).

WARNING

11) All adjustments must be made with
the car stationary.
12) Once you have released the
adjustment lever, always check that the
seat is locked on the guides by trying to
move it back and forth. If the seat is not
locked into place, it may unexpectedly
slide and cause the driver to lose control
of the car.
13) Make sure the backrests are properly
secured at both sides (not visible "red
notches) to prevent them from moving
forward, in the event of sharp braking,
with possible impact with of the
passengers.
14) If a passenger is present, it won't be
possible to use the armrest, but the
central backrest needs to be properly
attached.

J0A0045C

GETTING

KNOW

YOUR

CAR

IMPORTANT

4) The fabric upholstery of the seats has
been designed to withstand long-term wear
deriving from normal use of the car. Some
precautions are however required. Avoid
prolonged and/or excessive rubbing against
clothing accessories such as metal buckles
and Velcro strips which, by applying a high
pressure on the fabric in a small area,
could cause it to break, thereby damaging
the upholstery.
5) Do not arrange objects beneath the
electrically adjustable seat and do not
impede its movement, since the controls
may be damaged. They may also restrict
the seat travel.
6) Before tilting the backrest, remove any
objects on the seat cushion.

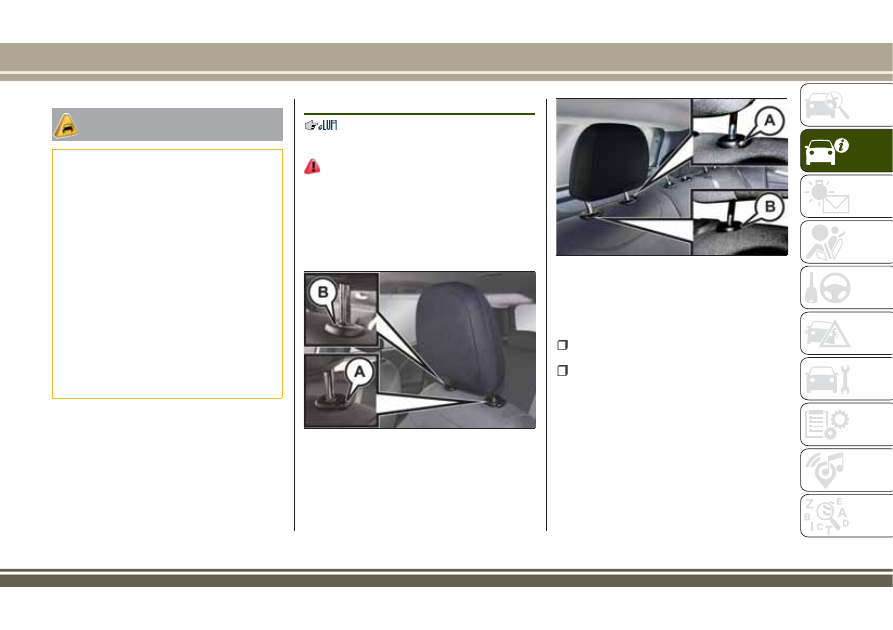

HEAD RESTRAINTS

ADJUSTMENTS

15)

Upwards adjustment: raise the head
restraint until it clicks into place.
Downwards adjustment: press button A
fig. 22 (front head restraints) and B
fig. 23 (rear head restraints) and lower
the head restraint.

HEAD RESTRAINTS (removal)

Proceed as follows to remove the head
restraints:

raise the head restraints to their

maximum height;

press button A and device B

fig. 22 (front head restraints) or A and B
fig. 23 (rear head restraints) at the side
of the two supports, then remove the
head restraints by pulling them upwards.

J0A0500C

J0A0058C

WARNING

15) Head restraints must be adjusted so
that the head, rather than the neck, rests
on them. Only in this case they can
protect your head correctly.

STEERING WHEEL

16) 17)

ADJUSTMENTS

The steering wheel can be adjusted both
in height and in depth.

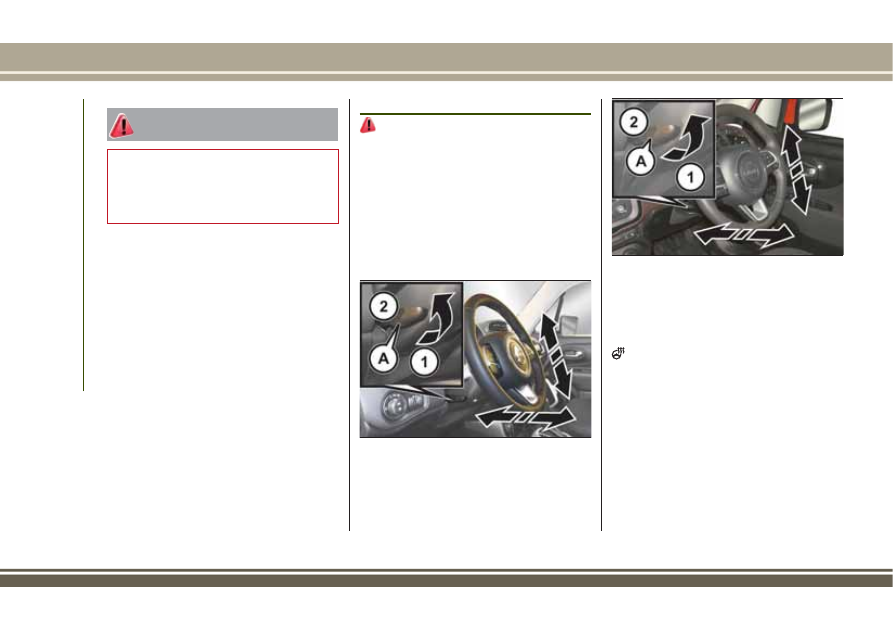

To adjust, move lever A fig. 24 (left hand
drive versions) or fig. 25 (right hand drive
versions) downwards to position 1, then
adjust the steering wheel to the most
suitable position and lock it in position
by moving lever A to position 2.

ELECTRIC STEERING WHEEL
HEATING

(where provided)
With ignition device at MAR, press the

button on the dashboard fig. 26.

When the function is on, the LED on the
button switches on.

J0A0056C

J0A0522C

GETTING

KNOW

YOUR

CAR

Content .. 1 2 ..
