most popular on the market today and they are commonly
used to tow small and medium sized trailers.

Weight-Distributing Hitch

A weight-distributing system works by applying leverage
through spring (load) bars. They are typically used for
heavier loads to distribute trailer tongue weight to the tow
vehicle’s front axle and the trailer axle(s). When used in
accordance with the manufacturer’s directions, it provides
for a more level ride, offering more consistent steering and
brake control thereby enhancing towing safety. The addi-
tion of a friction/hydraulic sway control also dampens
sway caused by traffic and crosswinds and contributes
positively to tow vehicle and trailer stability. Trailer sway
control and a weight distributing (load equalizing) hitch
are recommended for heavier Tongue Weights (TW) and
may be required depending on vehicle and trailer
configuration/loading to comply with Gross Axle Weight
Rating (GAWR) requirements.

WARNING!

• An improperly adjusted Weight Distributing Hitch

system may reduce handling, stability, braking per-
formance, and could result in a collision.

• Weight Distributing Systems may not be compatible

with Surge Brake Couplers. Consult with your hitch
and trailer manufacturer or a reputable Recreational
Vehicle dealer for additional information.

Trailer Hitch Classification

The following chart provides the industry standard for the
maximum trailer weight a given trailer hitch class can tow
and should be used to assist you in selecting the correct
trailer hitch for your intended towing condition.

Trailer Hitch Classification Definitions

Class

Max. Trailer Hitch Industry Standards

Class I - Light Duty

2,000 lbs (907 kg)

Class II - Medium Duty

3,500 lbs (1 587 kg)

224

STARTING AND OPERATING

Trailer Hitch Classification Definitions

Class III - Heavy Duty

5,000 lbs (2 267 kg)

Class IV - Extra Heavy Duty

10,000 lbs (4 535 kg)

Refer to the “Trailer Towing Weights (Maximum Trailer Weight Ratings)” chart for the Maximum Gross Trailer Weight
(GTW) towable for your given drivetrain.
All trailer hitches should be professionally installed on your vehicle.

Trailer Towing Weights (Maximum Trailer Weight Ratings)

Engine/Transmission

Frontal Area

Maximum GTW (Gross

Trailer Wt.)

Maximum Tongue Wt.

(See Note)

2.0L Auto/Man

22 sq ft (2.04 sq m)

1,000 lbs (453 kg)

150 lbs (68 kg)

2.4L Auto/Man

22 sq ft (2.04 sq m)

1,000 lbs (453 kg)

150 lbs (68 kg)

2.4L Auto/Man with Trailer
Tow Prep Package (AHC)

32 sq ft (3.0 sq m)

2,000 lbs (907 kg)

300 lbs (136 kg)

2.4L Auto With Freedom Drive
II Off Road Package (AWL)

32 sq ft (3.0 sq m)

2,000 lbs (907 kg)

300 lbs (136 kg)

Refer to local laws for maximum trailer towing speeds.

NOTE:

The trailer tongue weight must be considered as part

of the combined weight of occupants and cargo, and should
never exceed the weight referenced on the Tire and Loading
Information placard. Refer to “Tire Safety Information” in
“Servicing And Maintenance” for further information.

STARTING AND OPERATING

225

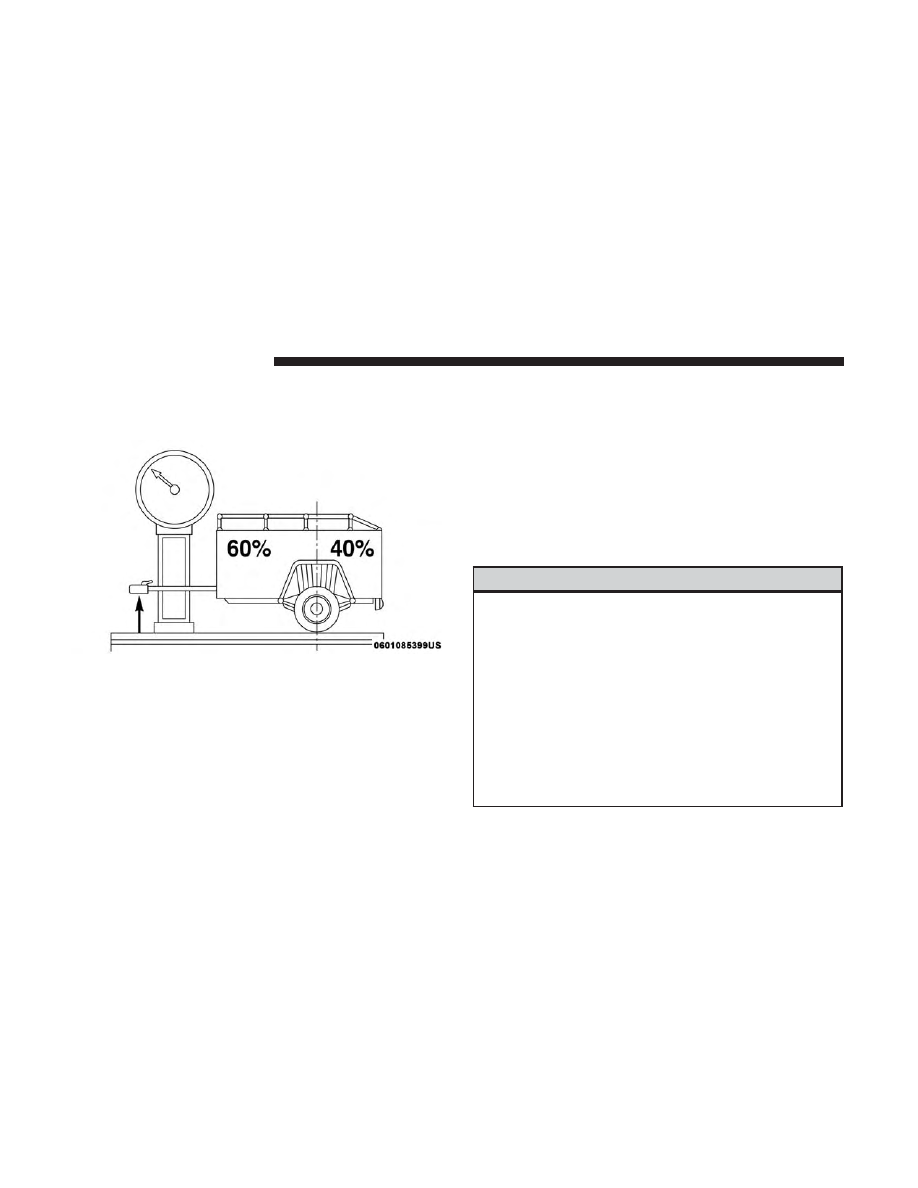

Trailer And Tongue Weight

Never exceed the maximum tongue weight stamped on
your bumper or trailer hitch.

Consider the following items when computing the weight
on the rear axle of the vehicle:
• The tongue weight of the trailer.
• The weight of any other type of cargo or equipment put

in or on your vehicle.

• The weight of the driver and all passengers.

NOTE:

Remember that everything put into or on the trailer

adds to the load on your vehicle. Also, additional factory-
installed options or dealer-installed options must be consid-
ered as part of the total load on your vehicle. Refer to the
“Tire And Loading Information” placard for the maximum
combined weight of occupants and cargo for your vehicle.

Towing Requirements

To promote proper break-in of your new vehicle drivetrain
components, the following guidelines are recommended:

WARNING!

Improper towing can lead to a collision. Follow these
guidelines to make your trailer towing as safe as
possible:
• Make certain that the load is secured in the trailer

and that it will not shift during travel. When traile-
ring cargo that is not fully secured, dynamic load
shifts can occur that may be difficult for the driver to
control. You could lose control of your vehicle and
have a collision.

• When hauling cargo, or towing a trailer, do not

overload your vehicle or trailer. Overloading can

(Continued)

226

STARTING AND OPERATING

WARNING! (Continued)

cause a loss of control, poor performance, or damage
to brakes, axle, engine, transmission, steering, sus-
pension, chassis structure, or tires.

• Safety chains must always be used between your

vehicle and trailer. Always connect the chains to the
frame or hook retainers of the vehicle hitch. Cross
the chains under the trailer tongue and allow enough
slack for turning corners.

• Vehicles with trailers should not be parked on a

grade. When parking, apply the parking brake on the
tow vehicle. Put the tow vehicle transmission in
PARK. Always, block or

ⴖchockⴖ the trailer wheels.

• GCWR must not be exceeded.

• Total weight must be distributed between the tow

vehicle and the trailer such that the following four
ratings are not exceeded:

1. GVWR

2. GTW

3. GAWR

4. Tongue weight rating for the trailer hitch utilized.

CAUTION!

• Do not tow a trailer at all during the first 500 miles

(805 km) the new vehicle is driven. The engine, axle
or other parts could be damaged.

• Then, during the first 500 miles (805 km) that a trailer

is towed, do not drive over 50 mph (80 km/h) and do
not make starts at full throttle. This helps the engine
and other parts of the vehicle wear in at the heavier
loads.

Towing Requirements — Tires

• Do not attempt to tow a trailer while using a compact

spare tire.

• Proper tire inflation pressures are essential to the safe

and satisfactory operation of your vehicle. Refer to
“Tires” in “Servicing And Maintenance” for proper tire
inflation procedures.

• Check the trailer tires for proper tire inflation pressures

before trailer usage.

• Check for signs of tire wear or visible tire damage before

towing a trailer. Refer to “Tires” in “Servicing And
Maintenance” for the proper inspection procedure.

STARTING AND OPERATING

227

• When replacing tires, refer to “Tires” in “Servicing And

Maintenance” for the proper tire replacement proce-
dures. Replacing tires with a higher load carrying capac-
ity will not increase the vehicle’s GVWR and GAWR
limits.

Towing Requirements — Trailer Brakes
• Do not interconnect the hydraulic brake system or

vacuum system of your vehicle with that of the trailer.
This could cause inadequate braking and possible per-
sonal injury.

• An electronically actuated trailer brake controller is

required when towing a trailer with electronically actu-
ated brakes. When towing a trailer equipped with a
hydraulic surge actuated brake system, an electronic
brake controller is not required.

• Trailer brakes are recommended for trailers over

1,000 lbs (453 kg) and required for trailers in excess of
2,000 lbs (907 kg).

WARNING!

• Do not connect trailer brakes to your vehicle’s hy-

draulic brake lines. It can overload your brake sys-
tem and cause it to fail. You might not have brakes
when you need them and could have a collision.

• Towing any trailer will increase your stopping dis-

tance. When towing you should allow for additional
space between your vehicle and the vehicle in front
of you. Failure to do so could result in a collision.

CAUTION!

If the trailer weighs more than 1,000 lbs (453 kg)
loaded, it should have its own brakes and they should
be of adequate capacity. Failure to do this could lead to
accelerated brake lining wear, higher brake pedal
effort, and longer stopping distances.

228

STARTING AND OPERATING

Towing Requirements — Trailer Lights And Wiring

Whenever you pull a trailer, regardless of the trailer size,
stoplights and turn signals on the trailer are required for
motoring safety.

The Trailer Tow Package may include a four- and seven-pin
wiring harness. Use a factory approved trailer harness and
connector.

NOTE:

Do not cut or splice wiring into the vehicles wiring

harness.

The electrical connections are all complete to the vehicle
but you must mate the harness to a trailer connector. Refer
to the following illustrations.

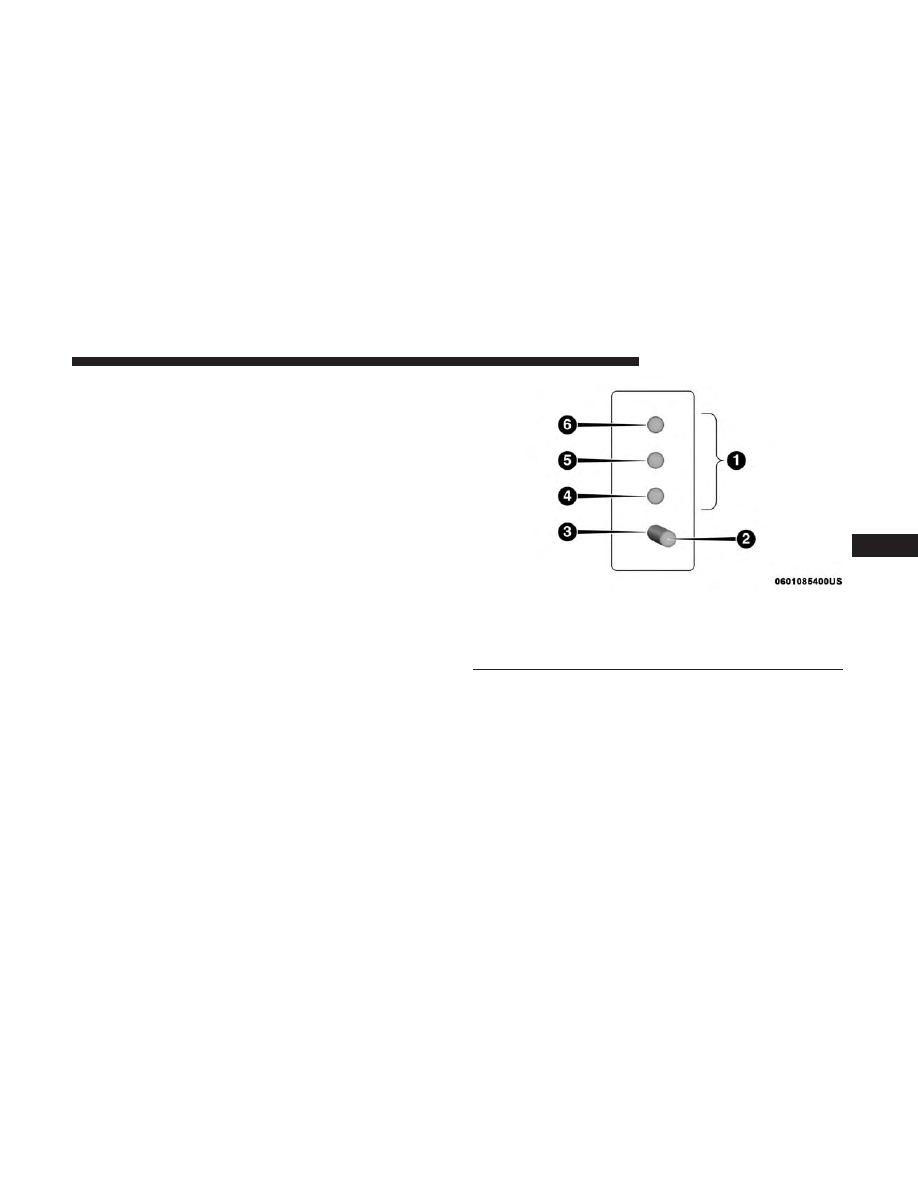

Four-Pin Connector

1 — Female Pins

4 — Park

2 — Male Pin

5 — Left Stop/Turn

3 — Ground

6 — Right Stop/Turn

STARTING AND OPERATING

229

Towing Tips

Before setting out on a trip, practice turning, stopping, and
backing up the trailer in an area located away from heavy
traffic.

Manual Transmission — If Equipped

If using a manual transmission vehicle for trailer towing,
all starts must be in first gear to avoid excessive clutch
slippage.

Automatic Transmission — If Equipped

The DRIVE range can be selected when towing. However,
if frequent shifting or changes in engine speed occur while
in this range, use the AutoStick shift control (if equipped)
to select a lower gear ratio.

NOTE:

• Using a lower gear ratio while operating the vehicle

under heavy loading conditions, will improve perfor-
mance and extend transmission life by reducing exces-
sive shifting and heat buildup. This action will also
provide better engine braking.

• If you REGULARLY tow a trailer for more than 45

minutes of continuous operation, then change the trans-
mission fluid and filter as specified for

⬙police, taxi, fleet,

or frequent trailer towing

⬙. Refer to the ⬙Maintenance

Plan

⬙ for the proper maintenance intervals.

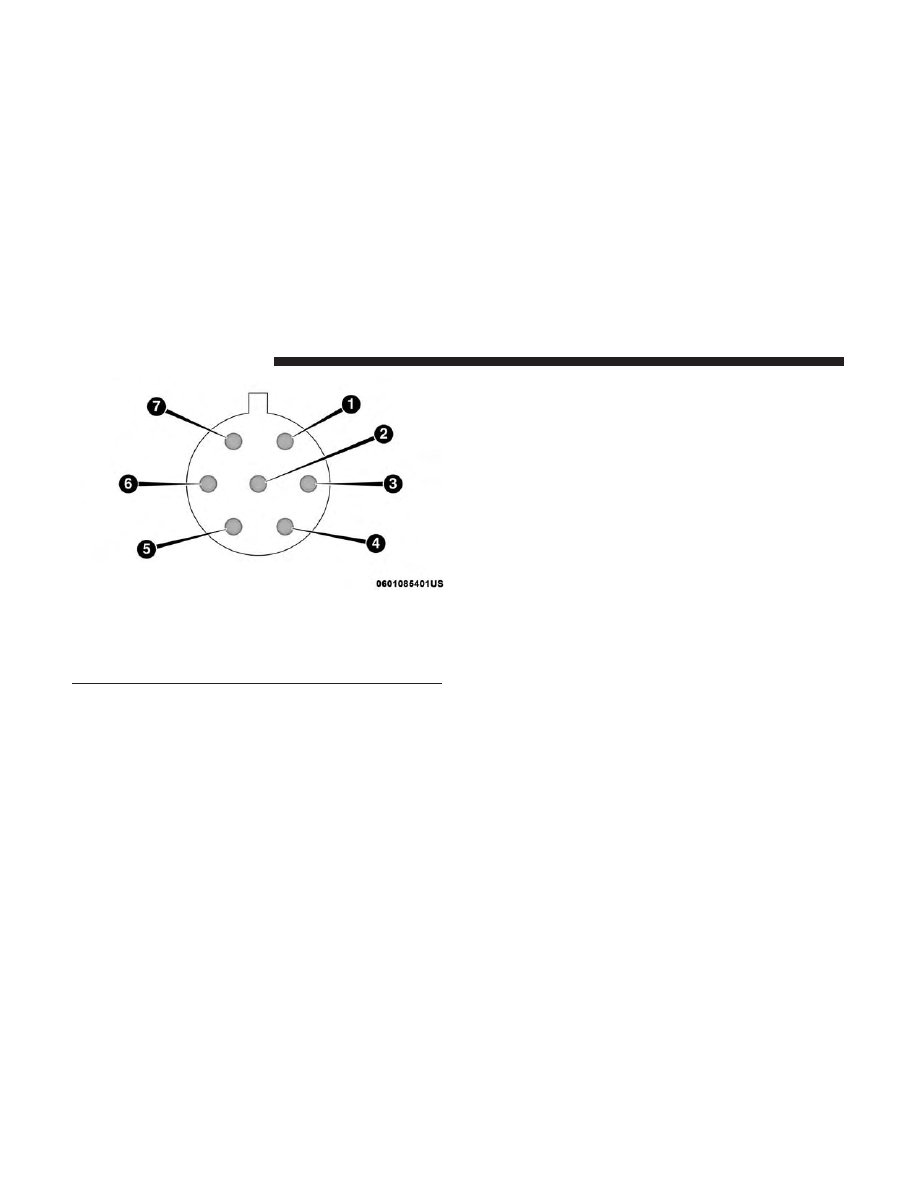

Seven-Pin Connector

1 — Battery

5 — Ground

2 — Backup Lamps

6 — Left Stop/Turn

3 — Right Stop/Turn

7 — Running Lamps

4 — Electric Brakes

230

STARTING AND OPERATING

AutoStick — If Equipped

When using the AutoStick shift control, select the highest
gear that allows for adequate performance and avoids
frequent downshifts. For example, choose

⬙4⬙ if the desired

speed can be maintained. Choose

⬙3⬙ or ⬙2⬙ if needed to

maintain the desired speed.

To prevent excess heat generation, avoid continuous driv-
ing at high RPM. Reduce vehicle speed as necessary to
avoid extended driving at high RPM. Return to a higher
gear or vehicle speed when grade and road conditions
allow.

Electronic Speed Control — If Equipped

• Do not use in hilly terrain or with heavy loads.
• When using the speed control, if you experience speed

drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.

• Use speed control in flat terrain and with light loads to

maximize fuel efficiency.

Cooling System

To reduce potential for engine and transmission overheat-
ing, take the following actions:

City Driving

When stopped for short periods, shift the transmission into
NEUTRAL and increase engine idle speed.

Highway Driving

Reduce speed.

Air Conditioning

Turn off temporarily.

STARTING AND OPERATING

231

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle

Towing Condition

Wheels OFF the Ground

Manual Transmission

Automatic Transmission

Flat Tow

None

• Transmission in NEU-

TRAL

• Key in ACC Position

NOT ALLOWED

Dolly Tow

Front

FWD Models ONLY

Rear

NOT ALLOWED

On Trailer

All

NOTE:

• When recreational towing your vehicle, always follow

applicable state and provincial laws. Contact state and
provincial Highway Safety offices for additional details.

• Vehicles equipped with manual transmissions may be

recreational towed (flat towed) at any legal highway
speed, for any distance, if the manual transmission is in
NEUTRAL and the ignition key is in the ACC position.

CAUTION!

• DO NOT flat tow any vehicle equipped with an

automatic transmission. Damage to the drivetrain
will result. If these vehicles require towing, make
sure all drive wheels are OFF the ground.

• DO NOT dolly tow any 4WD vehicle. Internal dam-

age to the transmission or transfer case will occur if
a dolly is used when recreational towing.

232

STARTING AND OPERATING

DRIVING TIPS

On-Road Driving Tips

Utility vehicles have higher ground clearance and a nar-
rower track to make them capable of performing in a wide
variety of off-road applications. Specific design character-
istics give them a higher center of gravity than conven-
tional passenger cars.

An advantage of the higher ground clearance is a better
view of the road, allowing you to anticipate problems.
They are not designed for cornering at the same speeds as
conventional passenger cars any more than low-slung
sports cars are designed to perform satisfactorily in off-
road conditions. Avoid sharp turns or abrupt maneuvers.
As with other vehicles of this type, failure to operate this
vehicle correctly may result in loss of control or vehicle
rollover.

Off-Road Driving Tips

You will encounter many types of terrain driving off-road.
You should be familiar with the terrain and area before
proceeding. There are many types of surface conditions:
hard packed dirt, gravel, rocks, grass, sand, mud, snow
and ice. Every surface has a different effect on your
vehicle’s steering, handling and traction. Controlling your

vehicle is one of the keys to successful off-road driving, so
always keep a firm grip on the steering wheel and maintain
a good driving posture. Avoid sudden accelerations, turns
or braking. In most cases there are no road signs, posted
speed limits or signal lights. Therefore you will need to use
your own good judgment on what is safe and what is not.
When on a trail, you should always be looking ahead for
surface obstacles and changes in terrain. The key is to plan
your future driving route while remembering what you are
currently driving over.

CAUTION!

Never park your vehicle over dry grass or other com-
bustible materials. The heat from your vehicle exhaust
system could cause a fire.

WARNING!

Always wear your seat belt and firmly tie down cargo.
Unsecured cargo can become projectiles in an off-road
situation.

STARTING AND OPERATING

233

When To Use Low (L Off-Road) With The 4WD Lock
Lever Engaged — If Equipped

When driving off-road, shift into low (L Off-Road [if
equipped] ) and activate the 4WD LOCK. This will provide
additional traction and activates the numerous off-road
features to improve handling and control on slippery or
difficult terrain. Due to the sustained lower gearing, low (L
Off-Road [if equipped] ) with 4WD LOCK engaged will
allow the engine to operate in a higher power range. This
will allow you to cross over obstacles and descend hills,
with improved control and less effort.

NOTE:

For maximum off-road performance, premium

fuel is recommended. While the vehicle will operate on
regular fuel when in L Off-Road mode (if equipped), the
engine has been calibrated for maximum performance
using premium fuel.

Driving In Snow, Mud And Sand

There is a drastic reduction in traction when driving in
snow, mud or sand. The vehicle will be less responsive to
steering, acceleration and braking inputs. Therefore, you
should accelerate slowly, leave greater stopping distances
and avoid abrupt vehicle maneuvers. You want to keep a
slow constant steady pace. The key is to maintain the
vehicle’s momentum.

Snow

In heavy snow or for additional control and traction at
slower speeds, activate the 4WD LOCK and shift the
transaxle to low (L Off-Road [if equipped] ) if necessary. Do
not shift to a lower gear than necessary to maintain
headway. Over-revving the engine can spin the wheels and
traction will be lost. If you start to slow to a stop, try
turning your steering wheel no more than a 1/4 turn
quickly back and forth, while still applying throttle. This
will allow the tires to get a fresh

⬙bite⬙ and help maintain

your momentum.

CAUTION!

On icy or slippery roads, do not downshift at high
engine RPM’s or vehicle speeds because engine brak-
ing may cause skidding and loss of control.

Mud

Deep mud creates a great deal of suction around the tires
and is very difficult to get through. You should use low (L
Off-Road [if equipped] ) with the 4WD LOCK engaged and
maintain your momentum. If you start to slow to a stop, try
turning your steering wheel no more than a 1/4 turn
quickly back and forth for additional traction. Mud holes

234

STARTING AND OPERATING

pose an increased threat of vehicle damage and getting
stuck. They are normally full of debris from previous
vehicles getting stuck. As a good practice before entering
any mud hole, get out and determine how deep it is, if
there are any hidden obstacles and if the vehicle can be
safely recovered if stuck.

Sand

Soft sand is very difficult to travel through with full tire
pressure. When crossing soft sandy spots in a trail maintain
your vehicle’s momentum and do not stop. The key to
driving in soft sand is using the appropriate tire pressure,
accelerating slowly, avoiding abrupt maneuvers and main-
taining the vehicle’s momentum. If you are going to be
driving on large soft sandy areas or dunes, reduce your tire
pressure to a minimum of 15 psi (103 kPa) to allow for a
greater tire surface area. You should use low (L Off-Road [if
equipped] ) with the 4WD LOCK engaged and ESC turned
off. Reduced tire pressure will drastically improve your
traction and handling, while driving on the soft sand, but
you must return the tires to normal air pressure before
driving on pavement or other hard surfaces. Be sure you
have a way to reinflate the tires prior to reducing the
pressure.

CAUTION!

Reduced tire pressures may cause tire unseating and
total loss of air pressure. To reduce the risk of tire
unseating, while at a reduced tire pressure, reduce your
speed and avoid sharp turns or abrupt maneuvers.

Hill Climbing

Hill climbing requires good judgment and a good under-
standing of your abilities and your vehicle’s limitations.
Hills can cause serious problems. Some are just too steep to
climb and should not be attempted. You should always feel
confident with the vehicle and your abilities. You should
always climb hills straight up and down. Never attempt to
climb a hill on an angle.

Before Climbing A Steep Hill

As you approach a hill consider its grade or steepness.
Determine if it is too steep. Look to see what the traction is
on the hill side trail. Is the trail straight up and down?
What is on top and the other side? Are there ruts, rocks,
branches or other obstacles on the path? Can you safely
recover the vehicle if something goes wrong? If everything
looks good and you feel confident, then you should use

STARTING AND OPERATING

235

low (L Off-Road [if equipped]) with the 4WD LOCK
engaged and proceed with caution maintaining your mo-
mentum as you climb the hill.

Driving Up Hill

Once you have determined your ability to proceed and
have shifted into the appropriate gear, line your vehicle up
for the straightest possible run. Accelerate with an easy
constant throttle and apply more power as you start up the
hill. Do not race forward into a steep grade; the abrupt
change of grade could cause you to lose control. If the front
end begins to bounce, ease off the throttle slightly to bring
all four tires back on the ground. As you approach the crest
of the hill, ease off the throttle and slowly proceed over the
top. If the wheels start to slip as you approach the crest of
a hill, ease off the accelerator and maintain headway by
turning the steering wheel no more than a 1/4 turn quickly
back and forth. This will provide a fresh

⬙bite⬙ into the

surface and will usually provide enough traction to com-
plete the climb. If you do not make it to the top, place the
vehicle in REVERSE and back straight down the grade
using engine resistance along with the vehicle brakes.

WARNING!

Never attempt to climb a hill at an angle or turn around
on a steep grade. Driving across an incline increases
the risk of a rollover, which may result in severe injury.

Driving Down Hill

Before driving down a steep hill you need to determine if
it is too steep for a safe descent. What is the surface
traction? Is the grade too steep to maintain a slow con-
trolled descent? Are there obstacles? Is it a straight descent?
Is there plenty of distance at the base of the hill to regain
control if the vehicle descends to fast? If you feel confident
in your ability to proceed then make sure you are in low (L
Off-Road [if equipped] ) with the 4WD LOCK engaged and
proceed with caution. Allow engine and hill descent brak-
ing to control the descent and apply your brakes if neces-
sary, but do not allow the tires to lock.

WARNING!

Do not descend a steep grade in NEUTRAL. Use
vehicle brakes in conjunction with engine braking.
Descending a grade too fast could cause you to lose
control and be seriously injured or killed.

236

STARTING AND OPERATING

Driving Across An Incline

If at all possible avoid driving across an incline. If it is
necessary, know your vehicle’s abilities. Driving across an
incline places more weight on the down-hill wheels, which
increases the possibilities of a down-hill slide or rollover.
Make sure the surface has good traction with firm and
stable soils. If possible transverse the incline at an angle
heading slightly up or down.

WARNING!

Driving across an incline increases the risk of a roll-
over, which may result in severe injury.

If You Stall Or Begin To Lose Headway

If you stall or begin to lose headway while climbing a steep
hill, allow your vehicle to come to a stop and immediately
apply the brake. Restart the engine and shift to REVERSE.
Back slowly down the hill allowing engine and hill descent
braking to control the descent and apply your brakes if
necessary, but do not allow the tires to lock.

WARNING!

If the engine stalls or you lose headway or cannot
make it to the top of a steep hill or grade, never attempt
to turn around. To do so may result in tipping and
rolling the vehicle, which may result in severe injury.
Always back carefully straight down a hill in RE-
VERSE gear. Never back down a hill in NEUTRAL
using only the vehicle brakes. Never drive diagonally
across a hill, always drive straight up or down.

Driving Through Water

Extreme care should be taken crossing any type of water.
Water crossings should be avoided if possible, and only be
attempted when necessary in a safe responsible manner.
You should only drive through areas which are designated
and approved. You should tread lightly and avoid damage
to the environment. You should know your vehicles abili-
ties and be able to recover it if something goes wrong. You
should never stop or shut a vehicle off when crossing deep
water unless you ingested water into the engine air intake.
If the engine stalls, do not attempt to restart it. Determine
if it has ingested water first. The key to any crossing is low
and slow. You want to use low (L Off-Road [if equipped] )
with the 4WD LOCK engaged and proceed very slowly

STARTING AND OPERATING

237

with a constant slow speed (3-5 mph [5–8 km/h] maxi-
mum) and light throttle. Keep the vehicle moving; do not
try to accelerate through the crossing. After crossing any
water higher than the bottom of the axle differentials, you
should inspect all of the vehicle fluids for signs of water
ingestion.

CAUTION!

Water ingestion into the transaxle, transfer case, engine
or vehicle interior can occur if you drive too fast or
through too deep of water. Water can cause permanent
damage to engine, driveline or other vehicle compo-
nents and your brakes will be less effective once wet
and/or muddy.

Before You Cross Any Type Of Water

As you approach any type of water, you need to determine
if you can cross it safely and responsibly. If necessary, get
out and walk through the water or probe it with a stick.
You need to be sure of its depth, approach angle, current
and bottom condition. Be careful of murky or muddy
waters; check for hidden obstacles. Make sure you will not
be intruding on any wildlife, and you can recover the

vehicle if necessary. The key to a safe crossing is the water
depth, current and bottom conditions. On soft bottoms, the
vehicle will sink in, effectively increasing the water level on
the vehicle. Be sure to consider this when determining the
depth and the ability to safely cross.

Crossing Puddles, Pools, Flooded Areas Or Other
Standing Water

Puddles, pools, flooded or other standing water areas
normally contain murky or muddy waters. These water
types normally contain hidden obstacles and make it
difficult to determine an accurate water depth, approach
angle, and bottom condition. Murky or muddy water holes
are where you want to hook up tow straps prior to
entering. This makes for a faster, cleaner and easier vehicle
recovery. If you are able to determine you can safely cross,
than proceed using the low and slow method.

CAUTION!

Muddy waters can reduce the cooling system effective-
ness by depositing debris onto the radiator.

238

STARTING AND OPERATING

After Driving Off-Road

Off-road operation puts more stress on your vehicle than
does most on-road driving. After going off-road, it is
always a good idea to check for damage. That way you can
get any problems taken care of right away and have your
vehicle ready when you need it.

• Completely inspect the underbody of your vehicle.

Check tires, body structure, steering, suspension, and
exhaust system for damage.

• Inspect the radiator for mud and debris and clean as

required.

• Check threaded fasteners for looseness, particularly on

the chassis, drivetrain components, steering, and sus-
pension. Retighten them, if required, and torque to the
values specified in the Service Manual.

• Check for accumulations of plants or brush. These things

could be a fire hazard. They might hide damage to fuel
lines, brake hoses, axle pinion seals, and propeller shafts.

• After extended operation in mud, sand, water, or similar

dirty conditions, have the radiator, fan, brake rotors,
wheels, brake linings, and axle yokes inspected and
cleaned as soon as possible.

WARNING!

Abrasive material in any part of the brakes may cause
excessive wear or unpredictable braking. You might
not have full braking power when you need it to
prevent a collision. If you have been operating your
vehicle in dirty conditions, get your brakes checked
and cleaned as necessary.

• If you experience unusual vibration after driving in

mud, slush or similar conditions, check the wheels for
impacted material. Impacted material can cause a wheel
imbalance and freeing the wheels of it will correct the
situation.

STARTING AND OPERATING

239

Jeep Patriot (2017 year). Manual - part 15
