To program the remaining two HomeLink buttons, repeat
each step for each remaining button. DO NOT erase the
channels.

Programming A Non-Rolling Code

For programming Garage Door Openers manufactured
before 1995:

1. Place the ignition in the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

place the ignition in the RUN position with the engine ON.
Make sure while programming HomeLink with the engine
ON that your vehicle is outside of your garage, or that the
garage door remains open at all times.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Push and hold the Homelink button you want to

program while you push and hold the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indicator

light. The Homelink indicator will flash slowly and then
rapidly after HomeLink has received the frequency signal

from the hand-held transmitter. Release both buttons after
the indicator light changes from slow to rapid.

5. Push and hold the programmed HomeLink button and

observe the indicator light.

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pushed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

Reprogramming A Single HomeLink Button
(Non-Rolling Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

place the ignition in the RUN position with the engine ON.
Make sure while programming HomeLink with the engine
ON that your vehicle is outside of your garage, or that the
garage door remains open at all times.

80

GETTING TO KNOW YOUR VEHICLE

2. Push and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button, proceed with “Program-

ming A Non-Rolling Code” step 2 and follow all remain-
ing steps.

Canadian/Gate Operator Programming

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission:

Canadian radio frequency laws require transmitter signals
to time-out (or quit) after several seconds of transmission,
which may not be long enough for HomeLink to pick up
the signal during programming. Similar to this Canadian
law, some U.S. gate operators are designed to time-out in
the same manner.

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage door
or gate motor.

1. Cycle the ignition to the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

place the ignition in the RUN position with the engine ON.
Make sure while programming HomeLink with the engine
ON that your vehicle is outside of your garage, or that the
garage door remains open at all times.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Continue to push and hold the HomeLink button while

you push and release (“cycle”) your hand-held trans-
mitter every two seconds until HomeLink has success-
fully accepted the frequency signal. The indicator light
will flash slowly and then rapidly when fully trained.

4. Watch for the HomeLink indicator to change flash rates.

When it changes, it is programmed. It may take up to 30
seconds or longer in rare cases. The garage door may
open and close while you are programming.

5. Push and hold the programmed HomeLink button and

observe the indicator light.

3

GETTING TO KNOW YOUR VEHICLE

81

NOTE:

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pushed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Reprogramming A Single HomeLink Button
(Canadian/Gate Operator)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

place the ignition in the RUN position with the engine ON.
Make sure while programming HomeLink with the engine
ON that your vehicle is outside of your garage, or that the
garage door remains open at all times.

2. Push and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without

releasing

the

button

,

proceed

with

“Canadian/Gate Operator Programming” step 2 and
follow all remaining steps.

Using HomeLink

To operate, push and release the programmed HomeLink
button. Activation will now occur for the programmed
device (i.e. garage door opener, gate operator, security
system, entry door lock, home/office lighting, etc.) The
hand-held transmitter of the device may also be used at
any time.

Security

It is advised to erase all channels before you sell or turn in
your vehicle.

To do this, push and hold the two outside buttons for 20
seconds until the red indicator flashes.

NOTE:

All channels will be erased. Individual channels

cannot be erased.

The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.

82

GETTING TO KNOW YOUR VEHICLE

Troubleshooting Tips

If you are having trouble programming HomeLink, here
are some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-

held transmitter.

• Push the LEARN button on the Garage Door Opener to

complete the training for a Rolling Code.

• Did you unplug the device for programming and re-

member to plug it back in?

If you have any problems, or require assistance, please call
toll-free

1-800-355-3515

or,

on

the

Internet

at

HomeLink.com for information or assistance.

WARNING!

• Vehicle exhaust contains carbon monoxide, a danger-

ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not
use a garage door opener without these safety fea-
tures. Call toll-free 1-800-355-3515 or, on the Internet
at HomeLink.com
for safety information or assis-
tance.

3

GETTING TO KNOW YOUR VEHICLE

83

General Information

This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following two
conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

• The transmitter has been tested and it complies with

FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user’s authority to operate the
device.

• The term IC before the certification/registration number

only signifies that Industry Canada technical specifica-
tions were met.

CONSOLE FEATURES

The floor console contains both an upper and lower storage
compartment.

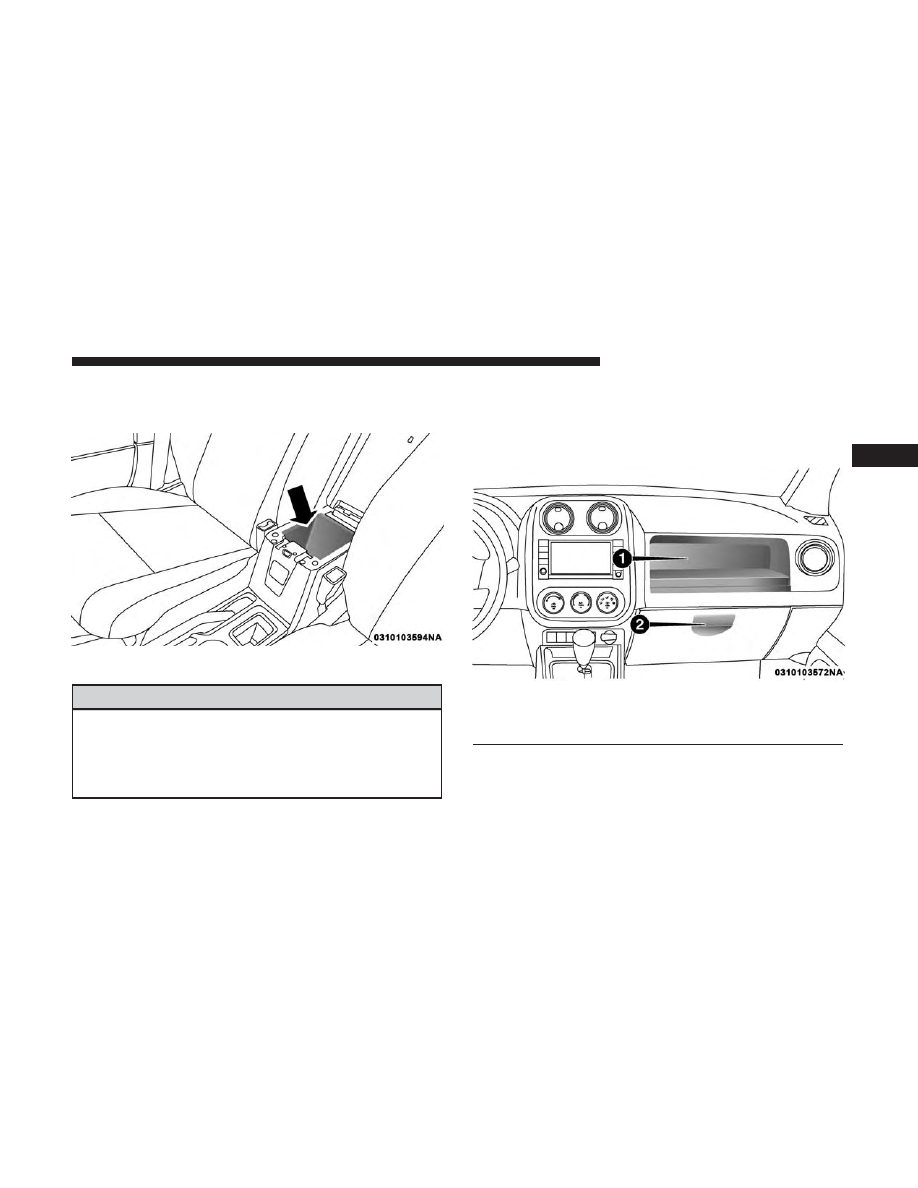

To open the upper storage compartment, push inward on
the upper handle to unlatch the upper lid and lift the lid
open.

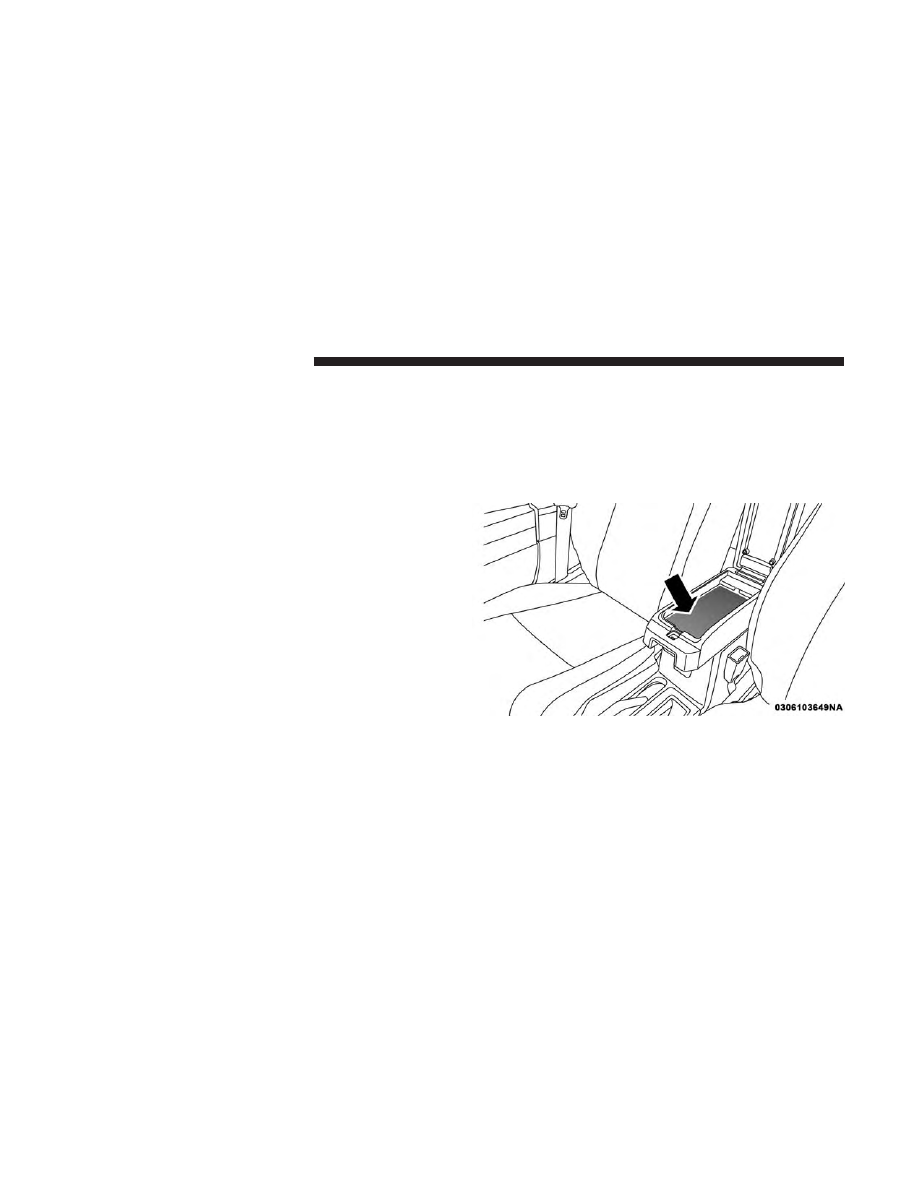

Upper Storage Compartment

84

GETTING TO KNOW YOUR VEHICLE

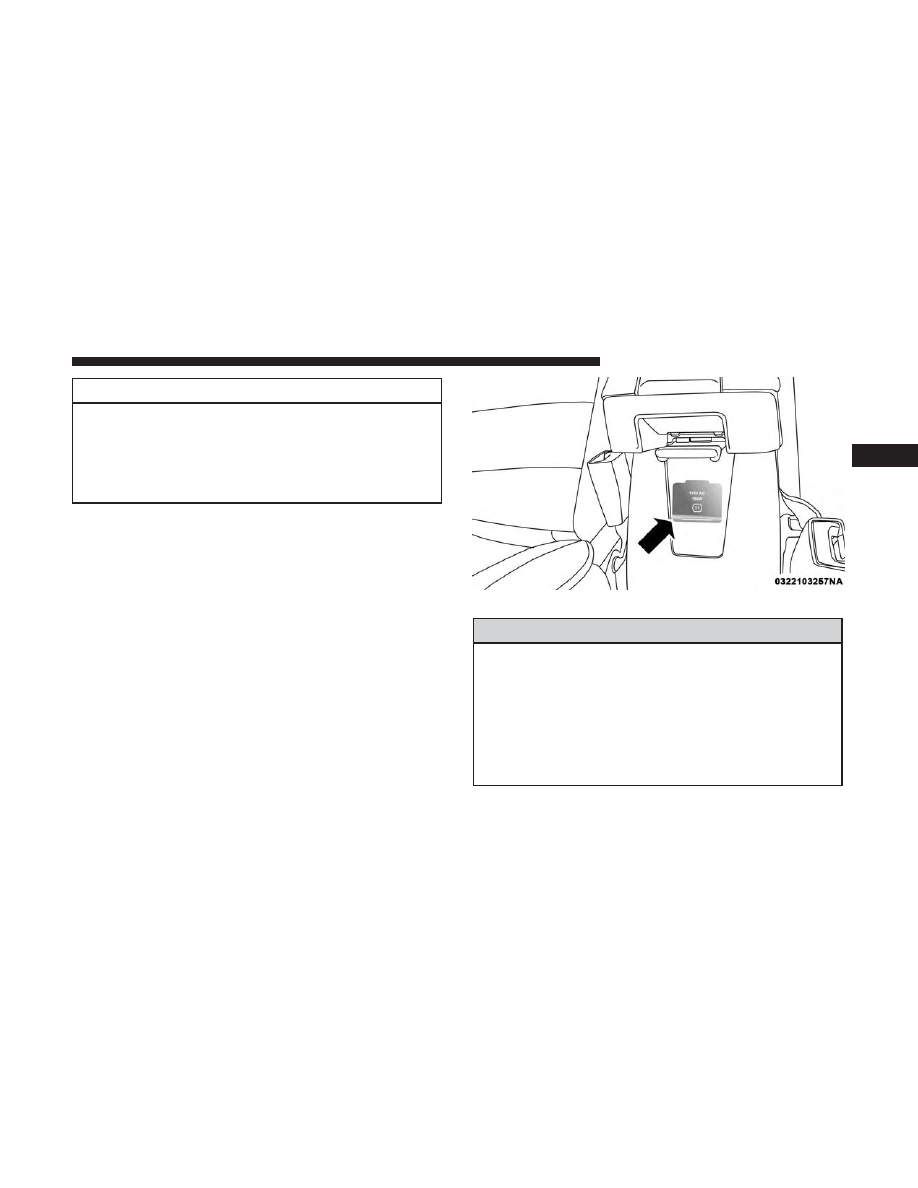

To open the lower storage compartment, lift upward on the
lower handle to unlatch the lower storage compartment
and lift the lid open.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the console
compartment lid open may result in injury in a colli-
sion.

INTERNAL EQUIPMENT

Glove Compartment And Storage Bin

Located on the passenger side of the instrument panel are
an upper storage bin and a lower glove compartment.

Lower Storage Compartment

Storage Bins

1 — Upper Storage Bin
2 — Lower Glove Compartment

3

GETTING TO KNOW YOUR VEHICLE

85

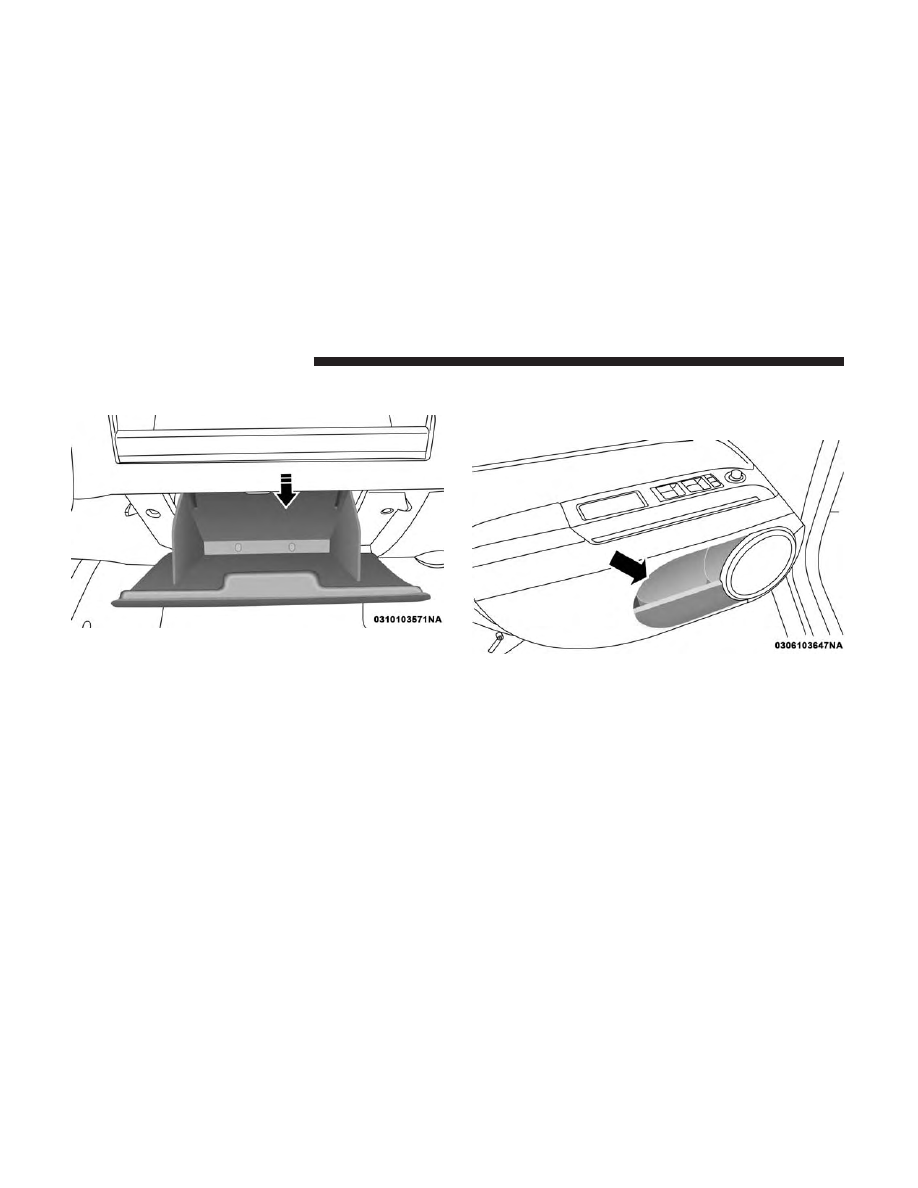

To open the lower glove compartment, pull outward on the
release handle.

Door Storage

The interior door panels are equipped with lower storage
areas.

Glove Compartment

Front Door Storage

86

GETTING TO KNOW YOUR VEHICLE

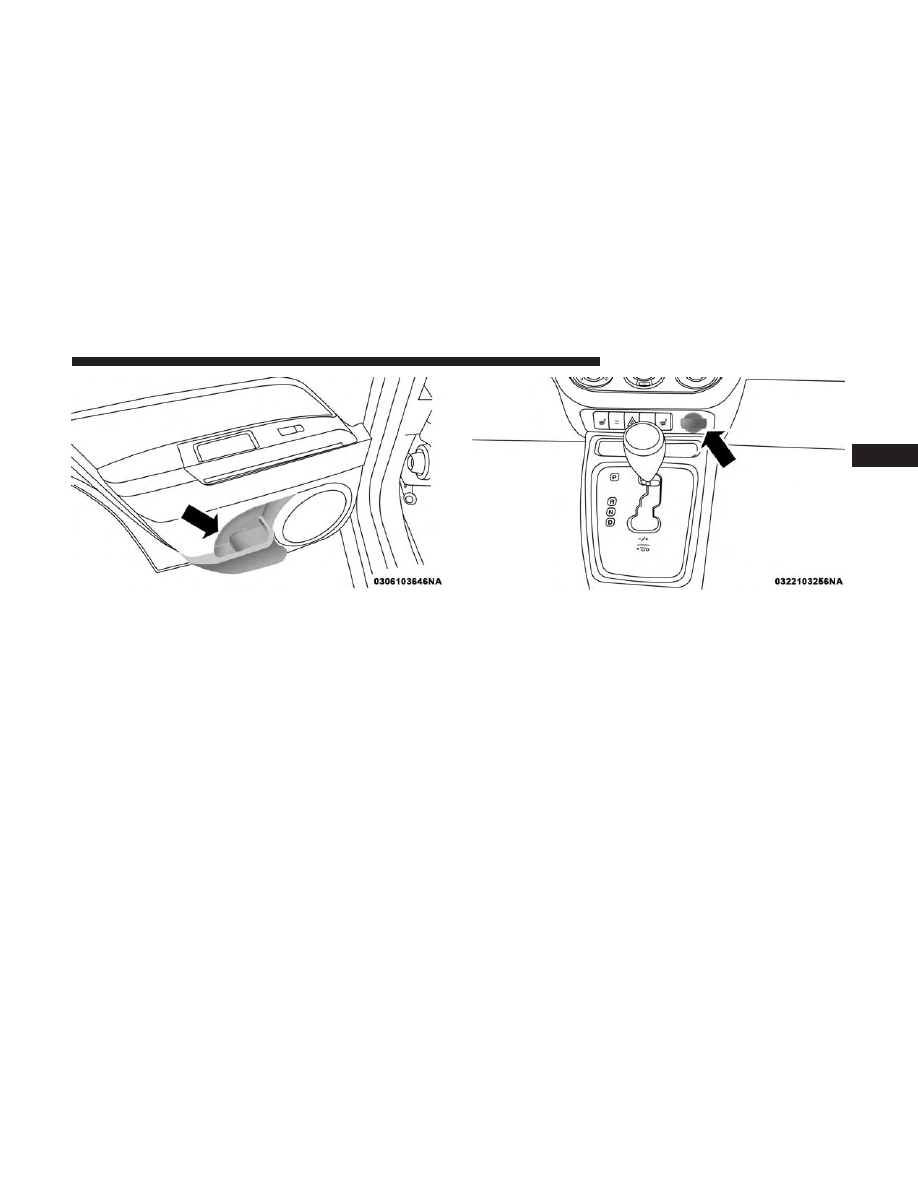

Electrical Power Outlets

There is a standard 12 Volt (13 Amp) power outlet located
in the Integrated Center Stack (ICS) for added convenience.
This power outlet can power mobile phones, electronics
and other low power devices.

Power is available when the ignition switch is in the ON or
ACC position. Insert the cigar lighter or accessory plug into
the outlet for use. To preserve the heating element, do not
hold the lighter in the heating position.

NOTE:

To ensure proper operation a MOPAR knob and

element must be used.

Rear Door Storage

12 Volt Power Outlet

3

GETTING TO KNOW YOUR VEHICLE

87

CAUTION!

• Do not exceed the maximum power of 160 Watts (13

Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.

• Power outlets are designed for accessory plugs only.

Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with great caution.

(Continued)

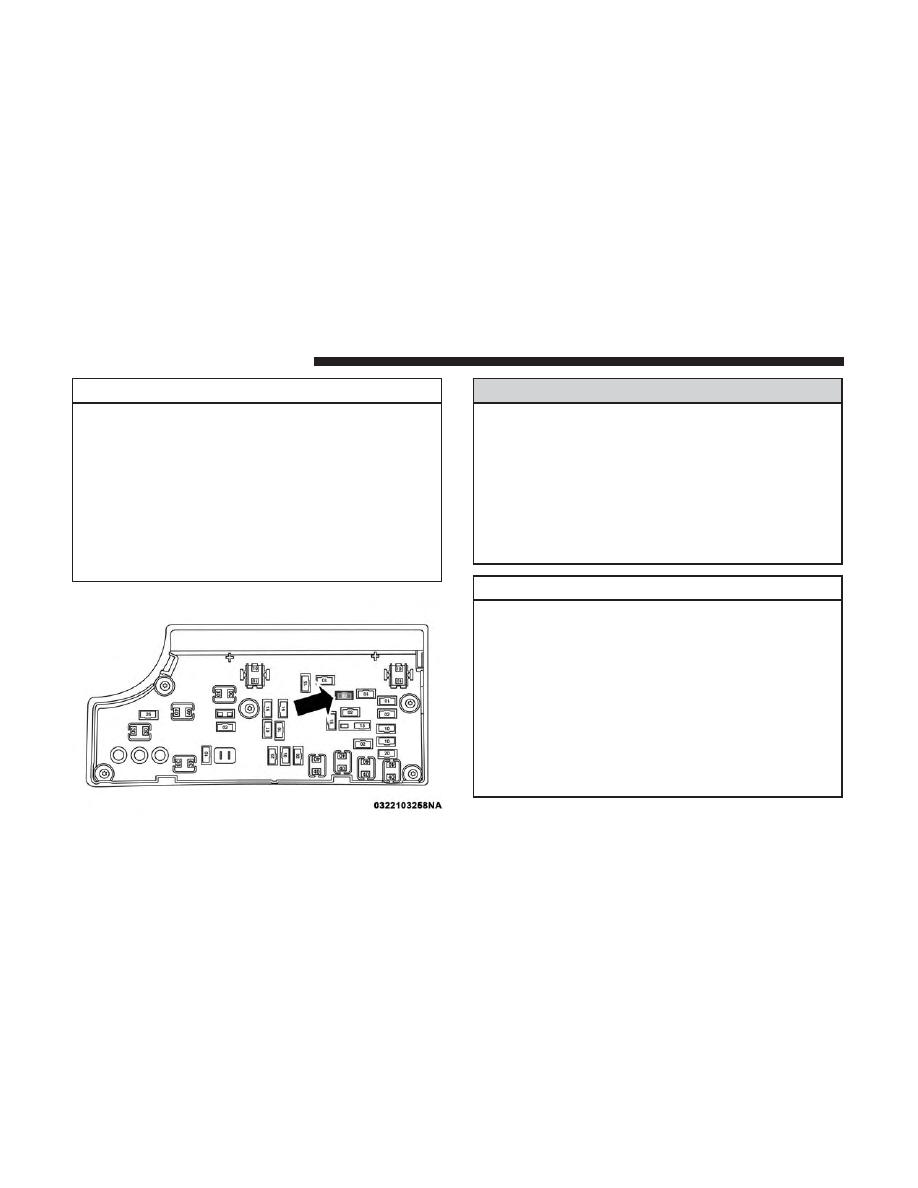

Power Outlet Fuse Location

88

GETTING TO KNOW YOUR VEHICLE

CAUTION! (Continued)

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.

Power Inverter — If Equipped

A 115 Volt (150 Watt) AC power inverter is located on the
front of the center console for added convenience. This
outlet can power mobile phones, electronics and other low
power devices requiring power up to 150 Watts. Certain
high-end video games consoles will exceed this power
limit, as will most power tools.

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, the
power inverter will automatically shut down. Once the
electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter may
have to be reset manually. To reset the inverter manually,
unplug the device and plug it in again. To avoid overload-
ing the circuit, check the power ratings on electrical devices
prior to using the inverter.

WARNING!

To avoid serious injury or death:
• Do not use a three-prong adaptor.

• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

115 Volt Power Outlet

3

GETTING TO KNOW YOUR VEHICLE

89

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent engine
starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with great caution.

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.

Cupholders

Your vehicle is equipped with four cupholders. There are
two illuminated cupholders located in the front.

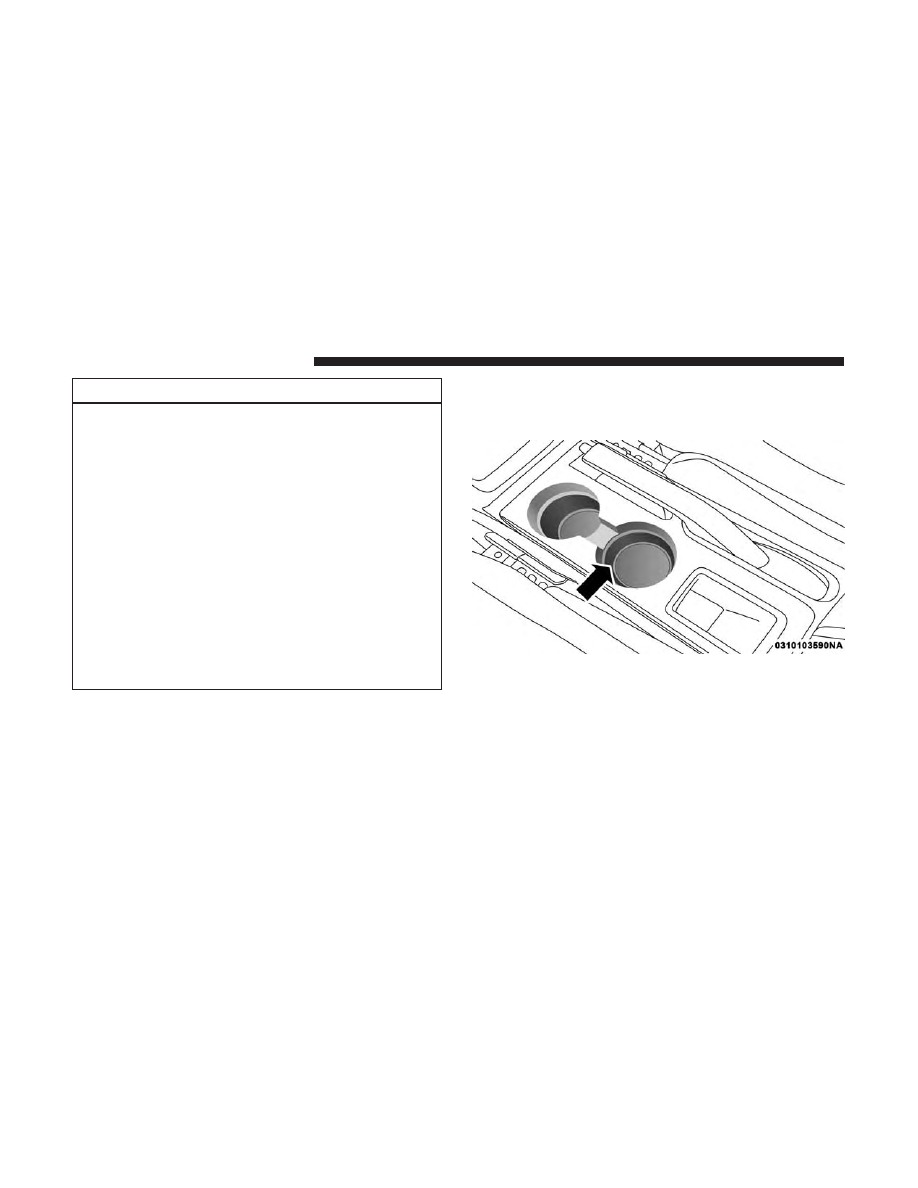

Front Cupholders

90

GETTING TO KNOW YOUR VEHICLE

There are two cupholders located in the back for the rear
passengers.

ROOF LUGGAGE RACK — IF EQUIPPED

The crossbars and siderails are designed to carry the cargo
on vehicles equipped with a luggage rack. The load must
not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.

NOTE:

If not equipped with crossbars, your authorized

dealer can order and install MOPAR crossbars built spe-
cifically for this roof rack system.

Distribute cargo weight evenly on the luggage rack cross-
bars. The luggage rack does not increase the total load
carrying capacity of the vehicle. Be sure the total load of
cargo inside the vehicle plus that on the external rack does
not exceed the maximum vehicle load capacity.

The crossbars must also be secured in one of the seven
detent positions marked with an arrow on the siderails to
prevent movement. To move the crossbars, loosen the
thumb screws located at the upper edge of each crossbar
approximately eight turns, then move the crossbar to the
desired position, keeping the crossbars perpendicular to
the luggage rack side rails. Once the crossbar is in one of
the seven detent positions, retighten the thumb screws to
lock the crossbar into position.

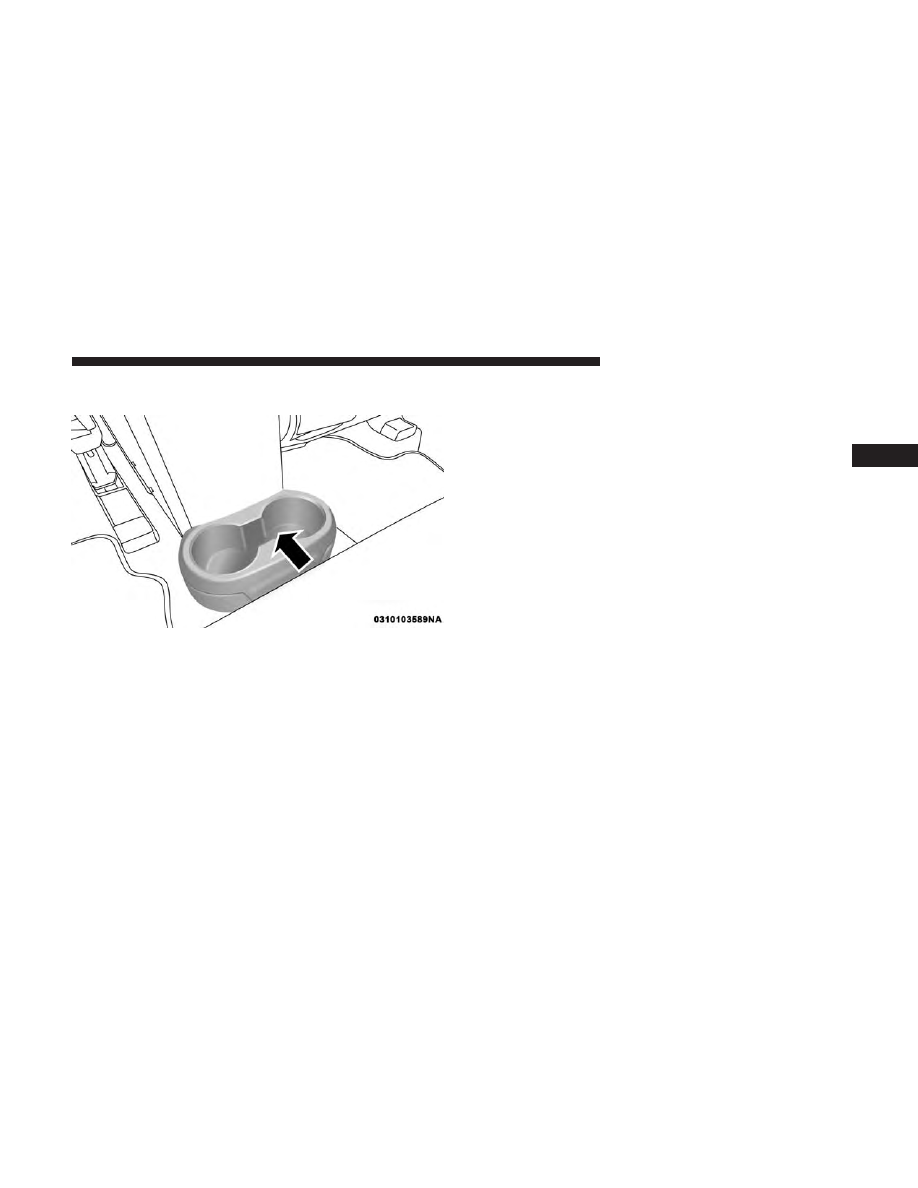

Rear Cupholders

3

GETTING TO KNOW YOUR VEHICLE

91

NOTE:

• To help control wind noise when the crossbars are not in

use, place the front crossbar in the first detent from the
front of the vehicle and the rear crossbar in the second
detent from the rear of the vehicle.

• If the rear crossbar (or any metallic object) is placed over

the satellite radio antenna (if equipped), you may expe-
rience interruption of satellite radio reception. For im-
proved satellite radio reception, place the rear crossbar
in the second detent from the rear of the vehicle when
not in use.

WARNING!

Cargo must be securely tied before driving your ve-
hicle. Improperly secured loads can fly off the vehicle,
particularly at high speeds, resulting in personal injury
or property damage. Follow the roof rack cautions
when carrying cargo on your roof rack.

CAUTION!

• To prevent damage to the roof of your vehicle, DO

NOT carry any loads on the luggage rack without
crossbars installed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or some other protection between the
load and the roof surface.

• To avoid damage to the luggage rack and vehicle, do

not exceed the maximum luggage rack load capacity
of 150 lb (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropriately.

• Long loads which extend over the windshield, such

as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.

• Travel at reduced speeds and turn corners carefully

when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to a load. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.

92

GETTING TO KNOW YOUR VEHICLE

GETTING TO KNOW YOUR INSTRUMENT PANEL

CONTENTS

䡵 INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . . . .95
䡵 WARNING/INDICATOR LIGHTS AND

MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

▫ Red Telltale Lights . . . . . . . . . . . . . . . . . . . . . .99
▫ Yellow Telltale Lights . . . . . . . . . . . . . . . . . . . .104
▫ Green Telltale Lights. . . . . . . . . . . . . . . . . . . . .113
▫ Blue Telltale Indicator Lights . . . . . . . . . . . . . . .114
▫ White Telltale Lights. . . . . . . . . . . . . . . . . . . . .115

䡵 MINI-TRIP COMPUTER — IF EQUIPPED . . . . . .115

▫ Control Buttons . . . . . . . . . . . . . . . . . . . . . . . .116
▫ STEP Button . . . . . . . . . . . . . . . . . . . . . . . . . .116
▫ RESET Button . . . . . . . . . . . . . . . . . . . . . . . . .116
▫ Trip Odometer (ODO). . . . . . . . . . . . . . . . . . . .116

䡵 INSTRUMENT CLUSTER DISPLAY . . . . . . . . . . .116

▫ Interactive Display And Controls . . . . . . . . . . . .117
▫ Oil Change Indicator System . . . . . . . . . . . . . . .119
▫ Instrument Cluster Display Functions . . . . . . . .120
▫ Compass/Temperature/Audio. . . . . . . . . . . . . .120
▫ Average Fuel Economy . . . . . . . . . . . . . . . . . . .120
▫ Distance To Empty (DTE) . . . . . . . . . . . . . . . . .120
▫ Tire Pressure Monitor (TPM) . . . . . . . . . . . . . . .121
▫ Elapsed Time. . . . . . . . . . . . . . . . . . . . . . . . . .121
▫ Display Units Of Measure In. . . . . . . . . . . . . . .121
▫ Personal Settings (Customer-Programmable

Features) . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

4

INSTRUMENT CLUSTER

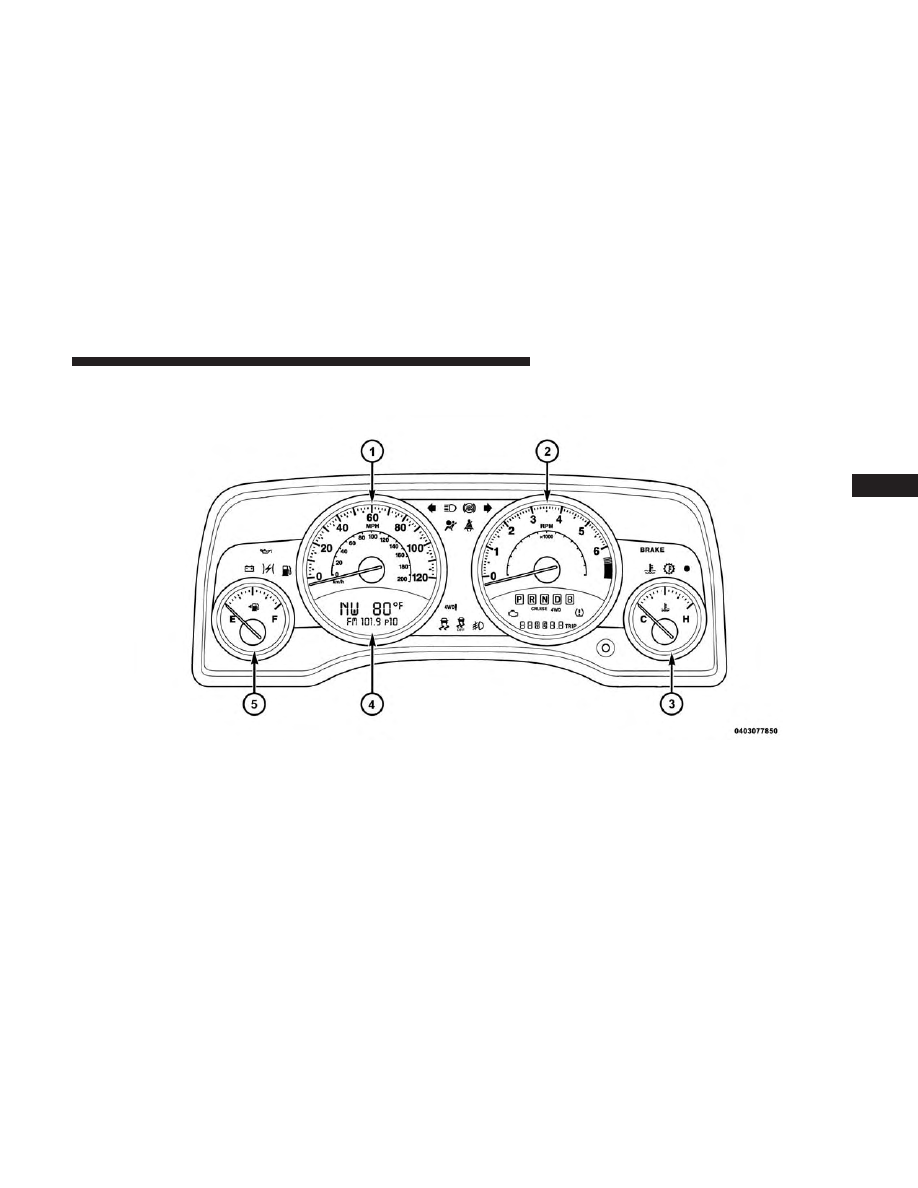

1. Speedometer

• The Speedometer shows the vehicle speed in miles per

hour (MPH) and kilometers per hour (km/h).

Odometer Display / Trip Odometer Display
This display indicates the total distance the vehicle has
been driven.

Instrument Cluster

4

GETTING TO KNOW YOUR INSTRUMENT PANEL

95















Content   ..  4  5  6  7   ..
