Jeep Liberty (2012 year). Manual

Voice Commands

Primary

Alternate(s)

zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
all

Voice Commands

Primary

Alternate(s)

call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

131

Voice Commands

Primary

Alternate(s)

language
list names
list phones
mobile
mute
mute off
new entry
no
other
pair a phone
phone pairing

pairing

phonebook

phone book

previous
record again
redial

Voice Commands

Primary

Alternate(s)

return to main menu

return or main menu

select phone

select

send
set up

phone settings or phone
set up

towing assistance
transfer call
Uconnect™ Tutorial
try again
voice training
work
yes

132

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

General Information

This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:

• Changes or modifications not expressly approved by

the party responsible for compliance could void the
user’s authority to operate the equipment.

• This device may not cause harmful interference.
• This device must accept any interference received,

including interference that may cause undesired
operation.

VOICE COMMAND — IF EQUIPPED

Voice Command System Operation

This Voice Command system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.

NOTE:

Take care to speak into the Voice Interface

System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice com-
mands may be negatively affected by rapid speaking or a
raised voice level.

WARNING!

Any voice commanded system should be used only
in safe driving conditions following local laws. All
attention should be kept on the roadway ahead.
Failure to do so may result in a collision causing
serious injury or death.

When you press the Voice Command

button, you

will hear a beep. The beep is your signal to give a
command.

NOTE:

If you do not say a command within a few

seconds, the system will present you with a list of options.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

133

If you ever wish to interrupt the system while it lists
options, press the Voice Command

button, listen

for the beep, and say your command.

Pressing the Voice Command

button while the

system is speaking is known as “barging in.” The system
will be interrupted, and after the beep, you can add or
change commands. This will become helpful once you
start to learn the options.

NOTE:

At any time, you can say the words “Cancel”,

“Help” or “Main Menu”.

These commands are universal and can be used from any
menu. All other commands can be used depending upon
the active application.

When using this system, you should speak clearly and at
a normal speaking volume.

The system will best recognize your speech if the win-
dows are closed, and the heater/air conditioning fan is
set to low.

At any point, if the system does not recognize one of your
commands, you will be prompted to repeat it.

To hear the first available Menu, press the Voice Com-
mand

button and say “Help” or “Main Menu”.

Commands

The Voice Command system understands two types of
commands. Universal commands are available at all
times. Local commands are available if the supported
radio mode is active.

Changing the Volume

1. Start a dialogue by pressing the Voice Command

button.

2. Say a command (e.g., “Help”).

134

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Command
system is speaking. Please note the volume setting for
Voice Command is different than the audio system.

Main Menu
Start a dialogue by pressing the Voice Command
button. You may say “Main Menu” to switch to the main
menu.

In this mode, you can say the following commands:

• “Radio” (to switch to the radio mode)
• “Disc” (to switch to the disc mode)
• “Memo” (to switch to the memo recorder)
• “Setup” (to switch to system setup)

Radio AM
To switch to the AM band, say “AM” or “Radio AM”. In
this mode, you may say the following commands:

• “Frequency #” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous station)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)

Radio FM
To switch to the FM band, say “FM” or “Radio FM”. In
this mode, you may say the following commands:

• “Frequency #” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous station)

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

135

• “Menu Radio” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)

Satellite Radio
To switch to satellite radio mode, say “Sat” or “Satellite
Radio”. In this mode, you may say the following com-
mands:

• “Channel Number” (to change the channel by its

spoken number)

• “Next Channel” (to select the next channel)
• “Previous Channel” (to select the previous channel)
• “List Channel” (to hear a list of available channels)
• “Select Name” (to say the name of a channel)
• “Menu Radio” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)

Disc
To switch to the disc mode, say “Disc”. In this mode, you
may say the following commands:

• “Track” (#) (to change the track)
• “Next Track” (to play the next track)
• “Previous Track” (to play the previous track)
• “Main Menu” (to switch to the main menu)

Memo
To switch to the voice recorder mode, say “Memo”. In
this mode, you may say the following commands:

• “New Memo” (to record a new memo) — During the

recording, you may press the Voice Command
button to stop recording. You proceed by saying one of
the following commands:

− “Save” (to save the memo)

136

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

− “Continue” (to continue recording)

− “Delete” (to delete the recording)

• “Play Memos” (to play previously recorded memos)

— During the playback you may press the Voice
Command

button to stop playing memos. You

proceed by saying one of the following commands:

− “Repeat” (to repeat a memo)

− “Next” (to play the next memo)

− “Previous” (to play the previous memo)

− “Delete” (to delete a memo)

• “Delete All” (to delete all memos)

Setup
To switch to system setup, you may say on of the
following:

• “Change to setup”

• “Switch to system setup”
• “Change to setup”
• “Main menu setup” or
• “Switch to setup”

In this mode, you may say the following commands:

• “Language English”
• “Language French”
• “Language Spanish”
• “Tutorial”
• “Voice Training”

NOTE:

Keep in mind that you have to press the Voice

Command

button first and wait for the beep before

speaking the “Barge In” commands.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

137

Voice Training

For users experiencing difficulty with the system recog-
nizing their voice commands or numbers the Uconnect™
Voice “Voice Training” feature may be used.

1. Press the Voice Command

button, say “System

Setup” and once you are in that menu then say “Voice
Training.” This will train your own voice to the system
and will improve recognition.

2. Repeat the words and phrases when prompted by
Uconnect™ Voice. For best results, the “Voice Training”
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.

SEATS

Seats are a part of the Occupant Restraint System of the
vehicle.

WARNING!

• It is dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

138

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

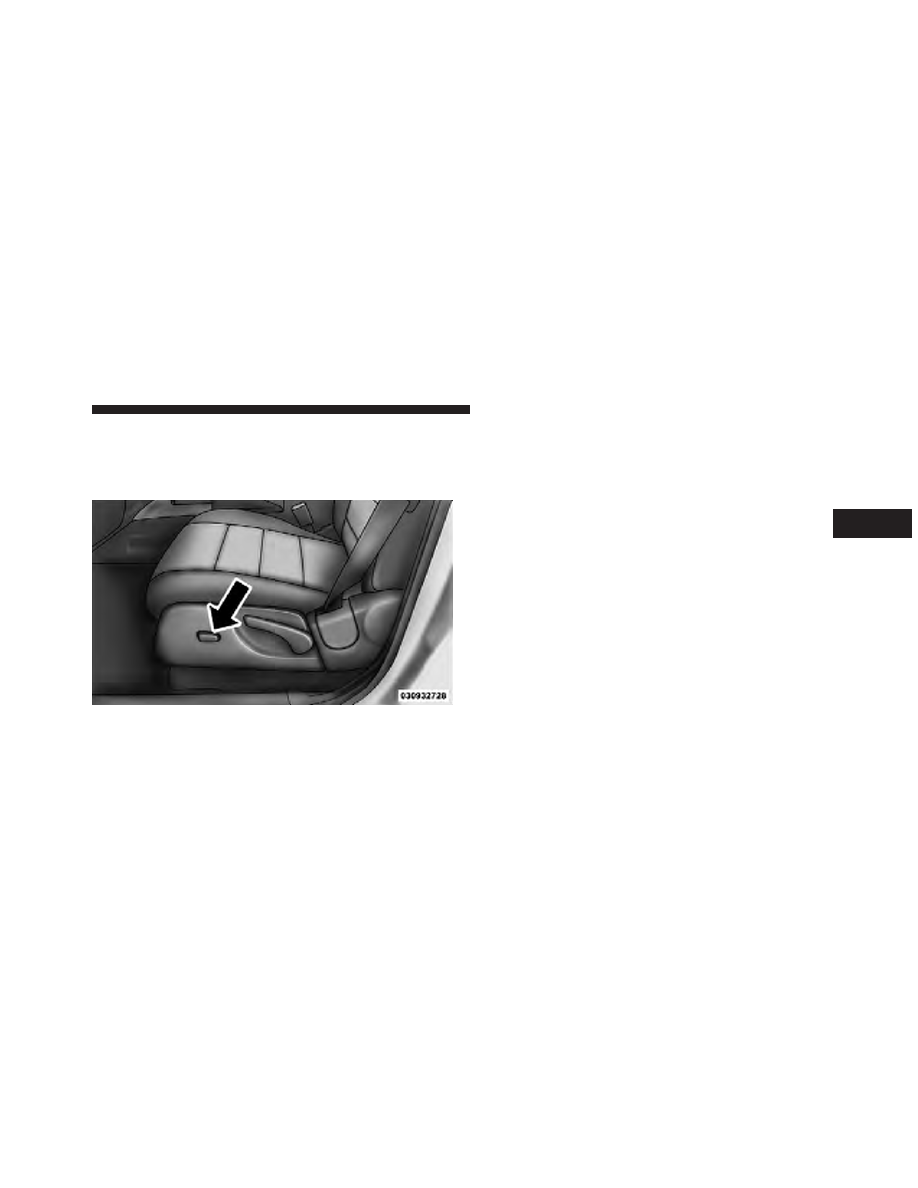

Driver’s Power Seat — If Equipped

The power seat switch is located on the outboard side of
the seat near the floor. Use this switch to move the seat up
or down, forward or rearward or to tilt the seat.

Adjusting The Seat Forward Or Rearward
The seat can be adjusted both forward and rearward.
Push the seat switch forward or rearward, the seat will
move in the direction of the switch. Release the switch
when the desired position has been reached.

Adjusting The Seat Up Or Down
The height of the seats can be adjusted up or down. Pull
upward or push downward on the seat switch, the seat
will move in the direction of the switch. Release the
switch when the desired position has been reached.

Tilting The Seat Up Or Down
The angle of the seat cushion can be adjusted in four
directions. Pull upward or push downward on the front
or rear of the seat switch, the front or rear of the seat
cushion will move in the direction of the switch. Release
the switch when the desired position has been reached.

Power Seat Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

139

Passenger Power Seat — If Equipped
Vehicle’s equipped with passenger power seats can only
be adjusted forward and backward.

WARNING!

• Adjusting a seat while driving may be dangerous.

Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

• Seats should be adjusted before fastening the seat

belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.

• Do not ride with the seatback reclined so that the

shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt, which could result in serious injury or death.

CAUTION!

Do not place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.

Heated Seats — If Equipped

On some models, the front driver and passenger seats
may be equipped with heaters in both the seat cushions
and seatbacks.

There are two heated seat switches that allow the driver
and passenger to operate the seats independently. The
controls for each seat are located on a switch bank near
the bottom center of the instrument panel.

140

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

You can choose from HIGH, LOW or OFF heat settings.
Amber indicator lights in each switch indicate the level of
heat in use. Two indicator lights will illuminate for
HIGH, one for LOW and none for OFF.

Press the switch once to select HIGH-level
heating. Press the switch a second time to select
LOW-level heating. Press the switch a third
time to shut the heating elements OFF.

When the HIGH-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the
normal HIGH-level. If the HIGH-level setting is selected,
the system will automatically switch to LOW-level after
approximately 30 minutes of continuous operation. At
that time, the number of illuminated LEDs changes from
two to one, indicating the change. The LOW-level setting
will turn OFF automatically after approximately 30 min-
utes.

NOTE:

When a heat setting is selected, heat will be felt

within two to five minutes.

WARNING!

• Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.

• Do not place anything on the seat that insulates

against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. Sitting in a
seat that has been overheated could cause serious
burns due to the increased surface temperature of
the seat.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

141

Manual Front Seat Adjustments

For models equipped with manual seats, the driver and
passenger seats can be adjusted forward or rearward by
using a bar by the front of the seat cushion, near the floor.

While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once you have
reached the desired position. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.

WARNING!

• Adjusting a seat while driving may be dangerous.

Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

• Seats should be adjusted before fastening the seat

belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.

Manual Seat Adjustment

142

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Seat — Manual Recline

To recline the seatback, lean forward slightly and lift the
lever. Then lean back to the position desired and release
the lever. To return the seatback to its normal upright
position, lean forward and lift the lever. Release the lever
once the seatback is in the upright position.

WARNING!

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.

Recline Lever

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

143

Jeep Liberty (2012 year). Manual - part 9
