HAZARD WARNING FLASHERS

The Hazard Warning flasher switch is located on the switch
bank just above the climate controls.

Push the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn
oncoming traffic of an emergency. Push the

switch a second time to turn off the Hazard Warning
flashers.

This is an emergency warning system and it should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.

When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.

NOTE:

With extended use, the Hazard Warning flashers

may discharge the battery.

ASSIST AND SOS MIRROR — IF EQUIPPED

If equipped, the rearview mirror contains an ASSIST and a
SOS button.

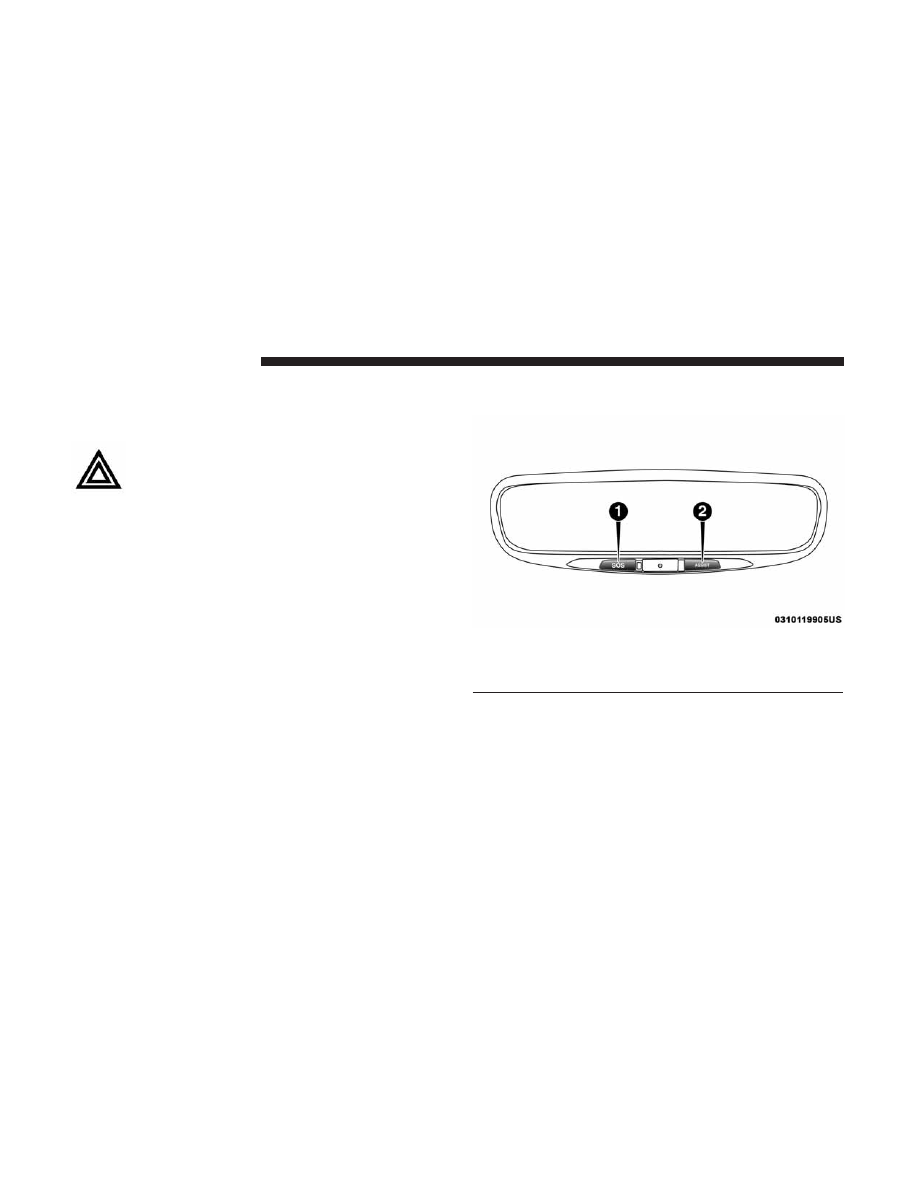

Assist And SOS Mirror

1 — SOS Button
2 — ASSIST Button

352

IN CASE OF EMERGENCY

WARNING!

ALWAYS obey traffic laws and pay attention to the
road. ALWAYS drive safely with your hands on the
steering wheel. You have full responsibility and as-
sume all risks related to the use of the features and
applications in this vehicle. Only use the features and
applications when it is safe to do so. Failure to do so
may result in an accident involving serious injury or
death.

NOTE:
• Your vehicle may be transmitting data as authorized by

the subscriber.

• The SOS and ASSIST buttons will only function if you

are connected to an operable LTE (voice/data) or 4G
(data) network. Other Uconnect services will only be
operable if your SiriusXM Guardian service is active and
you are connected to an operable LTE (voice/data) or 4G
(data) network.

ASSIST Call

The ASSIST Button is used to automatically connect you to
any one of the following support centers:
• Roadside Assistance – If you get a flat tire, or need a tow,

just push the ASSIST button and you’ll be connected to
someone who can help. Roadside Assistance will know
what vehicle you’re driving and its location. Additional
fees may apply for roadside assistance.

• SiriusXM Guardian Customer Care – In-vehicle support

for SiriusXM Guardian.

• Vehicle Customer Care – Total support for all other

vehicle issues.

SOS Call

1. Push the SOS Call button on the Rearview Mirror.

NOTE:

In case the SOS Call button is pushed in error, there

will be a ten second delay before the SOS Call system
initiates a call to a SOS operator. To cancel the SOS Call
connection, push the SOS call button on the Rearview
Mirror or press the cancellation button on the Device
Screen. Termination of the SOS Call will turn off the green
LED light on the Rearview Mirror.

IN CASE OF EMERGENCY

353

2. The LED light located between the ASSIST and SOS

buttons on the Rearview Mirror will turn green once a
connection to a SOS operator has been made.

3. Once a connection between the vehicle and a SOS

operator is made, the SOS Call system may transmit the
following important vehicle information to a SOS op-
erator:

• Indication that the occupant placed a SOS Call.
• The vehicle brand.
• The last known GPS coordinates of the vehicle.

4. You should be able to speak with the SOS operator

through the vehicle audio system to determine if addi-
tional help is needed.

WARNING!

ALWAYS obey traffic laws and pay attention to the road.
ALWAYS drive safely with your hands on the steering
wheel. You have full responsibility and assume all risks
related to the use of the features and applications in this
vehicle. Only use the features and applications when it
is safe to do so. Failure to do so may result in an accident
involving serious injury or death.

NOTE:

• Your vehicle may be transmitting data as authorized

by the subscriber.

• Once a connection is made between the vehicle’s SOS

Call system and the SOS operator, the SOS operator
may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the SOS operator opens a voice connection with the
vehicle’s SOS Call system, the operator should be able
to speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s SOS Call
system will attempt to remain connected with the SOS
operator until the SOS operator terminates the connec-
tion.

5. The SOS operator may attempt to contact appropriate

emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.

WARNING!

• If anyone in the vehicle could be in danger (e.g., fire

or smoke is visible, dangerous road conditions or
location), do not wait for voice contact from an

(Continued)

354

IN CASE OF EMERGENCY

WARNING! (Continued)

Emergency Services Agent. All occupants should exit
the vehicle immediately and move to a safe location.

• Never place anything on or near the vehicle’s operable

network and GPS antennas. You could prevent oper-
able network and GPS signal reception, which can
prevent your vehicle from placing an emergency call.
An operable network and GPS signal reception is
required for the SOS Call system to function properly.

• The SOS Call system is embedded into the vehicle’s

electrical system. Do not add aftermarket electrical
equipment to the vehicle’s electrical system. This
may prevent your vehicle from sending a signal to
initiate an emergency call. To avoid interference that
can cause the SOS Call system to fail, never add
aftermarket equipment (e.g., two-way mobile radio,
CB radio, data recorder, etc.) to your vehicle’s electri-
cal system or modify the antennas on your vehicle. IF
YOUR VEHICLE LOSES BATTERY POWER FOR
ANY REASON (INCLUDING DURING OR AFTER
AN ACCIDENT), THE UCONNECT FEATURES,
APPS AND SERVICES, AMONG OTHERS, WILL
NOT OPERATE.

(Continued)

WARNING! (Continued)

• Modifications to any part of the SOS Call system

could cause the air bag system to fail when you need
it. You could be injured if the air bag system is not
there to help protect you.

SOS Call System Limitations

Vehicles sold in Mexico DO NOT have SOS Call system
capabilities.

SOS or other emergency line operators in Mexico may not
answer or respond to SOS system calls.

If the SOS Call system detects a malfunction, any of the
following may occur at the time the malfunction is de-
tected, and at the beginning of each ignition cycle:
• The Rearview Mirror light located between the ASSIST

and SOS buttons will continuously be illuminated red.

• The Device Screen will display the following message

“Vehicle device requires service. Please contact your
dealer.”

• An In-Vehicle Audio message will state “Vehicle device

requires service. Please contact your dealer.”

IN CASE OF EMERGENCY

355

WARNING!

• Ignoring the Rearview Mirror light could mean you

will not have SOS Call services. If the Rearview
Mirror light is illuminated, have your authorized
dealer service the SOS Call system immediately.

• The Occupant Restraint Control module turns on the

air bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the Air Bag Warning Light is illuminated, have your
authorized dealer service the Occupant Restraint
Control system immediately.

Even if the SOS Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the SOS
Call system operation. These include, but are not limited
to, the following factors:
• Delayed accessories mode is active.
• The ignition is in the OFF position.
• The vehicle’s electrical systems are not intact.
• The SOS Call system software and/or hardware are

damaged during a crash.

• The vehicle battery loses power or becomes discon-

nected during a vehicle crash.

• LTE (voice/data) or 4G (data) network and/or Global

Positioning Satellite signals are unavailable or ob-
structed.

• Equipment malfunction at the SOS operator facility.
• Operator error by the SOS operator.
• LTE (voice/data) or 4G (data) network congestion.
• Weather.
• Buildings, structures, geographic terrain, or tunnels.

WARNING!

356

IN CASE OF EMERGENCY

NOTE:
• Your vehicle may be transmitting data as authorized by

the subscriber.

• Never place anything on or near the vehicle’s LTE

(voice/data) or 4G (data) and GPS antennas. You could
prevent LTE (voice/data) or 4G (data) and GPS signal
reception, which can prevent your vehicle from placing
an emergency call. An operable LTE (voice/data) or 4G
(data) network connection and a GPS signal is required
for the SOS Call system to function properly.

General Information

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

CAUTION!

To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.

BULB REPLACEMENT

Replacement Bulbs

Interior Bulbs

Bulb Number

Glove Compartment Lamp

194

Grab Handle Lamp

L002825W5W

Overhead Console Read-
ing Lamps

VT4976

Rear Cargo Lamp

214–2

Visor Vanity Lamp

V26377

Underpanel Courtesy
Lamps

906

Instrument Cluster (Gen-
eral Illumination)

103

Telltale/Hazard Lamp

IN CASE OF EMERGENCY

357

Exterior Bulbs

Bulb Number

Premium Headlamps
(Low/High Beam)

D3S (Serviced At Autho-

rized Dealer)

Premium Park/Turn Sig-
nal Lamp

LED - (Service At Autho-

rized Dealer)

Premium Daytime Run-
ning Lamp (DRL)

LED - (Service At Autho-

rized Dealer)

Premium Front Fog
Lamps

LED - (Service At Autho-

rized Dealer)

Premium Front Side
Marker

LED - (Service At Autho-

rized Dealer)

Rear Body Side Backup
Lamps

7440 (W21W)

Auxiliary Liftgate Tail
Lamps

LED - (Service At Autho-

rized Dealer)

Liftgate Backup Lamps

921 (W16W)

Rear License Lamps

LED - (Service At Autho-

rized Dealer)

Rear Body Side Stop/Turn
Lamps

3157KRD LCP (P27/7W)

Bulb Number

Rear Body Side Tail
Lamps

LED - (Service At Autho-

rized Dealer)

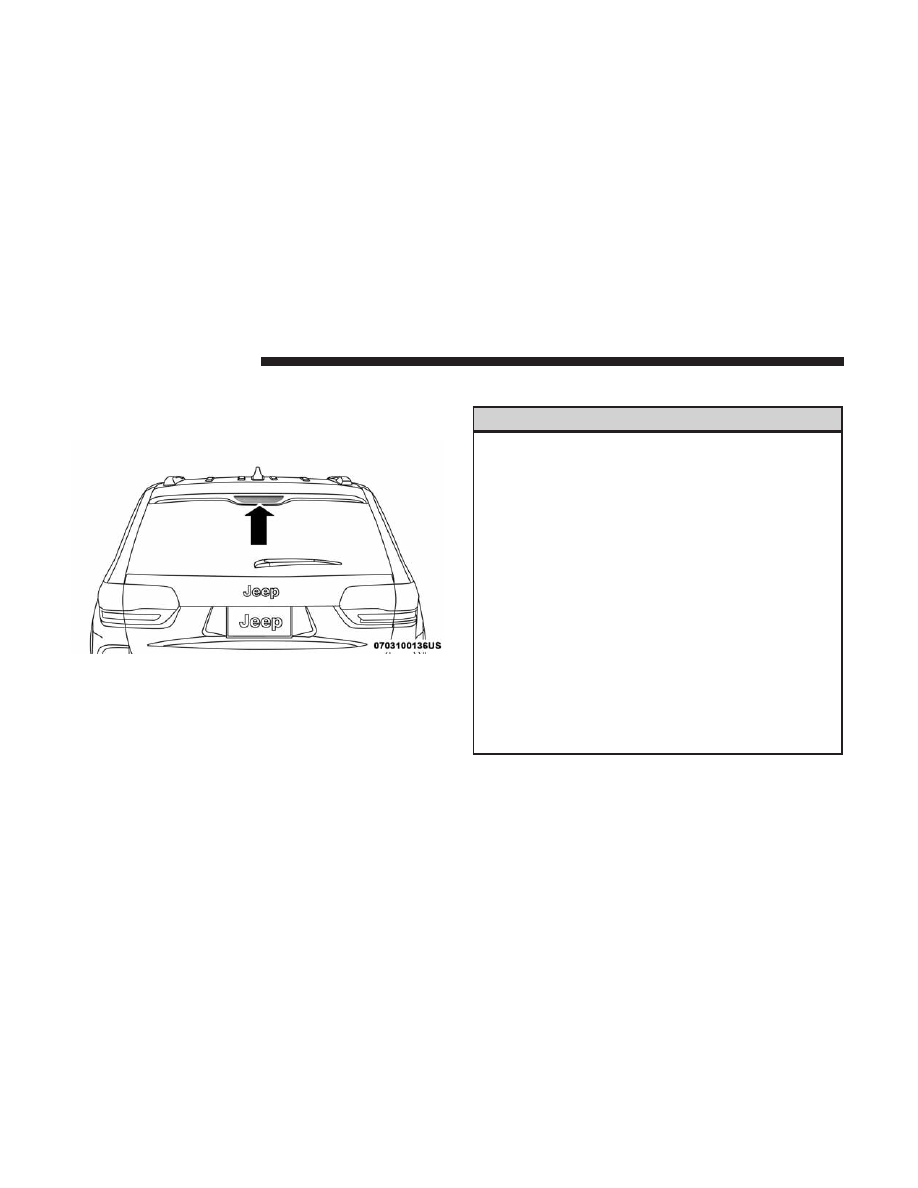

CHMSL - Center High
Mounted Stop Lamp

LED - (Service At Autho-

rized Dealer)

NOTE:

Numbers refer to commercial bulb types that

can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.

Bulb Replacement

High Intensity Discharge Headlamps (HID) — If
Equipped

The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of this,
you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.

358

IN CASE OF EMERGENCY

WARNING!

A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.

NOTE:

On vehicles equipped with High Intensity Dis-

charge (HID) headlamps, when the headlamps are turned
on, there is a blue hue to the lamps. This diminishes and
becomes more white after approximately 10 seconds, as the
system charges.

Front Turn Signal Lamp

The front turn signal lamps are LEDs. See your authorized
dealer for service.

Front Fog Lamps

Please see your authorized dealer for service.

Rear Tail, Stop, and Turn Signal Lamps

1. Raise the liftgate.

2. Remove the two push-pins from the tail lamp housing.

3. Grasp the tail lamp and pull firmly rearward to disen-

gage the lamp from the aperture panel.

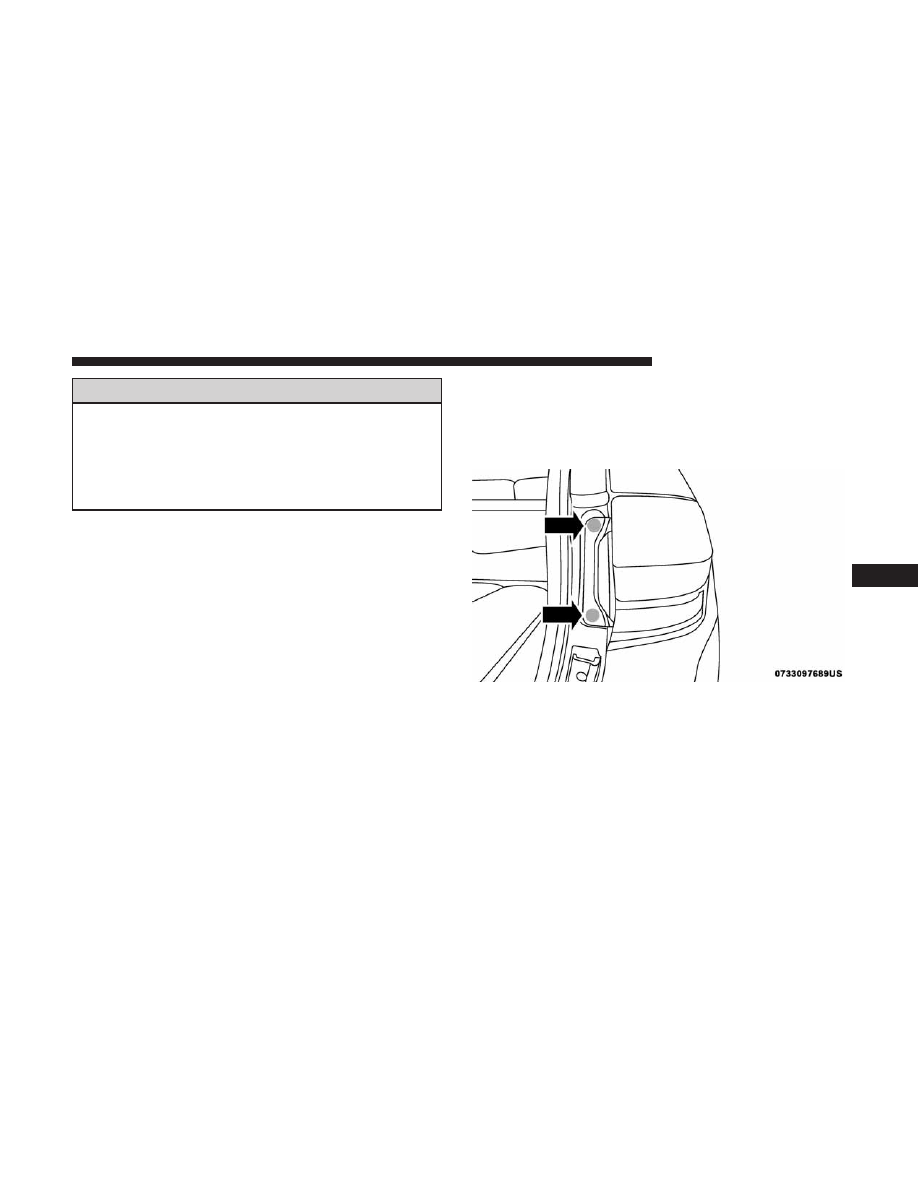

Tail Lamp Push Pins

IN CASE OF EMERGENCY

359

4. Twist socket counter clockwise and remove from lamp.

5. Pull the bulb to remove it from the socket.

6. Replace the bulb, reinstall the socket, and reattach the

lamp assembly.

Rear Liftgate Mounted Tail Lamp

1. Raise the liftgate.

2. Use a suitable tool to pry the lower trim from the

liftgate.

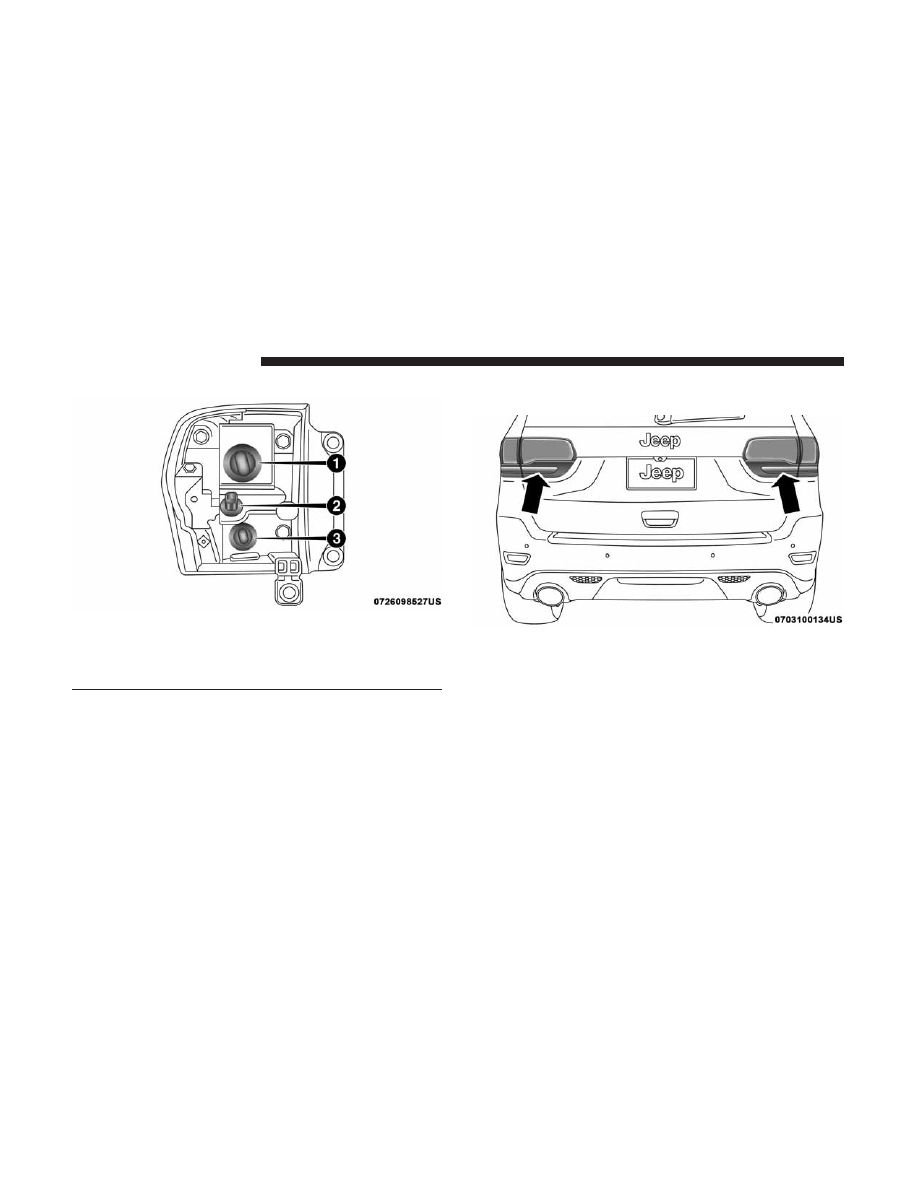

Rear Of Tail Lamp

1 — Rear Stop Lamp Bulb Socket
2 — LED Tail Connector – Do Not Remove
3 — Rear Turn Signal Bulb Socket

Rear Liftgate Tail Lamps

360

IN CASE OF EMERGENCY

3. Continue removing the trim.

4. Disconnect the two trim panel lights.

5. Tail lamps are now visible. Rotate socket(s) counter

clockwise.

6. Remove/replace bulb(s).

7. Reinstall the socket(s).

8. Reverse process to reinstall the liftgate trim.

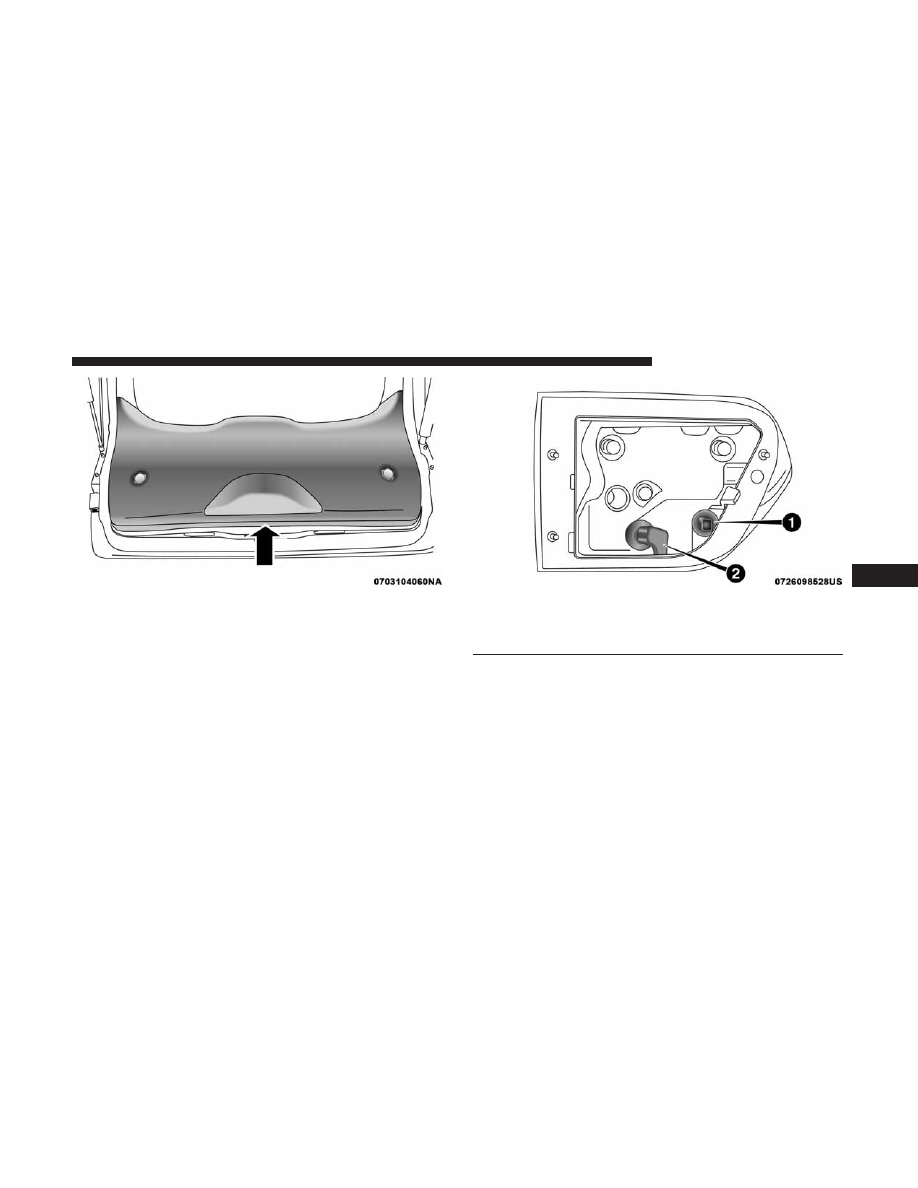

Liftgate Lower Trim

Rear Of Liftgate Tail Lamp

1 — Auxiliary LED Tail Connector – Do Not Remove
2 — Backup Bulb Socket

IN CASE OF EMERGENCY

361

Center High-Mounted Stop Lamp (CHMSL)

The center high mounted stop lamp is an LED. Service at
an authorized dealer.

Rear License Lamp

The rear license lamps are LEDs. See your authorized
dealer for service.

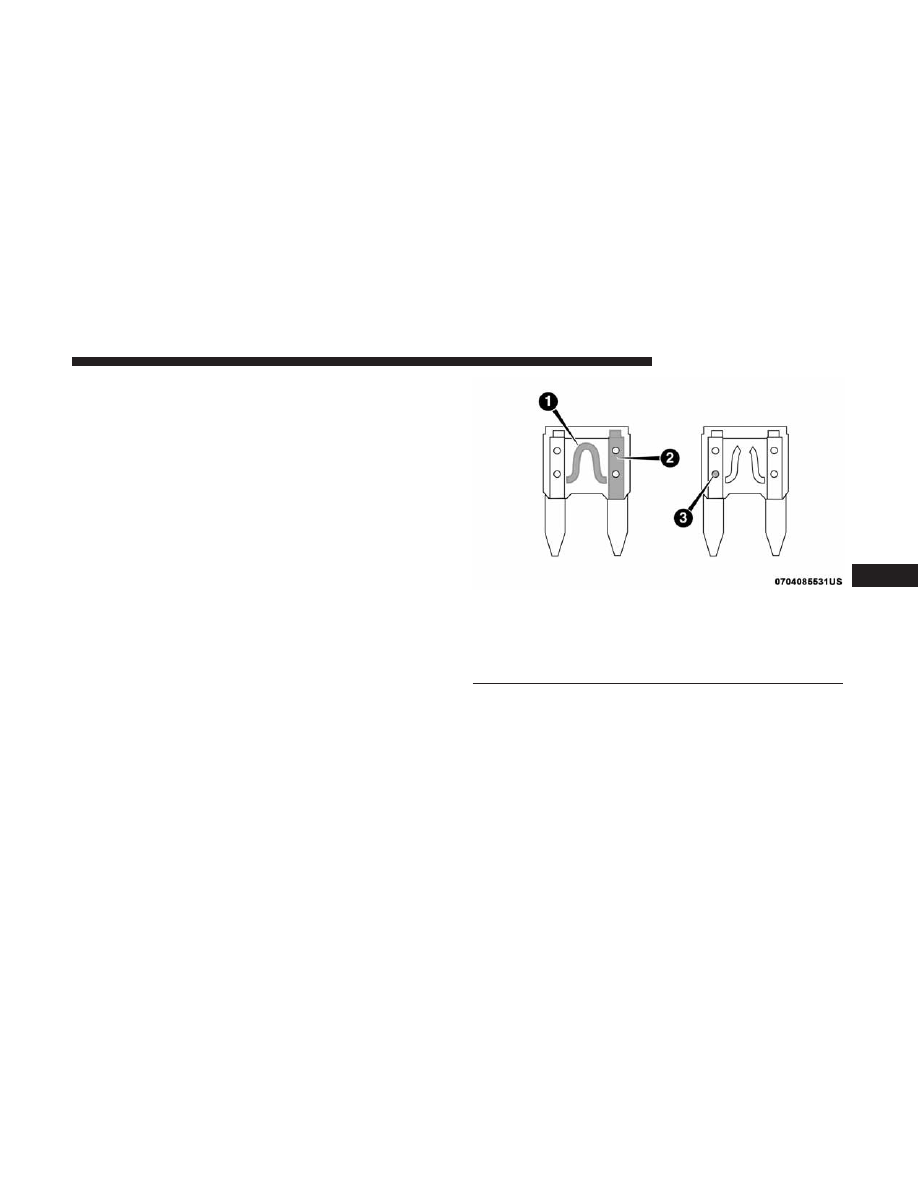

FUSES

WARNING!

• When replacing a blown fuse, always use an appro-

priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Do not
place a fuse inside a circuit breaker cavity or vice
versa. Failure to use proper fuses may result in
serious personal injury, fire and/or property damage.

• Before replacing a fuse, make sure that the ignition is

off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.

Center High-Mounted Stop Lamp

362

IN CASE OF EMERGENCY

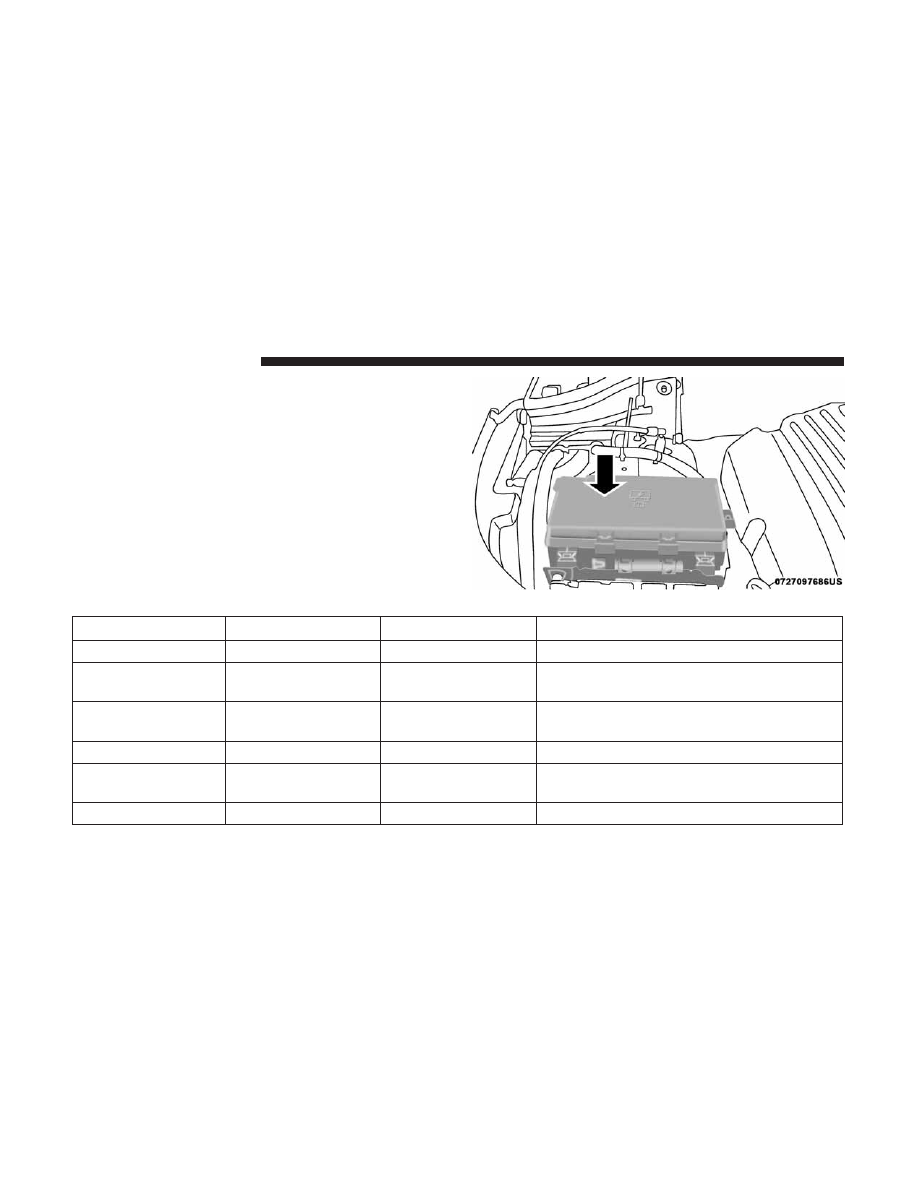

Underhood Fuses

The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, micro fuses, relays, and circuit breakers. A
description of each fuse and component may be stamped
on the inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that corresponds to the
following chart.

Cavity

Cartridge Fuse

Micro Fuse

Description

F03

60 Amp Yellow

–

Radiator Fan

F05

40 Amp Green

–

Compressor for Air Suspension — If

Equipped

F06

40 Amp Green

–

Anti-lock Brakes/Electronic Stability Control

Pump

F07

30 Amp Pink

–

Starter Solenoid

F09

30 Amp Pink

–

Diesel Fuel Heater (Diesel Engine Only)/

Brake Vacuum Pump

F10

40 Amp Green

–

Body Controller/Exterior Lighting #2

Power Distribution Center

364

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Micro Fuse

Description

F11

30 Amp Pink

–

Trailer Tow Electric Brake — If Equipped

F12

40 Amp Green

–

Body Controller #3/Power Locks

F13

40 Amp Green

–

Blower Motor Front

F14

40 Amp Green

–

Body Controller #4/Exterior Lighting #1

F15

40 Amp Green

–

LTR (Low Temperature Radiator) Engine

Cooling Pump

F17

30 Amp Pink

–

Headlamp Washer — If Equipped

F19

20 Amp Blue

–

Headrest Solenoid — If Equipped

F20

30 Amp Pink

–

Passenger Door Module

F22

20 Amp Blue

–

Engine Control Module

F23

30 Amp Pink

–

Interior Lights #1

F24

30 Amp Pink

–

Driver Door Module

F25

30 Amp Pink

–

Front Wipers

F26

30 Amp Pink

–

Anti-lock Brakes/Stability Control Module/

Valves

F28

20 Amp Blue

–

Trailer Tow Backup Lights — If Equipped

F29

20 Amp Blue

–

Trailer Tow Parking Lights — If Equipped

F30

30 Amp Pink

–

Trailer Tow Receptacle — If Equipped

F32

30 Amp Pink

–

Drive Train Control Module

F34

30 Amp Pink

–

Slip Differential Control

IN CASE OF EMERGENCY

365

Cavity

Cartridge Fuse

Micro Fuse

Description

F35

30 Amp Pink

–

Sunroof - If Equipped

F36

30 Amp Pink

–

Rear Defroster

F37

25 Amp Clear

–

Rear Blower Motor — If Equipped

F38

30 Amp Pink

–

Power Inverter 115V AC — If Equipped

F39

30 Amp Pink

–

Power Liftgate — If Equipped

F40

–

10 Amp Red

Daytime Running Lights/Headlamp Level-

ing

F42

–

20 Amp Yellow

Horn

F44

–

10 Amp Red

Diagnostic Port

F 45

–

5 Amp Tan

Cyber Security Gateway

F49

–

10 Amp Red

Integrated Central Stack/Climate Control

F50

–

20 Amp Yellow

Air Suspension Control Module/Slip Differ-

ential - If Equipped

F51

–

15 Amp Blue

Ignition Node Module/Keyless Ignition/

Steering Column Lock

F52

–

5 Amp Tan

Battery Sensor

F53

–

20 Amp Yellow

Trailer Tow – Left Turn/Stop Lights — If

Equipped

F56

–

15 Amp Blue

Additional Content (Diesel engine only)

F57

–

20 Amp Yellow

NOX Sensor

366

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Micro Fuse

Description

F58

–

15 Amp Blue

HID Headlamps LH — If Equipped

F59

–

10 Amp Red

Purging Pump (Diesel engine only)

F60

–

15 Amp Blue

Transmission Control Module

F61

–

10 Amp Red

Transmission Control Module/PM Sensor

(Diesel engine only)

F62

–

10 Amp Red

Air Conditioning Clutch

F63

–

20 Amp Yellow

Ignition Coils (Gas), Urea Heater (Diesel)

F64

–

25 Amp Clear

Fuel Injectors/Powertrain

F66

–

10 Amp Red

Sunroof/Passenger Window Switches/Rain

Sensor

F67

–

15 Amp Blue

CD/DVD/Bluetooth Hands-free Module —

If Equipped

F68

–

20 Amp Yellow

Rear Wiper Motor

F69

–

15 Amp Blue

Spotlight Feed — If Equipped

F70

–

20 Amp Yellow

Fuel Pump Motor

F71

–

30 Amp Green

Audio Amplifier

F72

–

10 Amp Red

PCM — If Equipped

F73

–

15 Amp Blue

HID Headlamp RH — If Equipped

F75

–

10 Amp Red

Dual Batt Control — If Equipped

F76

–

10 Amp Red

Anti-lock Brakes/Electronic Stability Control

IN CASE OF EMERGENCY

367

Jeep Grand Cherokee SRT (2018 year). Manual - part 23
