Your vehicle uses a keyless ignition system. The ignition
system consists of a key fob with Remote Keyless Entry
(RKE) and a START/STOP push button ignition system.
The Remote Keyless Entry system consists of a key fob and
Keyless Enter-N-Go feature if equipped.

NOTE:

The key fob may not be found if it is located next to

a mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal.

The key fob allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a handheld key fob. The key fob does not need to be
pointed at the vehicle to activate the system.

NOTE:

In the ON/RUN position, the lock button is dis-

abled. Only the unlock button is enabled.

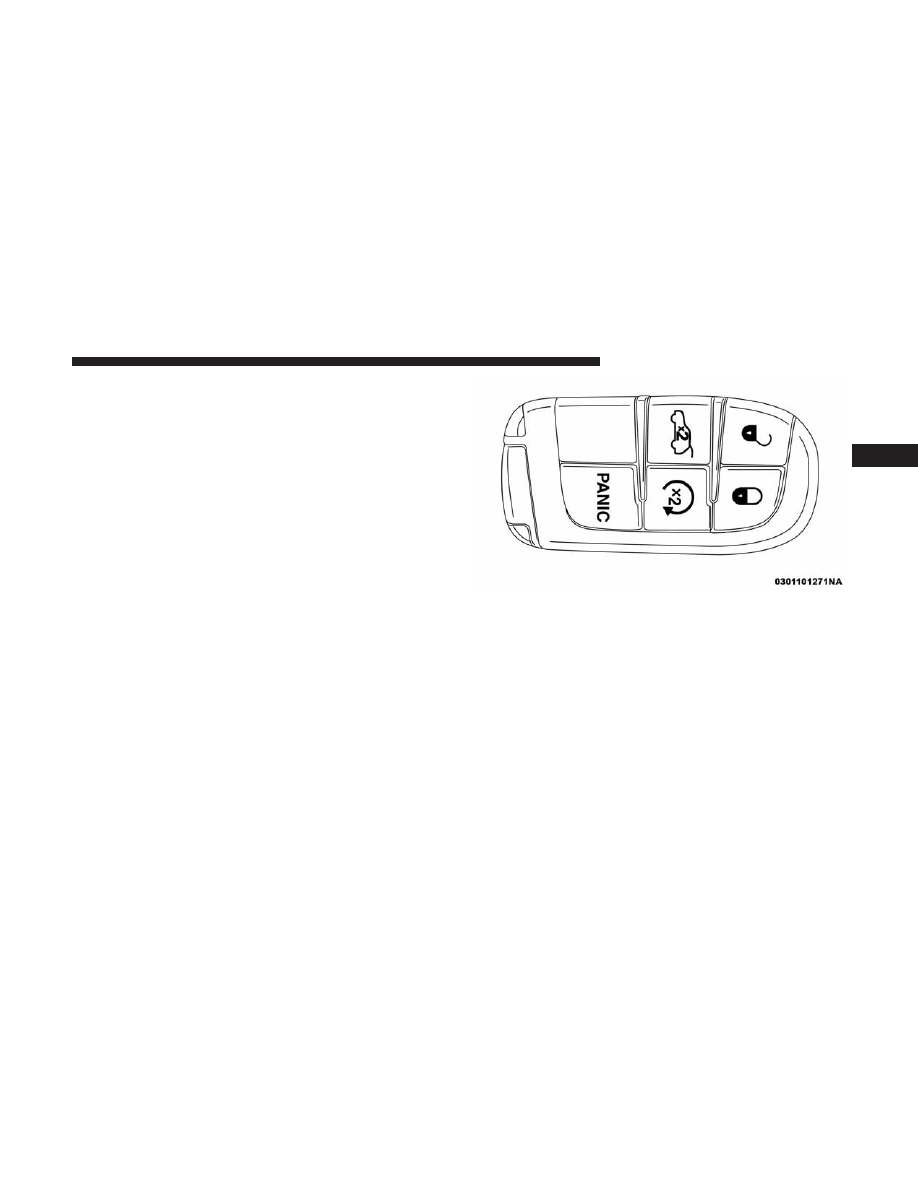

Key Fob

GETTING TO KNOW YOUR VEHICLE

NOTE:

In case the ignition switch does not change with the

push of a button, the key fob may have a low or dead
battery. In this situation, a back up method can be used to
operate the ignition switch. Put the nose side of the key fob
(side opposite of the Emergency Key) against the ENGINE
START/STOP button and push to operate the ignition
switch.

To Unlock The Doors And Liftgate

Push the interior door unlock button on the door panel.

Push and release the unlock button on the key fob once to
unlock the driver’s door or twice within five seconds to
unlock all doors and the liftgate.

All doors can be programmed to unlock on the first push of
the unlock button. Refer to “Uconnect Settings” in “Multi-
media” for further information.

The turn signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will be activated.

1st Push Of Key Fob Unlock Button

This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the unlock
button on the key fob. To change the current setting, refer
to “Uconnect Settings” in “Multimedia” for further infor-
mation.

NOTE:

If the vehicle is equipped with Passive Entry, refer

to “Keyless Enter-N-Go — Passive Entry” located in
“Doors” in “Getting To Know Your Vehicle” for further
information.

To Lock The Doors And Liftgate

Push and release the lock button on the key fob to lock all
doors and liftgate.

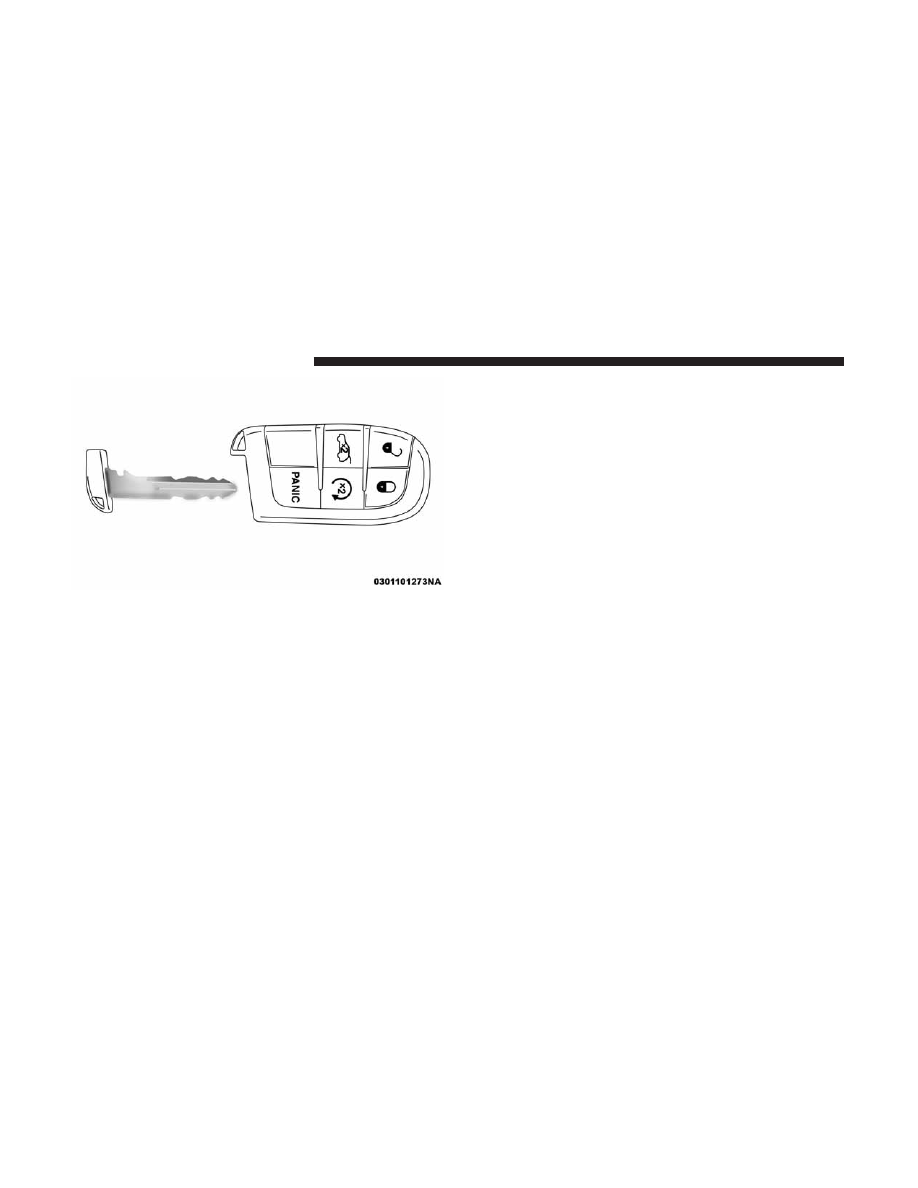

Key Fob With Emergency Key

GETTING TO KNOW YOUR VEHICLE

The turn signal lights will flash and the horn will chirp to
acknowledge the signal. Refer to “Uconnect Settings”
located in “Multimedia” for further programmable infor-
mation.

If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” located in “Doors”
in “Getting To Know Your Vehicle” for further information.

If one or more doors are open, or the liftgate is open, the
doors will lock. The doors will unlock again automatically
if the key is left inside the passenger compartment, other-
wise the doors will stay locked.

Replacing The Battery In The Key With Remote
Control

The recommended replacement battery is one CR2032
battery.

NOTE:
• Perchlorate Material — special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate for fur-
ther information.

• Do not touch the battery terminals that are on the back

housing or the printed circuit board.

1. Remove the emergency key by sliding the mechanical

latch on the back of the key fob sideways with your
thumb and pull the emergency key out with your other
hand.

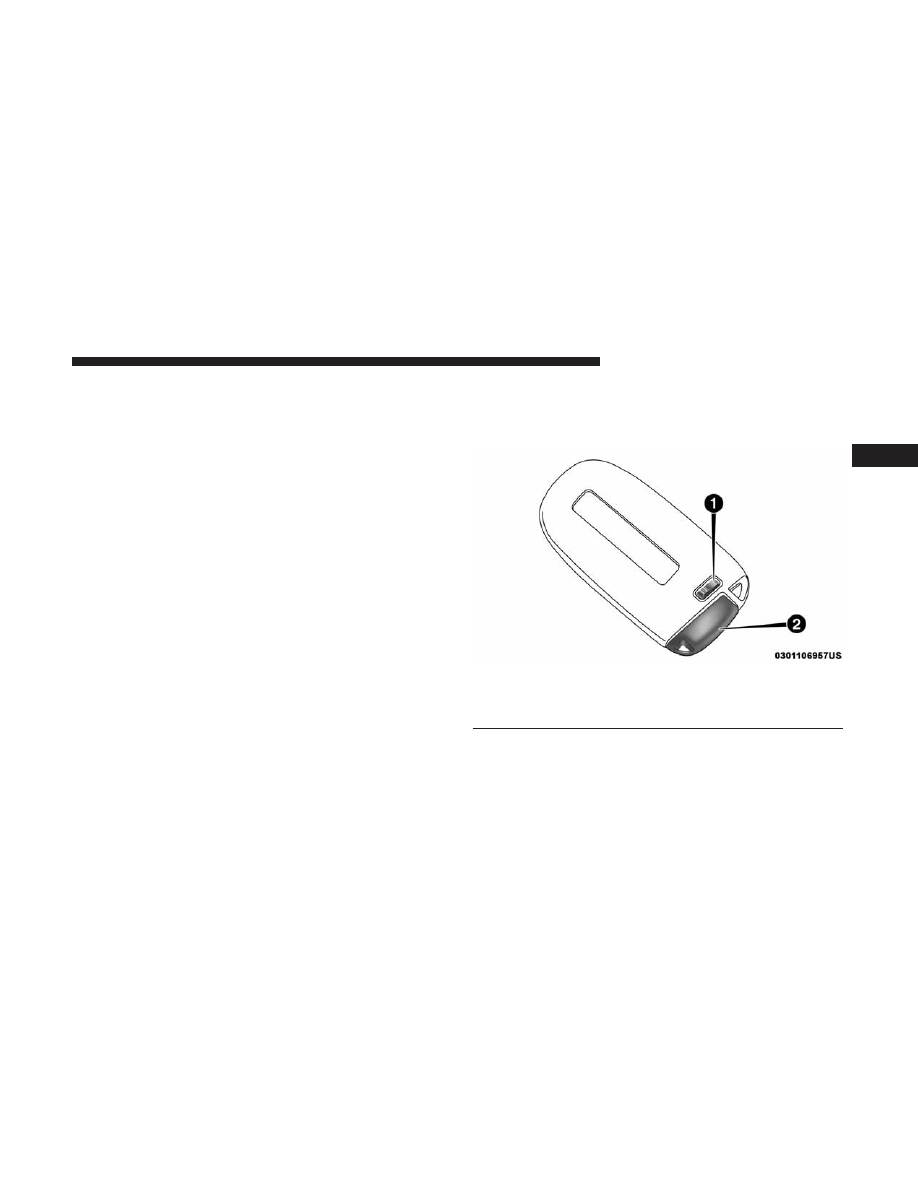

Emergency Key Removal

1 — Emergency Key Release Button
2 — Emergency Key

GETTING TO KNOW YOUR VEHICLE

2. Separate the key fob halves using the tip of the emer-

gency key, a #2 flat blade screwdriver, or a coin and
gently pry the two halves of the key fob apart. Make
sure not to damage the seal during removal.

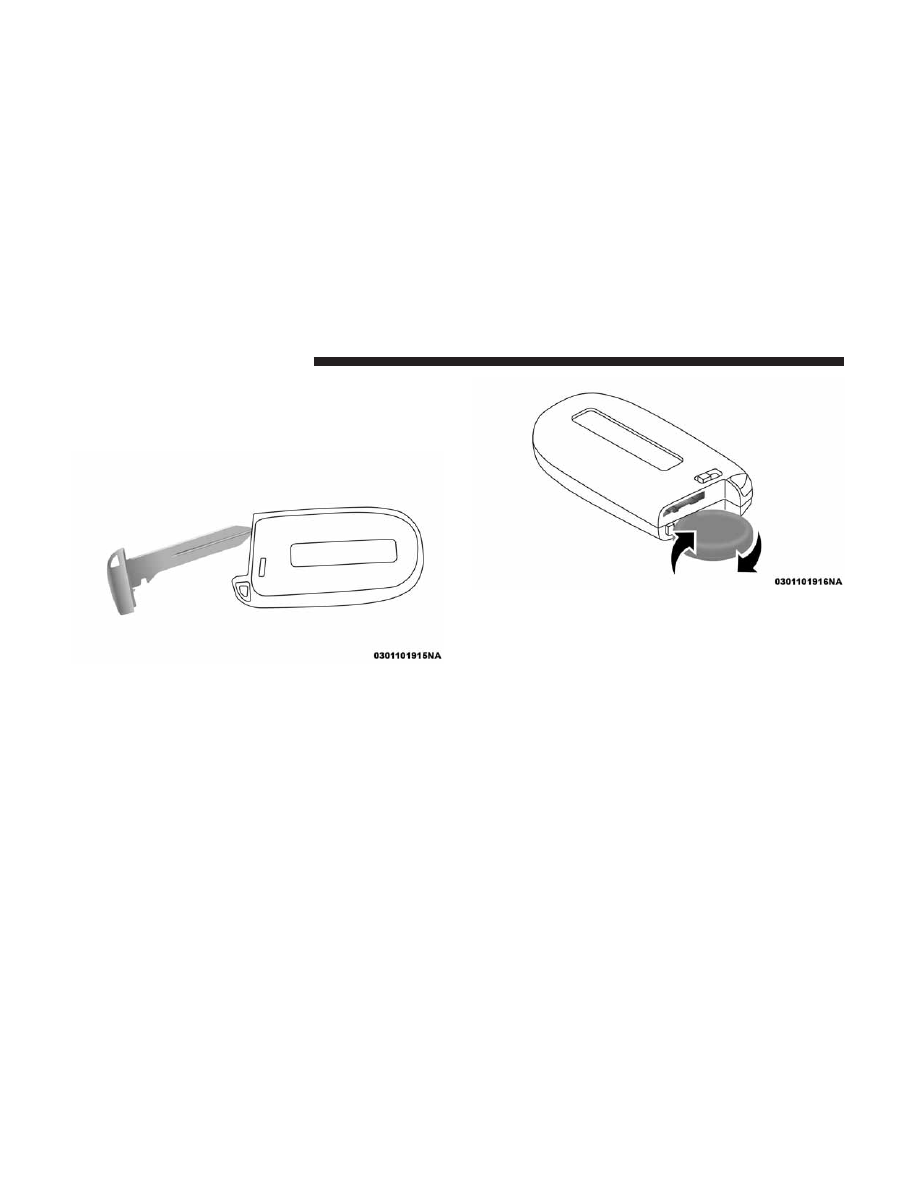

Emergency Key Removal

Separating Case With A Coin

GETTING TO KNOW YOUR VEHICLE

3. Remove the battery by turning the back cover over

(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar and replace the
battery. When replacing the battery, match the + sign on
the battery to the + sign on the inside of the battery clip,
located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with
rubbing alcohol.

4. To assemble the key fob case, snap the two halves

together.

Programming Additional Key Fobs

Programming the key fob may be performed by your
authorized dealer.

Request For Additional Key Fobs

NOTE:

Only key fobs that are programmed to the vehicle

electronics can be used to start and operate the vehicle.
Once a key fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.

WARNING!

• Always remove the key fobs from the vehicle and

lock all doors when leaving the vehicle unattended.

• Always remember to place the ignition in the OFF

mode.

Duplication of key fobs may be performed at an authorized
dealer. This procedure consists of programming a blank
key fob to the vehicle electronics. A blank key fob is one
that has never been programmed.

NOTE:

When having the Sentry Key Immobilizer System

serviced, bring all vehicle keys with you to an authorized
dealer.

Key Fob Battery Replacement

GETTING TO KNOW YOUR VEHICLE

NOTE:

Black keys (6.4L) must be replaced with black keys

and Red Keys (6.2L) must be replaced with Red Keys.

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

IGNITION SWITCH

Keyless Enter-N-Go — Ignition

This feature allows the driver to operate the ignition switch
with the push of a button as long as the key fob is in the
passenger compartment.

The Keyless Push Button Ignition has four operating
modes which are labeled and will illuminate when in
position. The three positions are OFF, ACC, RUN, and
START.

NOTE:

If the ignition switch does not change with the

push of a button, the key fob may have a low or dead
battery. In this situation, a back up method can be used to
operate the ignition switch. Put the nose side (side opposite
of the emergency key) of the key fob against the ENGINE
START/STOP button and push to operate the ignition
switch.

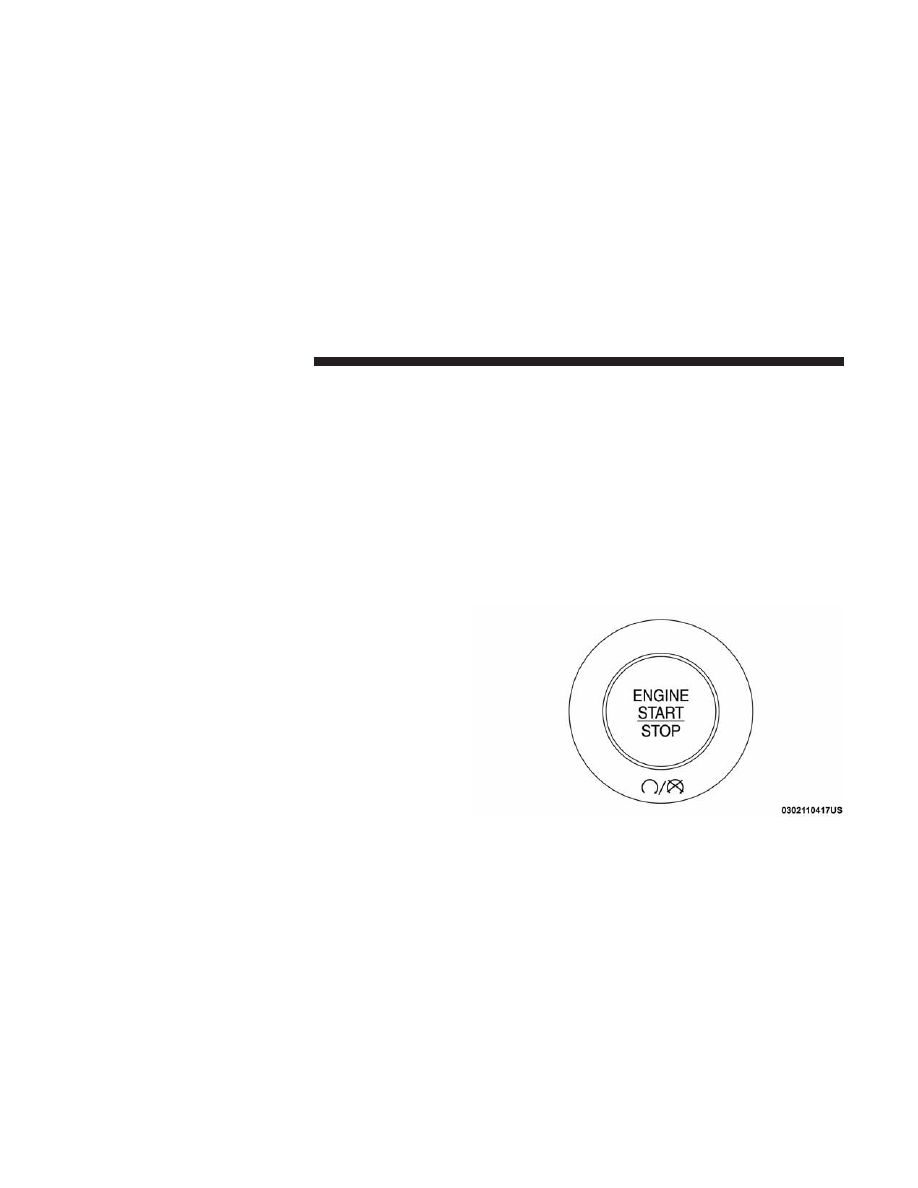

START/STOP Ignition Button

GETTING TO KNOW YOUR VEHICLE

The push button ignition can be placed in the following
modes:

OFF
• The engine is stopped.
• Some electrical devices (e.g. Central locking, alarm, etc.)

are still available.

ACC
• Engine is not started.
• Some electrical devices are available.
RUN
• Driving position.
• All the electrical devices are available.
START
• The engine will start.

WARNING!

• When exiting the vehicle, always remove the key fob

from the vehicle and lock your vehicle.

(Continued)

WARNING! (Continued)

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

• Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.

• Do not leave the key fob in or near the vehicle, or in

a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.

• Do not leave children or animals inside parked

vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves. Al-
ways remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.

NOTE:

Refer to

⬙Starting The Engine,⬙ in ⬙Starting And

Operating

⬙ for further information.

GETTING TO KNOW YOUR VEHICLE

Vehicle On Message

When opening the driver’s door when the ignition is in
RUN (engine not running), a chime will sound to remind
you to place the ignition in the OFF position. In addition to
the chime, the message will display “Ignition Or Accessory
On” in the cluster.

NOTE:

The power window switches and power sunroof (if

equipped) will remain active up to ten minutes after the
ignition is cycled to the OFF position. Opening either front
door will cancel this feature. The time for this feature is
programmable.

WARNING!

• Before exiting a vehicle, always come to a complete

stop, then shift the automatic transmission into
PARK, apply the parking brake, place the engine in
the OFF position, remove the key fob from the
vehicle and lock your vehicle. If equipped with
Keyless Enter-N-Go, always make sure the keyless
ignition is in “OFF” position, remove the key fob
from the vehicle and lock the vehicle.

(Continued)

WARNING! (Continued)

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

• Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.

• Do not leave the key fob in or near the vehicle, or in

• Do not leave children or animals inside parked

vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves. Al-
ways remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.

GETTING TO KNOW YOUR VEHICLE

REMOTE STARTING SYSTEM — IF EQUIPPED

This system uses the key fob to start the engine
conveniently from outside the vehicle while still
maintaining security. The system has a range of
328 ft (100 m).

The Remote Starting System also activates the Climate
Control, vented seats (if equipped) in temperatures above
80° F (26.7° C), and the optional heated seats, and optional
heated steering wheel in temperatures below 40° F (4.4° C).
Refer to “Front Heated Seats” and “Front Ventilated Seats”
in “Seats” in this section for further information.

NOTE:
• The vehicle must be equipped with an automatic trans-

mission to be equipped with Remote Start.

• Obstructions between the vehicle and key fob may

reduce this range.

WARNING!

• Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.

• Keep key fobs away from children. Operation of the

Remote Start System, windows, door locks or other
controls could cause serious injury or death.

How To Use Remote Start

• Push Remote Start button on the key fob twice within

five seconds. Pushing the Remote Start button a third
time shuts the engine off.

• With remote start, the engine will only run for 15

minutes (time out) unless the ignition is placed in the
ON/RUN position.

• The vehicle must be manually started with a push of the

ignition START/STOP button after two consecutive time
outs.

GETTING TO KNOW YOUR VEHICLE

All of the following conditions must be met before the
engine will remote start:
• Gear Selector in PARK
• Doors closed
• Hood closed
• Liftgate closed
• Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• PANIC button not pushed
• System not disabled from previous remote start event
• Vehicle alarm system indicator flashing
• Ignition in STOP/OFF position
• Fuel level meets minimum requirement

WARNING!

• Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.

• Keep key fobs away from children. Operation of the

Remote Start System, windows, door locks or other
controls could cause serious injury or death.

Remote Start Abort Message

The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Cancelled — Door Open
• Remote Start Cancelled — Hood Open
• Remote Start Cancelled — Fuel Low
• Remote Start Aborted Timer Expired
• Remote Start Aborted Liftgate Open
• Remote Start Disabled — Start Vehicle To Reset

GETTING TO KNOW YOUR VEHICLE

The instrument cluster display message stays active until
the ignition is turned to the ON/RUN position.

To Enter Remote Start Mode

Push and release the Remote Start button on the key fob
twice within five seconds. The vehicle doors will lock, the
turn signals will flash twice, and the horn will chirp twice.
Then the engine will start, and the vehicle will remain in
the Remote Start mode for a 15-minute cycle.

NOTE:
• If an engine fault is present or fuel level is low, the

vehicle will start and then shut down in 10 seconds.

• The park lamps will turn on and remain on during

Remote Start mode.

• For security, power window operation is disabled when

the vehicle is in the Remote Start mode.

• The engine can be started two consecutive times (two

15-minute cycles) with the key fob. However, the igni-
tion must be placed in the ON/RUN position before you
can repeat the start sequence for a third cycle.

To Exit Remote Start Mode Without Driving The
Vehicle

Push and release the Remote Start button one time or allow
the remote start cycle to complete the entire 15-minute
cycle.

NOTE:

To avoid unintentional shutdowns, the system will

disable the one time push of the Remote Start button for
two seconds after receiving a valid Remote Start request.

To Exit Remote Start Mode And Drive The Vehicle

Before the end of 15-minute cycle, push and release the
unlock button on the key fob to unlock the doors, or unlock
the vehicle using Keyless Enter-N-Go — Passive Entry via
the door handles, and disarm the vehicle security alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
push and release the START/STOP button.

NOTE:

For vehicles equipped with the Keyless Enter-

N-Go — Passive Entry feature, the message “Remote Start
Active — Push Start Button” will display in the instrument
cluster display until you push the ignition START button.

GETTING TO KNOW YOUR VEHICLE

Comfort Systems — If Equipped

When Remote Start is activated, Auto-Comfort will work
anytime the temperature conditions are correct. When the
feature is enabled, regardless of Remote Start or regular
keyless start, the driver heated seat features will automati-
cally turn on in cold weather. In warm weather, the driver
vented seat feature will automatically turn on when the
Remote Start is activated. These features will stay on
through the duration of Remote Start or until the ignition is
placed in the ON/RUN position.

NOTE:

The Auto Comfort System can be activated and

deactivated through the Uconnect system. For more infor-
mation on Comfort System operation, refer to “Uconnect
Settings” in “Multimedia” for further information.

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

SENTRY KEY

The Sentry Key Immobilizer system prevents unauthorized
vehicle operation by disabling the engine. The system does
not need to be armed or activated. Operation is automatic,
regardless of whether the vehicle is locked or unlocked.

The system uses a key fob, keyless push button ignition
and a RF receiver to prevent unauthorized vehicle opera-
tion. Therefore, only key fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will not allow the engine to crank if an invalid key
fob is used to start and operate the vehicle. The system will
shut the engine off in two seconds if an invalid key fob is
used to start the engine.

After turning the ignition switch to the ON/RUN position,
the vehicle security light will turn on for three seconds for
a bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In

GETTING TO KNOW YOUR VEHICLE

addition, if the light begins to flash after the bulb check, it
indicates that someone used an invalid key fob to start the
engine. Either of these conditions will result in the engine
being shut off after two seconds.

If the vehicle security light turns on during normal vehicle
operation (vehicle running for longer than ten seconds), it
indicates that there is a fault in the electronics. Should this
occur, have the vehicle serviced as soon as possible by your
authorized dealer.

CAUTION!

The Sentry Key Immobilizer system is not compatible
with some aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.

All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics.

Customer Key Programming

Programming key fobs may be performed at your autho-
rized dealer.

Replacement Keys

NOTE:

Only key fobs that are programmed to the vehicle

electronics can be used to start and operate the vehicle.
Once a key fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.

CAUTION!

• Always remove the key fobs from the vehicle and

lock all doors when leaving the vehicle unattended.

• For vehicles equipped with Keyless Enter-N-Go —

Ignition, always remember to place the ignition in
the OFF position.

NOTE:

Duplication of key fobs may be performed at an

authorized dealer. This procedure consists of programming
a blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.

When having the Sentry Key Immobilizer System serviced,
bring all vehicle keys with you to an authorized dealer.

Irregular Operation

The system uses a key fob, an Ignition Node Module,
Keyless Push Button Ignition and a RF receiver to prevent
unauthorized vehicle operation. Therefore, only key fobs

GETTING TO KNOW YOUR VEHICLE

Content .. 1 2 3 ..
