NOTE:
• If the window runs into any obstacle during auto-

closure, it will reverse direction and then go back down.
Remove the obstacle and use the window switch again
to close the window.

• Any impact due to rough road conditions may trigger

the auto-reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly and hold
to close the window manually.

WARNING!

There is no anti-pinch protection when the window is
almost closed. To avoid personal injury be sure to clear
your arms, hands, fingers and all objects from the
window path before closing.

Reset Auto-Up

Should the Auto-Up feature stop working, the window
probably needs to be reset. To reset Auto-Up:

1. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

2. Push the window switch down firmly to open the

window completely and continue to hold the switch
down for an additional two seconds after the window is
fully open.

100

GETTING TO KNOW YOUR VEHICLE

Window Lockout Switch

The window lockout switch on the driver’s door trim panel
allows you to disable the window controls on the rear
passenger doors. To disable the window controls, push and
release the window lockout button (the indicator light on
the button with turn on). To enable the window controls,
push and release the window lockout button again (the
indicator light on the button will turn back off).

POWER SUNROOF WITH POWER SHADE — IF
EQUIPPED

The power sunroof switches are located to the left between
the sun visors on the overhead console.

Power Window Lockout Switch

Power Sunroof Switches

GETTING TO KNOW YOUR VEHICLE

101

The power shade switches are located to the right between
the sun visors on the overhead console.

WARNING!

• Never leave children unattended in a vehicle, or with

access to an unlocked vehicle. Never leave the key
fob in or near the vehicle, or in a location accessible
to children. Do not leave the ignition of a vehicle
equipped with Keyless Enter-N-Go in the ACC or
ON/RUN mode. Occupants, particularly unattended
children, can become entrapped by the power sun-
roof while operating the power sunroof switch. Such
entrapment may result in serious injury or death.

• In a collision, there is a greater risk of being thrown

from a vehicle with an open sunroof. You could also
be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are
also properly secured.

• Do not allow small children to operate the sunroof.

Never allow your fingers, other body parts, or any
object, to project through the sunroof opening. In-
jury may result.

Power Shade Switches

102

GETTING TO KNOW YOUR VEHICLE

Opening Sunroof

The sunroof has two programmed open positions, comfort
stop position and full open position. The comfort stop
position is set to minimize wind buffeting when driving
with side windows closed and sunroof open. If the sun-
shade is in the closed position when initiating a sunroof
open or vent command the sunshade will automatically
open to the half open position prior to the sunroof opening.

Express

Push the switch rearward and release it within one-half
second, the sunroof will open to the comfort stop position
and automatically stop. Push the switch rearward and
release it again, the sunroof will open to the full open
position and automatically stop. This is called “Express
Open”. During Express Open operation, any movement of
the sunroof switch will stop the sunroof.

Manual Mode

Push and hold the switch rearward, the sunroof will open
to the comfort stop position and automatically stop. Push
the switch rearward and hold it again, the sunroof will
open to the full open position and automatically stop. Any

release of the switch will stop the sunroof movement. The
sunroof will remain in a partially opened condition until
the switch is pushed and held again.

Venting Sunroof

Push and release the

⬙Vent⬙ button within one-half second

and the sunroof will open to the vent position. This is
called “Express Vent”, and it will occur regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.

Closing Sunroof

Express

Push the switch forward and release it within one-half
second and the sunroof will close automatically from any
position. The sunroof will close fully and stop automati-
cally. This is called “Express Close”. During Express Close
operation, any other actuation of the switch will stop the
sunroof.

Manual Mode

To close the sunroof, push and hold the switch in the
forward position. Any release of the switch will stop the
movement and the sunroof will remain in a partially closed
condition until the sunroof switch is pushed again.

GETTING TO KNOW YOUR VEHICLE

103

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.

Opening Power Shade

The sunshade has two programmed open positions, half
open and full open positions. When opening the sunshade
from the closed position the sunshade will always stop at
the half open position regardless of express or manual
open operation. The switch must be actuated again to
continue on to full open position.

Express

Push the sunshade switch rearward and release it within
one-half second, the sunshade will open to the half open
position and stop automatically. Push and release the
switch again from the half open position and the sunshade
will open to the full open position and stop automatically.
This is called “Express Open”. During Express Open
operation, any movement of the sunshade switch will stop
the shade.

Manual Mode

Push and hold the sunshade switch rearward, the shade
will open to the half open position and stop automatically.
Push and hold the sunshade switch rearward again and the
shade will open automatically to the full-open position.
Any release of the switch will stop the movement and the
sunshade will remain in a partially opened condition until
the switch is pushed again.

Closing Power Shade

If the sunroof is open or vented the sunshade cannot be
closed beyond the half open position. Pressing the sun-
shade close switch when the sunroof is open/vented and
the sunshade is at half open position will first automati-
cally close sunroof prior to the sunshade closing.

104

GETTING TO KNOW YOUR VEHICLE

Express

Push the sunshade switch forward and release it within
one-half second. If the sunroof is in closed position the
sunshade will full close automatically from any position. If
the sunroof is open or vented the sunshade will close to the
half open position and stop; push and release the sunshade
switch forward again to automatically close both the
sunroof and sunshade completely. This is called “Express
Close”. During Express Close operation, any movement of
the switch will stop the sunshade.

Manual

Push and hold the sunshade switch forward. If the sunroof
is in closed position the sunshade will full close from any
position. If the sunroof is open or vented the sunshade will
close to the half open position and stop; pushing and
holding the sunshade switch forward again will close both
the sunroof and sunshade completely. Any release of the
switch will stop the movement and the sunshade will
remain in a partially closed condition until the switch is
pushed again.

Pinch Protect Feature

This feature will detect an obstruction in the closing of the
sunroof during the Express Close operation. If an obstruc-
tion in the path of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if this oc-
curs.

NOTE:

If three consecutive sunroof close attempts result in

Pinch Protect reversals, Pinch Protect will disable and the
sunroof must be closed in Manual Mode.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.

Ignition Off Operation

The power sunroof switch will remain active for up to
approximately 10 minutes after the ignition switch is
turned to the OFF/LOCK position. Opening either front
door will cancel this feature.

NOTE:

Ignition Off time is programmable through the

Uconnect System. Refer to “Uconnect Settings” in “Multi-
media” for further information.

GETTING TO KNOW YOUR VEHICLE

105

HOOD

Opening The Hood

Two latches must be released to open the hood.

1. Pull the hood release lever located under the driver’s

side of the instrument panel.

2. Move to the outside of the vehicle and pull the safety

latch release lever forward (toward you). The safety
latch release lever is located behind the front edge of the
hood, slightly off-center to the right.

Hood Release

Hood Safety Latch Release Lever Location

106

GETTING TO KNOW YOUR VEHICLE

Closing The Hood

Lower the hood to approximately 12 inches (30 cm) from
the engine compartment and drop it. Make sure that the
hood is completely closed.

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

CAUTION!

To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless
hood is fully closed, with both latches engaged.

LIFTGATE

Opening

To Unlock/Open The Liftgate

The power liftgate may be opened by pushing the elec-
tronic liftgate release switch (refer to “Keyless Enter-N-Go
— Passive Entry” located in “Getting To Know Your
Vehicle”) or by pushing the liftgate button on the key fob.
Push the liftgate button on the key fob twice within five
seconds to open the power liftgate. Once the liftgate is
open, pushing the button twice within five seconds a
second time will close the liftgate.

The power liftgate may also be opened or closed by
pushing the liftgate button located on the instrument panel
to right of the headlight control switch assembly. If the
liftgate is fully open, the liftgate can be closed by pushing
the liftgate button located on the left rear trim panel, near
the liftgate opening. If the liftgate is in motion, pushing the
liftgate button located on the left rear trim panel will
reverse the liftgate.

The liftgate passive entry unlock feature is built into the
electronic liftgate release switch. With a valid Passive Entry
key fob within 5 ft (1.5 m) of the liftgate, push the electronic
liftgate release switch to open with one fluid motion.

GETTING TO KNOW YOUR VEHICLE

107

NOTE:

If “Unlock All Doors 1st Press” is programmed in

instrument cluster display, all doors will unlock when you
push the electronic release on the liftgate. If

⬙Unlock Driver

Door 1st Press

⬙ is programmed in Uconnect, the liftgate

will unlock when you push the electronic release on the
liftgate. Refer to “Uconnect Settings” in “Multimedia” for
further information.

NOTE:
• Use the power door lock switch on either front door trim

panel or the key fob to lock and unlock the liftgate.

• The manual door locks on the doors and the driver’s

door lock cylinder will not lock and unlock the liftgate.

• Power Liftgate Malfunction Procedure

1. In the event of a power malfunction to the liftgate, the

liftgate can be released by accessing the service
release feature in the latch. This can be done using a
a 3 mm diameter screwdriver.

2. From inside the gate, an eyelet can be seen. Place the

screwdriver in the eyelet.

3. Rotate the screwdriver handle to actuate the lever

and release the latch.

• If liftgate is left open for an extended period of time, the

liftgate may need to be closed manually to reset power
liftgate functionality.

NOTE:

The liftgate can also be opened manually by

pushing the liftgate release and pulling upward in one
fluid motion.

Liftgate Entry

108

GETTING TO KNOW YOUR VEHICLE

WARNING!

Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your passen-
gers could be injured by these fumes. Keep the liftgate
closed when you are operating the vehicle.

Closing

There are several different ways to close the liftgate:
• Manually by grasping the liftgate closing handle and

initiate lowering the liftgate. Release the handle when
the liftgate takes over the closing effort.

• Key Fob
• Hands-Free
• Liftgate Instrument Panel Button
• Power Liftgate Button On The Pillar In The Cargo Area
To Lock The Liftgate

With a valid Passive Entry key fob within 5 ft (1.5 m) of the
liftgate, pushing the Keyless Enter-N-Go — Passive Entry
lock/push button located to the left of the back-up camera
will lock the vehicle only.

The power liftgate may be closed by pushing the button,
located in the upper left trim in the liftgate opening.
Pushing button will only close the liftgate. This button
cannot be used to open the liftgate.

NOTE:

The liftgate unlock feature is built into the elec-

tronic liftgate release.

Hands-Free Liftgate — If Equipped

To open or close the liftgate using hands-free activation,
use a straight in and out kicking motion under the vehicle
activation zone in the general location below the rear

Hands-Free Liftgate Activation Zone

GETTING TO KNOW YOUR VEHICLE

109

license plate. Do not move your foot sideways or in a
sweeping motion or the sensors may not detect the motion.

NOTE:

Activation zone is the same for vehicles equipped

with and without trailer tow package.

When a valid kicking motion is completed, the liftgate will
chime, the hazard lights will flash and the liftgate will open
after approximately one second, or close after approxi-
mately three seconds. This assumes all options are enabled
in the radio.

NOTE:
• Opening or closing the Hands-Free Liftgate requires a

valid Passive Entry key fob within 5 ft (1.5 m) of the door
handle. If a valid Passive Entry key fob is not within 5 ft
(1.5 m), the liftgate will not respond to any kicks.

• The Hands-Free Liftgate feature may be turned on or off

in Uconnect Settings. Refer to “Uconnect Settings” in
“Multimedia” for further information. The Hands-Free
Liftgate feature should be turned off during Jacking, Tire
Changing, Manual Car Wash, and Vehicle Service.

NOTE:

The Hands-free liftgate feature can be activated by

any metallic object making a similar in-and-out motion
under the rear bumper, such as cleaning using a metal
broom.

NOTE:
• The Hands-Free Liftgate will only operate when the

transmission is in PARK.

• If anything obstructs the Hands-Free liftgate while it is

opening or closing, the liftgate will automatically re-
verse to the closed/open position, provided it meets
sufficient resistance.

• There are pinch sensors attached to the side of the

liftgate opening. Light pressure anywhere along these
strips will cause the liftgate to return to the open
position.

• If the power liftgate encounters multiple obstructions

within the same cycle, the system will automatically
stop. If this occurs, the liftgate must be operated manu-
ally.

• The power liftgate will release, but not power open, in

temperatures below −12° F (−24° C). Be sure to remove
any buildup of snow or ice from the liftgate before
opening the liftgate.

• If the liftgate is left open for an extended period of time,

the liftgate may need to be closed manually to reset
power liftgate functionality.

110

GETTING TO KNOW YOUR VEHICLE

WARNING!

• Driving with the liftgate open can allow poisonous

exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.

• If you are required to drive with the liftgate open,

make sure that all windows are closed, and the
climate control blower switch is set at high speed. Do
not use the recirculation mode.

Gas props support the liftgate in the open position. How-
ever, because the gas pressure drops with temperature, it
may be necessary to assist the props when opening the
liftgate in cold weather.

NOTE:

Allow the power system to open the liftgate.

Manually pushing or pulling the liftgate may activate the
liftgate obstacle detection feature and stop the power
operation or reverse its direction.

WARNING!

During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.

Cargo Area Features

Cargo Load Floor

The cargo load floor system has a load capacity of 400 lbs
(181 kg).

To provide additional storage area, each rear seat can be
folded flat. This allows for extended cargo space and still
maintains some rear seating room. Refer to “Seats” in this
section for further information.

Cargo Extension Panels

Cargo extension panels can be folded and unfolded. When
the rear seats are moved to the more forward positions and
the rear seat backs are folded down, the extension panels
(2) can be unfolded manually by hand. The extension
panels can be used to extend the load floor to the rear seats
and/or hide the gap between the load floor and rear seats
or to assist in loading large items into the cargo area.

GETTING TO KNOW YOUR VEHICLE

111

Cargo Tie-Down Hooks And Loops

The tie-downs located on the cargo area floor should be
used to secure loads safely when the vehicle is moving.

Cargo tie-down loops are located on the trim panels.

WARNING!

• Cargo tie-downs are not safe anchors for a child seat

tether strap. In a sudden stop or accident, a tie-down
could pull loose and allow the child seat to come
loose. A child could be badly injured. Use only the
anchors provided for child seat tethers.

• To help protect against personal injury, passengers

should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.

The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your ve-
hicle:

(Continued)

WARNING! (Continued)

• Do not carry loads that exceed the load limits de-

scribed on the label attached to the left door or left
door center pillar.

• Always place cargo evenly on the cargo floor. Put

heavier objects as low and as far forward as possible.

• Place as much cargo as possible in front of the rear

axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the vehicle to
sway.

• Do not pile luggage or cargo higher than the top of

the seatback. This could impair visibility or become
a dangerous projectile in a sudden stop or accident.

112

GETTING TO KNOW YOUR VEHICLE

Rear Storage Bins

The rear storage bins are located in the rear of the vehicle
on the sides of the load floor.

GARAGE DOOR OPENER — IF EQUIPPED

HomeLink replaces up to three hand-held transmitters that
operate devices such as garage door openers, motorized
gates, lighting or home security systems. The HomeLink
unit is powered by your vehicle’s 12 Volt battery.

The HomeLink buttons, located on the driver’s side sun
visor, designate the three different HomeLink channels.
The HomeLink indicator is located above the center button.

NOTE:

HomeLink is disabled when the Vehicle Security

Alarm is active.

Before You Begin Programming HomeLink

Be sure that your vehicle is parked outside of the garage
before you begin programming.

For more efficient programming and accurate transmission
of the radio-frequency signal it is recommended that a new
battery be placed in the hand-held transmitter of the device
that is being programmed to the HomeLink system.

Rear Storage Bins

HomeLink Buttons On Sun Visor

GETTING TO KNOW YOUR VEHICLE

113

To erase the channels, place the ignition in the ON/RUN
position, and push and hold the two outside HomeLink
buttons (I and III) for up to 20 seconds or until the orange
indicator flashes.

NOTE:
• Erasing all channels should only be performed when

programming HomeLink for the first time. Do not erase
channels when programming additional buttons.

• If you have any problems, or require assistance, please

call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.

Programming A Rolling Code

For programming garage door openers that were manufac-
tured after 1995. These garage door openers can be identi-
fied by the “LEARN” or “TRAIN” button located where
the hanging antenna is attached to the garage door opener.

NOTE:

It is NOT the button that is normally used to open

and close the door. The name and color of the button may
vary by manufacturer.

1. Place the ignition in the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Push and hold the HomeLink button you want to

program while you push and hold the hand-held trans-
mitter button.

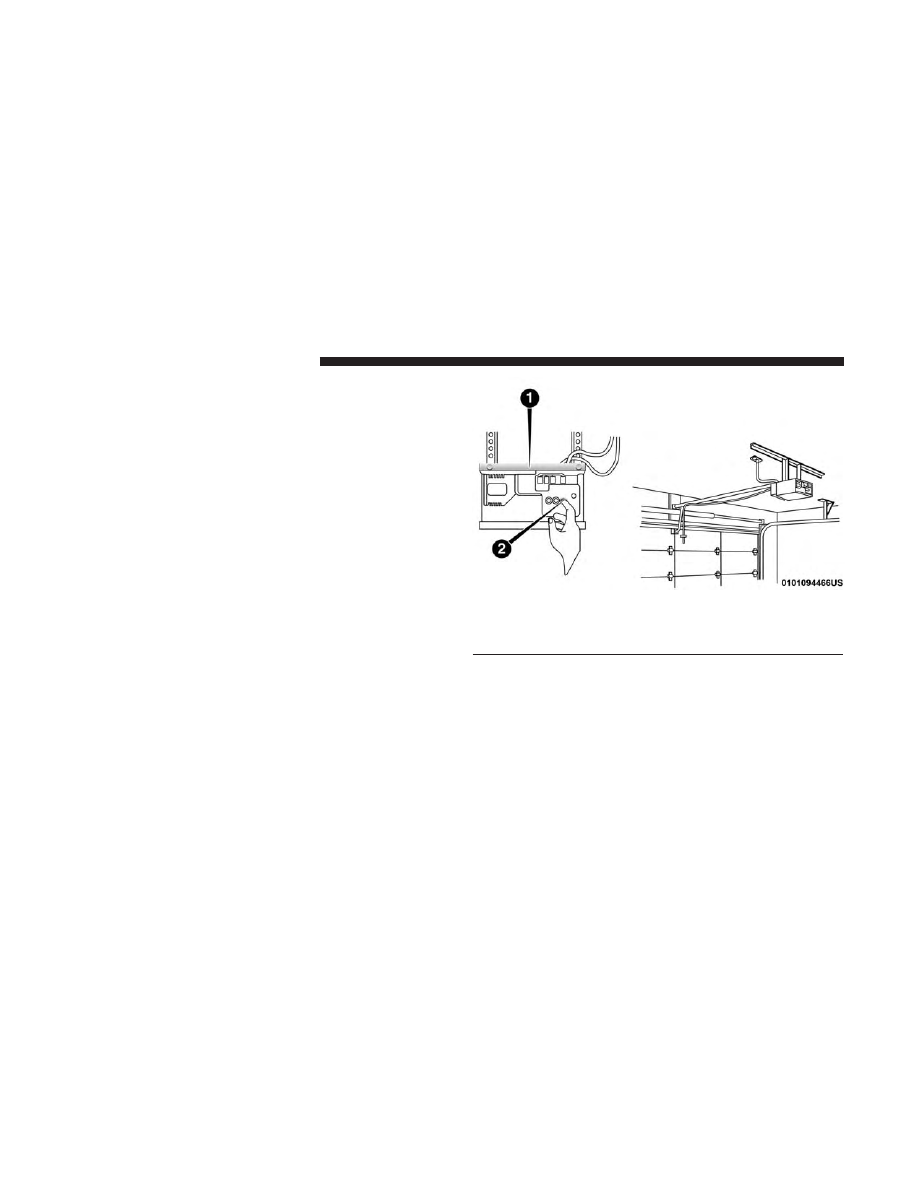

Training The Garage Door Opener

1 — Door Opener
2 — Training Button

114

GETTING TO KNOW YOUR VEHICLE

4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and
then rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

5. At the garage door opener motor (in the garage), locate

the “LEARN” or “TRAINING” button. This can usually
be found where the hanging antenna wire is attached to
the garage door opener/device motor. Firmly push and
release the “LEARN” or “TRAINING” button. On some
garage door openers/devices there may be a light that
blinks when the garage door opener/device is in the
LEARN/TRAIN mode.

NOTE:

You have 30 seconds in which to initiate the next

step after the LEARN button has been pushed.

6. Return to the vehicle and push the programmed

HomeLink button twice (holding the button for two
seconds each time). If the garage door opener/device
activates, programming is complete.

NOTE:

If the garage door opener/device does not activate,

push the button a third time (for two seconds) to complete
the training.

To program the remaining two HomeLink buttons, repeat
each step for each remaining button. DO NOT erase the
channels.

Reprogramming A Single HomeLink Button (Rolling
Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Push and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button proceed with “Program-

ming A Rolling Code” step 2 and follow all remaining
steps.

⬙

Programming A Non-Rolling Code

For programming Garage Door Openers manufactured
before 1995.

1. Cycle the ignition to the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

GETTING TO KNOW YOUR VEHICLE

115

Jeep Cherokee (2019 year). Manual - part 7
