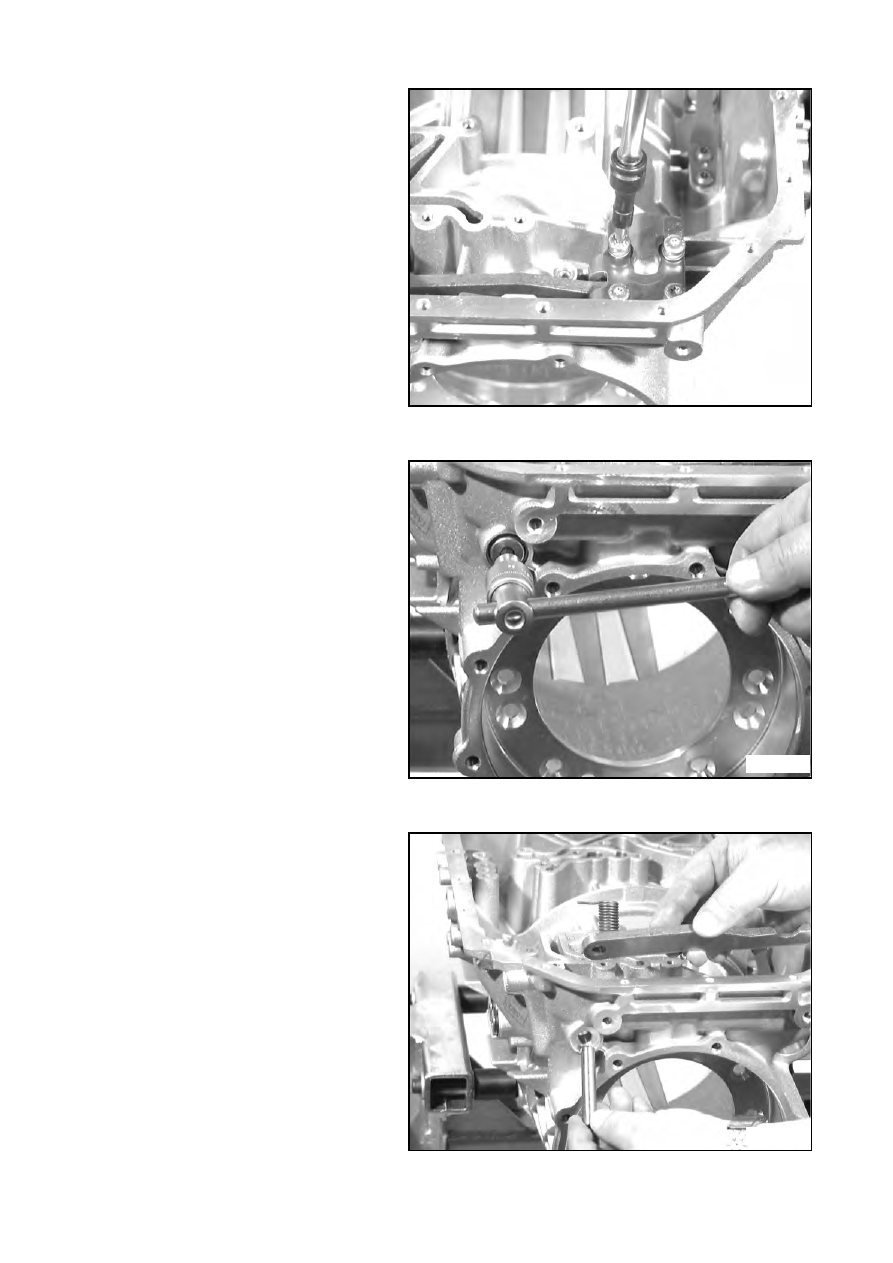

Loosen the four machine screws and
remove the guide plate.

(Wrench size = Torx - TX 27)

Remove the screw plug and sealing ring.

(Wrench size = Allen screw, 6 mm)

Lever out the bolt of the transmission
housing. Now the pawl and spring can be
removed.

2.8/2

97069

97070

97071

Supplement:

To clean the transmission housing, you
have to unscrew and remove all screw
plugs. These include:

2 screw plugs for clutch B and brake E.
(Wrench size = Allen screw, 6 mm)

1 screw plug for the converter clutch.
(Wrench size = Allen screw 5 mm)

2 plastic screw plugs from the cooler
inlet and outlet
(Wrench size = hexagonal, 17 mm)

The newer transmission housing 1058
301 082 has now only 1 screw plug
(Allen screw, 5 mm).

Note that the old transmission
housing 1058 301 077 has 7 screw plugs
(Allen screw, 5 mm).

2.8/3

3.

Assembly

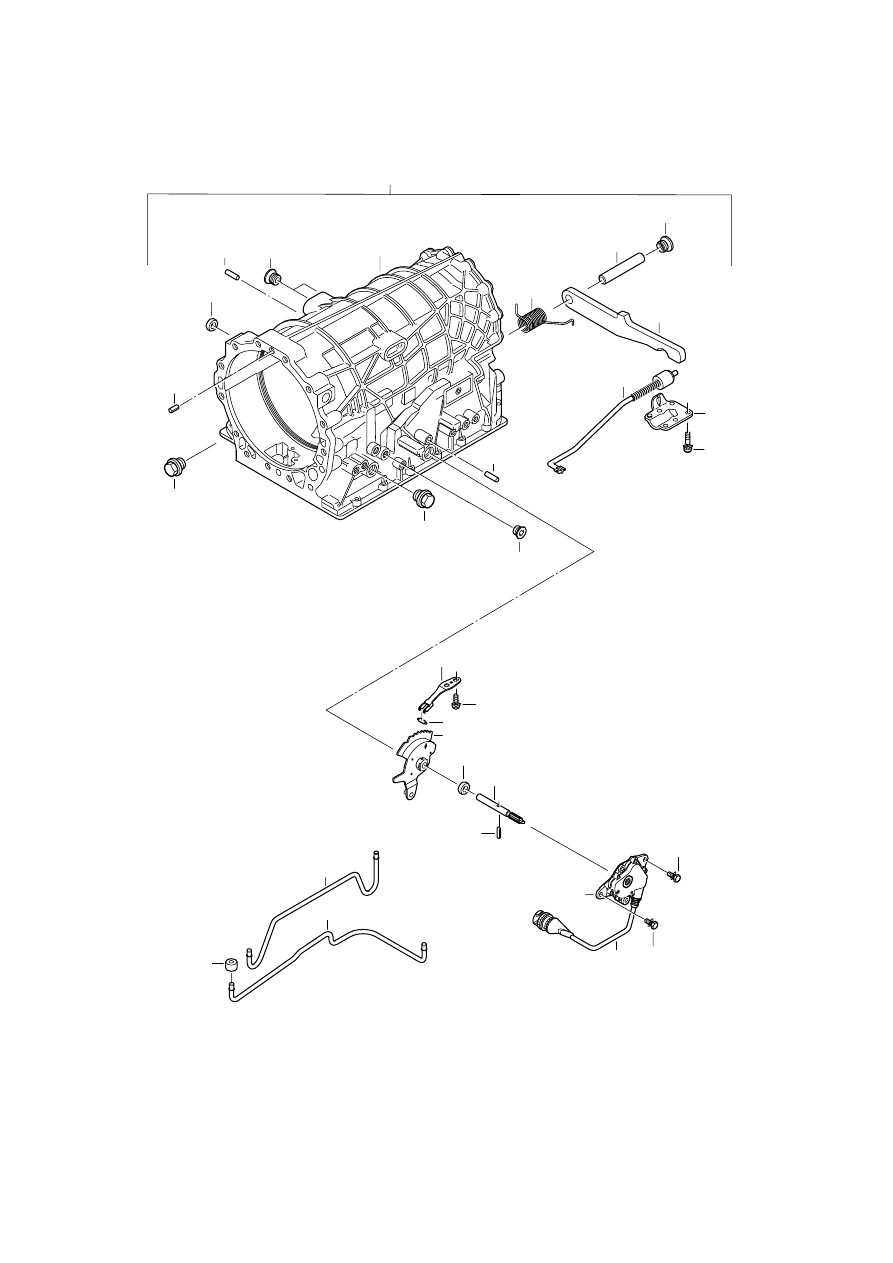

3.1 Housing with selector mechanism

and parking lock

3.1/1

/110

/210

/210

/220

/130

/180/120

/150

/180

/120

/160

/200

/120

*

*

01.010

01.020

01.090

01.040

01.050

01.060

01.080

01.070

01.650

01.480

01.620

01.590

01.210

01.240

01.230

01.110

01.100

01.130
