Jaguar 5HP24 transmission. Service manual - part 8

OBJECT

Remarks

Order No. / Application

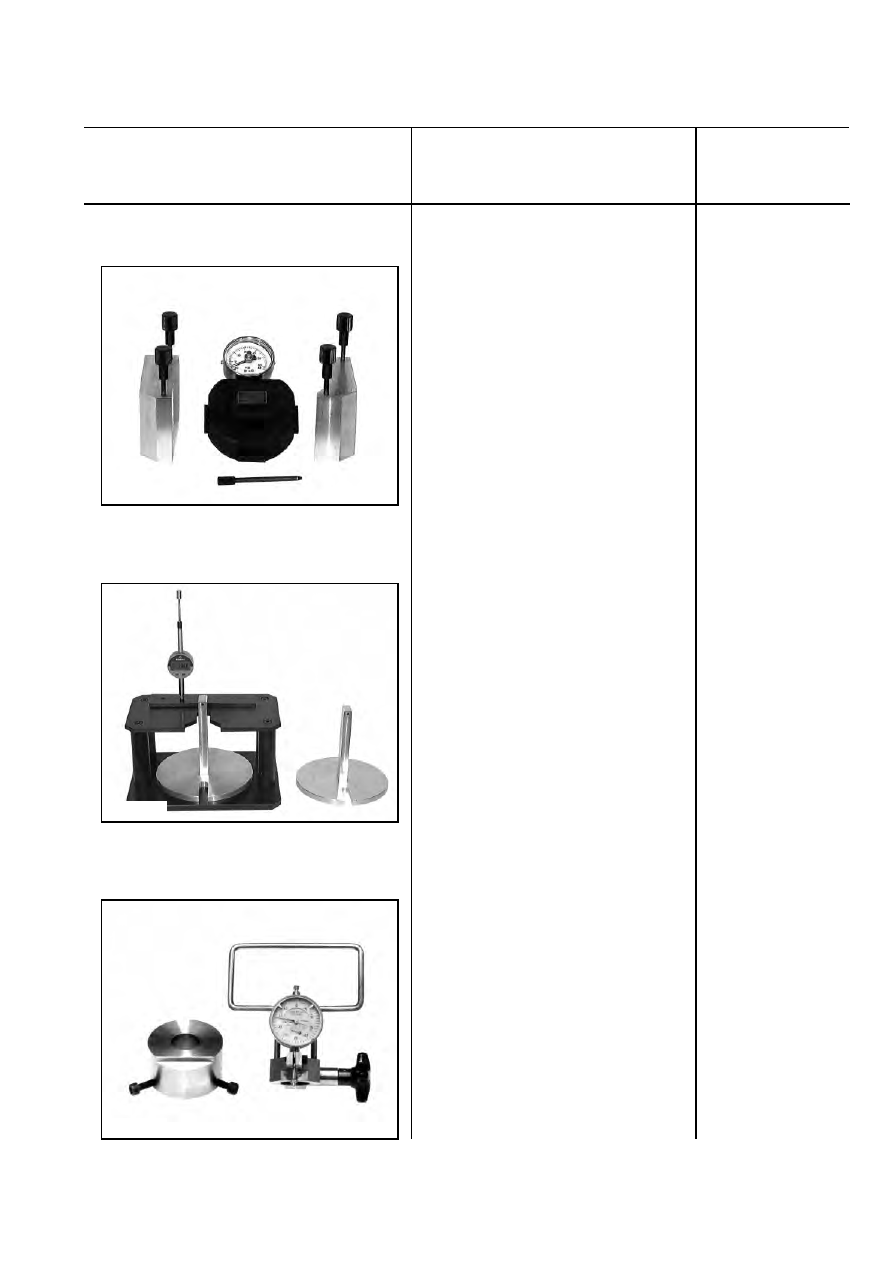

5p01 000 329
- Force measuring unit

5p01 000 330
- Measurement device for clutch

pack play

( measuring plate:

- short neck >20 mm
- long  neck <20 mm

clutch pack thickness)

5p01 001 415
- Measurement device for axial

play

1.7/1

98008

98034

82183

Identical

4 HP 22
5 HP 18
5 HP 30

1

2

3

1.7 Special tools

Order No. / Application

OBJECT

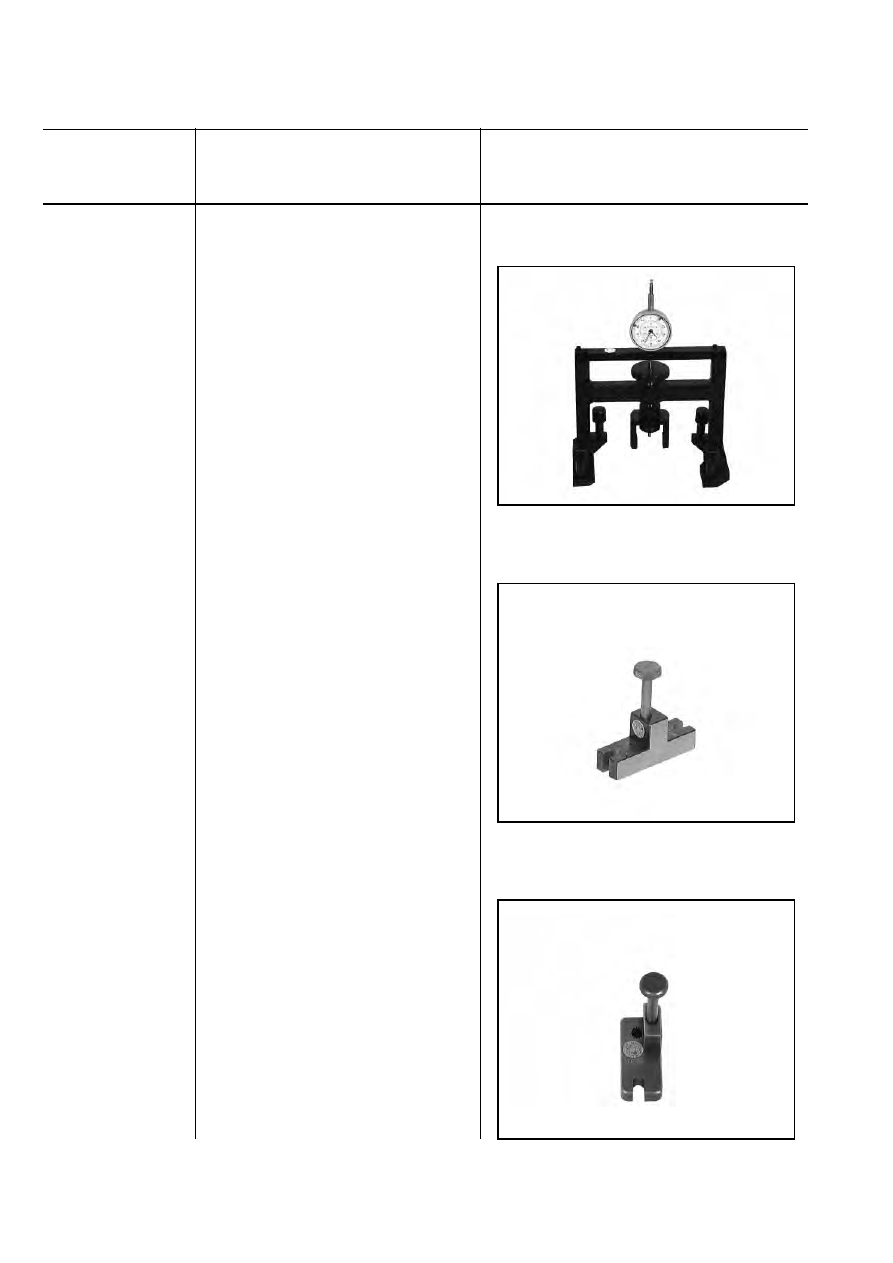

5p01 001 458
- Measurement device, bearing

play

- Measurement device, clutch

clearance (top piece)

5p01 002 567
- Adjustment tool, detent spring

(BMW transmission housings
up to #7128 (= 1058 301 072)
and all JAGUAR transmission
housings )

5p01 002 839
- Adustment tool, detent spring

(BMW transmission housing as
from transm. serial N

o

. greater

#7129 (= 1058 301 082 or
newer))

1.7/2

97301

98014

97303

Remarks

Identical

4 HP 18 Q

4

5

6

OBJECT

Remarks

Order No. / Application

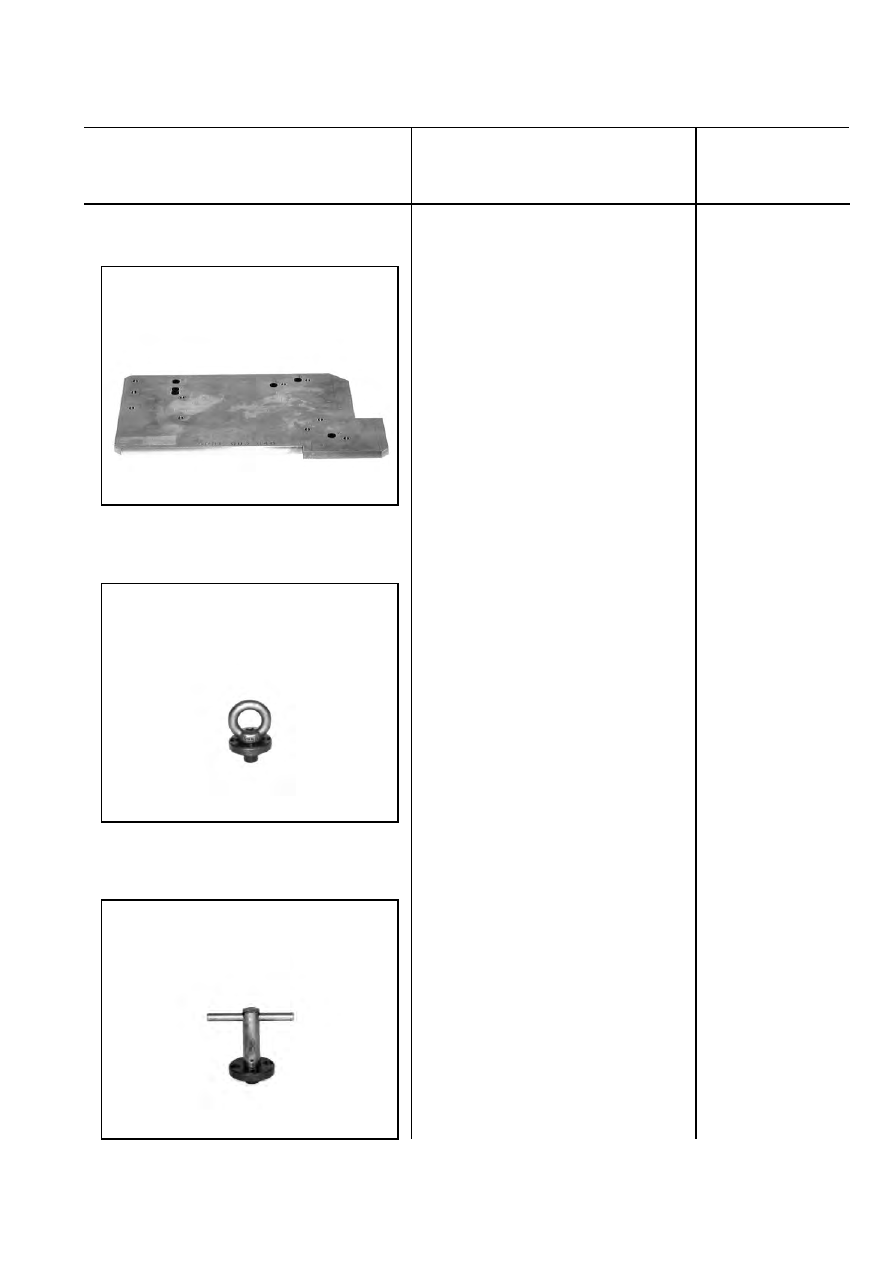

5p01 003 040
- Test plate for clutches A-F

5w46 000 003
- Adapter piece for lifting device

5w46 000 004
- Handle for lifting device

1.7/3

98006

97205

97206

Identical

5 HP 30

Alternative to

5w46 000 003

7

8

9
