Vehicle Security

RADIO FREQUENCY REMOTE
SYSTEM

USA only

The radio frequency remote system
operates on a frequency subject to USA
Federal Communications Commission
(FCC) rules.

FCC 15.19:

The remote control device complies with
Part 15 of the FCC rules. Operation is
subject to the two following conditions:
• This device may not cause harmful

interference.

• This device must accept any

interference received, including
interference that may cause
undesired operation.

FCC 15.21:

Changes or modifications not expressly
approved by party responsible for
compliance could void the user’s
authority to operate the equipment.

Canada only

The remote control device complies with
RSS-210 of the Industry Canada.
Operation is subject to the two following
conditions:
• The device may not cause harmful

interference.

• This device must accept any

interference received, including
interference that may cause
undesired operation.

Approval numbers

The key transmitter radio frequency
approval numbers for the USA and
Canada are shown below:

USA - CWTWB1U243

Canada - 1788A-1U243

Note: The manufacturer is not
responsible for any radio interference or
TV interference caused by unauthorised
modifications to this equipment. Changes
or modifications not expressly approved
by the party responsible for compliance
could void the user’s authority to operate
the equipment.

Caution: The key-transmitter may
suffer interference from other legal
users of this radio frequency band,
such as radio amateurs, medical
equipment, remote controls or alarm
systems. To lock or unlock the vehicle
in such a situation, either use a key or
operate the key transmitter as close to
the security antenna as possible.

Door Locks

Door Locks

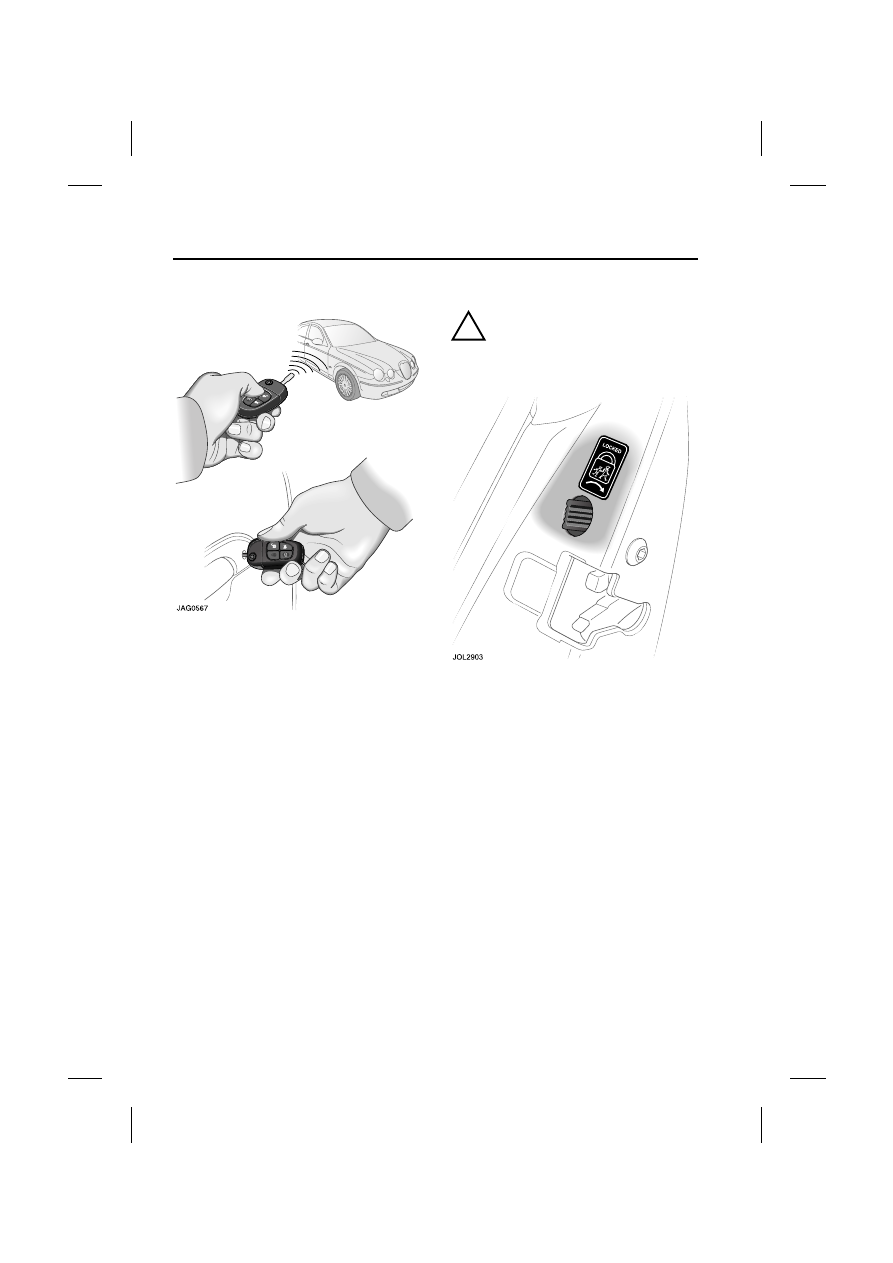

KEY TRANSMITTER USE

All doors can be locked and unlocked
either remotely using the key transmitter
buttons, or by using the integrated key.

SMART LOCKING

This feature helps prevent locking the key
in the vehicle.

If the driver’s door is open and an attempt
is made to lock the doors using the
driver’s door interior locking lever, all
doors will lock, and then unlock.

If the front passenger door locking lever is
used to lock the doors when the front
passenger door is open, all doors will lock
and then unlock. (The vehicle can only be
locked from the outside by using the key
in the driver’s door lock or remotely using
the key transmitter.)

CHILD SAFETY LOCKS

WARNING:

To avoid injuty or death, never leave
children unsupervised in the vehicle.

Child safety locks are fitted to the rear
doors. The operating lever is fitted above
the door lock mechanism.

To operate: Open the door and move the
lever a quarter-turn. This immobilises the
interior handle.

The door can then only be opened using
the exterior door handle.

Open the door and move the lever to its
original position to remove the child lock
feature.

Door Locks

VEHICLE LOCKING AND
UNLOCKING

To lock the vehicle and set alarm
• Press the lock button on the key

transmitter, or;

• Put the key in the driver’s door lock,

turn the key towards the rear of the
vehicle and release.

The direction indicators will flash once,
the security light on the top of the facia
will start flashing and, after 20 seconds,
the alarm will be set.

If a door, the hood or the luggage
compartment lid are open and an attempt
is made to lock the vehicle with the key in
the driver’s door lock, the direction
indicators will flash five times as a
warning that the vehicle is not secure.

If a door is open and an attempt is made
to lock the vehicle with the transmitter,
the direction indicators will flash seven
times as a warning that the vehicle is not
secure.

If the hood or luggage compartment lid
are open and an attempt is made to lock
the vehicle with the transmitter, the
direction indicators will flash five times
indicating that the vehicle is not secure.

TO UNLOCK THE VEHICLE AND
DISARM THE ALARM SYSTEM

Using a key transmitter
• Press the unlock button on the key

transmitter.

Single stage unlocking – This unlocks all
doors and the luggage compartment and
turns on the interior lamps.

Two stage unlocking - This only unlocks
the driver’s door and luggage
compartment and turns on the interior
lamps. A second press is required to
unlock all doors.

The direction indicators will flash twice as
unlocking takes place. If a fault exists with
the intrusion sensing system, the
direction indicators will flash five times.

Using a key
• Put the key in the driver’s door lock,

turn the key towards the front of the
vehicle and release.

Single stage unlocking - This unlocks all
doors and the luggage compartment and
turns on the interior lamps.

Two stage unlocking - This only unlocks
the driver’s door and luggage
compartment and turns on the interior
lamps. A second turn of the key is
required to unlock the remaining doors.

Select single/two stage unlocking

The procedure for changing from single
stage to two stage unlocking, or vice
versa, is as follows:
• Press and hold the lock and unlock

buttons on the key transmitter
simultaneously for four seconds.

Note: A double flash of the external
direction indicators will confirm the
required selection.

Door Locks

GLOBAL OPEN AND CLOSE

Global closing

WARNING:

Make sure that all occupants are kept
clear of the windows and sunroof
aperture.

Key in the driver’s lock: Turn and hold in
the lock position to close all the
electrically operated windows and
sunroof.

Key transmitter: Press and hold the lock
button for longer than 2 seconds to lock
the vehicle and to close all the windows
and sunroof. Pressing the button again
while global closing is taking place will
stop all movement.

Global opening

Key in the driver’s lock: Turn and hold in
the unlock position to open all the
electrically operated windows and
sunroof.

Key transmitter: Press and hold the
unlock button for longer than 2 seconds
to unlock the vehicle and to open all the
windows and sunroof. Pressing the
button again while global opening is
taking place will stop all movement.

Center console switch

Press and hold the central locking button
on the center console to globally lock or
unlock all doors, and to globally close or
open all the windows and sunroof.

Note: The central locking button only
operates with the ignition switch in
position I or II, or while the delayed
accessory feature is active.
