Jaguar XJ (X350). Service manual - part 530

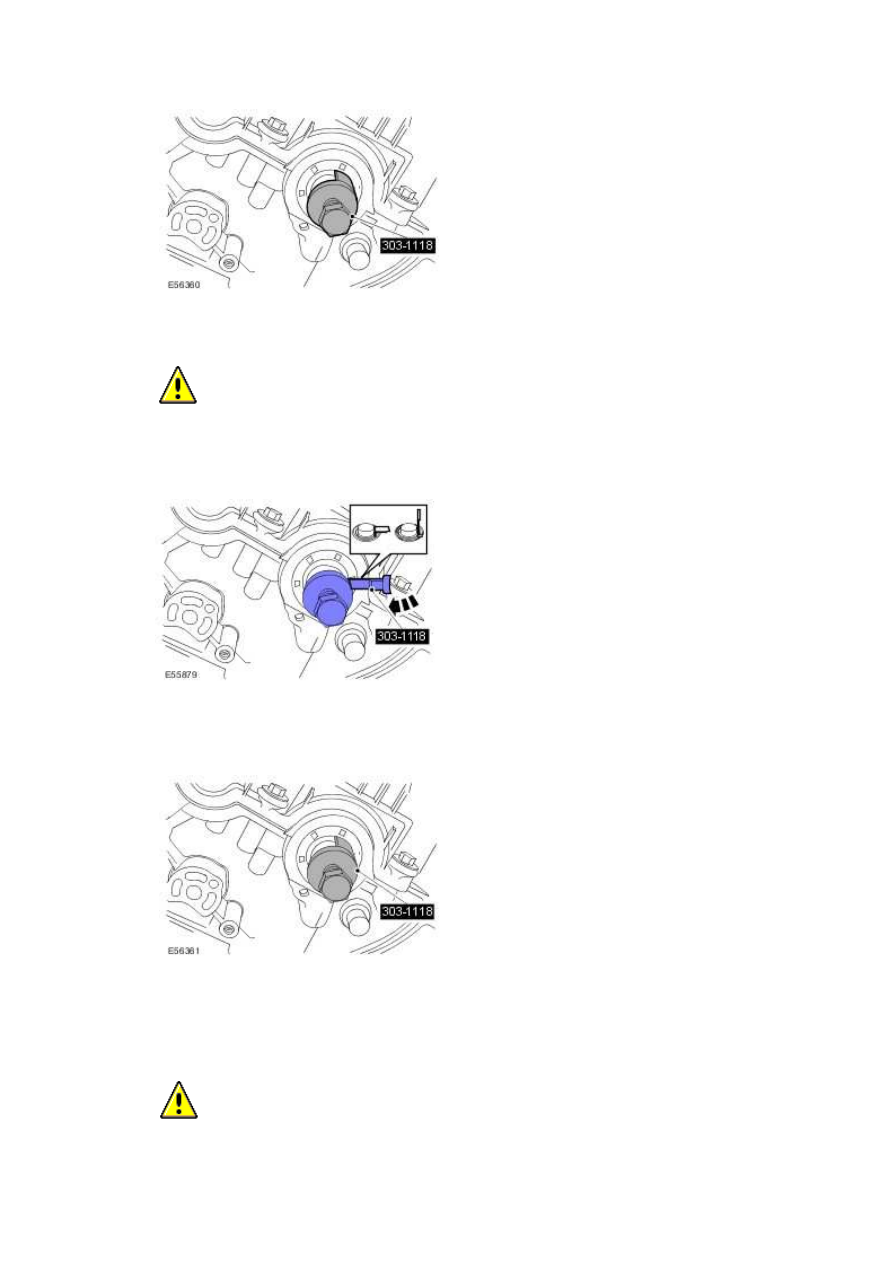

CAUTION: Make sure the special tool is correctly seated behind the camshaft seal.

Failure to follow this instruction may result in damage to the special tool.

Install the special tool into the camshaft front seal.

9 . Using the special tool, remove the camshaft front seal.

Installation

CAUTION: Do not use any lubricant on the seal or the camshaft. Failure to follow

this instruction may result in damage to the vehicle.

CAUTION: Make sure the seal is installed correctly.

NOTE:

Clean the component mating faces.

NOTE:

Use the discarded camshaft pulley hub retaining bolt with the special tool.

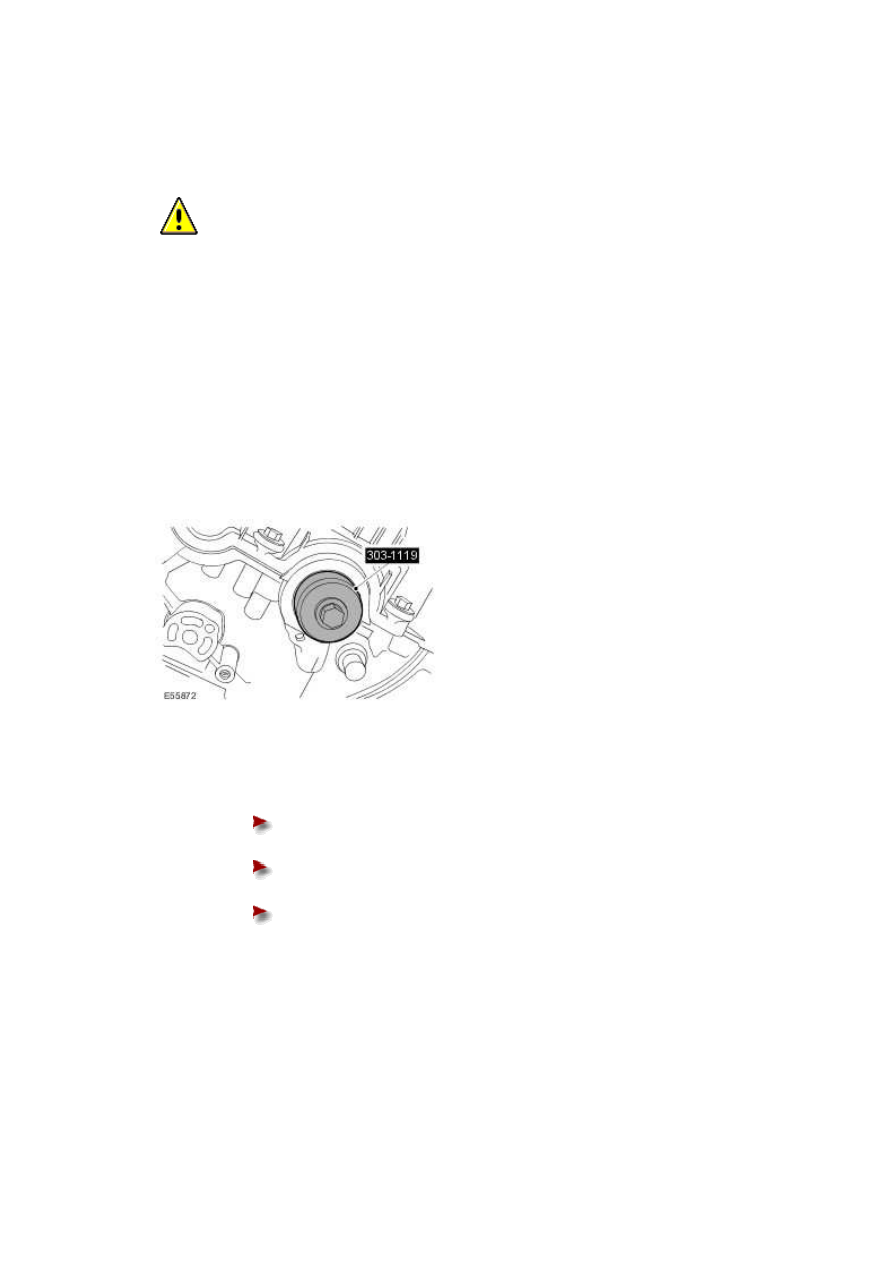

Using the special tool, install the camshaft front seal.

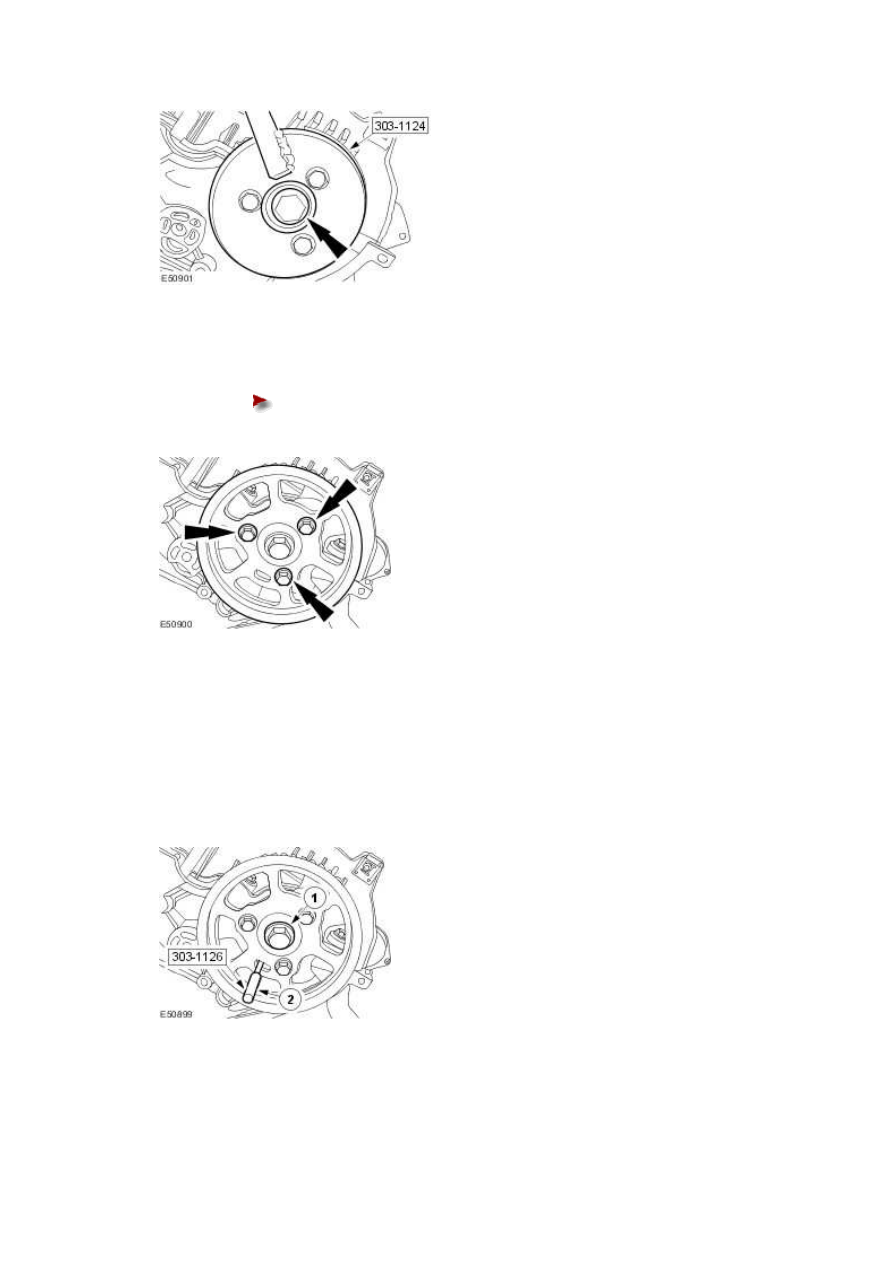

2 . Using special tool, install the camshaft pulley hub.

Tighten the bolts in the sequence shown in two stages.

Stage 1: Tighten to 80 Nm.

Stage 2: Tighten to 90 degrees.

www.

3 . Install the camshaft pulley.

Tighten to 22 Nm.

4 . Install the special tool.

1) Retain the camshaft pulley.

2) Install the special tool.

5 . Install the timing belt.

For additional information, refer to Timing Belt

Camshaft Rear Seal

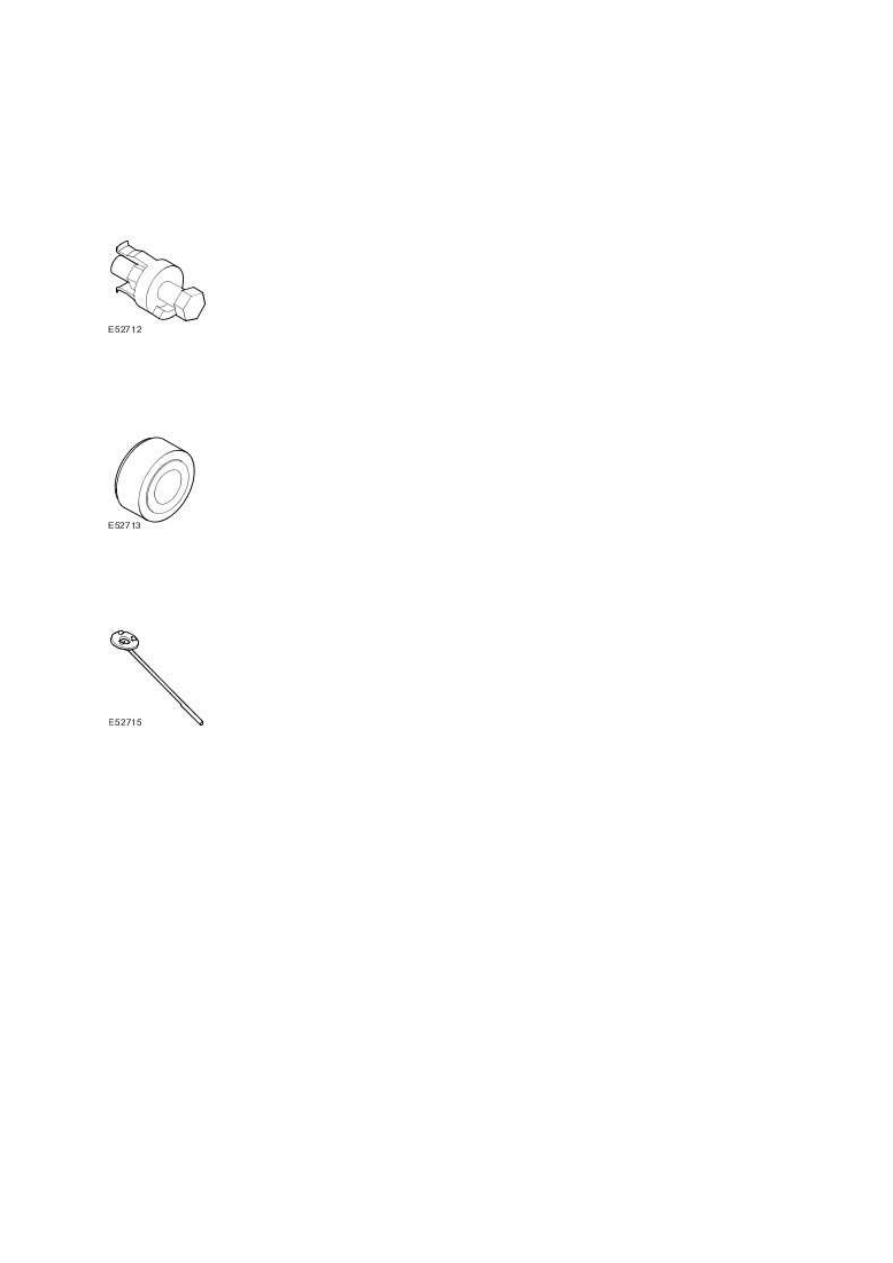

Special Service Tools

Camshaft Seal Remover

303-1118

Camshaft Seal Installer

303-1119

Holder - Camshaft Pulley Rear

303-1125

Removal

1 . Remove the fuel injection pump belt.

For additional information, refer to

2 . Using the special tool, remove the camshaft rear pulley bolt.
