Engine Protection System – Armoured

 CAUTION: Failure to follow the manufacturers instructions can damage or degrade this system and the vehicle in

which it is installed.



 CAUTION: The fire suppression system uses aqueous film forming foam fire suppressant.



 CAUTION: Unauthorised modifications to this system are not permitted.



 CAUTION: The manufacturer does not accept any responsibility for this system in the event that unapproved

modifications are made and / or the maintenance schedule is not carried out.


NOTE:



The key in the control module must be in the "system armed" position otherwise the system will not operate.





Item  Part Number

Description

1



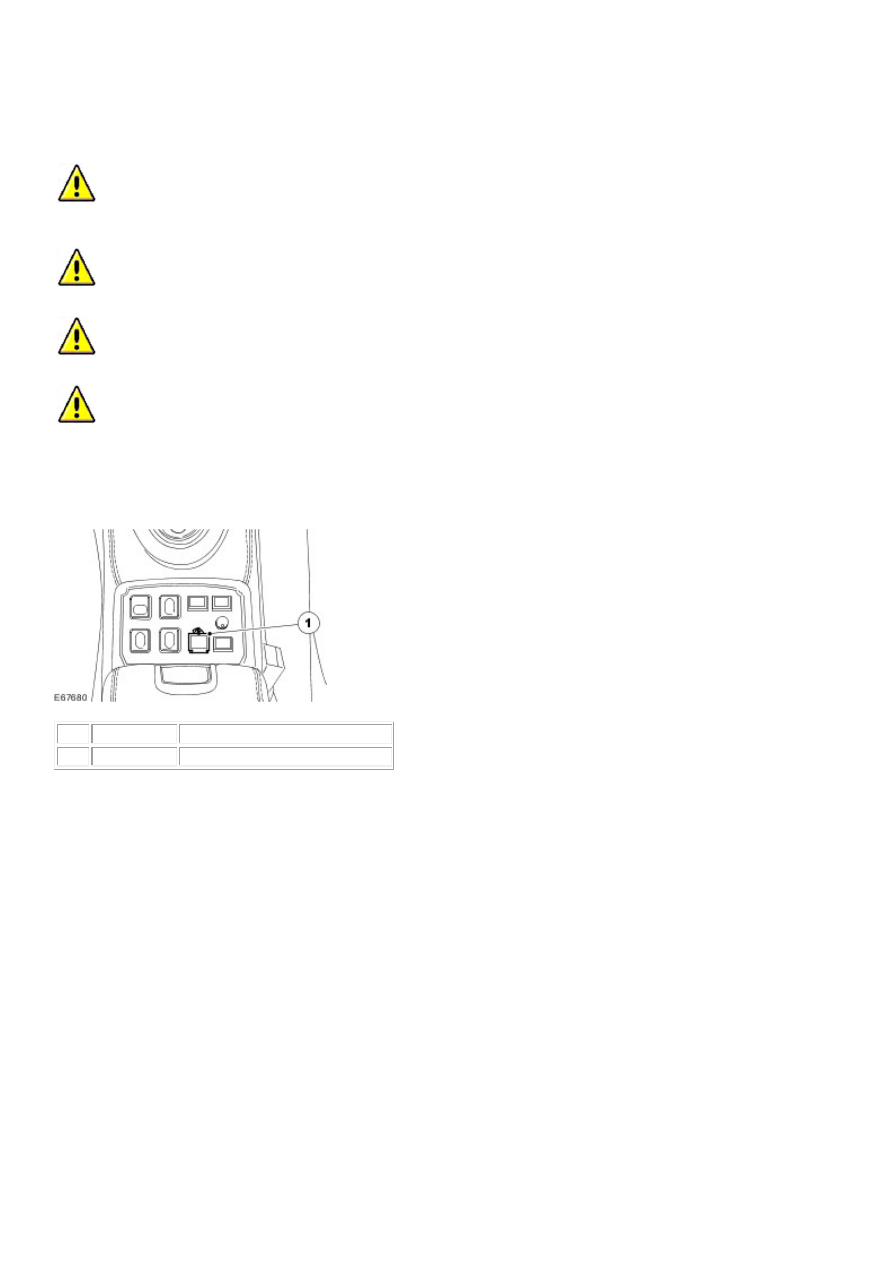

Fire suppression manual operation



Fire suppression

The purpose of the fire suppression system is to suppress engine bay fires. It has both manual and automatic
operation. The system is stand-alone and has no electrical interface to the vehicle wiring. The system
comprises of a 4 litre, non pressurized cylinder containing aqueous film forming foam fire suppressant
(mounted in the rear of the luggage compartment area). A gas generator cartridge is fitted to one end of the
cylinder with electrical connection to the control module. At the other end of the cylinder is the outlet which
is connected to a pipe which conveys the suppressant to several nozzles located in the engine bay. The
system is controlled by means of a control module (located in the rear of the luggage compartment area)
with integral 9 volt battery. When armed, the system may be activated as follows:- Automatically – when
the temperature sensor installed on the underside of the hood reaches 180°C (356°F). Manually – by
pressing the red button on the switch pack mounted on the centre console.

Maintenance

Aqueous film forming foam cylinder replacement – disconnect the electrical connection to the gas generator;
disconnect the outlet hose from the cylinder. Note: that the hose connections are of the "quick-release" type
and the black collar of the connector must be pushed in to release the hose. After system activation – replace
the 9 volt battery, replace gas generator and aqueous film forming foam cylinder, any other components

Published: Mar 12, 2014

Vehicles

damaged during the operation of the system (hoses, temperature sensor etc). Every 6 months – carry out
system and battery check; check expiry date on aqueous film forming foam cylinder and replace as
necessary. Every 12 months – replace 9 volt battery.

www.

Diagnosis and testing





Warning Devices

Inspection and Verification

1 . Verify the customer concern.



2 . Visually inspect for obvious signs of mechanical or electrical damage.

Visual Inspection Chart

Mechanical



Electrical



•



Door ajar switch(es)

•



Safety belt buckle and pretensioner

•



Headlamp switch

•



Fuel gauge

•



Inertia switch



•



Fuse(s)

•



Wiring harness

•



Electrical connector(s)

•



Switch(es)

•



Sensor(s)





1 . If an obvious cause for an observed or reported concern is found, correct the cause (if possible)

before proceeding to the next step.



2 . If the cause is not visually evident, verify the symptom and refer to the Jaguar approved diagnostic

system.





413-13 : Parking Aid





Description and operation





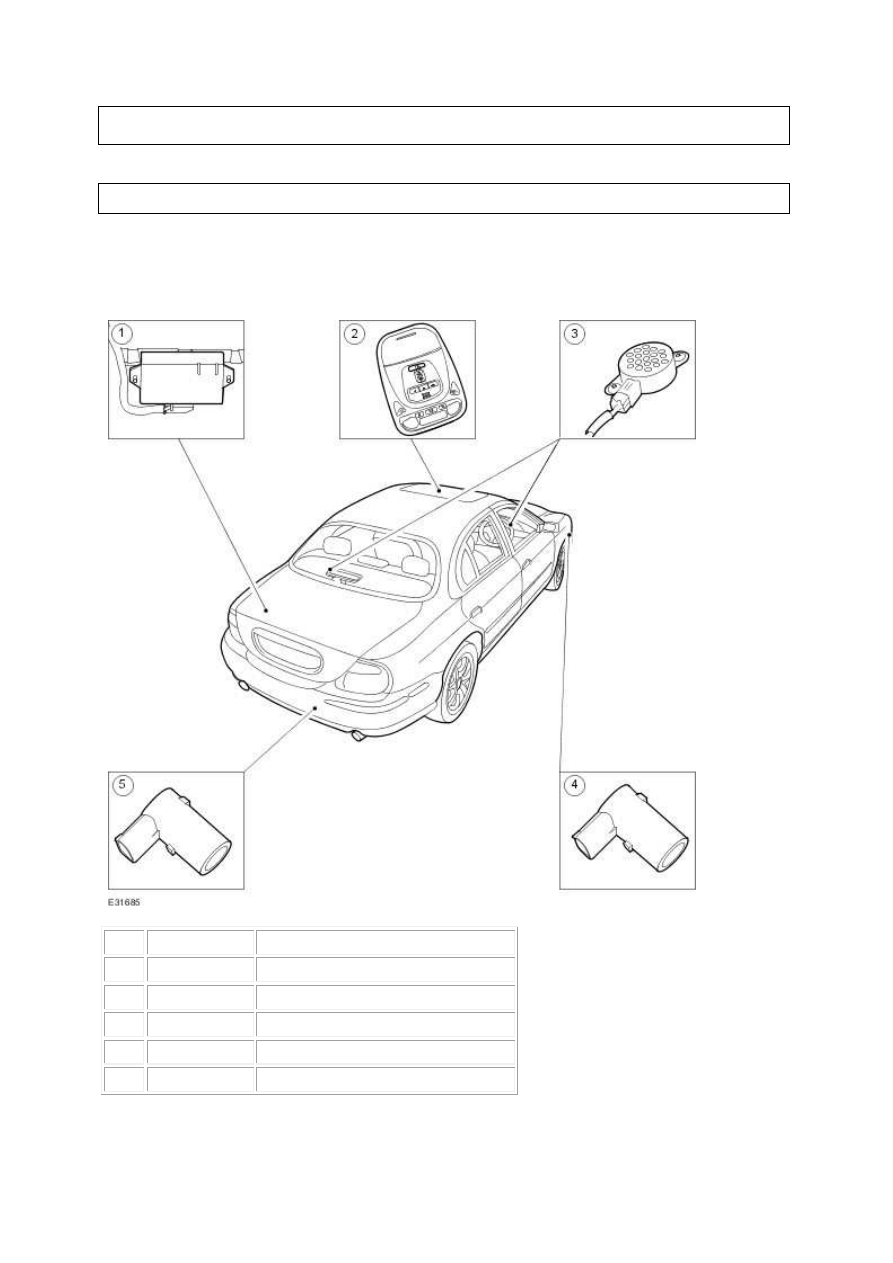

Parking Aid



Item  Part Number

Description

1

 —

Parking aid module

2

 —

Parking aid switch

3

 —

Front and rear parking aid speakers

4

 —

Front parking aid sensors

5

 —

Rear parking aid sensors


The function of the parking aid is to provide an audible warning to the driver of the distance
