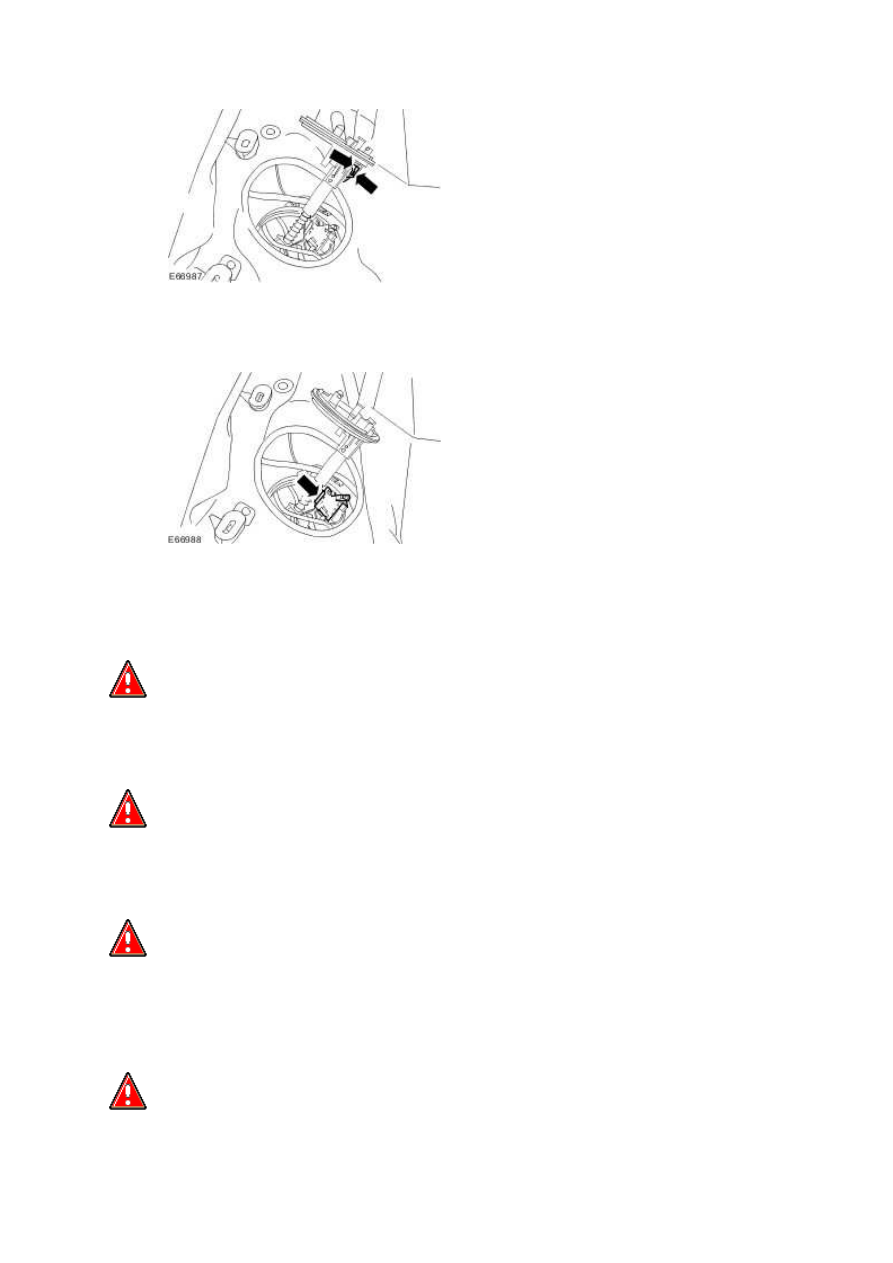

13 . Detach and reposition the upper part of the fuel transfer unit.

14 .

CAUTION: Make sure no damage occurs to the fuel level float.

Remove the fuel level float.

15 . Disconnect the fuel level sender electrical connector.

16 . Remove the fuel level sender and harness.

Installation

WARNING: Place the vehicle in a quarantined area and arrange "No Smoking/Petrol Fumes"

signs about the vehicle.

WARNING: Before any work is carried out on the fuel system, ground the vehicle to earth

and maintain the ground connection until the work is complete.

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working

on or near any fuel related components. Highly flammable vapors are always present and may

ignite. Failure to follow these instructions may result in personal injury.

WARNING: The fuel system remains pressurized for a long time after the ignition is switched

off. The fuel pressure must be relieved before attempting any repairs. Failure to follow these

www.

instructions may result in personal injury.

WARNING: After carrying out repairs, the fuel system must be checked visually for leaks.

Failure to follow these instructions may result in personal injury.

WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times

and always observe fuel handling precautions. Failure to follow these instructions may result in

personal injury.

WARNING: If taken internally do not induce vomiting, seek immediate medical attention.

Failure to follow these instructions may result in personal injury.

WARNING: If fuel contacts the eyes, flush the eyes with cold water or eyewash solution and

seek medical attention.

WARNING: Wash hands thoroughly after handling, as prolonged contact may cause

irritation. Should irritation develop, seek medical attention.

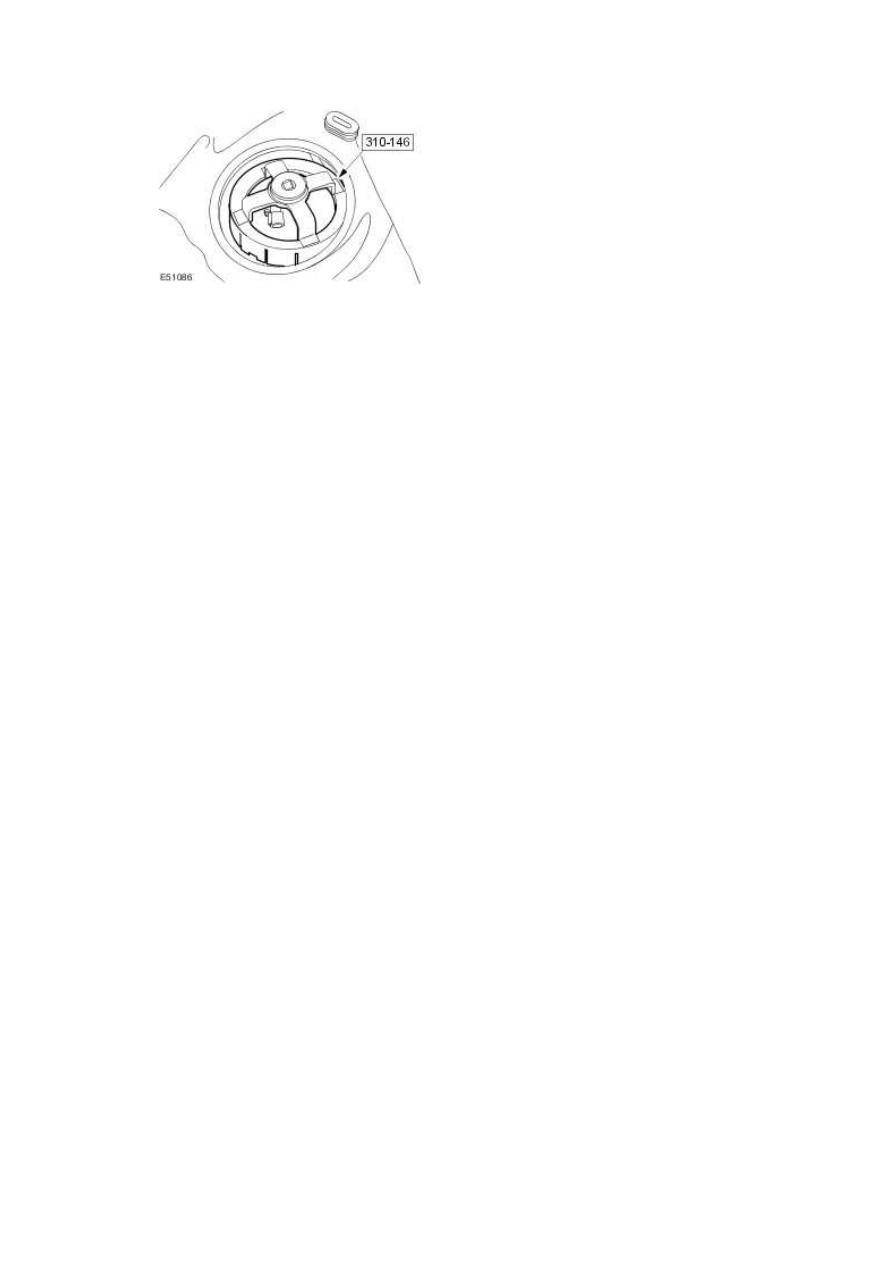

1 . To install, reverse the removal procedure.

Install a new O-ring seal.

Tighten to 60 Nm.
