DRIVE SHAFT SYSTEM

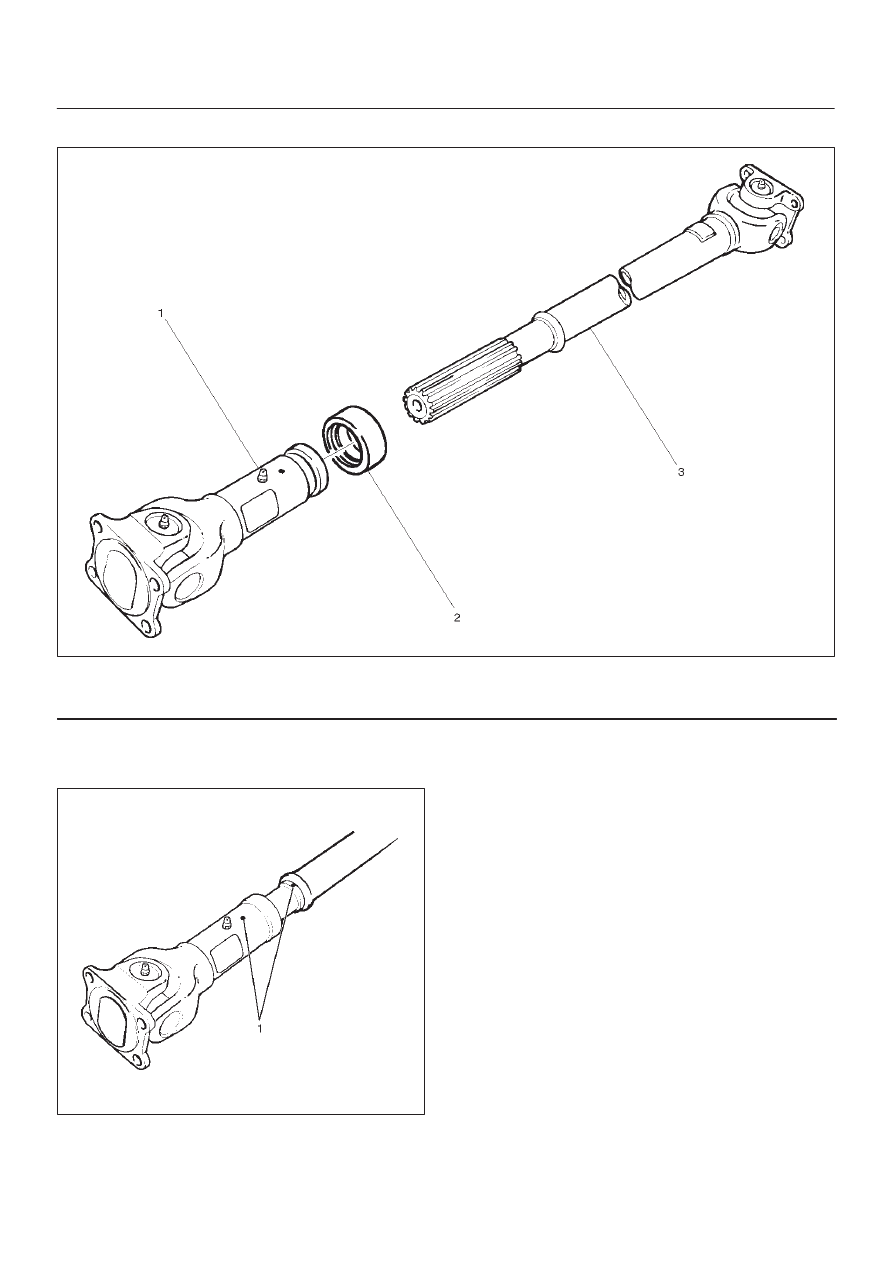

Disassembly

401RW057

Legend

(1) Sleeve Yoke

(2) Seal
(3) Tube Assembly

1. Apply alignment marks (1) on the sleeve yoke and

tube assembly then remove sleeve yoke.

401RW056

2. Remove seal.
3. Remove tube assembly.

4C–47

DRIVE SHAFT SYSTEM

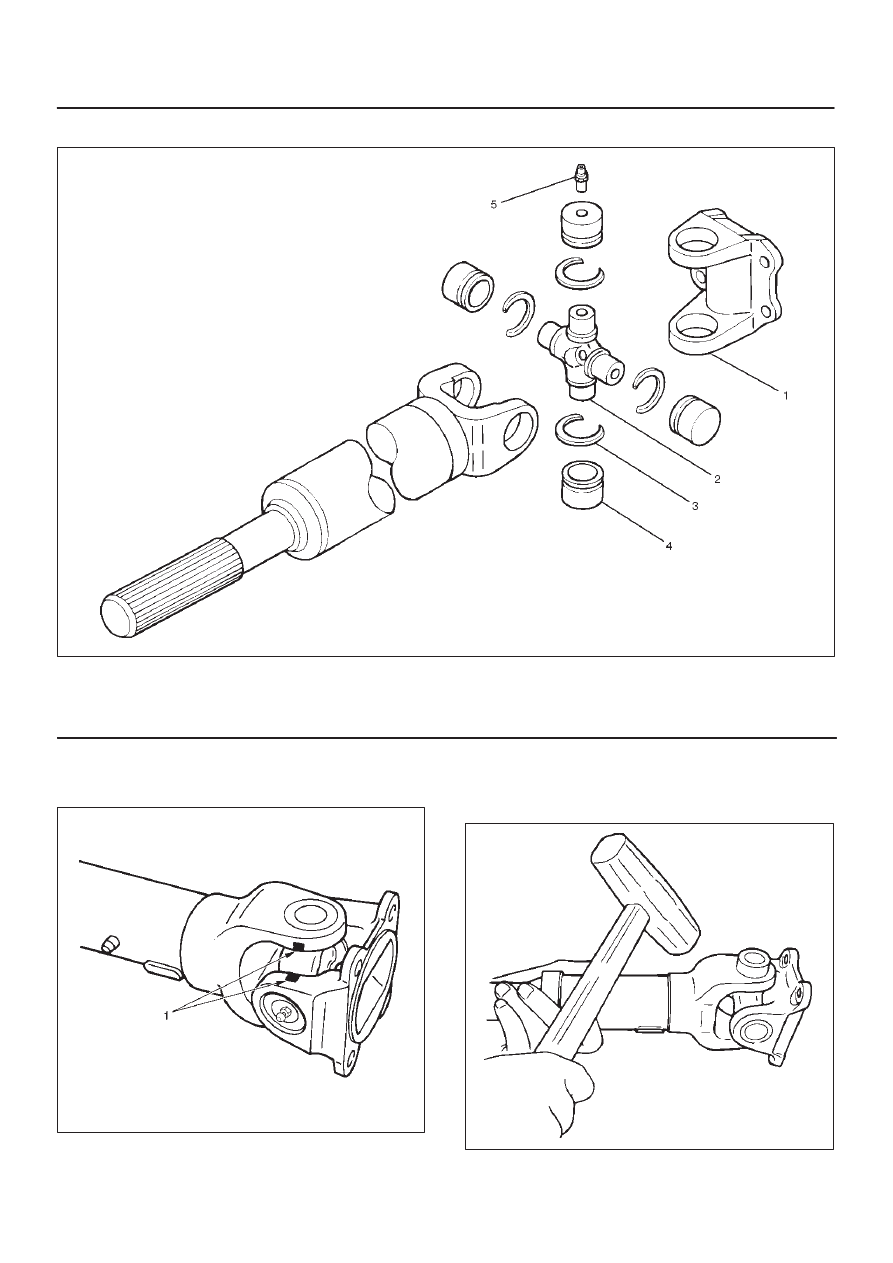

Universal Joint Disassembly

401RW054

Legend

(1) Flange Yoke
(2) Spider with Grease Fitting

(3) Snap Ring
(4) Needle Roller Bearing
(5) Grease Fitting

1. Apply alignment marks (1) on the yokes of the

universal joint, then remove snap ring.

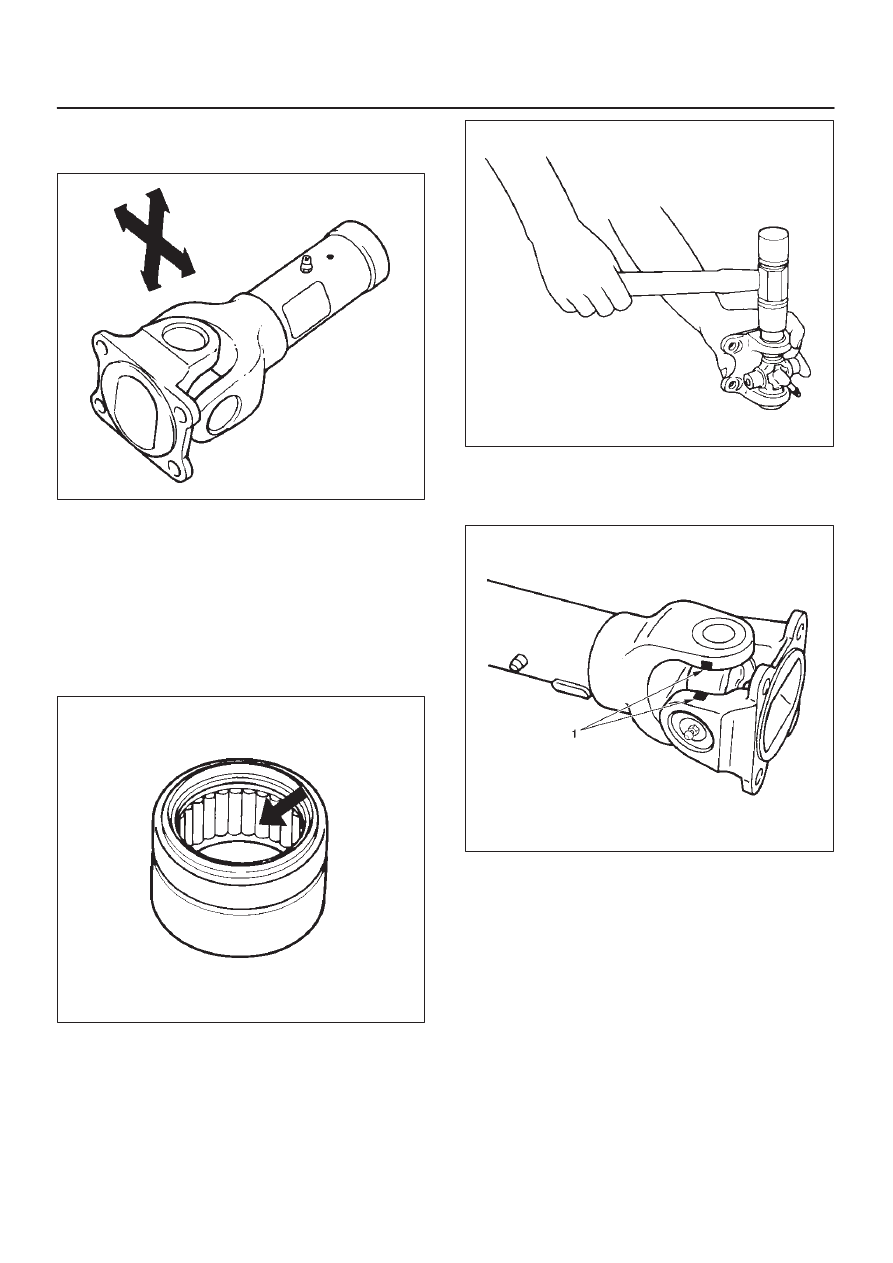

401RS028

2. Tap out the needle roller bearing by gently striking the

shoulder of the yoke, using a mallet or a copper
hammer.

401RS006

4C–48

DRIVE SHAFT SYSTEM

3. Make sure of proper position for reinstallation by

applying setting marks, then remove spider with
grease fitting.

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition is
found through inspection.

NOTE: When any part of the journal assembly (spider,
needle roller bearing, grease fitting) requires
replacement, be sure to replace the entire assembly.
Check the following parts for wear, damage, noise or any
other abnormal conditions:

1. Spider
2. Needle roller bearing
3. Yoke
4. Flange

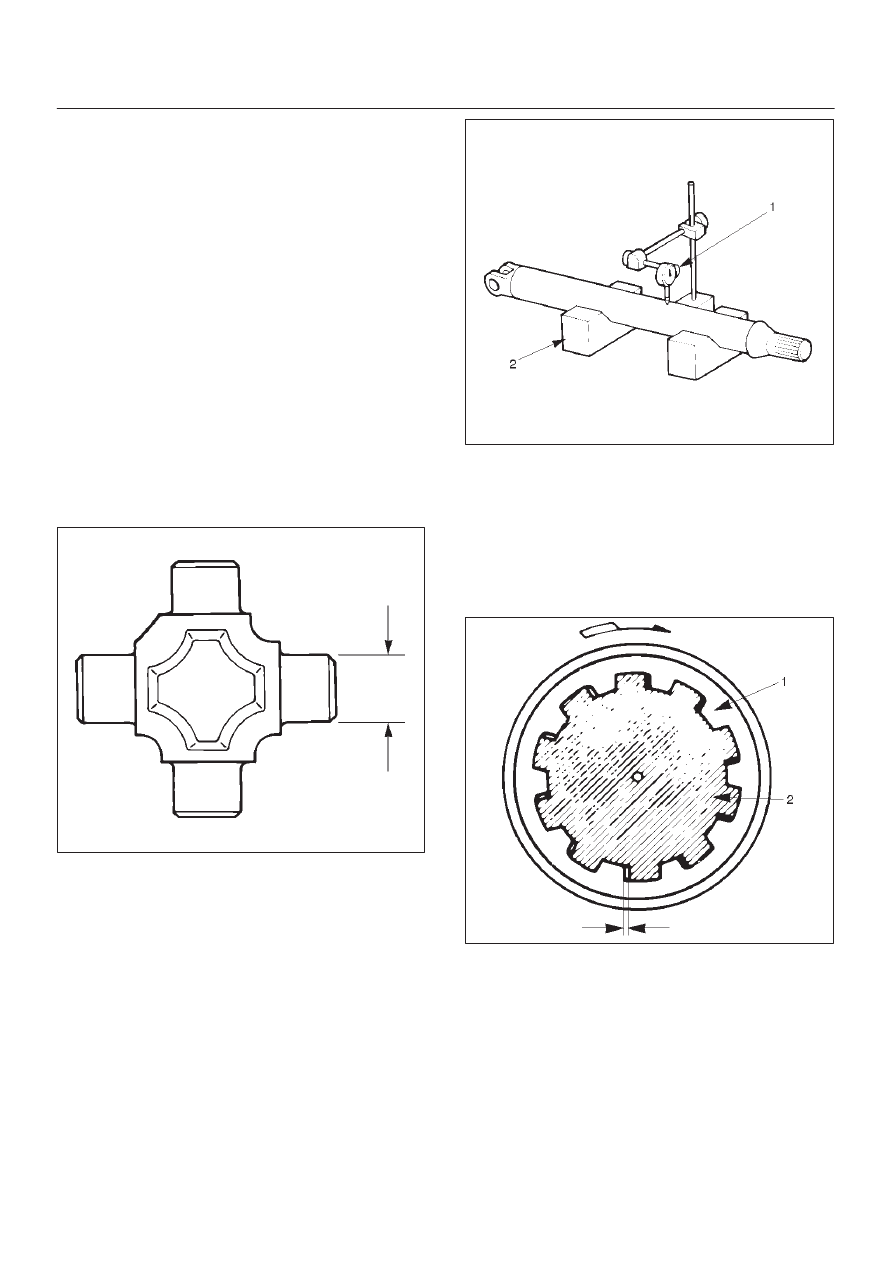

Outside Diameter of Spider Pin

Standard: 17.00 mm (0.669 in)

Limit: 16.90 mm (0.665 in)

401RS007

Propeller Shaft Run-out

Support the ends of the propeller shaft on V-blocks (2)
and check for run-out by holding the probe of a dial
indicator (1)  in contact with the center part of the shaft.  If
the amount of run-out is beyond the standard value for
assembly, correct with a bench press or replace the shaft
with a new propeller shaft assembly .

Standard: 0.3 mm (0.012 in)

Limit: 0.5 mm (0.02 in)

401RS008

Play in Splines in Normal Direction of
Rotation

Check the amount of play between the sleeve yoke (1)
and the propeller shaft spline (2) in the direction of
rotation, using a pointed feeler gauge.

Standard: 0.073 – 0.156 mm (0.003 – 0.006 in)

Limit: 0.3 mm (0.012 in)

401RS009

4C–49

DRIVE SHAFT SYSTEM

Play in Universal Joint

Limit: Less  than 0.1 mm (0.004 in)

401RS010

Universal Joint Reassembly

1. Install spider to flange yoke. Be sure to install the

spider by aligning the setting marks made during
disassembly.

2. Before installing needle roller bearing, apply a

molybdenum–disulfide grease or a multi–purpose
type grease NLGI No. 2 to inside of the bearing cap.

Grease Amount: Approx. 1.2 g (0.042 oz)

401RS011

3. Using either a mallet (or copper hammer) or a press,

install the needle roller bearing into the yoke so that
the snap ring can be installed in its groove.

CAUTION: The  needle roller bearing cannot be
installed smoothly if it is set at an incorrect angle
with the flange and excessive hammering will
damage the needle roller bearing.

401RS012

4. Align setting marks (1) and join the yokes.

NOTE: Assemble the spider and spline yoke so that their
grease fittings are arranged on the same side.

401RS028

5. Install snap ring.

NOTE: Discard used snap rings and install new ones.
When the bearing cap is in position, select and attach a
snap ring of suitable thickness so that the end play of the
spider pin is held within 0.1 mm (0.004 in).

Snap ring thickness and identification color
1.5 mm (0.059 in): Blue
1.545 mm (0.061 in): White
1.59 mm (0.063 in): Yellow
1.635 mm (0.064 in): Green
1.68 mm (0.066 in): Not colored

NOTE: Be sure to use snap rings of the same thickness
on both sides.
