0B–8
MAINTENANCE AND LUBRICATION
Recommended Fluids and Lubricants
USAGE
FLUID/LUBRICANT
Engine
API SE, SF, SG, SH or ILSAC GF-1, GF-2 Engine oil

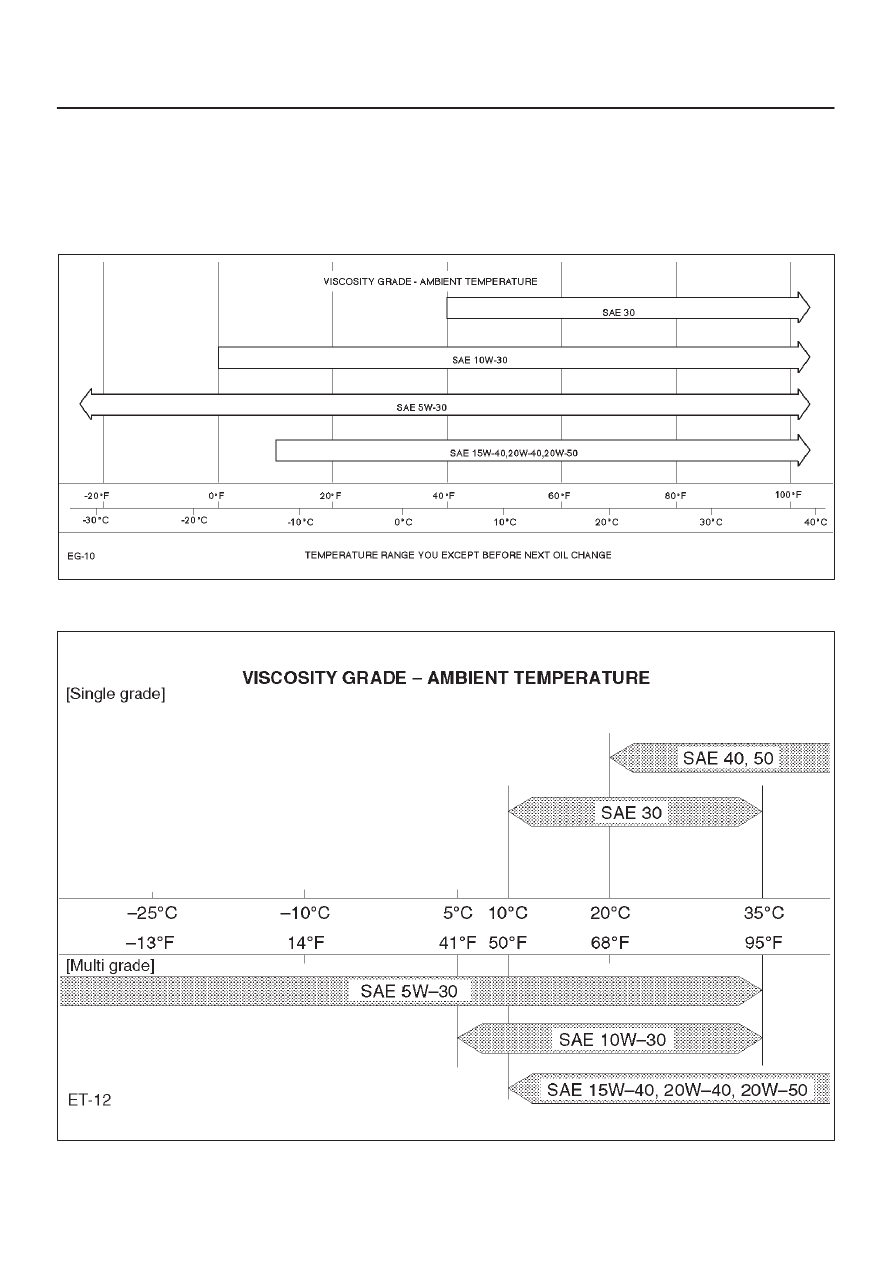

(See oil chart on the following page for proper viscosity)
Engine coolant
Mixture of water and good quality ethylene glycol base
type antifreeze.
Brake system
DOT-3 hydraulic brake fluid.
Power steering system
DEXRON
-III Automatic transmission fluid.
Automatic transmission
DEXRON
-III Automatic transmission fluid.
Manual transmission
Engine oil
(See oil chart on following page for proper viscosity)
Rear axle and front axle
GL-5 gear lubricant (Standard differential)
GL-5 Limited slip differential gear lubricant together
with limited slip differential lubricant additive (Part No.
8-01052-358-0) or equivalent (If equipped with optional

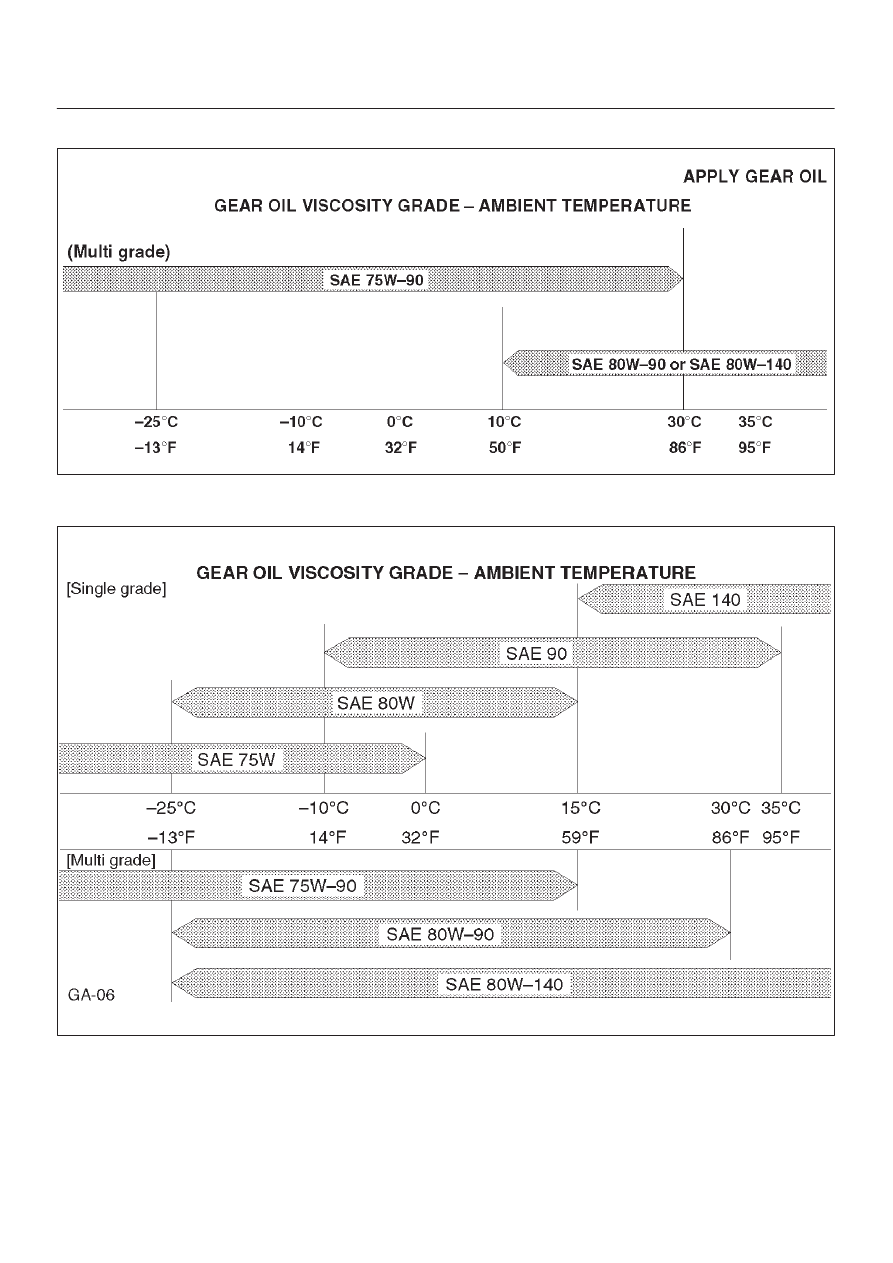

limited slip differential) (See oil chart in this section for
proper viscosity)
Clutch system
a. Pivot points
Engine Oil
b. Clutch fork joint
Chassis grease
c. Master cylinder
DOT-3 hydraulic brake fluid
Hood latch assembly
a. Pivots and spring anchor
Engine oil
b. Release pawl
Chassis grease
Hood and door hinges
Engine oil
Chassis lubrication
Chassis grease
Parking brake cables
Chassis grease
Front wheel bearings
Wheel bearing grease
Shift on the fly system
GL-5 gear lubricant (SAE 75W-90)
Transfer Case (Except TOD and 2WD model)
SAE40 (Areas where ambient temperatures of 32
°
C
(90
°
F) and higher are regularly encountered.)
SAE5W–30SF (Other areas)
TOD system
DEXRON
-III Automatic transmission fluid.
Extension assembly
DEXRON
-III Automatic transmission fluid.
Propeller shafts (Except TOD model)
Grease containing MoS
2
or multipurpose type grease
NLGI No.2
Sliding yoke and Univeral joint
Body door hinge pins and linkage, fuel door hinge, rear
compartment lid hinges
Engine oil
Windshield washer solvent
Washer fluid
Key lock cylinder
Synthetic light weight engine oil (SAE 5W-30)
Accelerator linkage
Chassis grease
