0A–8

GENERAL INFORMATION

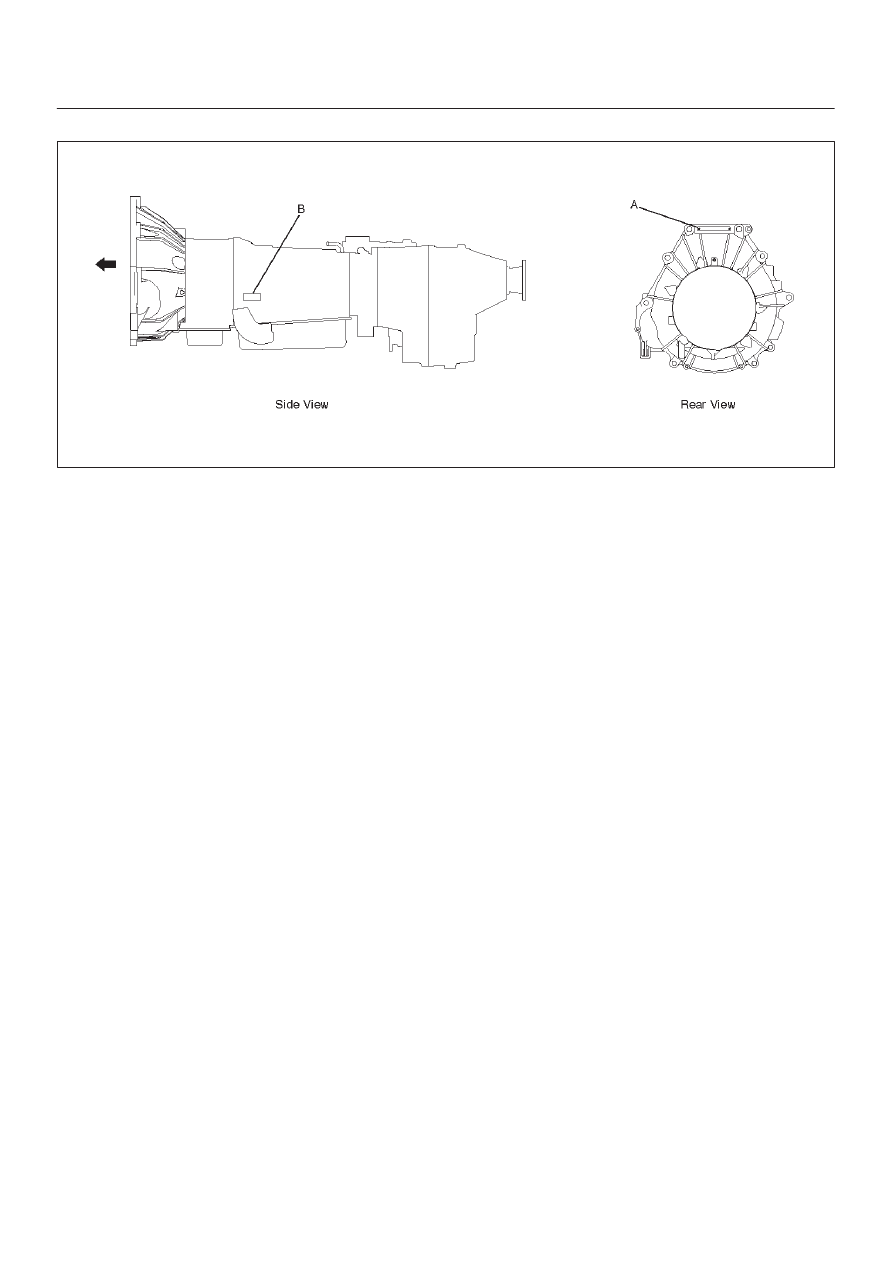

Automatic Transmission (THM)

901RW197

0A–9

GENERAL INFORMATION

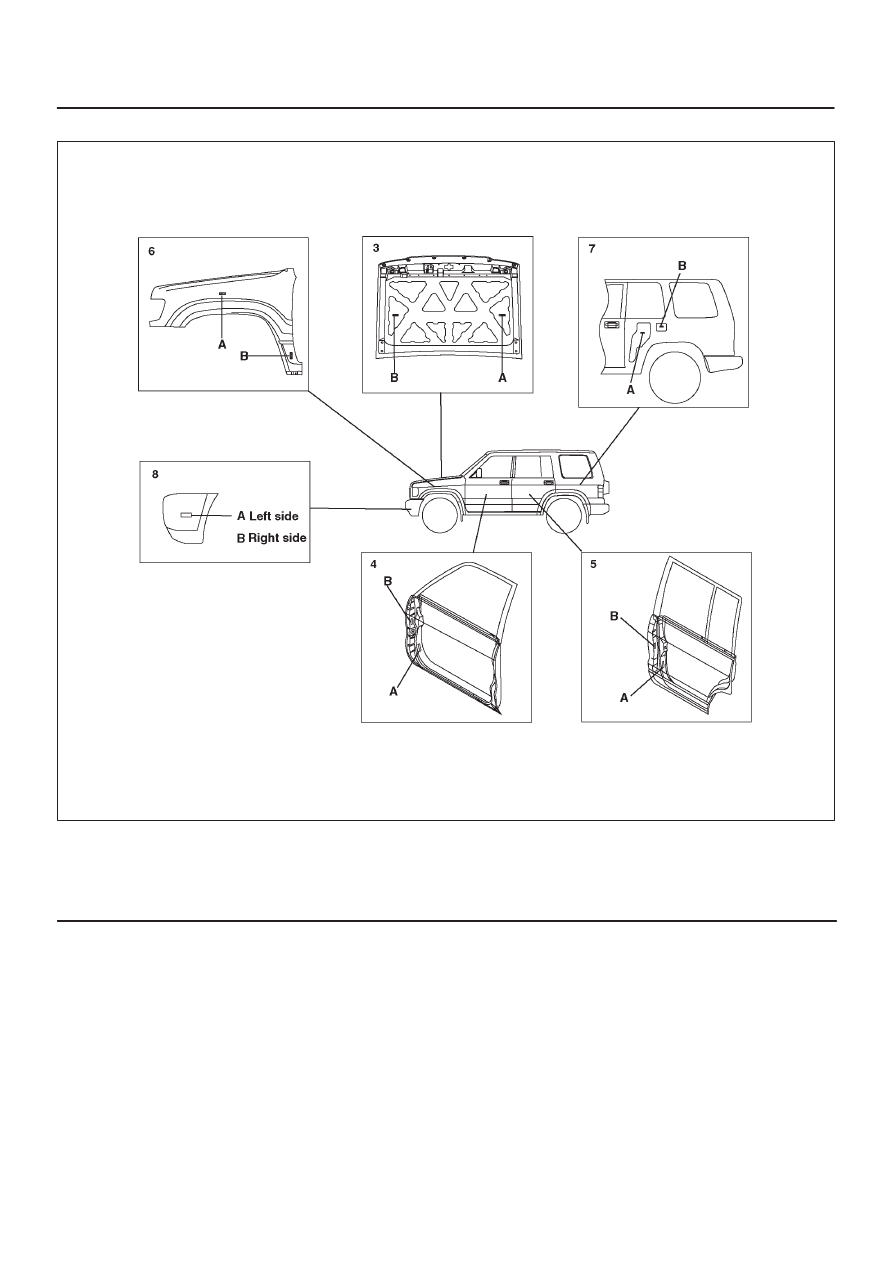

Body

901RW113

Legend

(3) Engine Hood
(4) Front Door
(5) Rear Door

(6) Fender
(7) Rear Quarfer Panel
(8) Front Bumper

0A–10

GENERAL INFORMATION

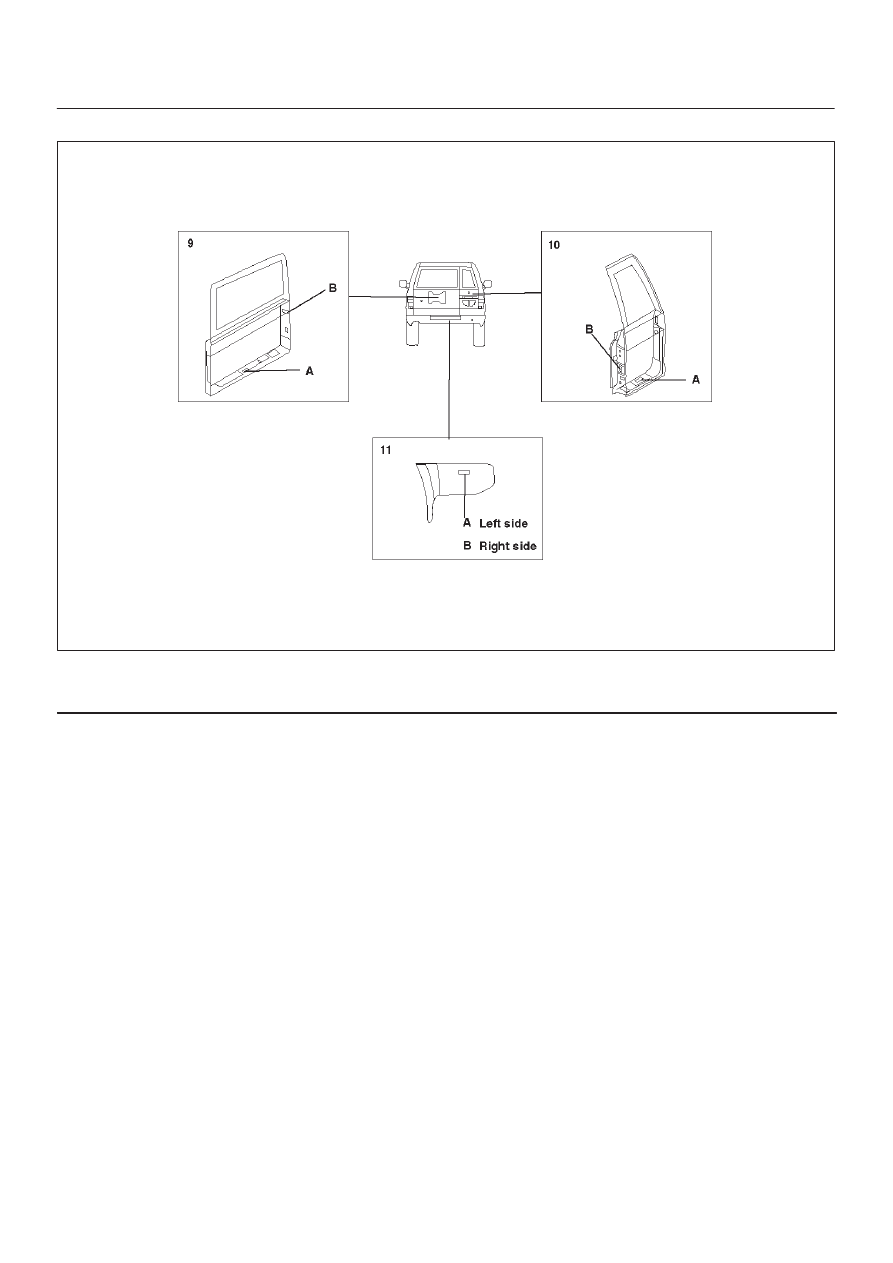

Body

901RW114

Legend

(9) Back Door Left Side

(10) Back Door Right Side

(11) Rear Bumper

0A–11

GENERAL INFORMATION

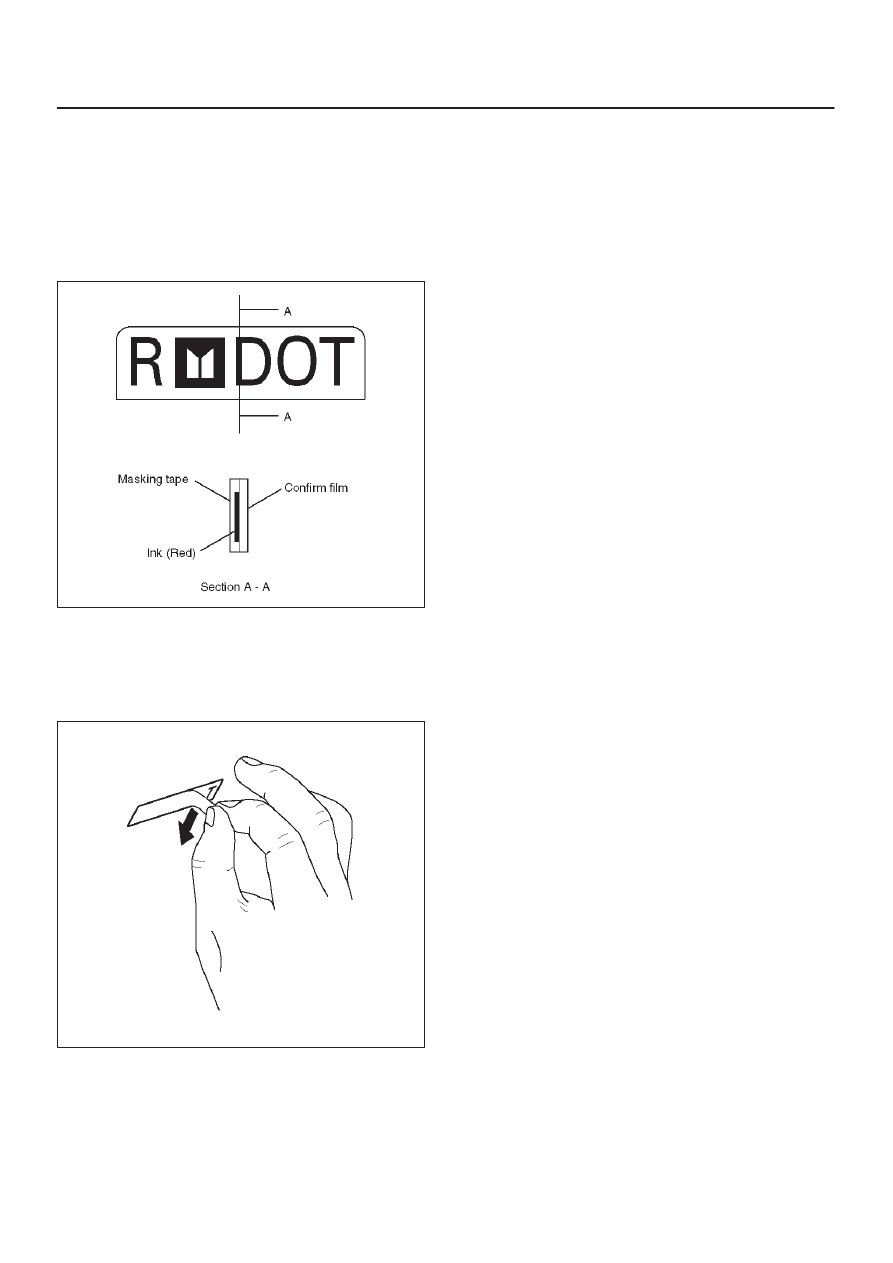

Body Label Instructions

Do not peel off the masking tape until completion of paint
work when replacing these parts, as the tape is affixed on
the label attached to service parts for body of the
anti–theft component.

NOTE: Be sure to pull off the masking tape after paint
work has been completed.
Do not attempt to remove this label for any reason.

901RW083

Precautions in pulling off the masking tape

1. Use only your finger nail or a similar blunt instrument

to peel off the masking tape. Use of a sharp object will
damage the underlying anti–theft label.

2. Be careful not to damage the paint around the label.

901RY00057
