Engine Hood Lock

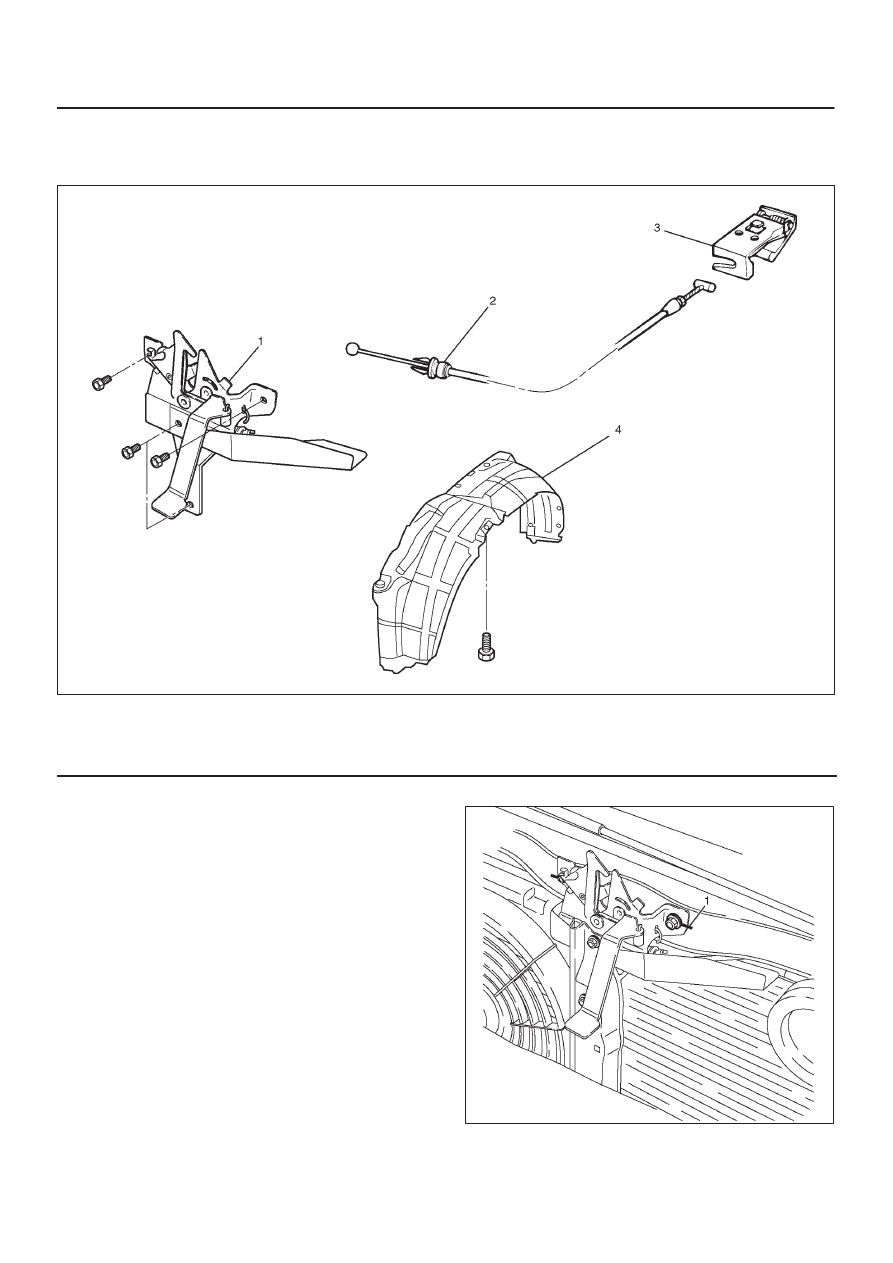

Parts Location

610R200012

Legend

(1) Engine Hood Lock Assembly
(2) Control Cable

(3) Hood Lock Control Lever
(4) Inner Liner

Removal

1. Remove the hood lock control lever.
2. Remove the inner liner.
3. Remove the engine hood lock assembly.

D

Apply setting marks(1) to the hood lock assembly
and the body prior to removal.

610R200013

4. Remove the control cable.

D

Remove the cable fixing clips from the engine hood
lock.

8F–14

BODY STRUCTURE

Installation

To install, follow the removal steps in the reverse order
noting the following points:

1. Reroute the control cable to its original position, and

check and see if the lock assembly and control lever
work normally.

2. Tighten the hood lock assembly fixing bolts to the

specified torque.

Torque : 10 N·m (87 lb in)

8F–15

BODY STRUCTURE

Front Fender Panel

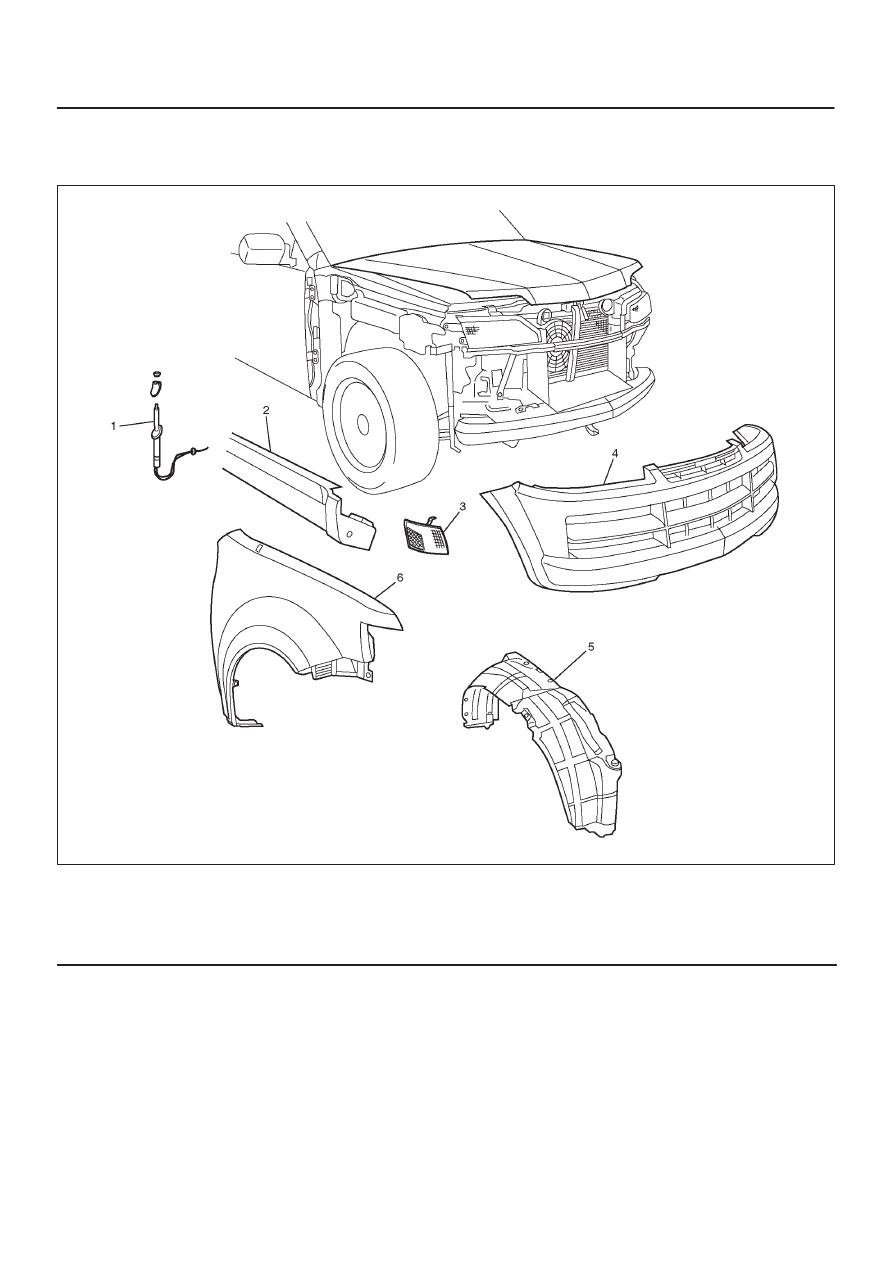

Parts Location

605R200001

Legend

(1) Antenna Assembly
(2) Rocker Cover Assembly
(3) Front Turn Signal Light Assembly

(4) Front Bumper Fascia Assembly
(5) Inner Liner
(6) Front Fender Panel

8F–16

BODY STRUCTURE

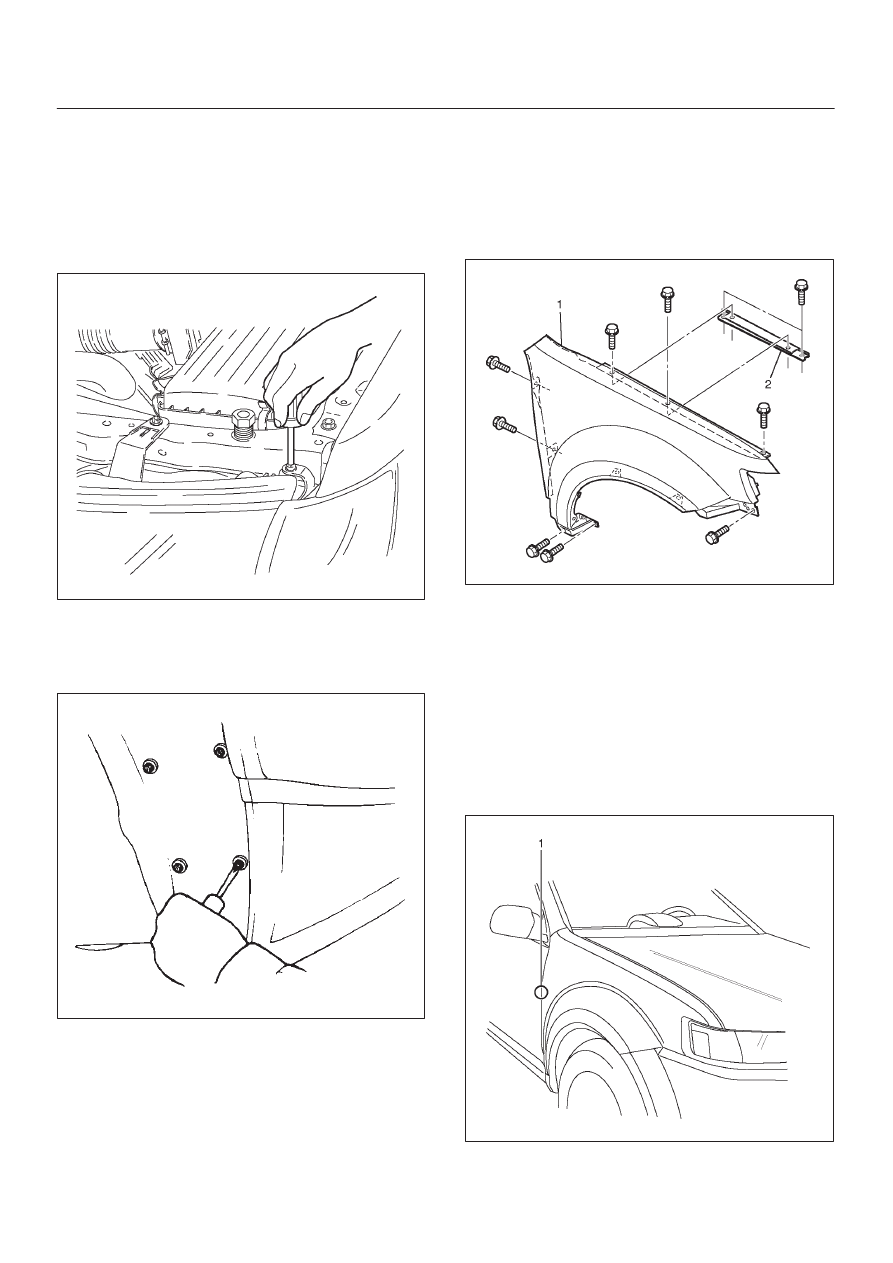

Removal

1. Disconnect the battery ground cable.
2. Remove the front bumper fascia assembly.

D

Refer to

Front Bumper in this section.

3. Remove the front turn signal light assembly.

D

Remove the fixing screw and disconnect the
connector.

610R200008

4. Remove the rocker cover assembly.

D

Refer to

Rocker Cover Assembly in Exterior/Interior

Trim section.

5. Remove the inner liner.

647RY00003

6. Remove the antenna assembly.

D

Refer to

Rod Type Antenna in Entertainment

section.

7. Remove the front fender panel (1).

D

Remove the eight fixing bolts.

8. Remove the engine compartment upper extension

(2).

614R200002

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the front fender panel fixing bolts to the

specified torque.

Torque : 7 N·m (61 lb in)

2. Check the fender and front door (1).

Clearance: 5.0 mm (0.196 in)

Height (step): Flush

610R200009
