6F–6

ENGINE EXHAUST (6VE1 3.5L)

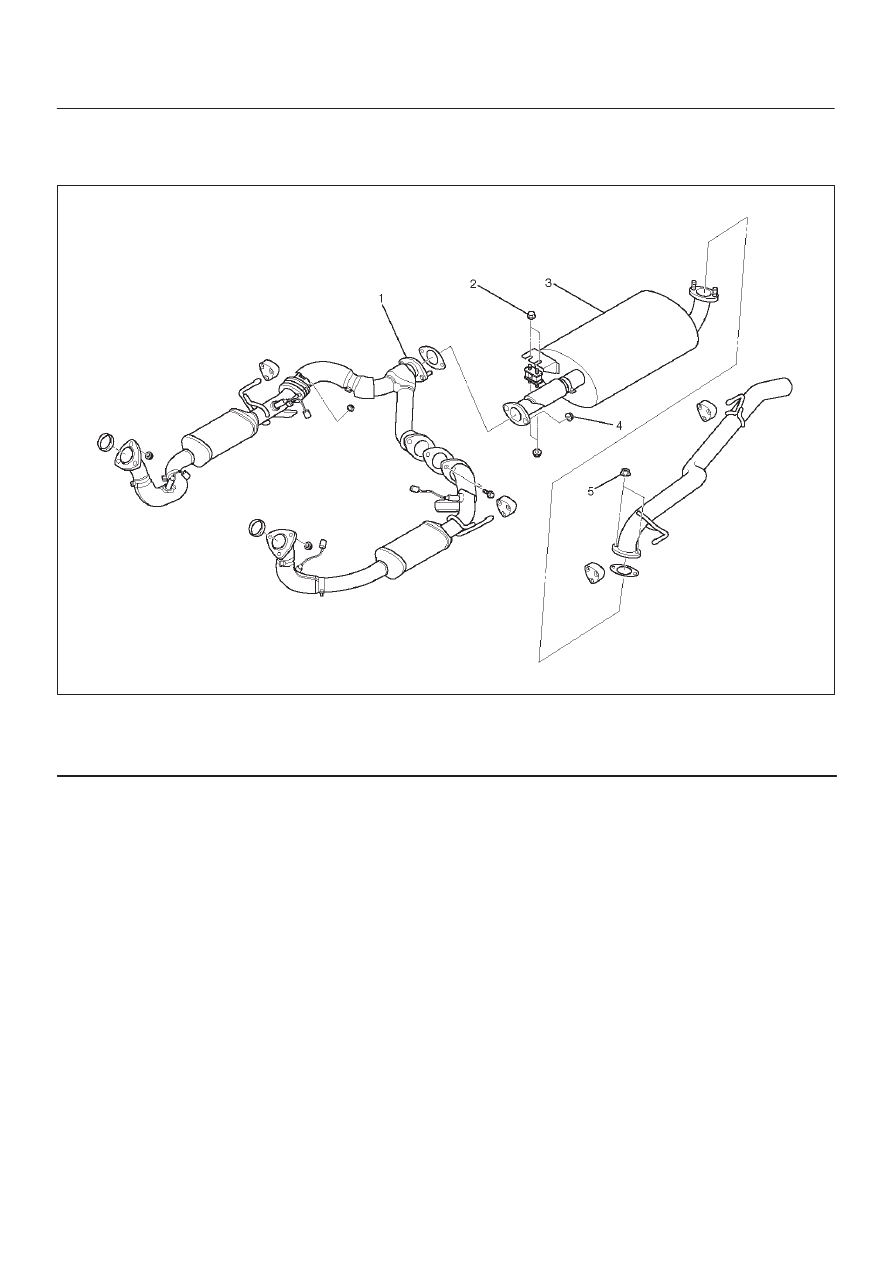

Exhaust Silencer

Exhaust Silencer and Associated Parts

150RY00006

Legend

(1) Forked Exhaust Pipe
(2) Support Rubber Fixing Nuts

(3) Exhaust Silencer
(4) Exhaust Silencer Fixing Nuts
(5) Rear Exhaust Pipe Fixing Nuts

Removal

1. Disconnect battery ground cable.
2. Lift up the vehicle and support with suitable safety

stands.

3. Remove the support rubber fixing nuts (2), the

exhaust silencer fixing nuts (4) and rear exhaust pipe
fixing nuts (5), then remove the exhaust silencer (3).

Installation

1. Install the exhaust silencer (3) and tighten the fixing

nuts (4) (5) to the specified torque.

Torque
Nuts: 43 N·m (32 lb ft)

2. Tighten the support rubber fixing nuts (2) to the

specified torque.

Torque
Bolts: 15 N·m (11 lb ft)

6F–7

ENGINE EXHAUST (6VE1 3.5L)

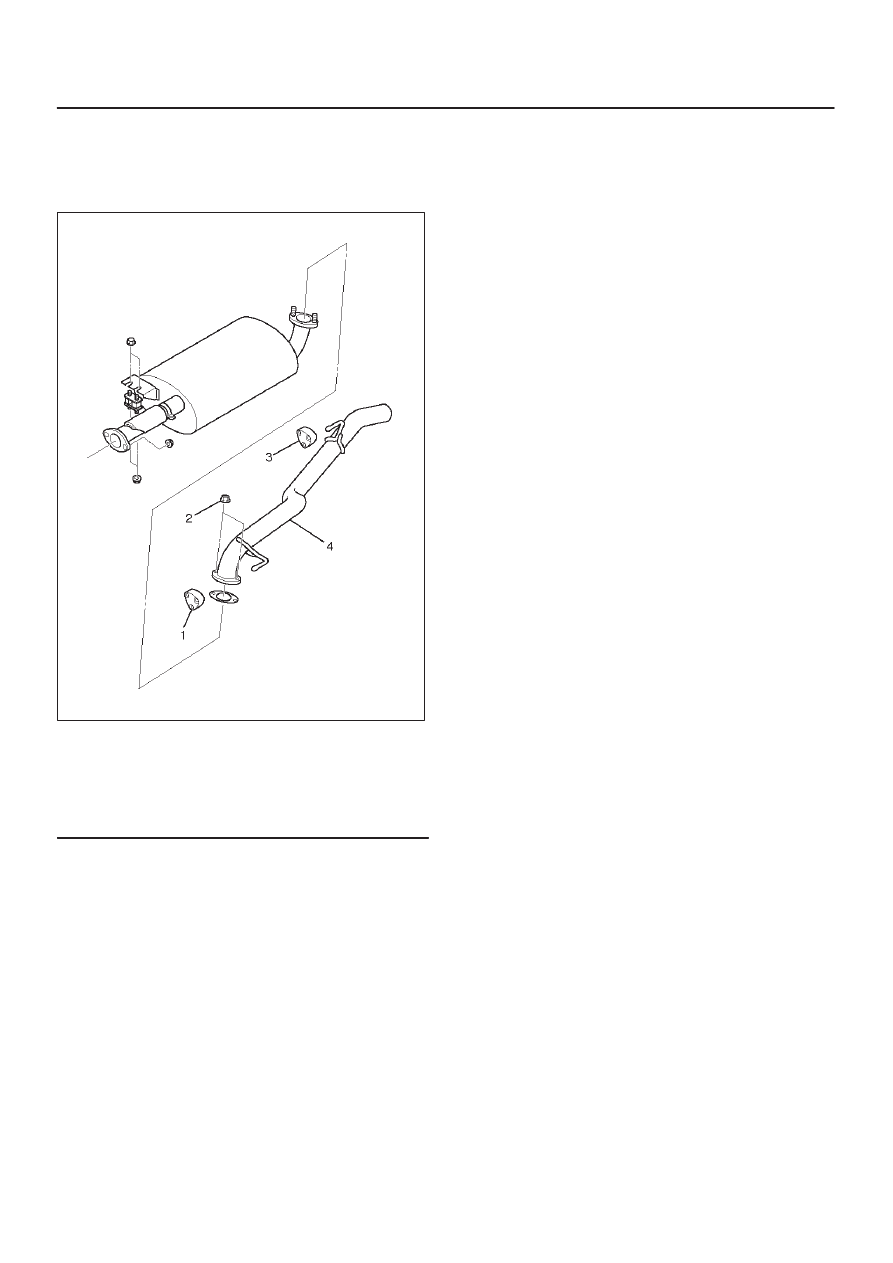

Rear Exhaust pipe

Rear Exhaust pipe and Associated
Parts

150RW028

Legend

(1) Mounting Rubber
(2) Rear Exhaust Pipe Fixing Nuts
(3) Mounting Rubber
(4) Rear Exhaust Pipe

Removal

1. Disconnect battery ground cable.
2. Lift up the vehicle and support with suitable safety

stands.

3. Remove the rear exhaust fixing nuts (2) and the

mounting rubbers (1) (3), then remove the rear
exhaust pipe (4).

Installation

1. Install the rear exhaust pipe (4) and the mounting

rubbers (1) (3), then tighten the fixing nuts (2) to the
specified torque.

Torque
Nuts: 43 N·m (32 lb ft)

6F–8

ENGINE EXHAUST (6VE1 3.5L)

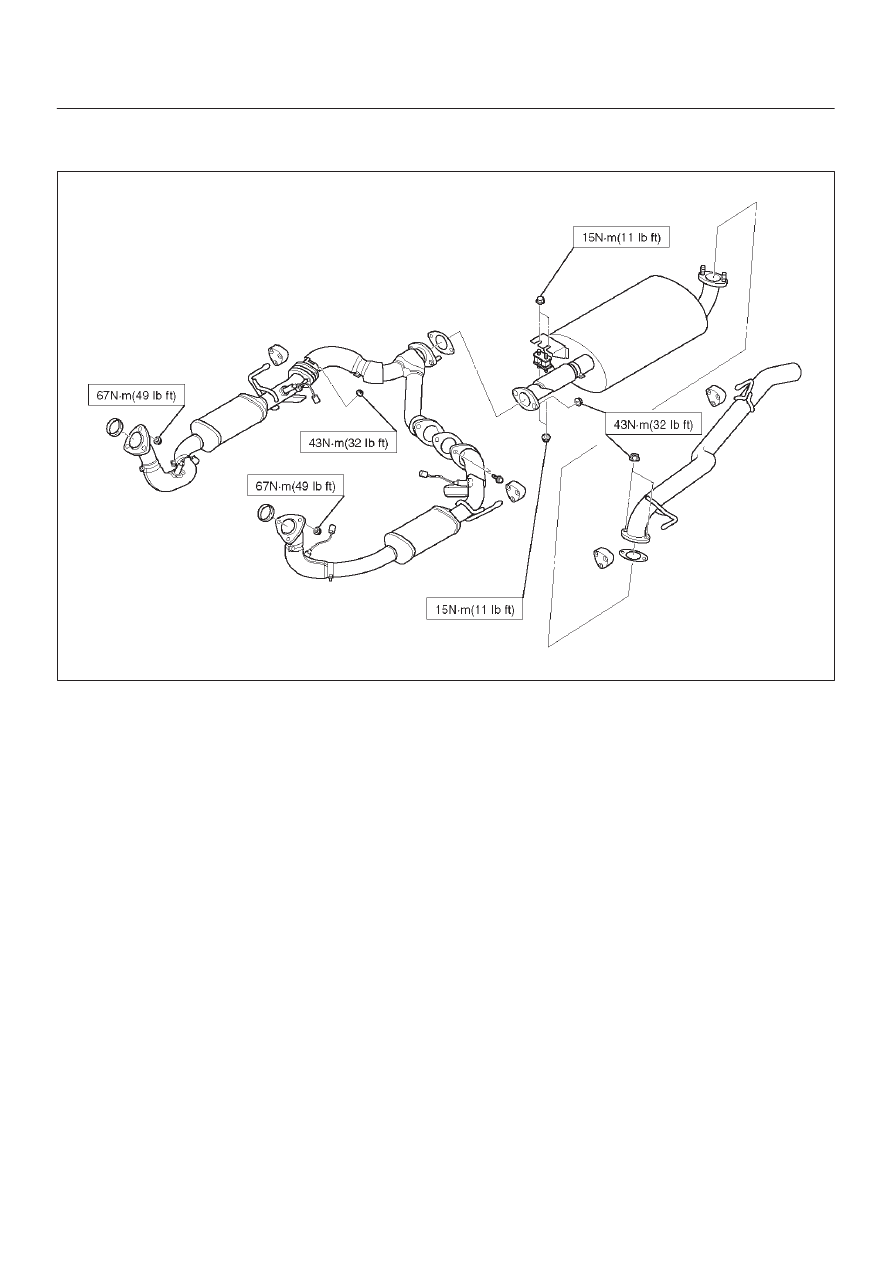

Main Data and Specifications

Torque Specifications

150RY00007

6G–1

ENGINE LUBRICATION (6VE1 3.5L)

AXIOM

ENGINE

ENGINE LUBRICATION (6VE1 3.5L)

CONTENTS

Service Precaution

6G–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

6G–2

. . . . . . . . . . . . . . . . . . . . .

Oil Pump

6G–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pump and Associated Parts

6G–3

. . . . . . . . . .

Disassembly

6G–4

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

6G–4

. . . . . . . . . . . . . . . . . .

Reassembly

6G–5

. . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pan and Crankcase

6G–7

. . . . . . . . . . . . . . . . . .

Removal

6G–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6G–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pump

6G–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6G–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6G–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Pump Oil Seal

6G–11

. . . . . . . . . . . . . . . . . . . . . . .

Removal

6G–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6G–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Filter

6G–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6G–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6G–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specification

6G–13

. . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
