6E–10

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

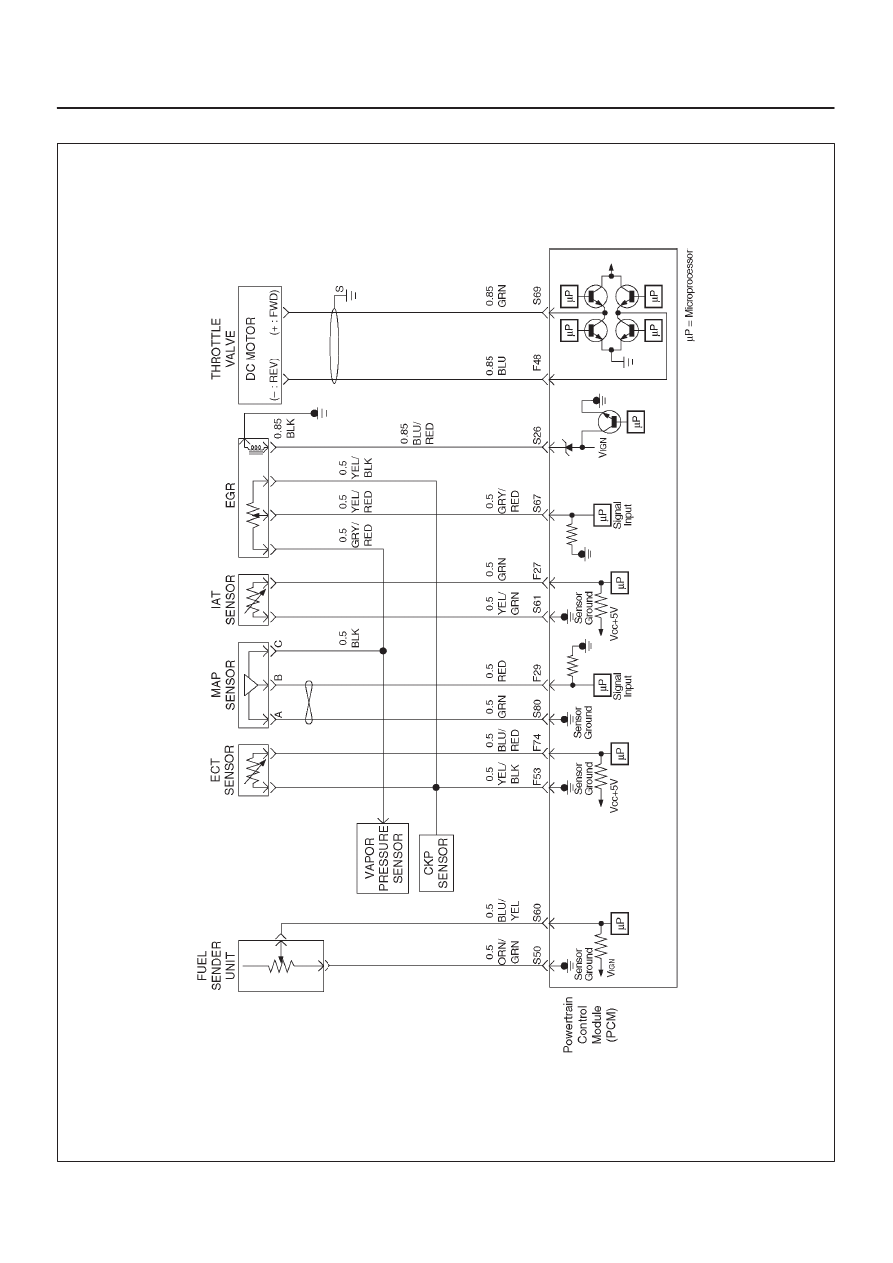

PCM Wiring Diagram (4 of 7)

060R200065

6E–11

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

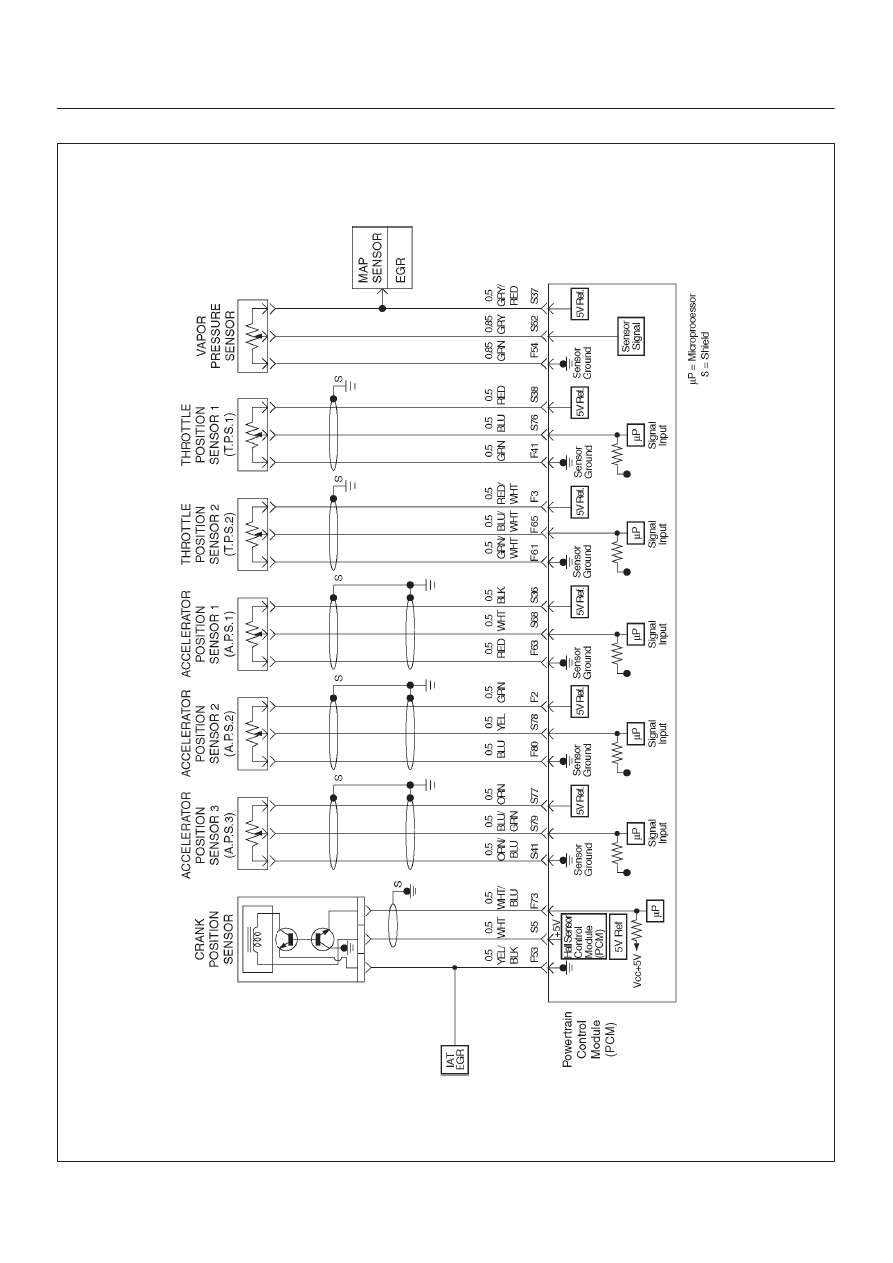

PCM Wiring Diagram (5 of 7)

060R200041

6E–12

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

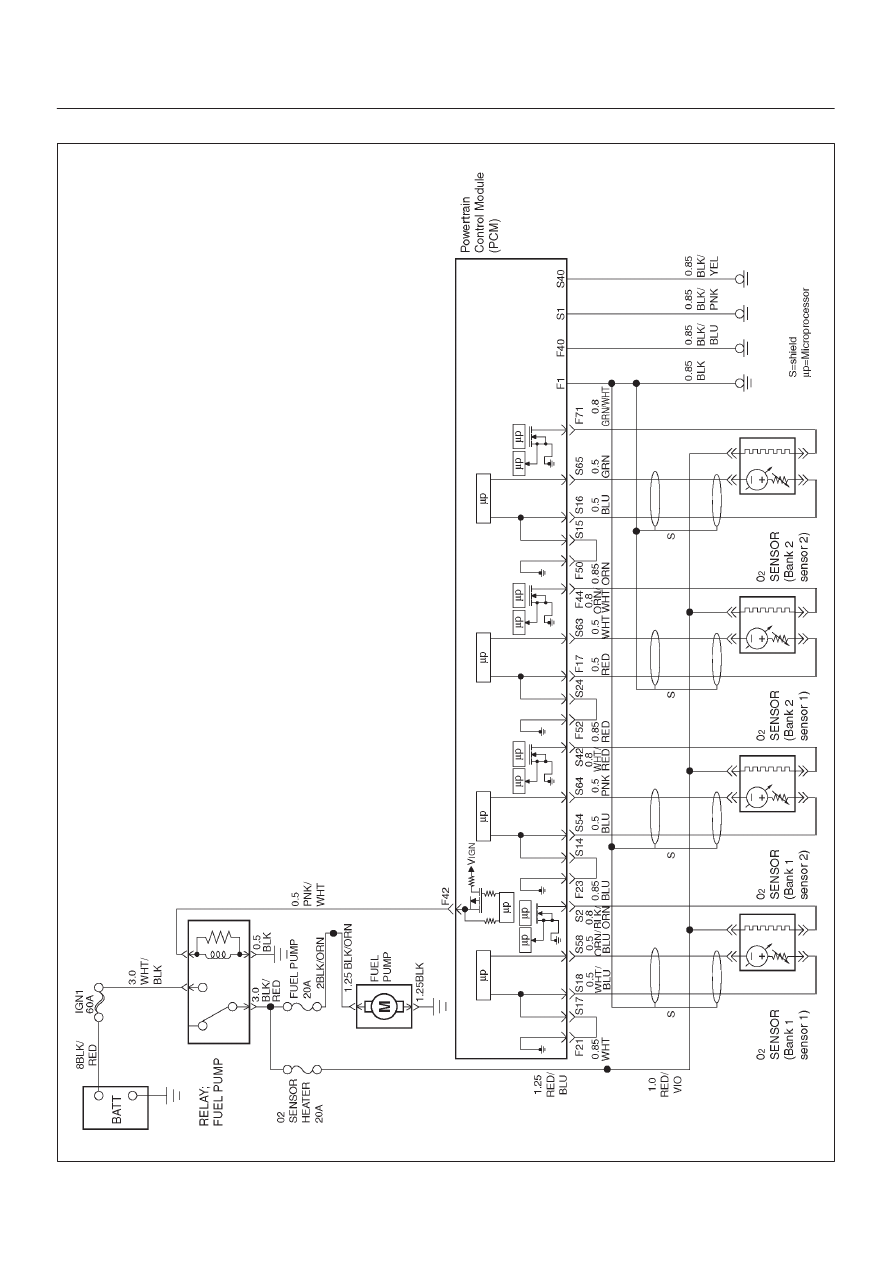

PCM Wiring Diagram (6 of 7)

060R200046

6E–13

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

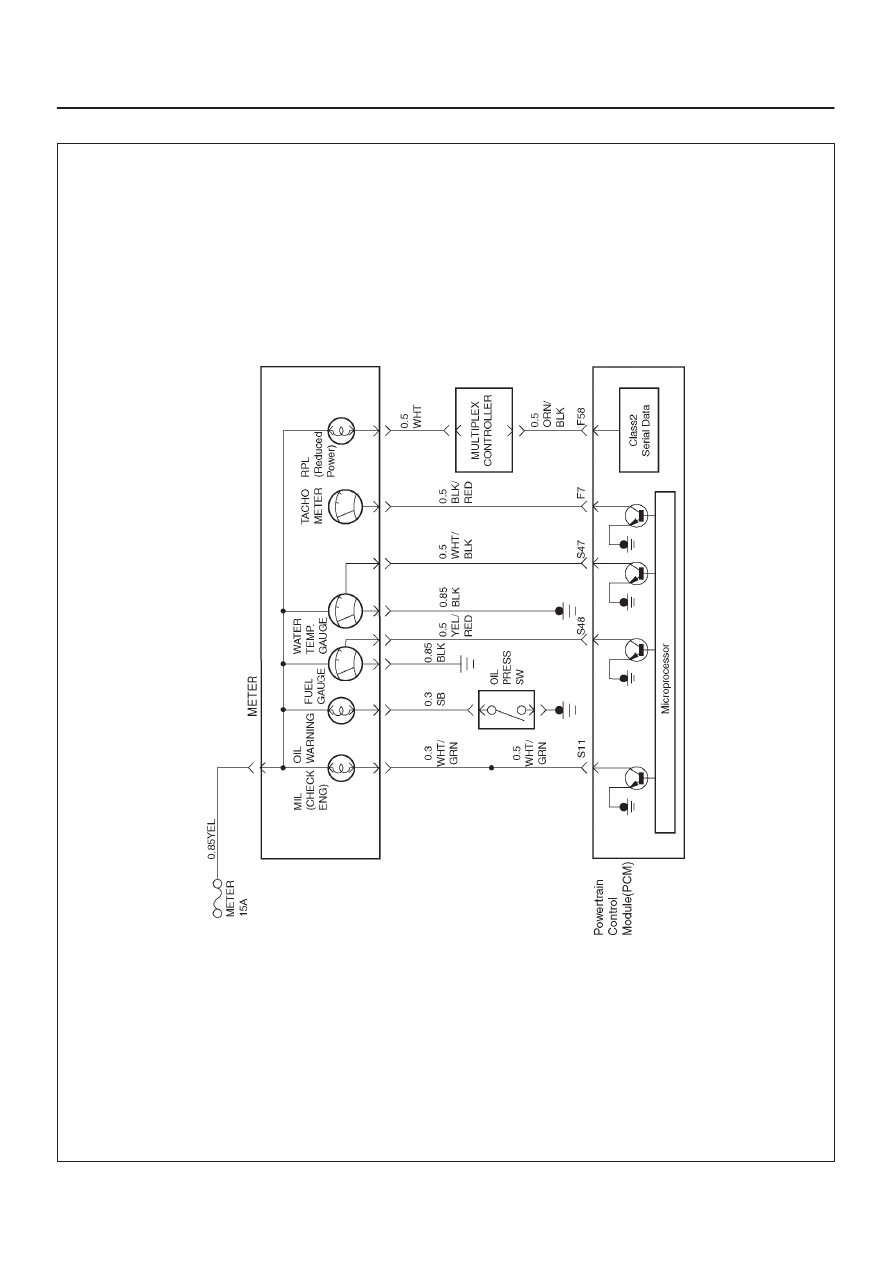

PCM Wiring Diagram (7 of 7)

060R200084
