4C–22

DRIVE SHAFT SYSTEM

Universal Joint Reassembly

1. Pack the four grease cavities of the spider with a

high quality, extreme pressure N.L.G.I. Grade 2
grease. Do not add additional grease to bearing cup
assembly.

2. Move one end of the spider to cause a trunnion to

project through the spider hole beyond the outer
machined face of the yoke lug. Place a bearing over
the trunnion diameter and align it to the spider hole.
Using an arbor press, align the trunnion to the
spider hole and place a solid plug on the upper
bearing. Press the bearing into the spider hole
enough to install snap ring.

401RW087

3. Install a snap ring.

NOTE: Be sure the snap rings are properly seated in
the grooves.

4. Repeat steps 2 and 3 to install the opposite bearing.

If the joint is stiff, strike the yoke ears with a soft
hammer to seat the bearing.

5. Align the setting marks and join the yokes.

DRIVE SHAFT SYSTEM

4C–23

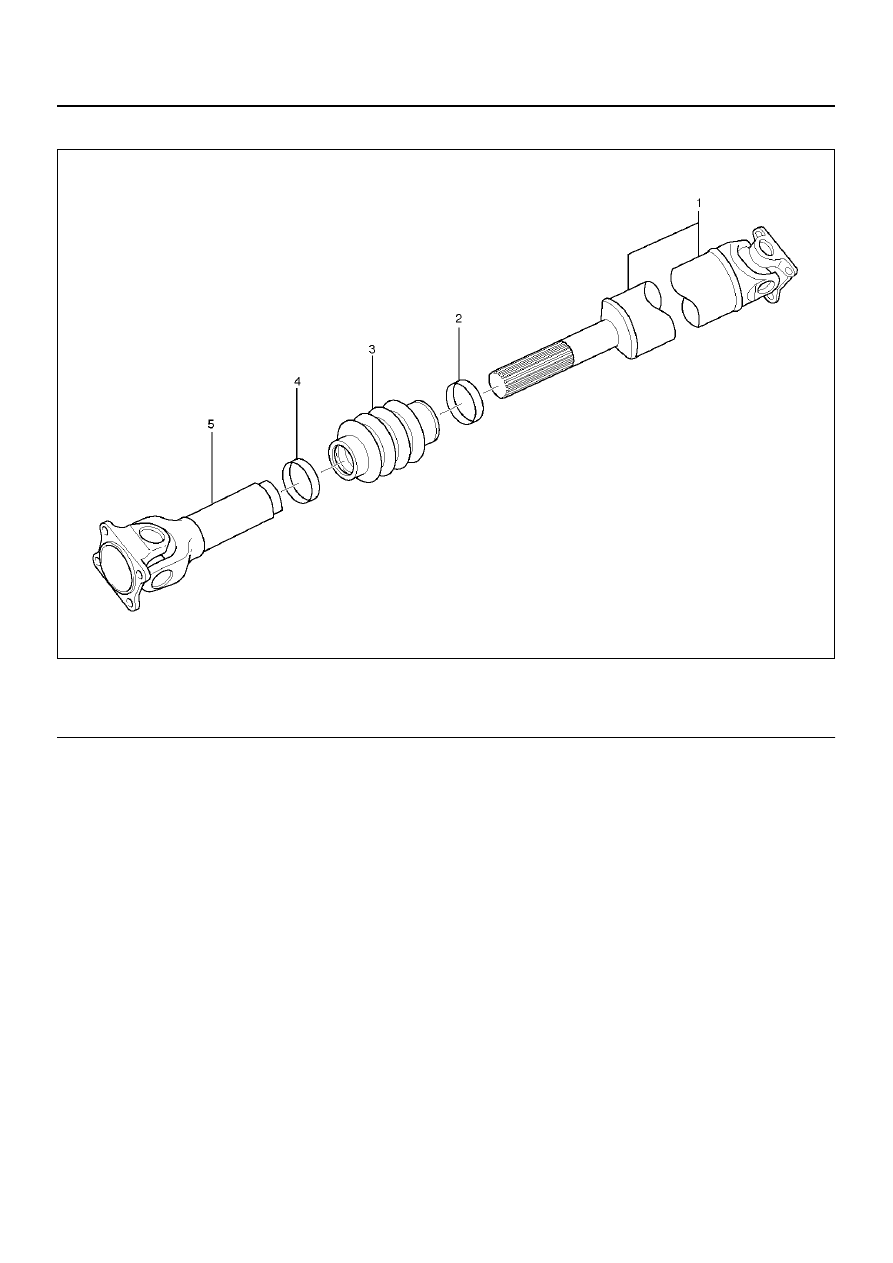

Slip Joint Reassembly (6VD1 Model Only)

401RW081

EndOFCallout

1. Apply grease evenly to both the female and male

splines.

2. Apply a small amount of grease by finger to the

outer lips of the boot.

3. Slide the boot (smaller diameter side) onto the

spline yoke shaft being careful not to damage the
spline coating or boot.

4. Carefully insert the spline yoke shaft into the tube

assembly to maintain proper phasing. The spider
holes should be in line according to the marks made
prior to disassembly.

5. Position boot over tube assembly and yoke shaft in

its assembled position over boot grooves.

6. Attach boot clamps and secure using pliers.

7. Be sure clamp is properly seated and secure.

CAUTION: Use a new clamp similar to the original
clamp. Use of any other clamp may cause shaft
imbalance and/or grease leakage.

Legend

(1) Spline Yoke and Universal Joint Assembly
(2) Clamp

(3) Boot
(4) Clamp
(5) Tube and Universal Joint Assembly

4C–24

DRIVE SHAFT SYSTEM

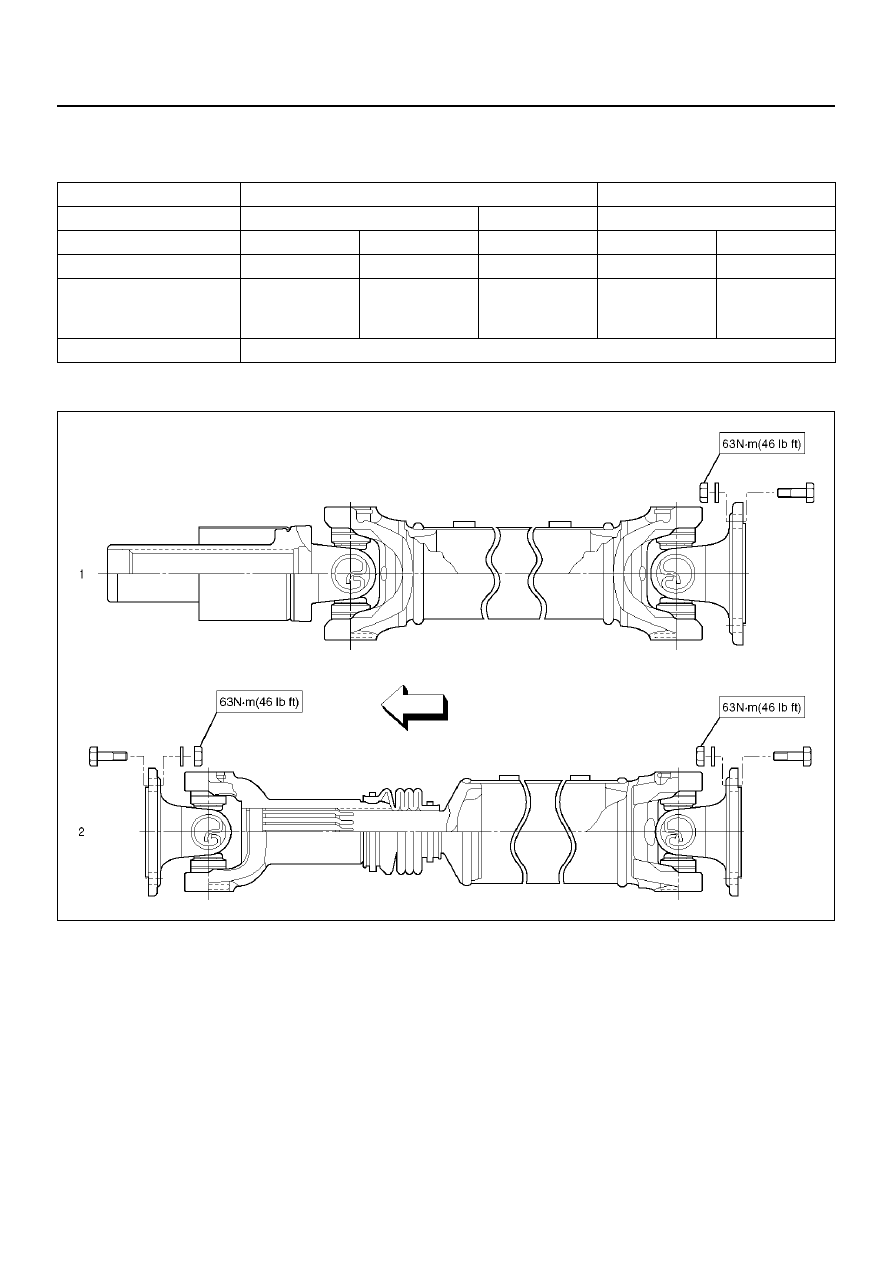

Main Data and Specifications

General Specifications

Torque Specifications

401RX00008

2WD Model

4WD Model

Engine

Y22SE

6VD1

Transmission

M/T

A/T

M/T

A/T

Type (See illustration)

Length
(between two spiders
center)

1076.4mm

(42.38in)

1106.4mm

(43.56in)

1096.7mm

(43.18in)

963.2mm

(37.92in)

774.9mm

(30.51in)

Universal joint type

Cardan type
