POWER-ASSISTED STEERING SYSTEM

2A–37

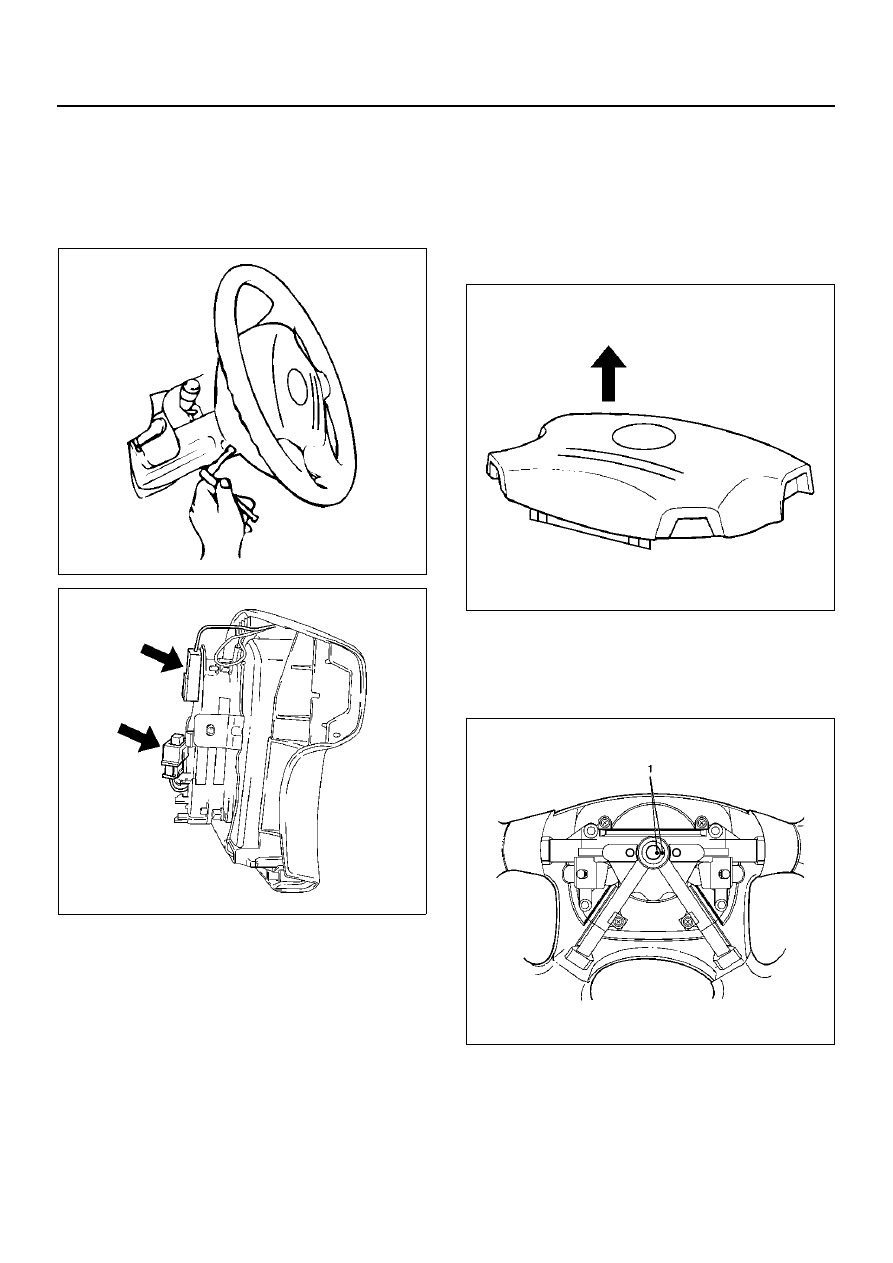

7. Loosen the inflator module fixing bolt from behind

the steering wheel assembly using a TORX® driver
or equivalent until the inflator module can be
released from steering assembly. Disconnect the
yellow 2-way SRS connector and horn lead located
behind the inflator module, then remove inflator
module.

827RW070

827RW073

WARNING:  The INFLATOR MODULE SHOULD
ALWAYS BE CARRIED WITH THE TRIM COVER
AWAY FROM YOUR BODY A ND SHOULD ALWAYS
BE LAID ON A FLAT SURFACE WITH THE
URETHANE SIDE UP. THIS IS NECESSARY
BECAUSE FREE SPACE IS PROVIDED TO ALLOW
THE AIR CUSHION TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY MAY RESULT.

827RW072

8. Apply a setting mark (1) across the steering wheel

and shaft so parts can be reassembled in their
original position. Move the front wheels to the
straight ahead position, then use steering wheel
remover J–29752 to remove the steering wheel.

430RW021

2A–38

POWER-ASSISTED STEERING SYSTEM

CAUTION:  Never apply force to the steering wheel
shaft using a hammer or other impact tools in an
attempt to remove the steering wheel. The steering
shaft is designed as an energy absorbing unit.

430RX005

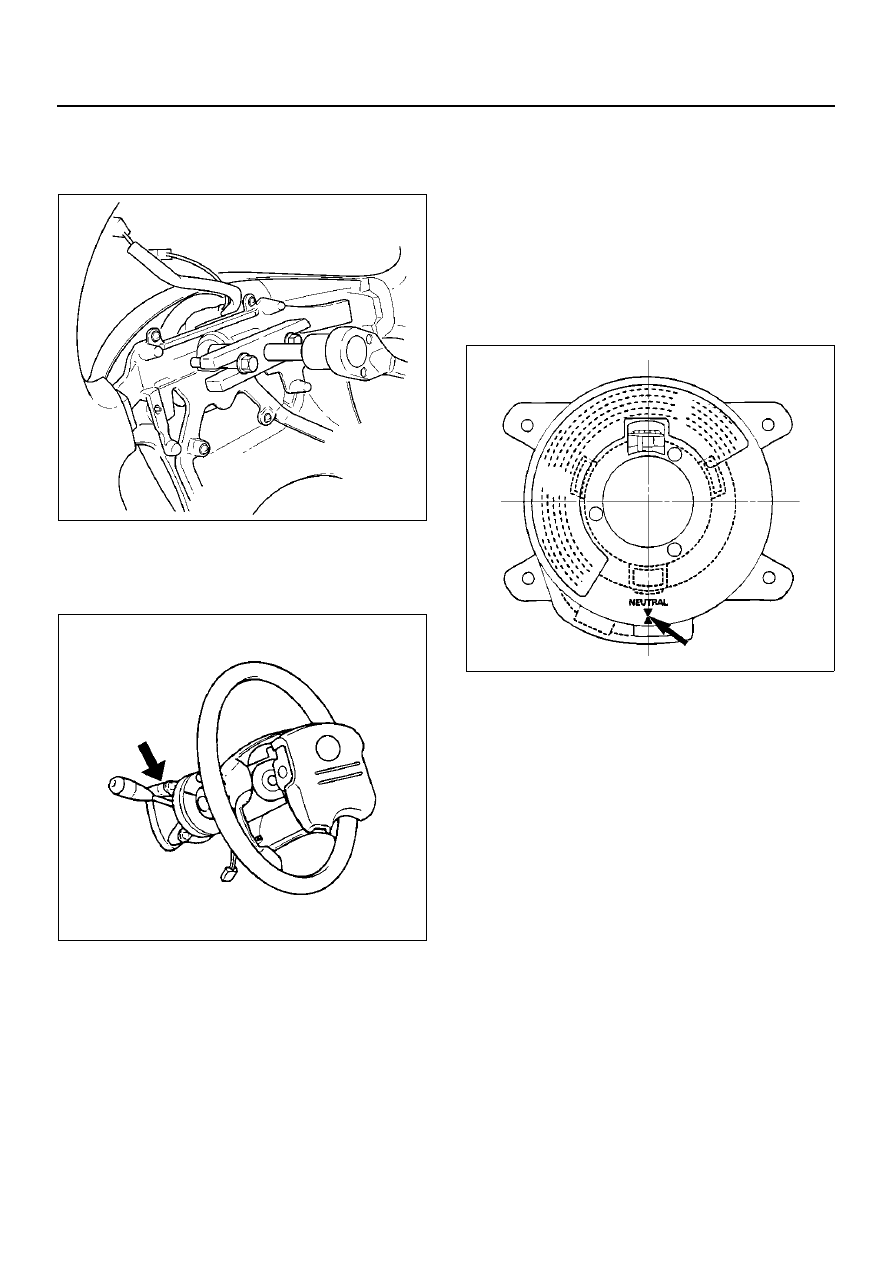

9. Remove steering column cover.

10. Disconnect the wiring harness connectors located

under the steering column then remove combination
switch and SRS coil assembly.

825RW288

Installation

1. Install combination switch and SRS coil assembly.

After installation of combination switch assembly,
connect the combination switch wiring harness
connector and the SRS 2-way connector located
under the steering column. Then turn the SRS coil
counter clockwise to full, return about 3 turns and
align the neutral mark.

CAUTION:  Turn the SRS coil counter clockwise
until some resistance is felt, or damage may occur
to the SRS coil.

825RW016

POWER-ASSISTED STEERING SYSTEM

2A–39

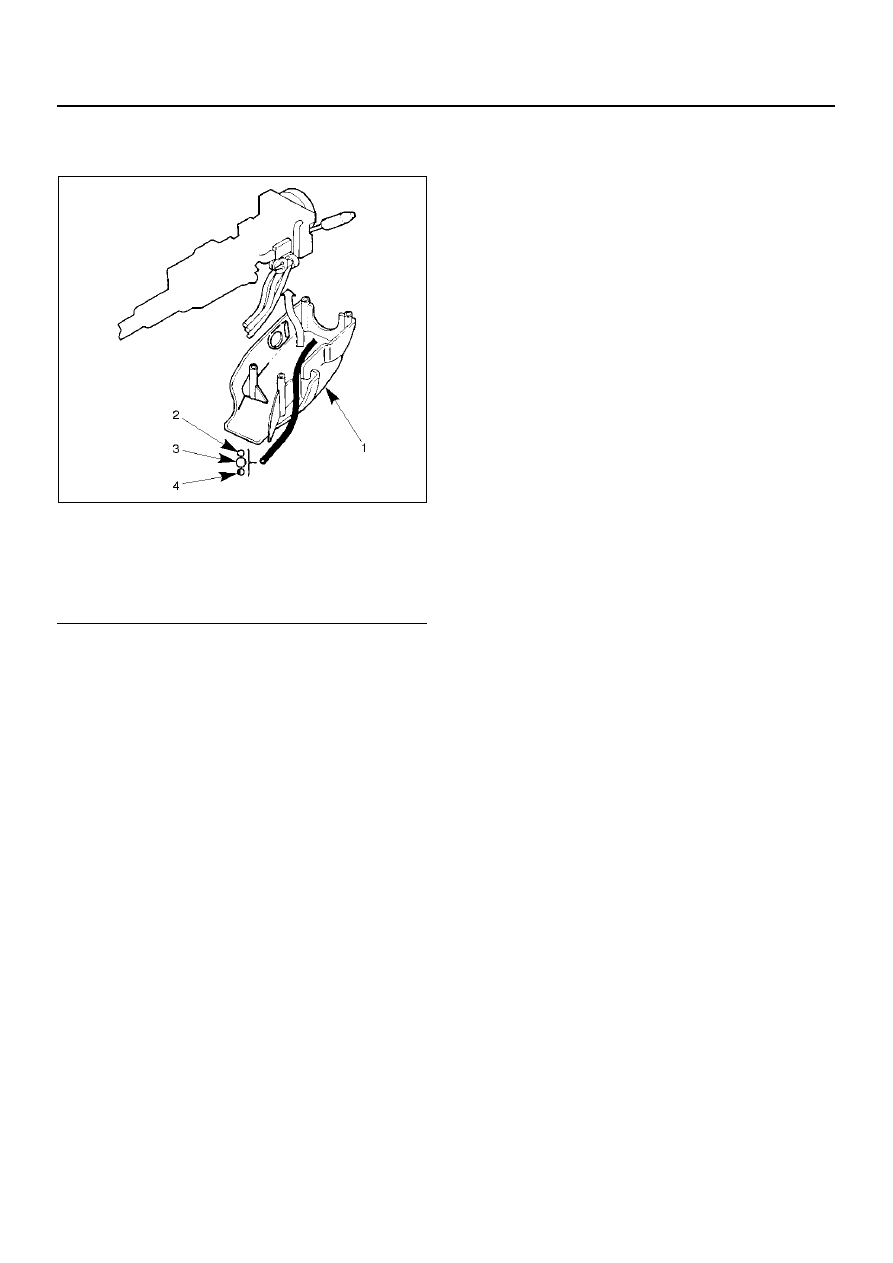

2. When installing the steering column cover, be sure

to route each wire harness as illustrated so that the
harnesses do not catch on any moving parts.

825RW017

E nd OFCa llou t

3. Align the setting marks made when removing then

install steering wheel.

CAUTION:  Never apply force to the steering wheel
shaft using a hammer or other impact tools in an
attempt to remove the steering wheel. The steering
shaft is designed as an energy absorbing unit.

4. Tighten the steering wheel fixing nut to the specified

torque.

Torque: 34 N·m  (25 lb ft)

5. Support the inflator module and carefully connect

the SRS connector and horn lead.

NOTE:  Pass the lead wire through the tabs on the
plastic cover (wire protector) of inflator to prevent lead
wire from being pinched.

6. Tighten bolts to specified torque.

Torque: 9 N·m (78lb in)

7. Install driver knee bolster (reinforcement).

8. Install instrument panel lower cover then Install the

engine hood opening lever.

9. Connect the SRS connector.

10. Connect the battery “-" terminal cable.

11. Turn the ignition switch to the “ON" position and

observe the warning lamp. The lamp should flash 7
times. If the lamp does not operate correctly, refer to
Restraints section.

Legend

(1)

Steering Column Cover

(2)

Starter Switch Harness

(3)

Combination Switch Harness

(4)

Inflator Module Harness

2A–40

POWER-ASSISTED STEERING SYSTEM

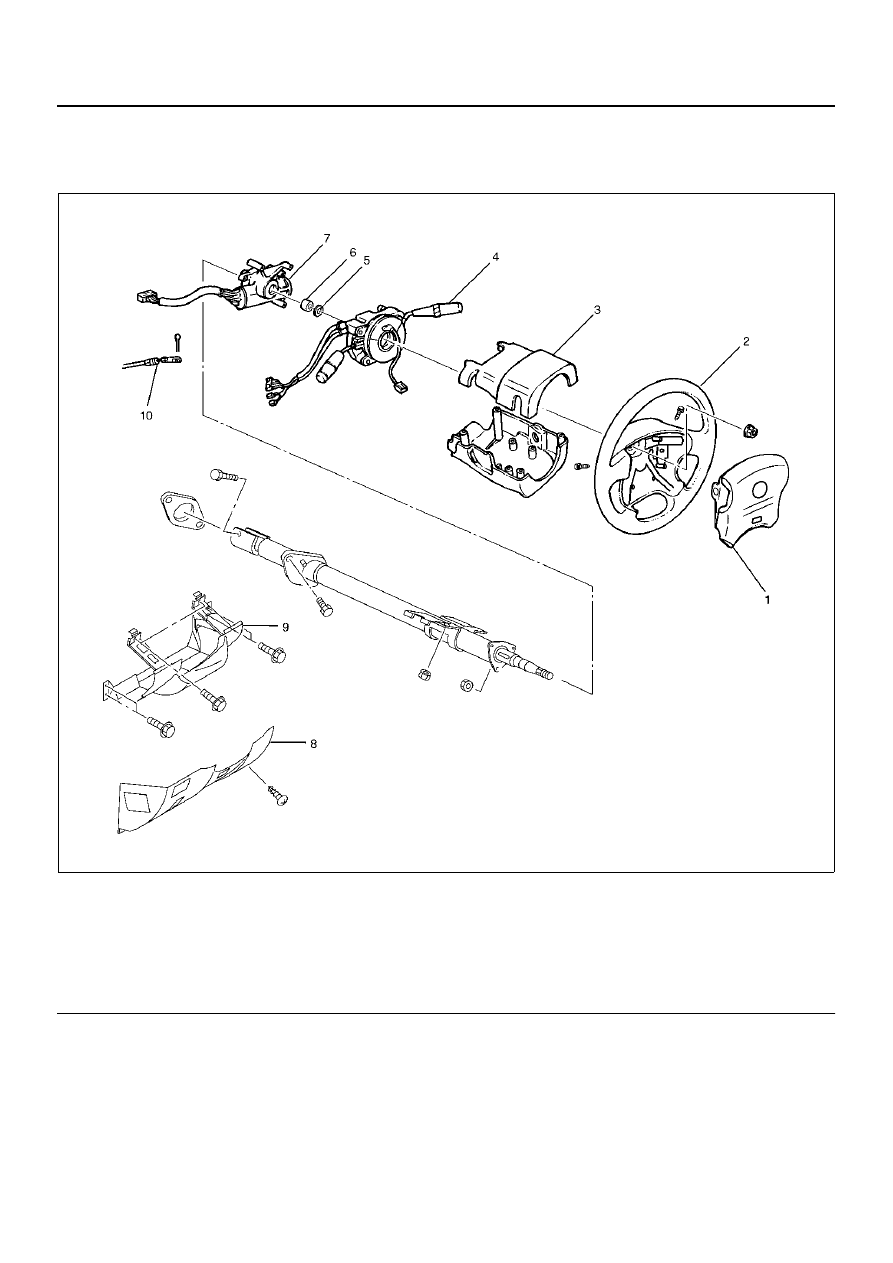

Lock Cylinder

Lock Cylinder and Associated Parts

431R100003

E nd O FCallo ut

Removal

1. Turn the steering wheel so that the vehicle's wheels

are pointing straight ahead.

2. Turn the ignition switch to “LOCK".

3. Disconnect the battery ground cable, and wait at

least 5 minutes.

4. Disconnect the yellow 2-way SRS connector located

under the steering column.

CAUTION:  The wheels of the vehicle must be
straight ahead and the steering column in the
"LOCK" position before disconnecting the steering
wheel. Failure to do so will cause the coil assembly
to become uncentered which will cause damage to
the coil assembly.

5. Remove the engine hood opening lever and

steering lower cover.

6. Remove driver knee bolster (reinforcement).

Legend

(1)

Inflator Module

(2)

Steering Wheel

(3)

Steering Column Cover

(4)

Combination Switch and SRS Coil Assembly

(5)

Snap Ring

(6)

Cushion Rubber

(7)

Lock Cylinder Assembly

(8)

Instrument Panel Lower Cover

(9)

Driver Knee Bolster (reinforcement)

(10)

Shift Lock Cable (for A/T)
