SEAT BELT SYSTEM

9A–13

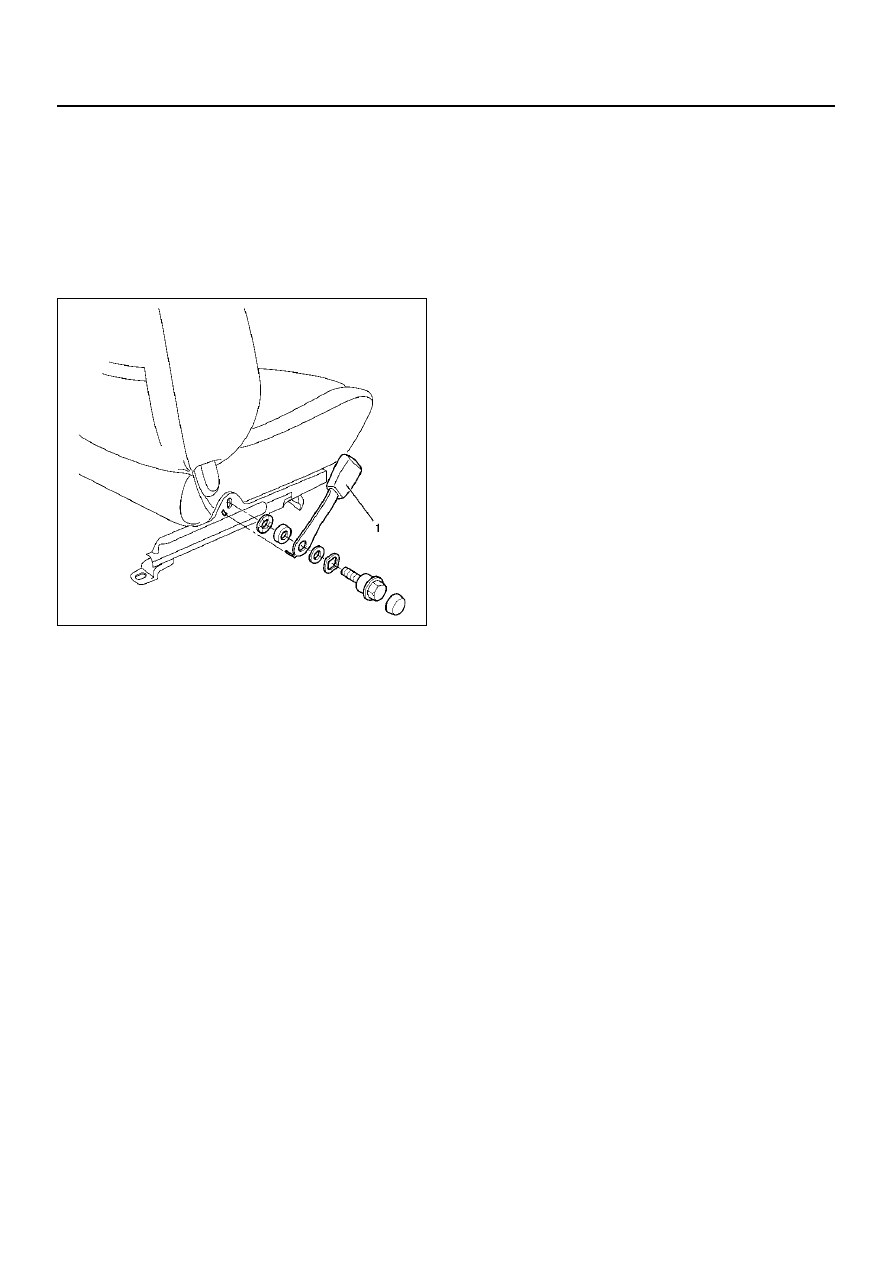

Front Seat Buckle Assembly

Removal

1. Disconnect the battery ground cable.

2. Disconnect the seat belt warning connector (driver's

side) and remove a clip.

3. Remove the front seat buckle assembly (1).

760RY00016

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the buckle anchor bolt to the specified

torque.

Torque: 29 N·m (22 lb ft)

9A–14

SEAT BELT SYSTEM

Rear Center Seat Belt / Buckle Assembly

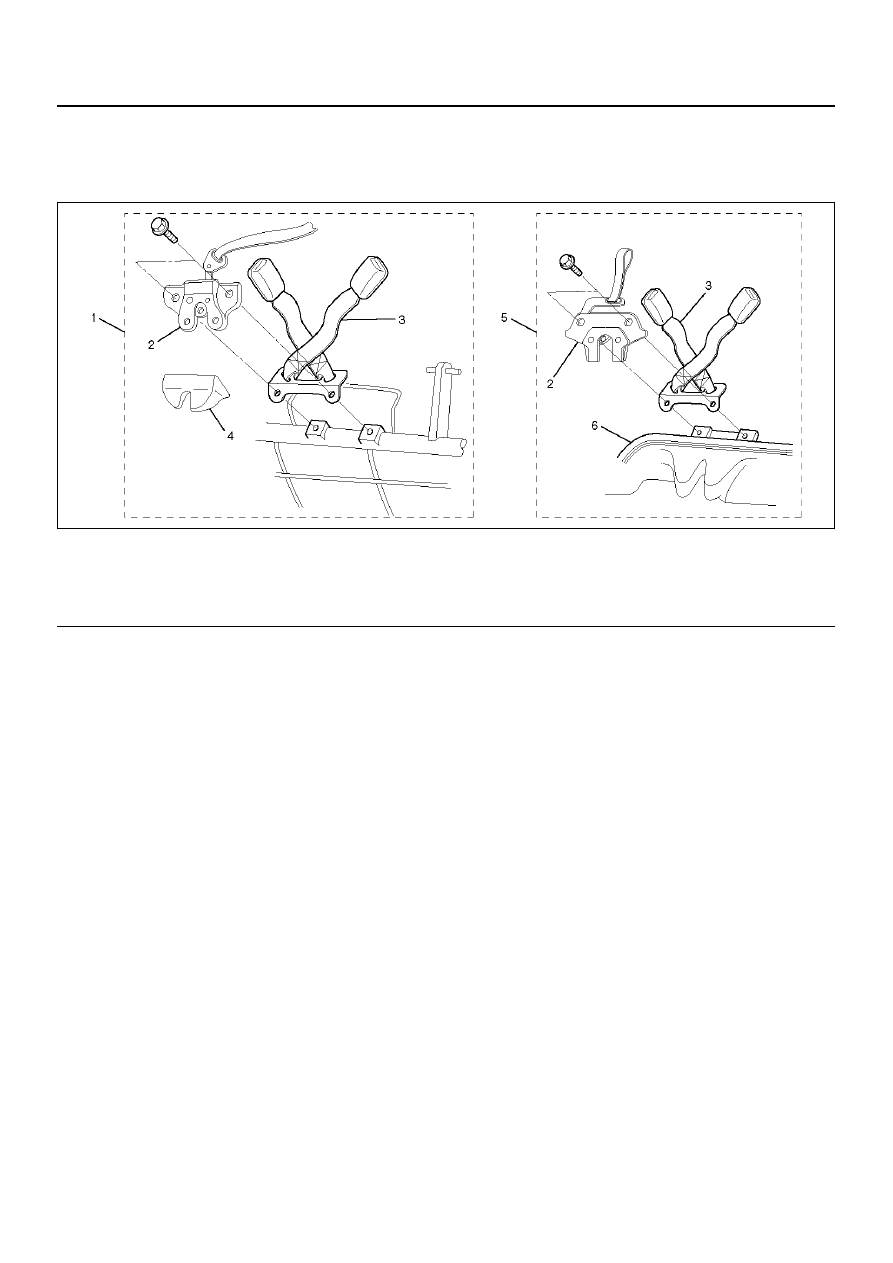

Rear Center Seat Belt / Buckle Assembly and Associated Parts

755RX029

EndOFCallout

Removal

1. Remove the seat lock cover (SWB).

2. Remove the rear cushion frame assembly (LWB).

• Refer to Rear Seat Assembly in Seats section.

3. Remove the rear seat lock assembly and rear seat

belt buckle assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the rear seat lock assembly and rear seat

belt buckle assembly fixing bolts to the specified
torque.

Torque: 39 N·m (29 lb ft)

NOTE:  Removal and installation procedure of rear
center seat belt assembly same as rear seat belt buckle
assembly procedures.

Legend

(1) SWB
(2) Rear Seat Lock Assembly
(3) Rear Seat Belt Buckle Assembly

(4) Seat Lock Cover
(5) LWB
(6) Rear Cushion Frame Assembly

SEAT BELT SYSTEM

9A–15

Child Seat Tether Anchorage Bracket (Child Restraint)

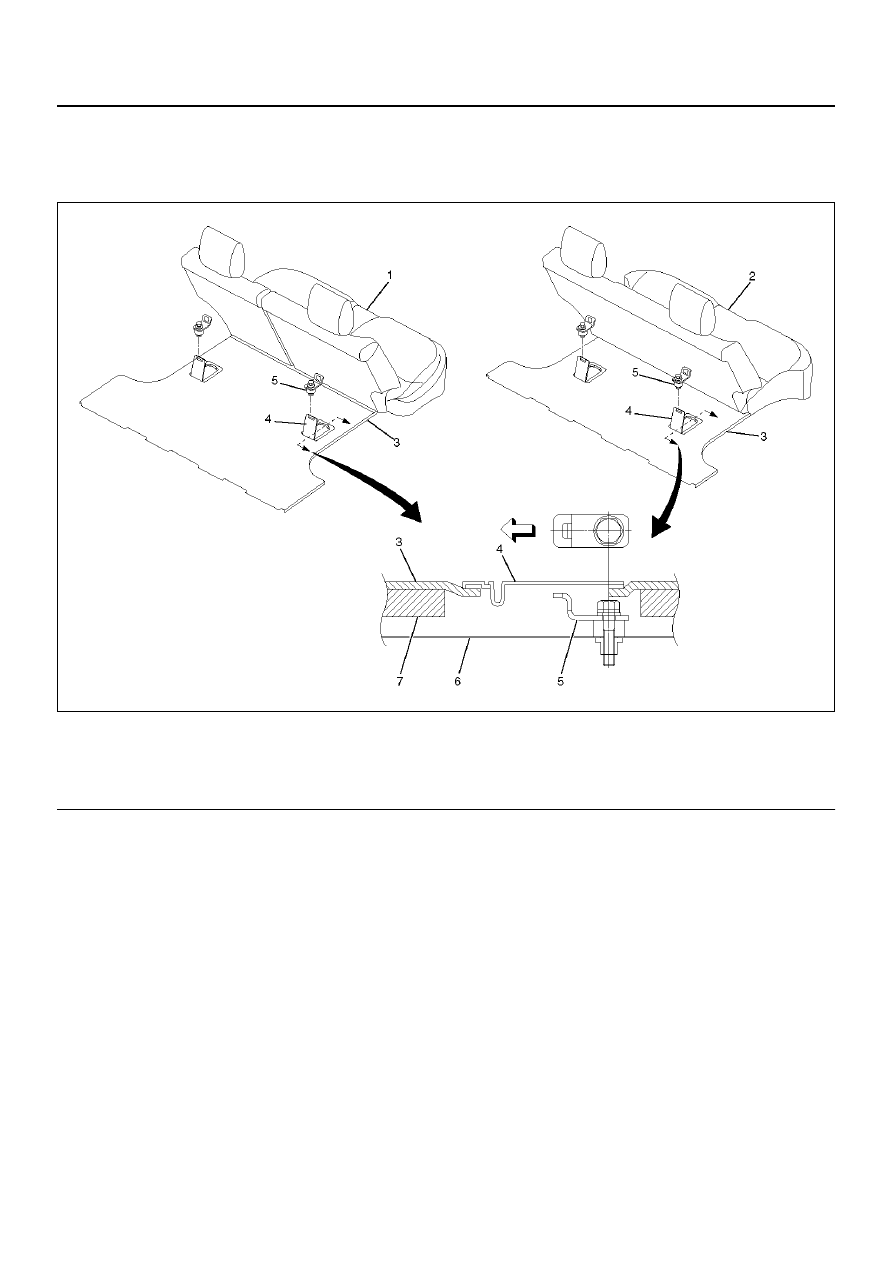

Child Seat Tether Anchorage Bracket and Associated Parts

760R100033

EndOFCallout

Removal

1. Open the tether anchorage bracket cover.

2. Remove the fixing bolt and child seat tether

anchorage bracket.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the bracket such that its tether belt hook hole

is facing toward the front of the vehicle.

2. Tighten the fixing bolts to the specified torque.

Torque: 19 N·m (14 lb ft)

Legend

(1) Rear Seat (LWB)
(2) Rear Seat (SWB)
(3) Luggage Floor Carpet

(4) Tether Anchorage Bracket Cover
(5) Child Seat Tether Anchorage Bracket
(6) Luggage Floor Panel
(7) Insulation

9A–16

SEAT BELT SYSTEM

Child Seat Lower Anchorage Striker (LWB)

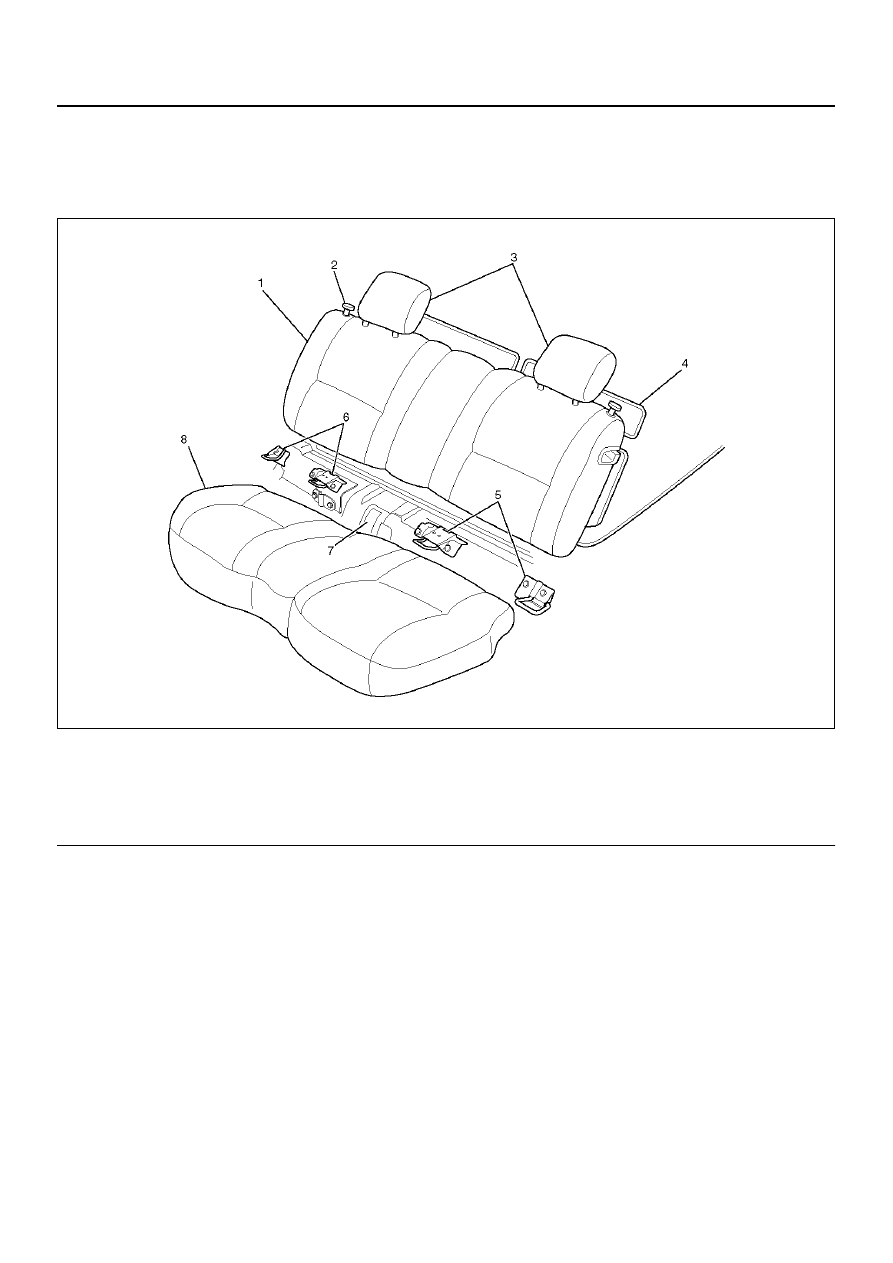

Child Seat Lower Anchorage Striker
and Associated Parts

755R100007

EndOFCallout

Removal

1. Raise the seat cushion assembly (2).

• Pull the strap (1) of the rear seat lock assembly to

release the seat lock.

Legend

(1) Rear Seat Back Assembly
(2) Release Knob
(3) Headrest
(4) Front Luggage Floor Carpet

(5) Lower Anchorage Striker (LH)
(6) Lower Anchorage Striker (RH)
(7) Body Floor Panel
(8) Rear Seat Cushion Assembly
