Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Service manual - part 1678

EXTERIOR/INTERIOR TRIM

8J–19

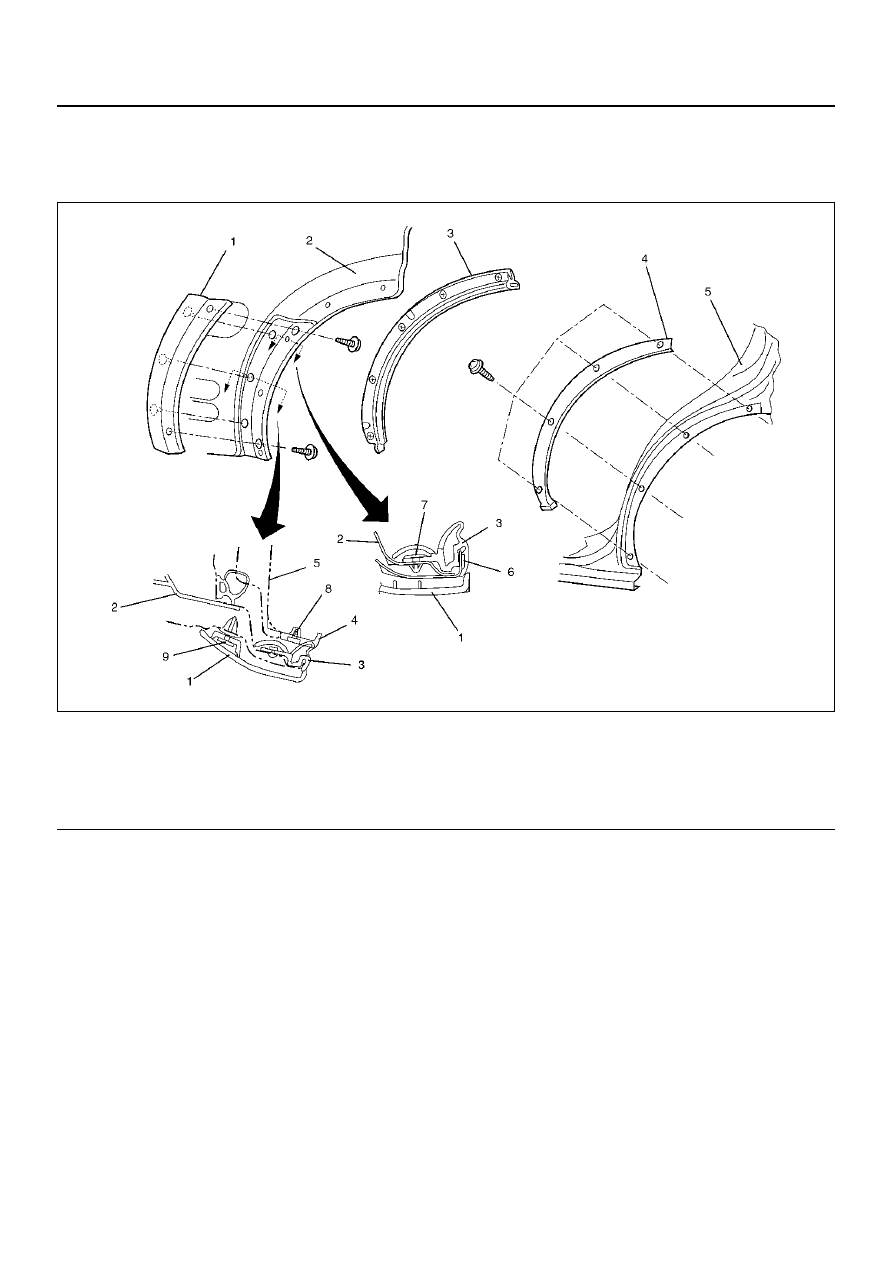

Wheel Arch Protector (LWB)

Wheel Arch Protector and Associated Parts

620RW019

EndOFCallout

Removal

1. Remove the wheel arch cover.

• Remove the four fixing screws.

2. Remove the wheel arch protector.

• Remove the two fixing screws from the back side

of the rear door panel and pull out the clips at
three positions.

3. Remove the rear door wheel arch seal.

• After disengaging five clips, peel off the double

sided adhesive tape.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Use a new double sided adhesive tape whenever

installing the rear door wheel arch seal.
Use rubbing alcohol to clean the area where the
double sided adhesive is to be attached.

Legend

(1) Wheel Arch Protector
(2) Rear Door Panel
(3) Rear Door Wheel Arch Seal
(4) Wheel Arch Cover

(5) Body Panel
(6) Double Sided Adhesive Tape
(7) Clip
(8) Screw Grommet
(9) Clip

8J–20

EXTERIOR/INTERIOR TRIM

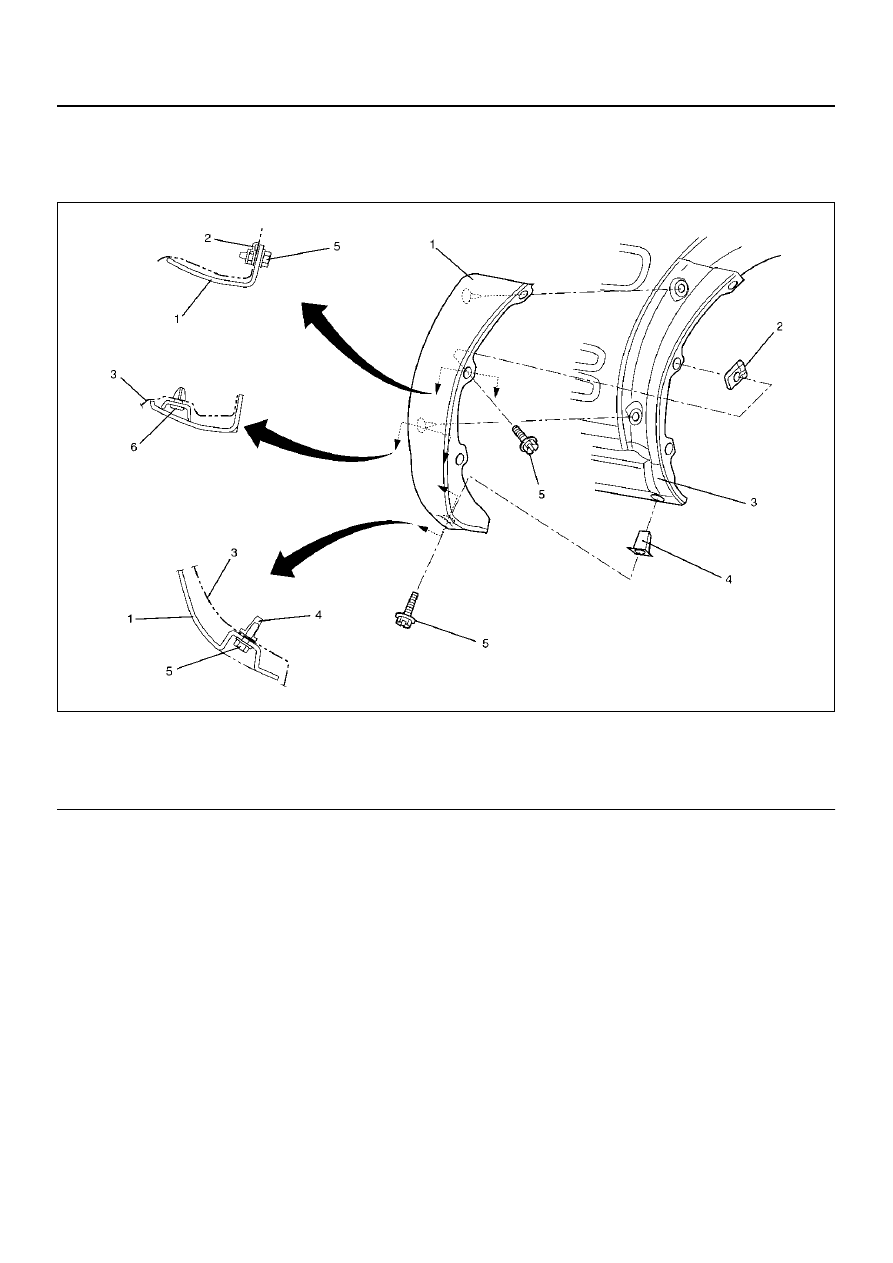

Wheel Arch Protector (SWB)

Wheel Arch Protector and Associated Parts

620RW018

EndOFCallout

Removal

1. Remove the wheel arch protecter.

• Remove the four fixing screws and pull out the

clips at two positions.

Installation

To install, follow the removal steps in the reverse order.

Legend

(1) Wheel Arch Protector
(2) Spire Nut
(3) Quarter Outer Panel

(4) Screw Grommet
(5) Screw
(6) Clip

EXTERIOR/INTERIOR TRIM

8J–21

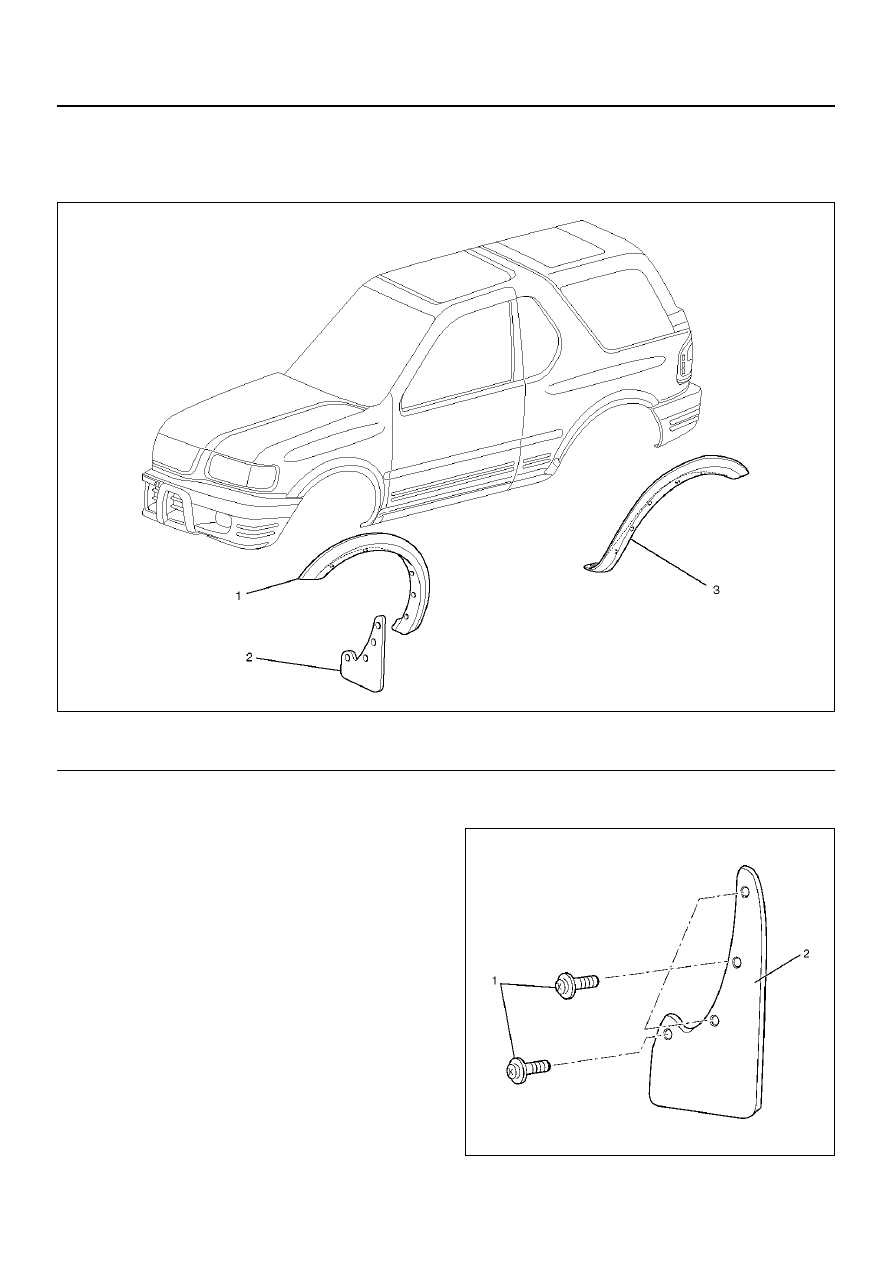

Wheel Arch Molding (SWB)

Wheel Arch Molding and Associated Parts

620RY00006

EndOFCallout

Removal

1. Remove the front mud flap (2).

• Remove the four fixing screws (1).

(Three of four screws are fixed together with
molding.)

647RW002

Legend

(1) Front Wheel Arch Molding

(2) Front Mud Flap
(3) Rear Wheel Arch Molding

8J–22

EXTERIOR/INTERIOR TRIM

2. Remove the front wheel arch molding.

• Remove the three fixing screws and pull out the

clips at three positions from the fender panel.

3. Remove the rear wheel arch molding.

• Remove the seven fixing screws and pull out the

clips at three positions from the outer quarter
panel.

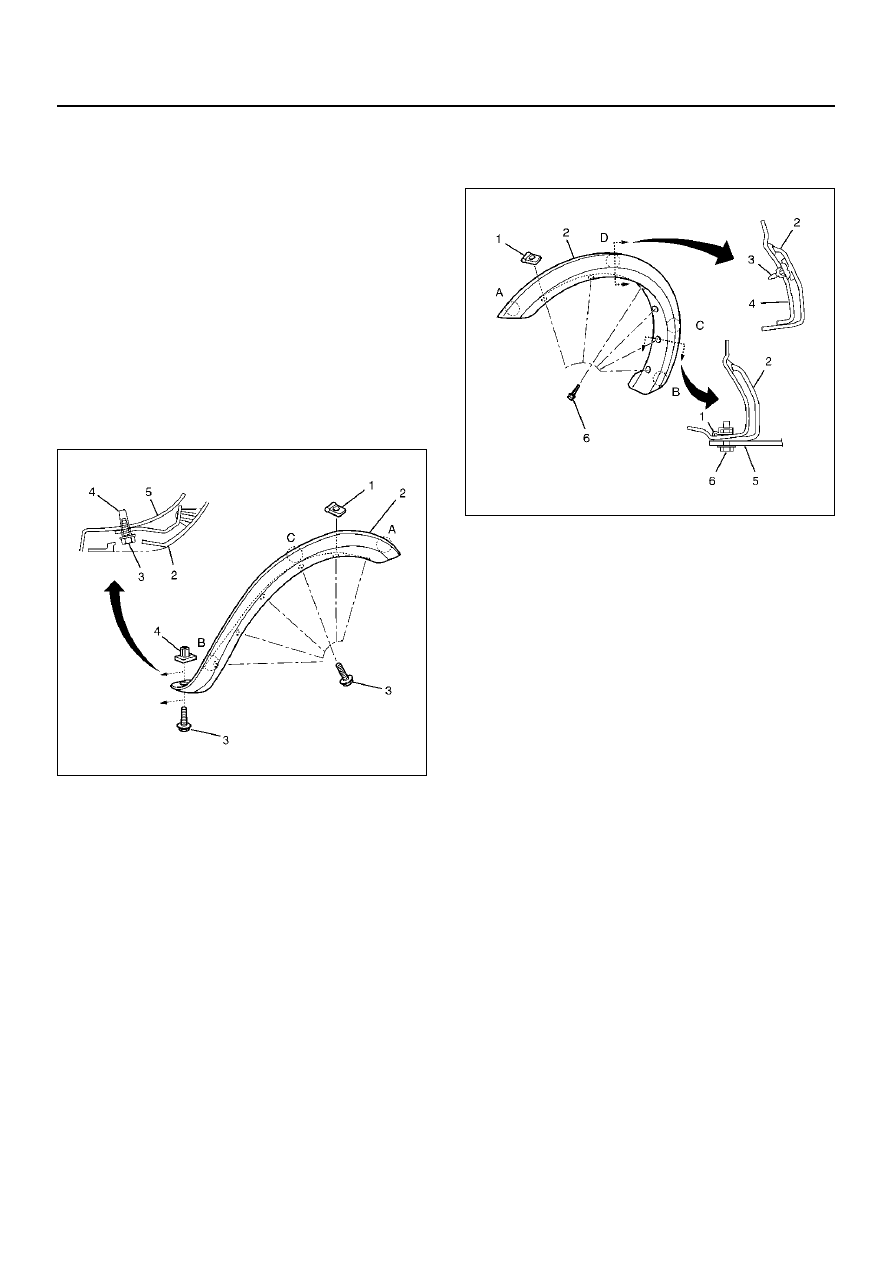

Installation

1. Install the rear wheel arch molding (2).

• Install the six nuts (1) and one screw grommet (4)

to the body panel (5).

• Put the three clips of the rear wheel arch molding

into the body panel in order of A, B and C.

• Install the seven fixing screws (3).

620RW016

2. Install the front wheel arch molding (2).

• Install the six nuts (1) to the body panel (4).

• Put the four clips (3) of the front wheel arch

molding into the body in order of A, B, C and D.

3. Install the six fixing screws (6).

(Three of six screws are fixed together with the front
mud flap.)

620RW015

4. Install the front mud flap.
